E-LUM

An aerodynamic road lighting luminaire designed to integrate perfectly into urban spaces. With its modular construction, upgrades and replacements of key components such as; power supply, light engine and LED modules, ensure the luminaire takes full advantage of technological improvements.

Available in two body sizes and offering 10 standard lumen packages, from 1,450 to 19,350 lumens, the AL62000 Series comes with six different optics to suit a wide variety of lighting scenarios.

Overview

  • Easily maintained
  • Durable die cast aluminium housing
  • Flexibility with vertical or horizontal spigot mounting
  • Multiple optics
  • -40˚C to +40˚C

Technical Features

  • Controls; Dali, 1-10V, RF or PLC (specify at enquiry)
  • Efficacy up to 112 lm/W
  • Integrated 5 level dimming module (optional)
  • Protection against overheating
  • Constant light output (optional)
  • Time-dependant luminous flux control
  • Power reduction; flexible luminous flux
  • IP66 and IK09 rated
  • Colour temperature 4000K as standard (options available)
  • CRI ≥70
  • Power supply 220Vac – 277Vac
  • Standard surge protection 4kV (10kV option available)
  • Solar options available in 26W & 56W

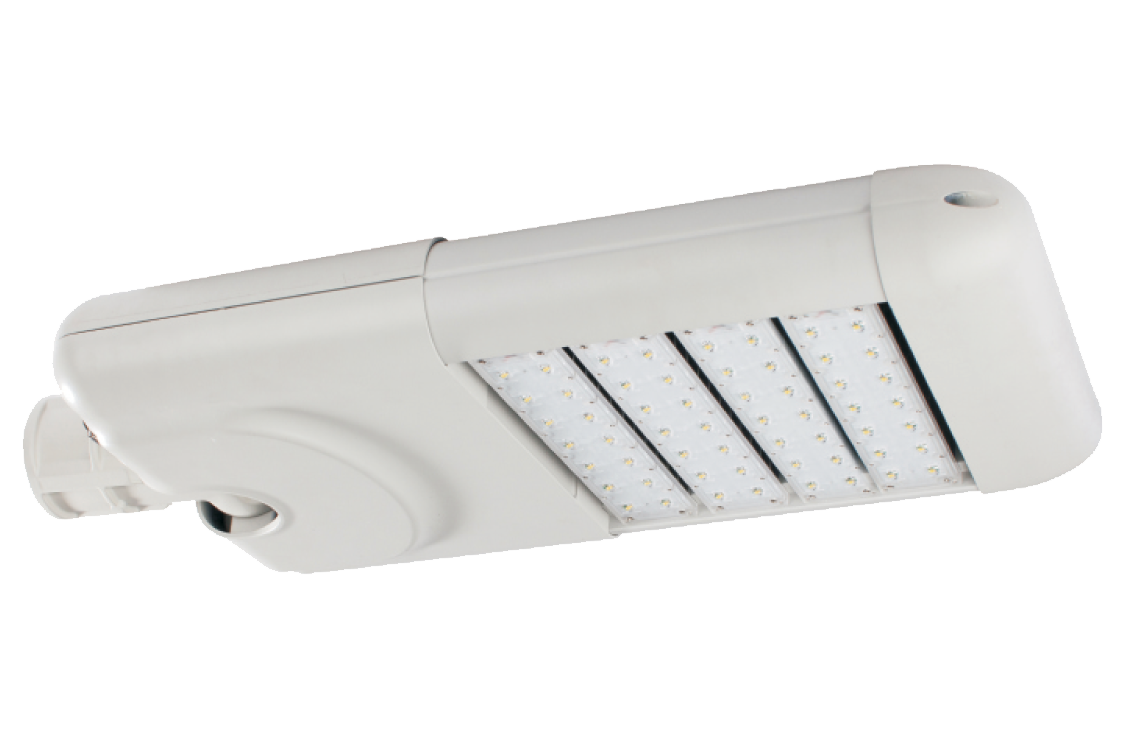

e lum image

Applications

  • Road
  • Open Area
  • Rail
  • Amenity

Colour

  • Grey

Dimensions

e-lum dimensions

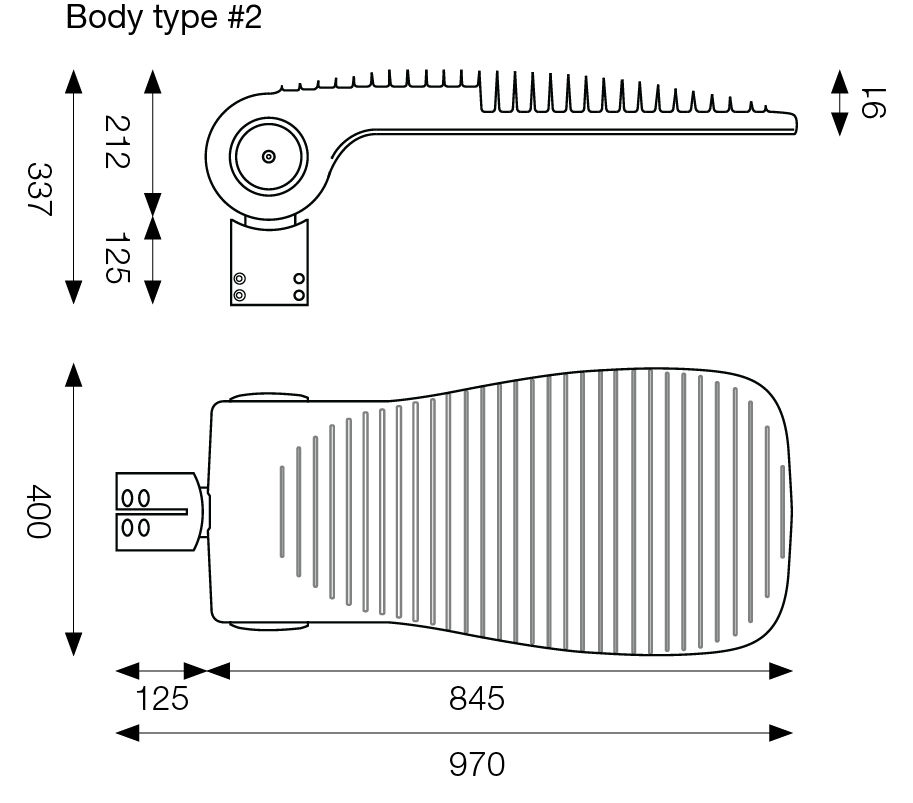

e-lum dimensions 2

Installation

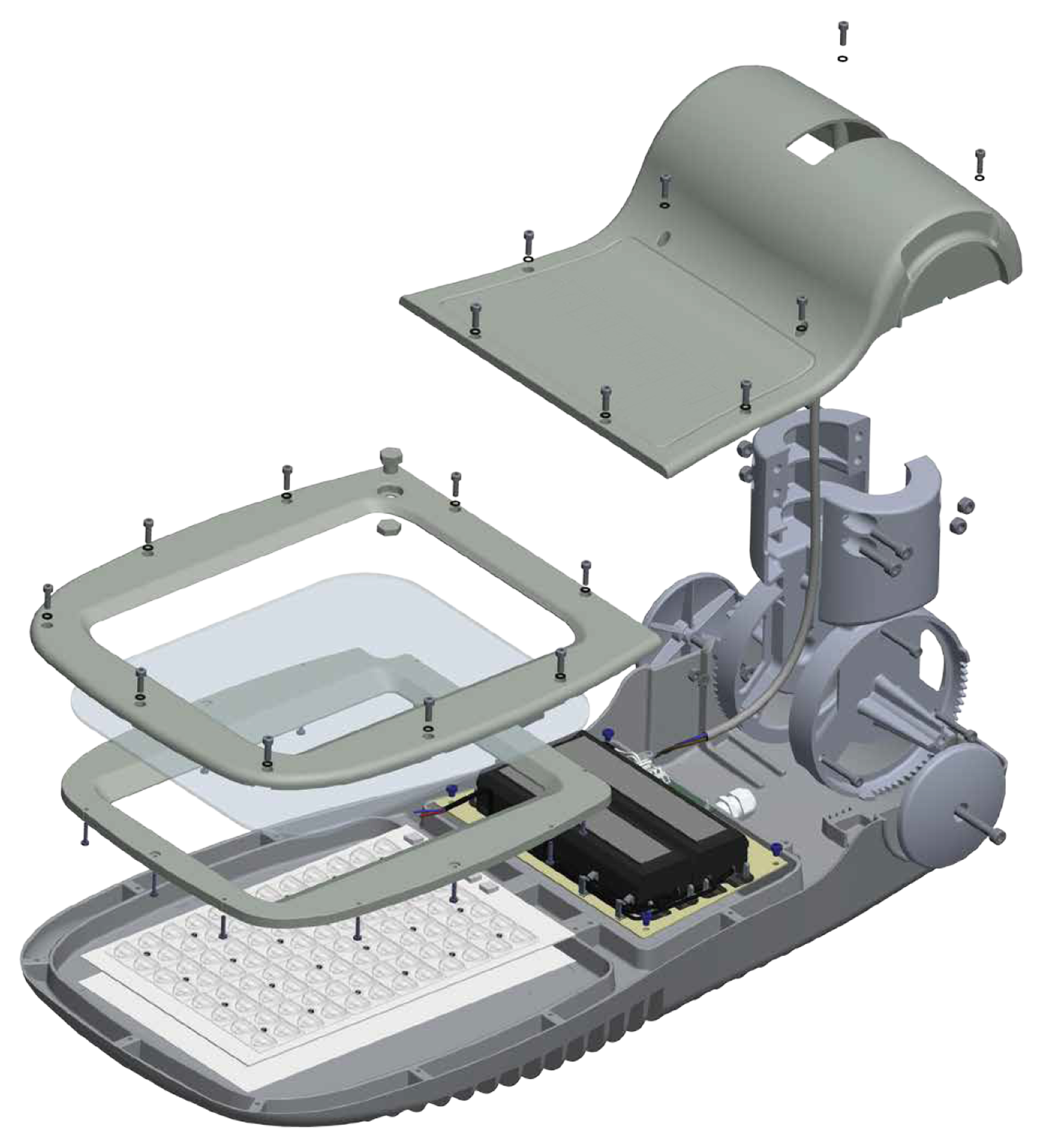

Exploded Diagram

The rotor enables both side and post top mounting of the luminaire on a 60mm diameter pole. Angular adjustments can be made between 0-90° in ± 5° increments. A security system within the rotor mechanism prevents unintentional tilting, thus preventing possible damage occuring during installation or maintenance of the light fitting.

To provide maximum security and robustness of installation, four screws are used to fix the light fitting to the pole.

Mounting pole: ø60 mm (adapter available for other dimensions)
Tilt: 0 – 90°, step ± 5°

Optics

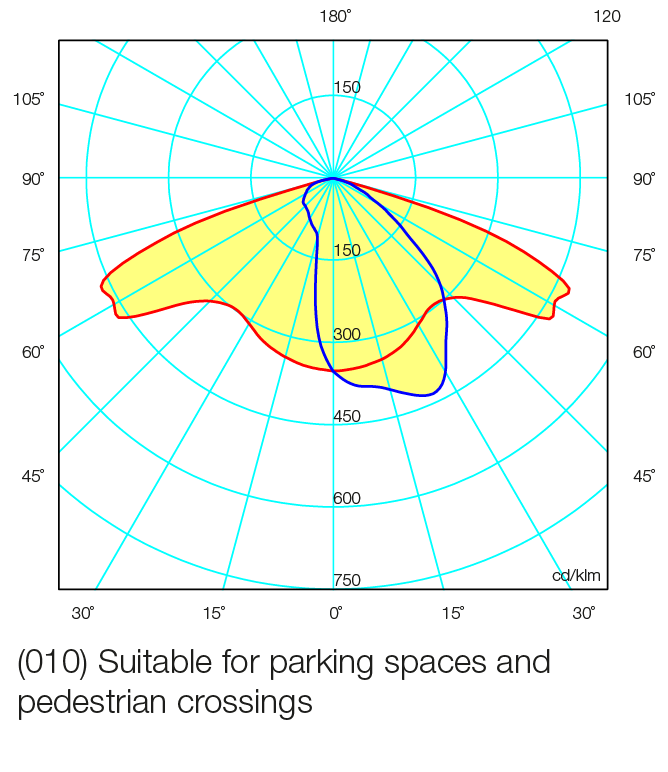

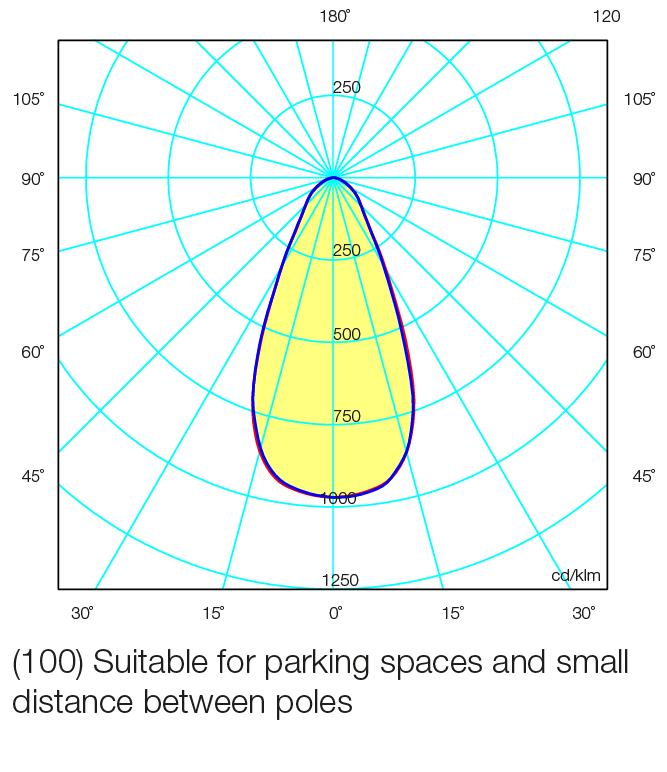

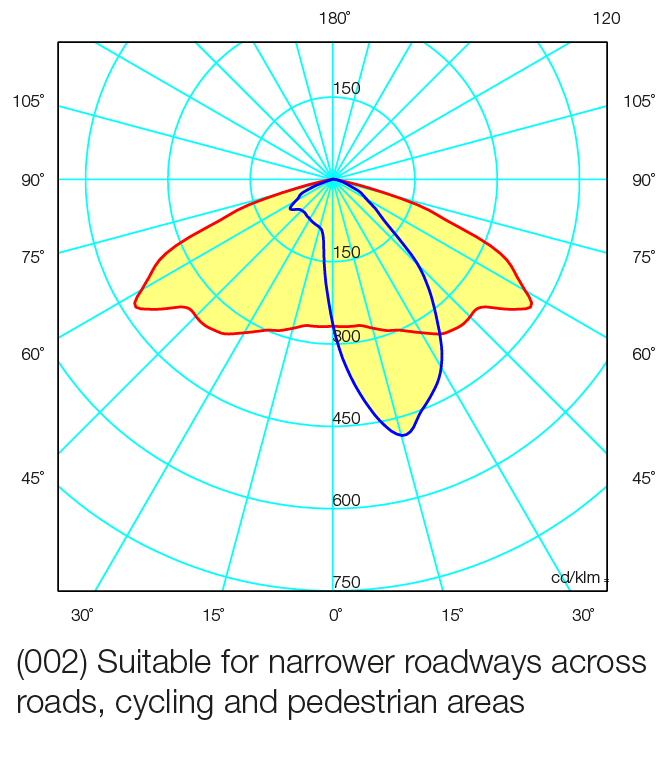

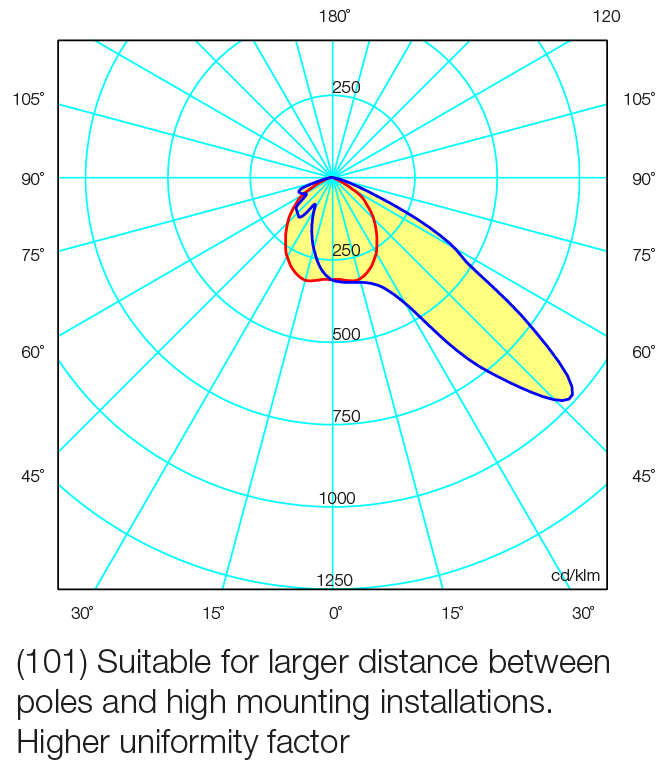

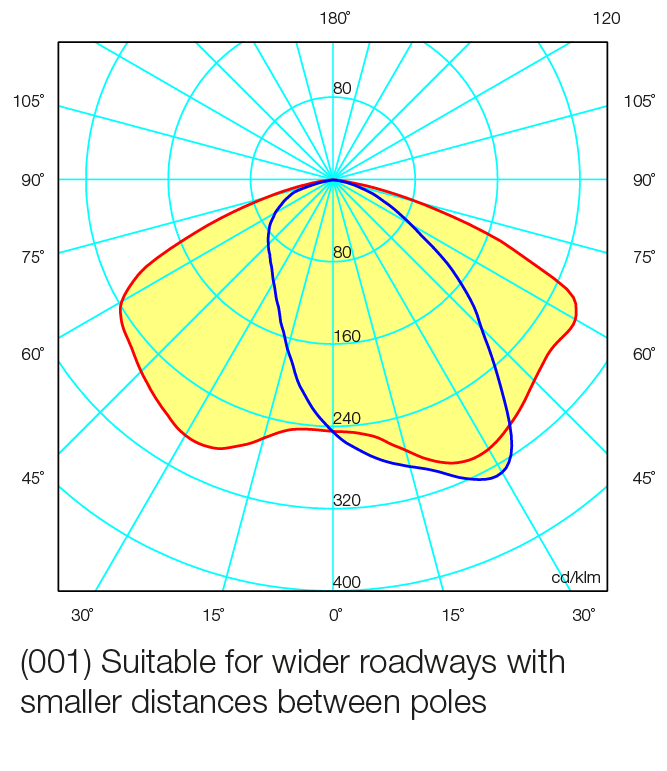

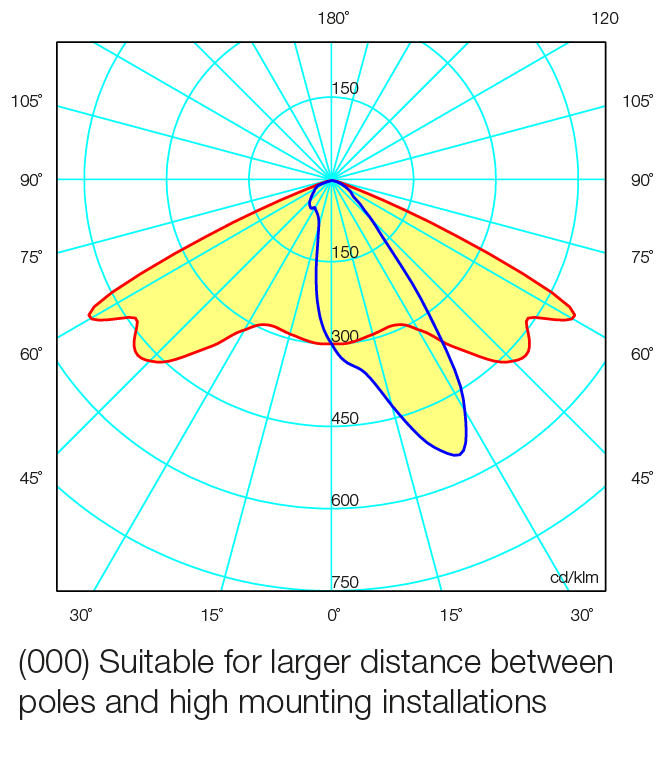

E-Lum Photometry-01
E-Lum Photometry-04

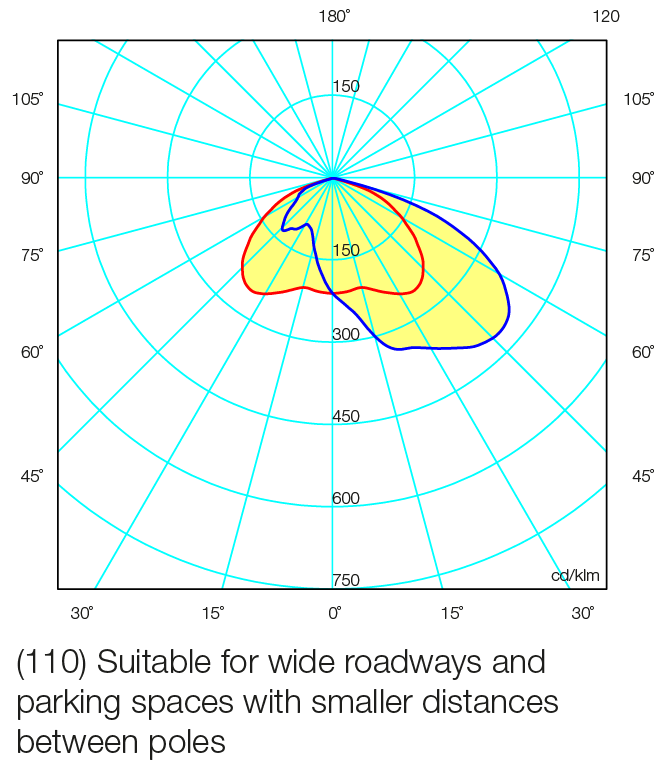

E-Lum Photometry-07
E-Lum Photometry-02
E-Lum Photometry-05
E-Lum Photometry-03
E-Lum Photometry-06

Product Variants

Luminaire code Luminaire Wattage (W) Luminaire – Lumen output (lm) Number of LEDs Body type Light distribution type Weight (kg) Wind area (m²)
AL62001 15 1450 8 1 (000) Suitable for larger distance between poles and high mounting installations 7 0.0552
30 2850 12 1 7 0.0552
40 3800 24 1 7 0.0552
60 6000 24 1 7 0.0552
80 8400 24 1 7 0.0552
80 8490 48 2 15 0.0862
95 10500 80 2 15 0.0862
120 11450 48 2 15 0.0862
140 14900 80 2 15 0.0862
190 19350 96 2 15 0.0862
AL62002 15 1450 8 1 (001) Suitable for wider roadways with smaller distances between poles 7 0.0552
30 2850 12 1 7 0.0552
40 3800 24 1 7 0.0552
60 6000 24 1 7 0.0552
80 8400 24 1 7 0.0552
80 8490 48 2 15 0.0862
95 10500 80 2 15 0.0862
120 11450 48 2 15 0.0862
140 14900 80 2 15 0.0862
190 19350 96 2 15 0.0862
AL62003 15 1450 8 1 (002) Suitable for narrower roadways across roads, cycling and pedestrian areas 7 0.0552
30 2850 12 1 7 0.0552
40 3800 24 1 7 0.0552
60 6000 24 1 7 0.0552
80 8400 24 1 7 0.0552
80 8490 48 2 15 0.0862
95 10500 80 2 15 0.0862
120 11450 48 2 15 0.0862
140 14900 80 2 15 0.0862
190 19350 96 2 15 0.0862
AL62004 15 1450 8 1 (100) Suitable for parking spaces and pedestrian crossings 7 0.0552
30 2850 12 1 7 0.0552
40 3800 24 1 7 0.0552
60 6000 24 1 7 0.0552
80 8400 24 1 7 0.0552
80 8490 48 2 15 0.0862
95 10500 80 2 15 0.0862
120 11450 48 2 15 0.0862
140 14900 80 2 15 0.0862
190 19350 96 2 15 0.0862
AL62005 15 1450 8 1 (101) Suitable for parking spaces and small distance between poles 7 0.0552
30 2850 12 1 7 0.0552
40 3800 24 1 7 0.0552
60 6000 24 1 7 0.0552
80 8400 24 1 7 0.0552
80 8490 48 2 15 0.0862
95 10500 80 2 15 0.0862
120 11450 48 2 15 0.0862
140 14900 80 2 15 0.0862
190 19350 96 2 15 0.0862
AL62006 15 1450 8 1 (010) Suitable for larger distance between poles and high mounting installations. Higher uniformity factor 7 0.0552
30 2850 12 1 7 0.0552
40 3800 24 1 7 0.0552
60 6000 24 1 7 0.0552
80 8400 24 1 7 0.0552
80 8490 48 2 15 0.0862
95 10500 80 2 15 0.0862
120 11450 48 2 15 0.0862
140 14900 80 2 15 0.0862
190 19350 96 2 15 0.0862
AL62007 15 1450 8 1 (110) Suitable for wide roadways and parking spaces with smaller distances between poles 7 0.0552
30 2850 12 1 7 0.0552
40 3800 24 1 7 0.0552
60 6000 24 1 7 0.0552
80 8400 24 1 7 0.0552
80 8490 48 2 15 0.0862
95 10500 80 2 15 0.0862
120 11450 48 2 15 0.0862
140 14900 80 2 15 0.0862
190 19350 96 2 15 0.0862
