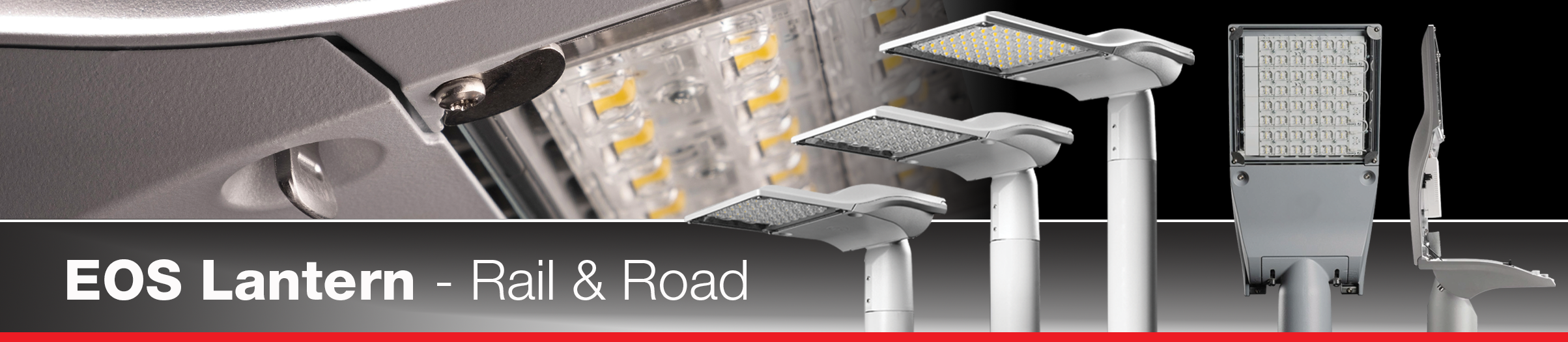

Introducing the EOS Rail & Road Lantern
The EOS lantern offers an LED lighting solution suitable for both rail and road applications. It has a wide range of wattages, unit sizes, optics, and fitting options to choose from.
With a wide range of lumen outputs and three lantern body sizes, the EOS provides a lighting solution for virtually any road or rail scheme. The EOS is IP66 ingress protected with a durable outer coating tested for use in harsh environments commonly found in the rail and highways industry.
The optics are protected by a tempered glass covered, sealed unit, and are separate from the electrics to prolong the product life-cycle.
Key Features:

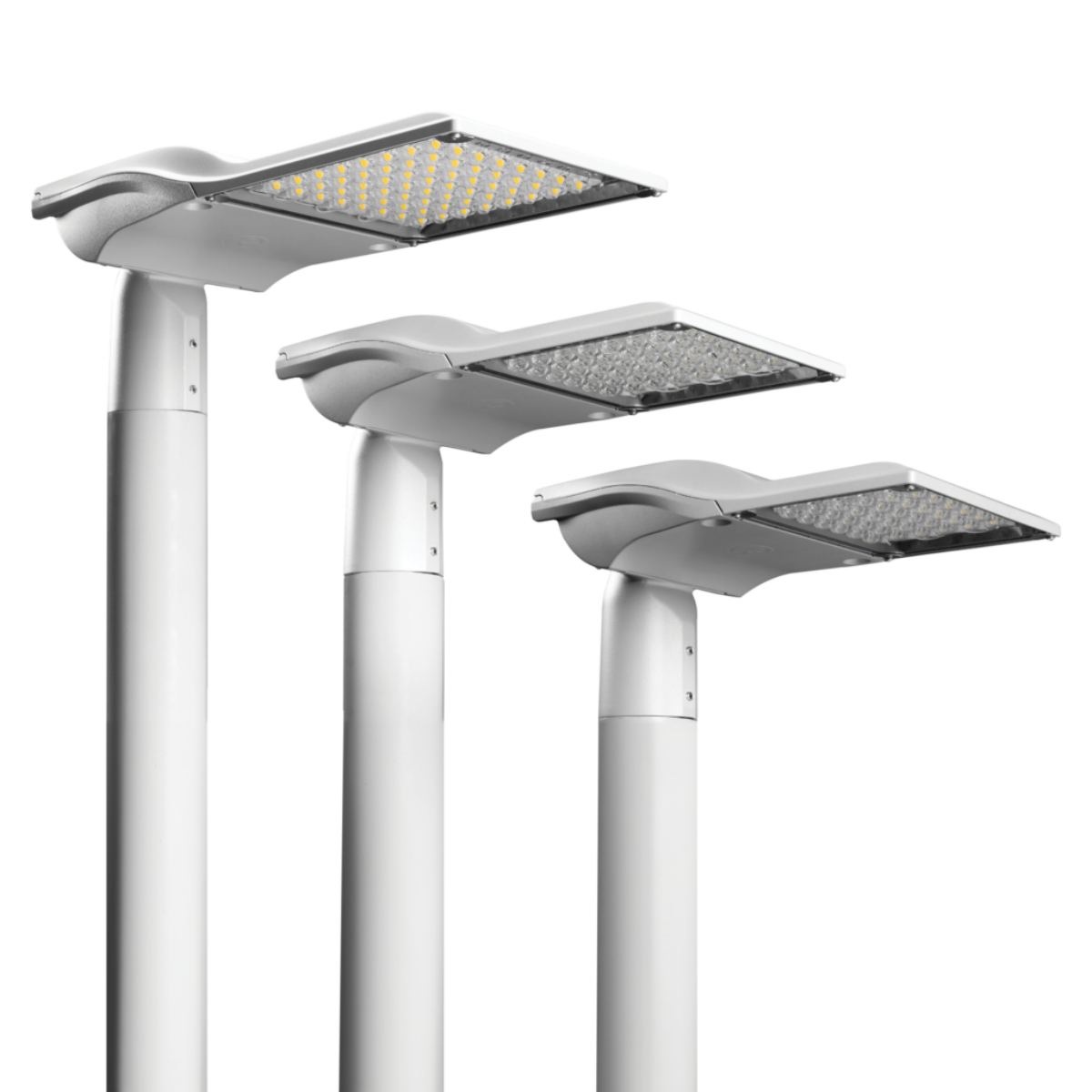

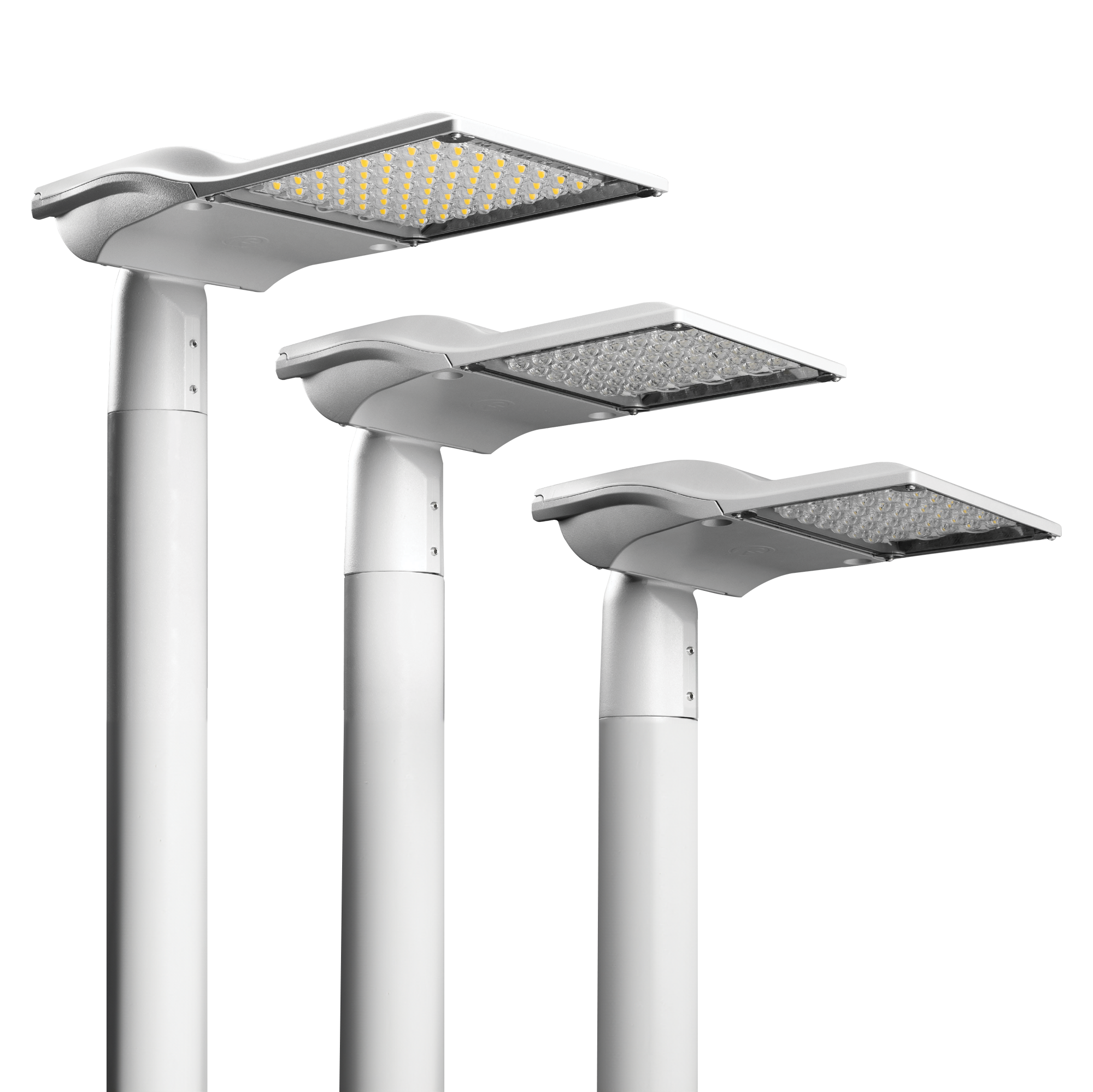

• Three lantern body sizes
• Wattage options ranging from 7 to 171W
• Six optic range
• Lumen range 1221lm – 25802lm (Net flux)
• 4000K colour temperature as standard
• 3000K option available
• Electrical options: Class I & Class II
• Single or double Zhaga socket options
• Separate electrics compartment
• Exceptional heat dissipation
• High-grade powder-coated finish
• Suitable for use in harsh environments
• IP66 Ingress Protection
• Column top or side entry installation
• Ø60mm standard spigot size (Adaptable)
• Suitable for retro-fitting
• Tempered glass optics protection

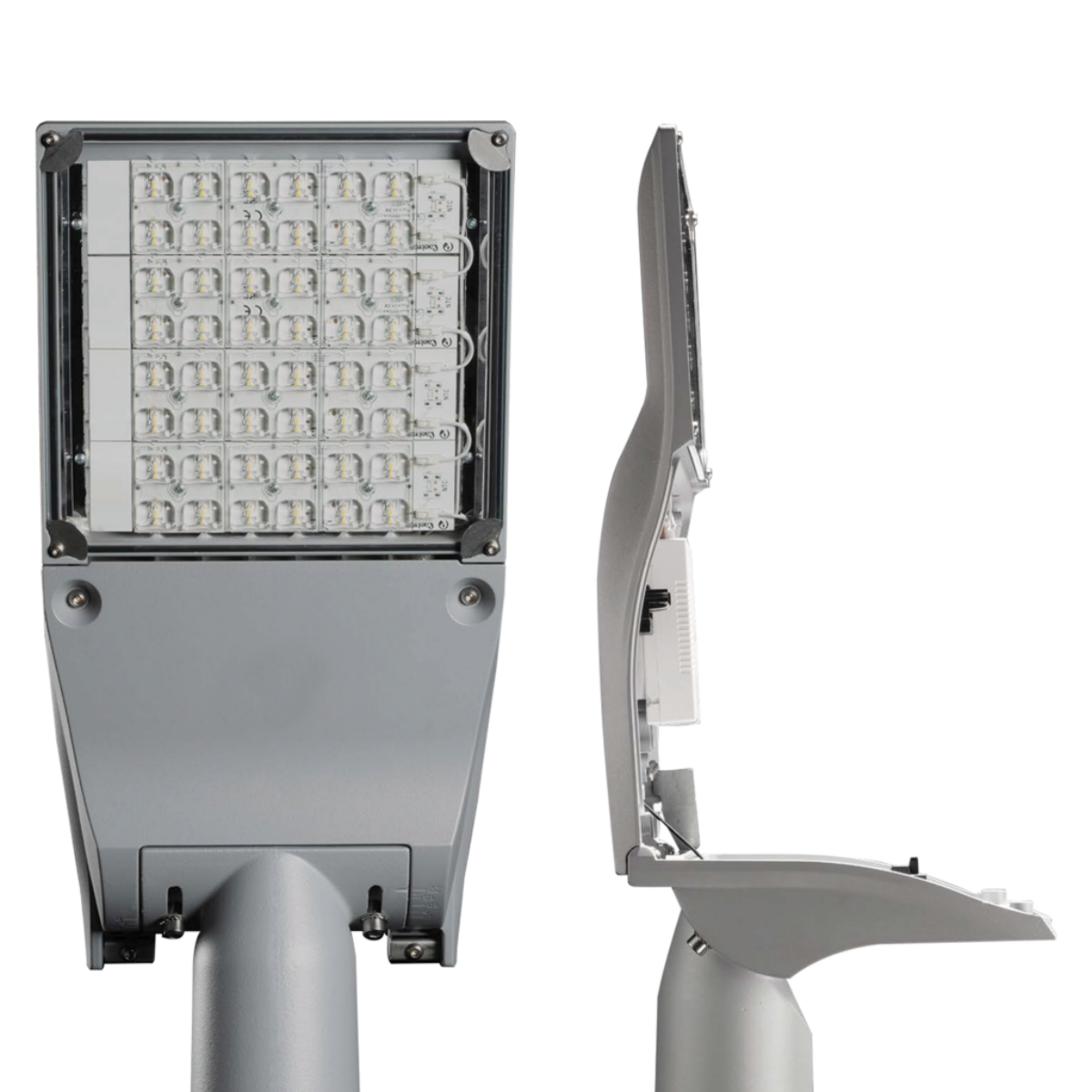

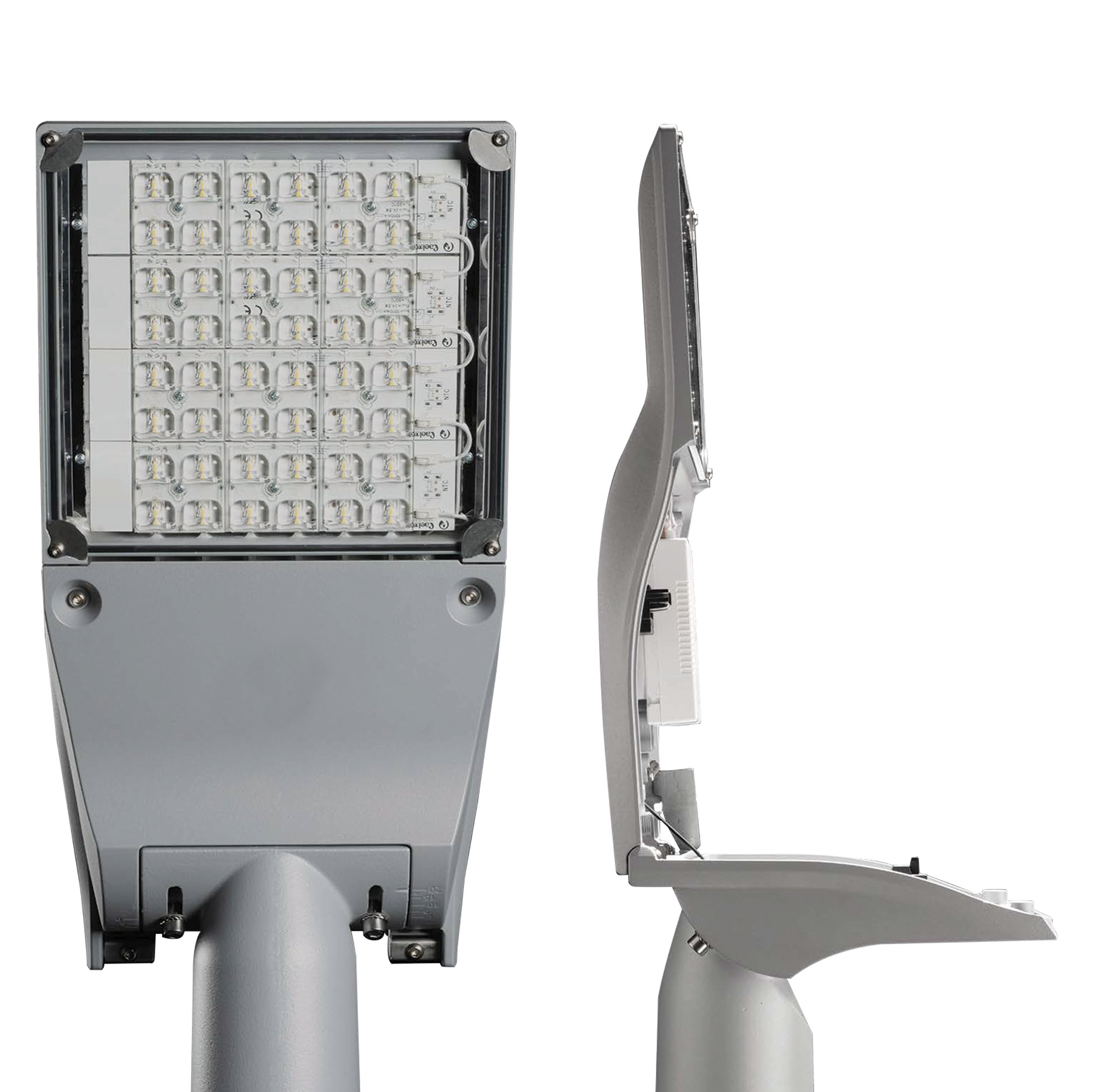

• Latched release electrical compartment
• Tool-less entry to electrics
• Quick & efficient maintenance

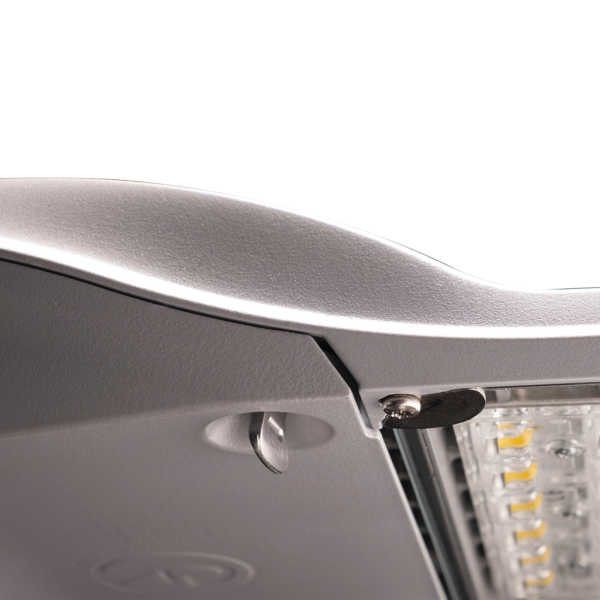

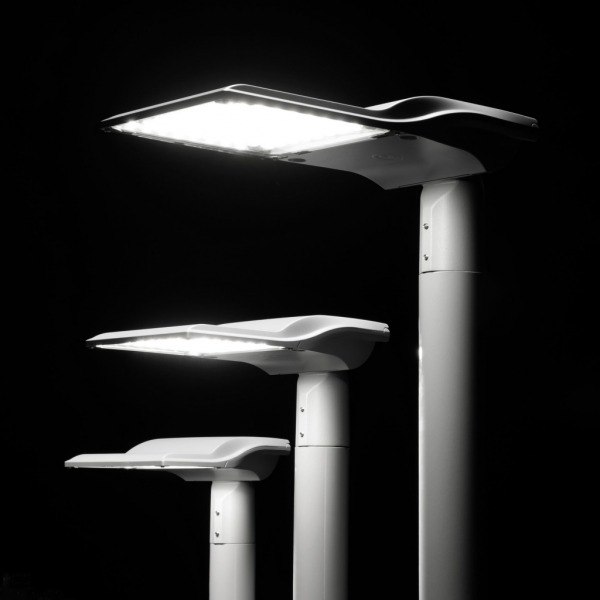

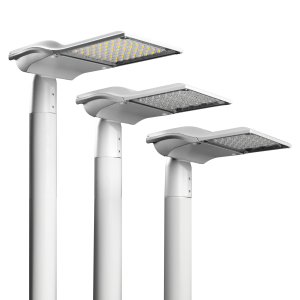

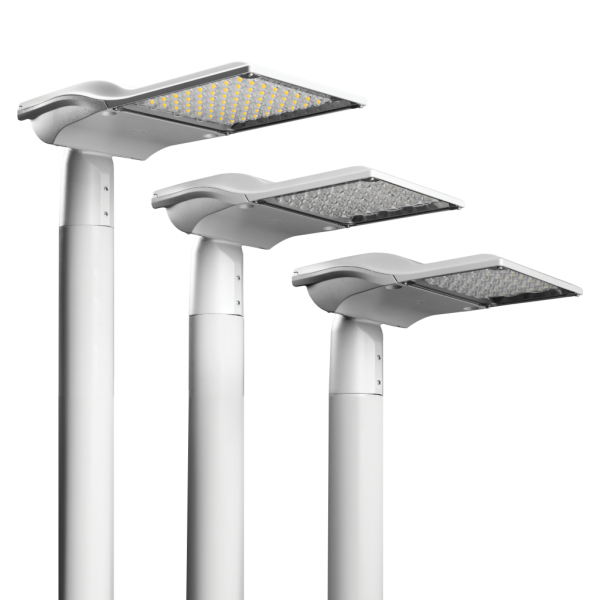

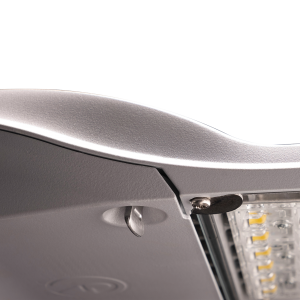

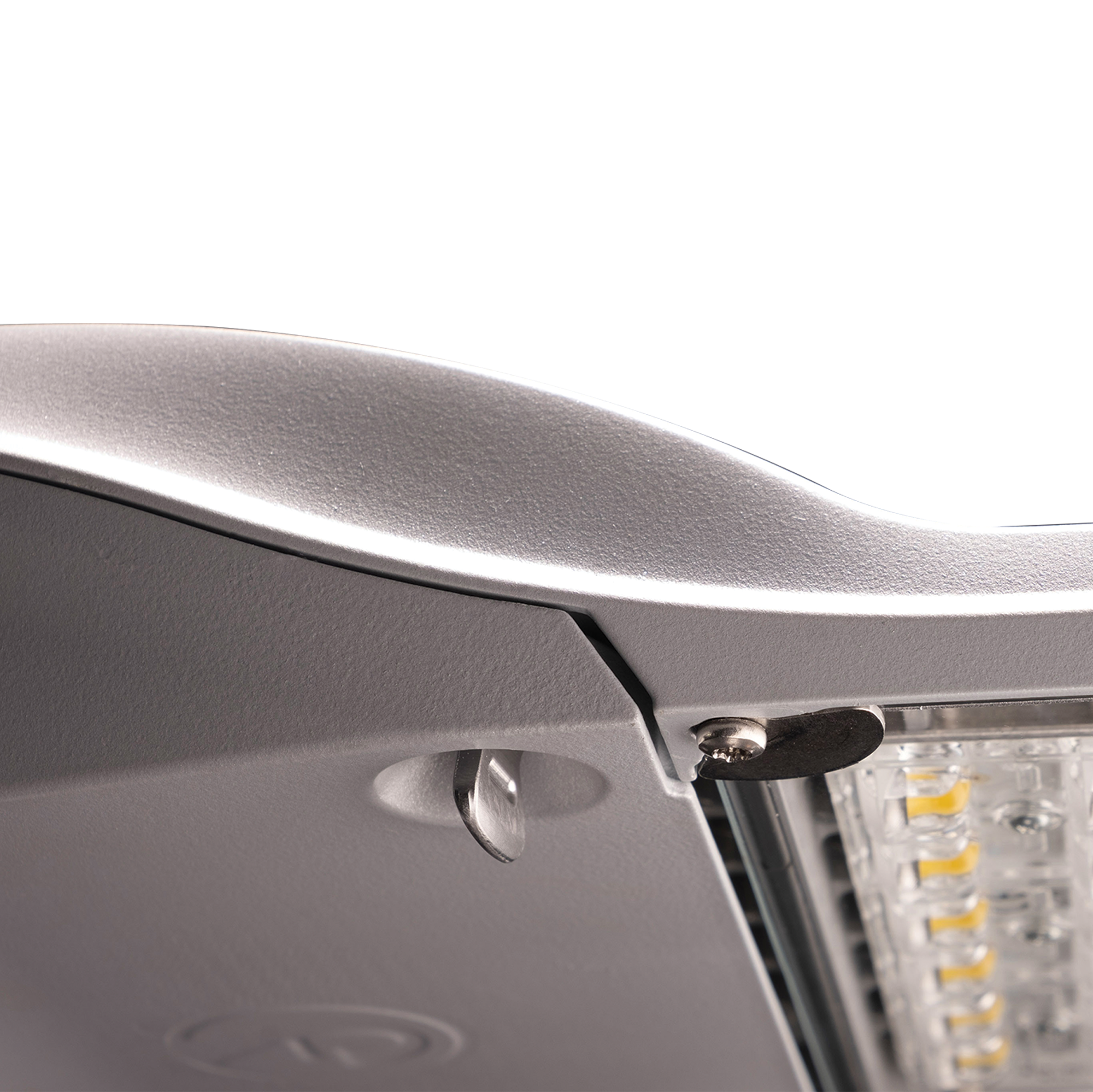

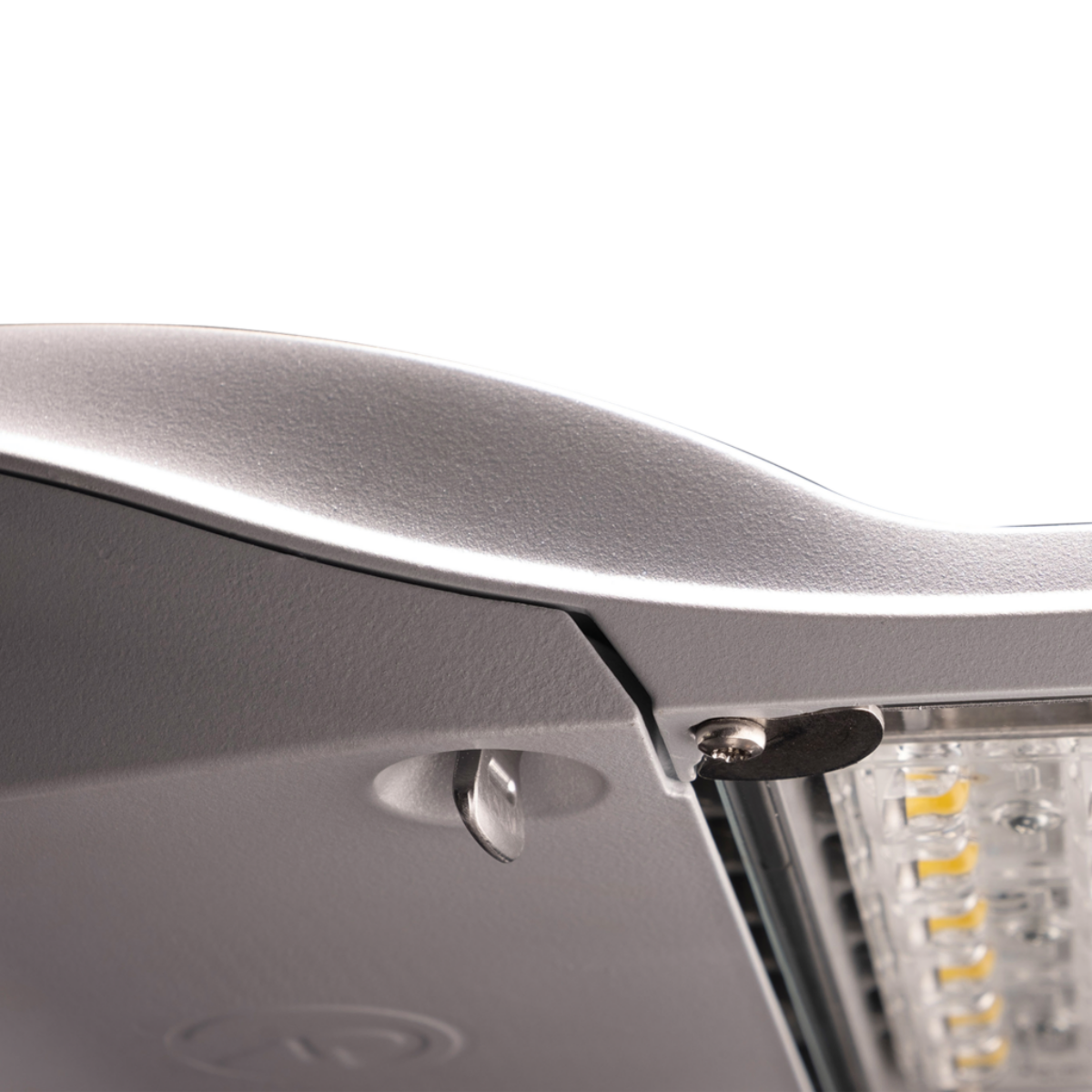

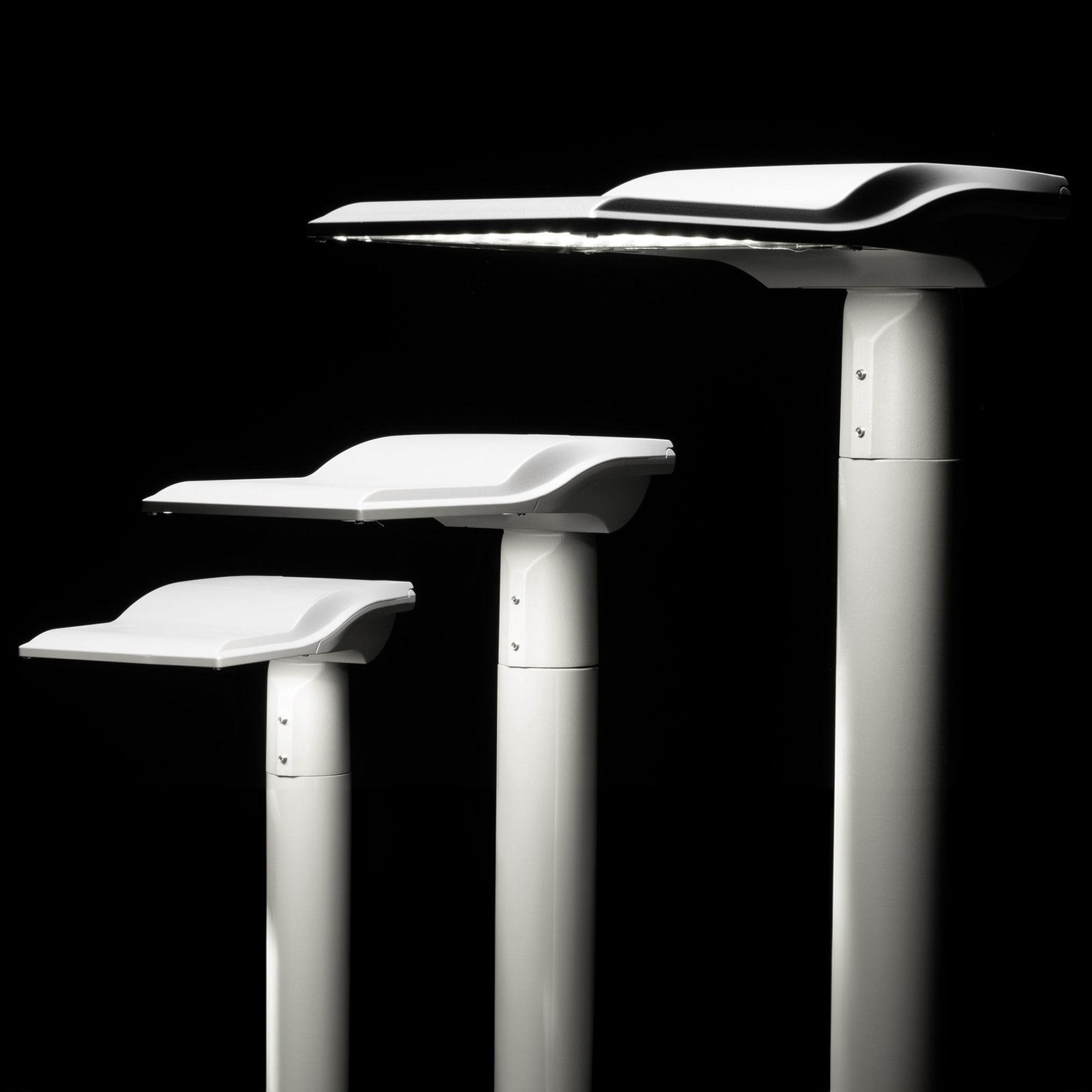

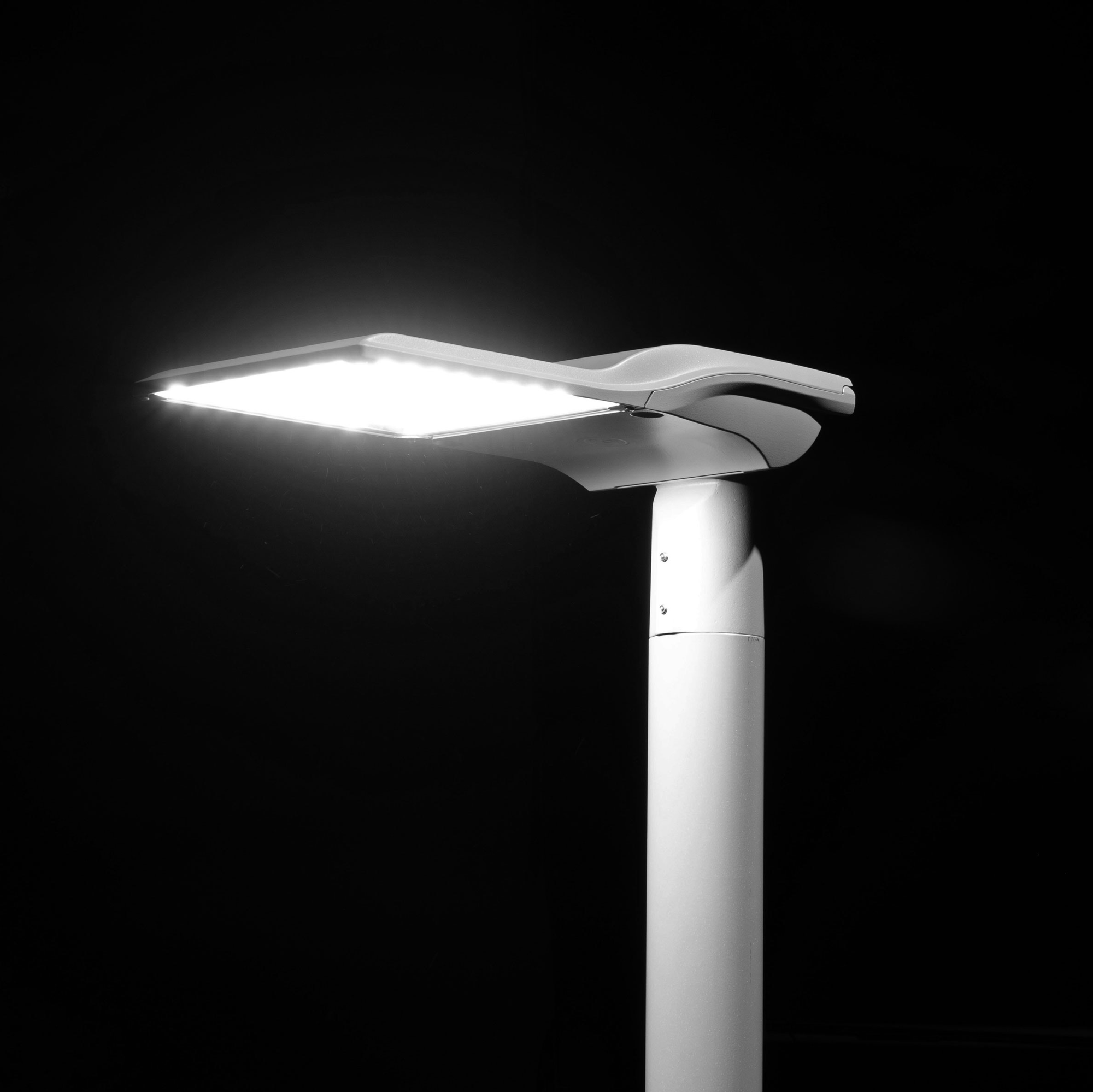

Image Gallery:
Typical Applications
Railway Platforms – Railway Stations – Street Lights – Car Parks – Retail Parks – Access Roads

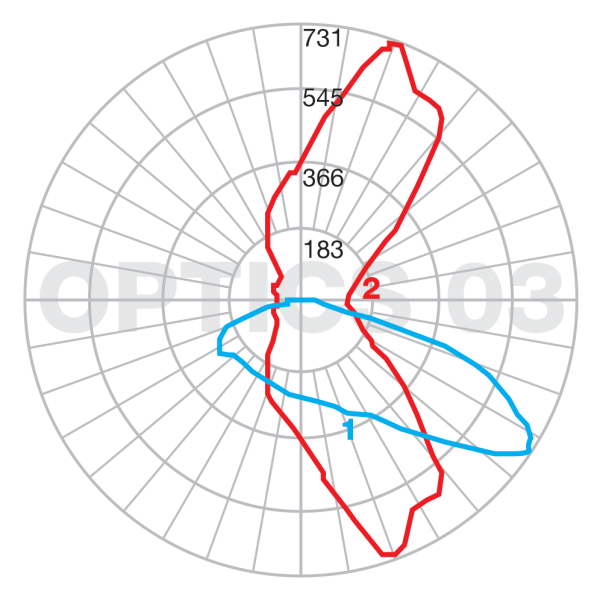

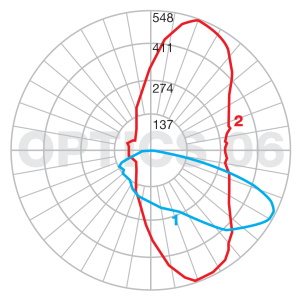

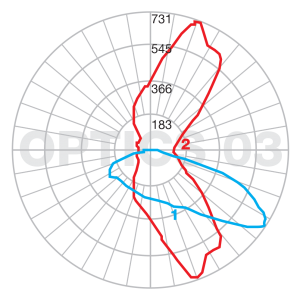

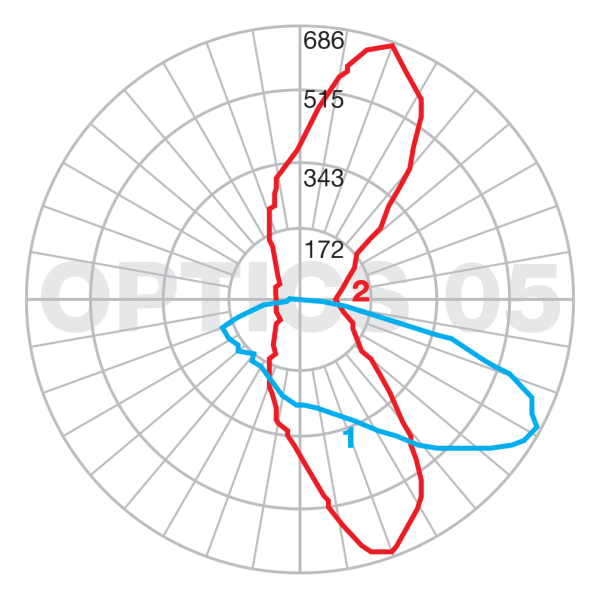

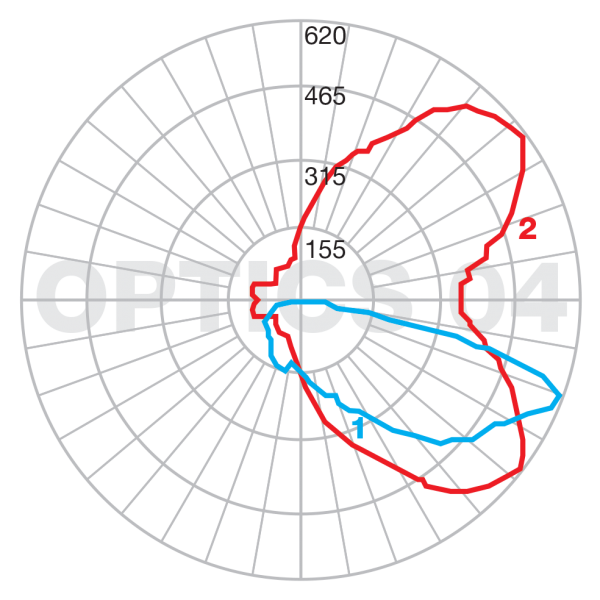

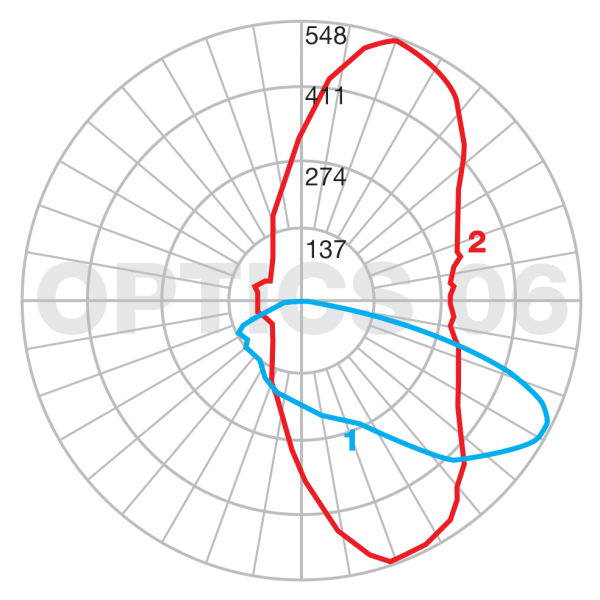

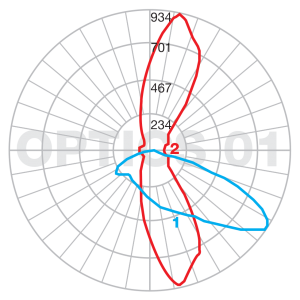

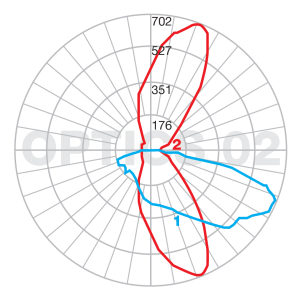

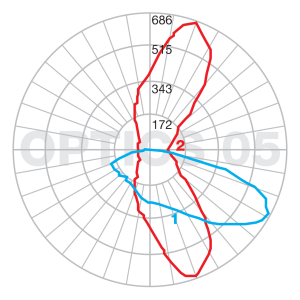

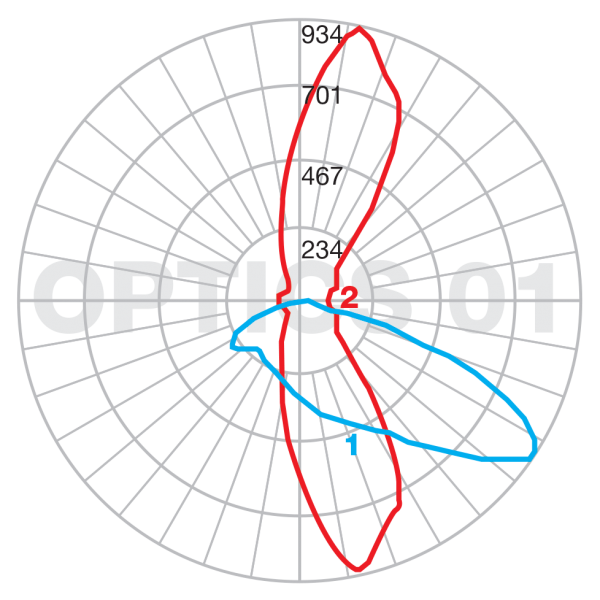

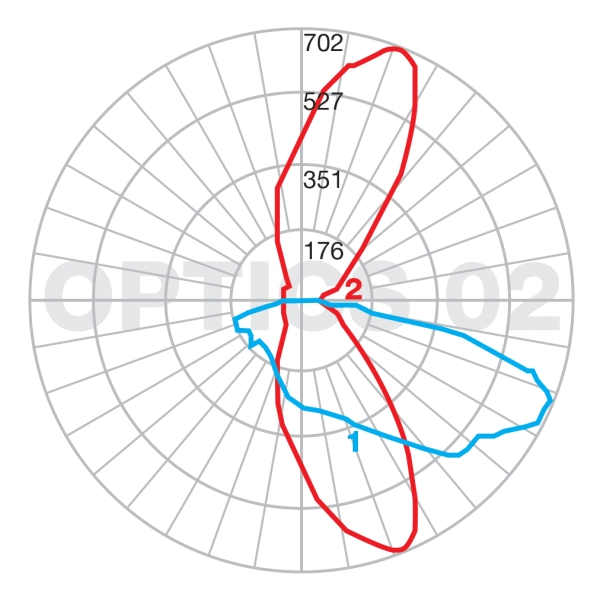

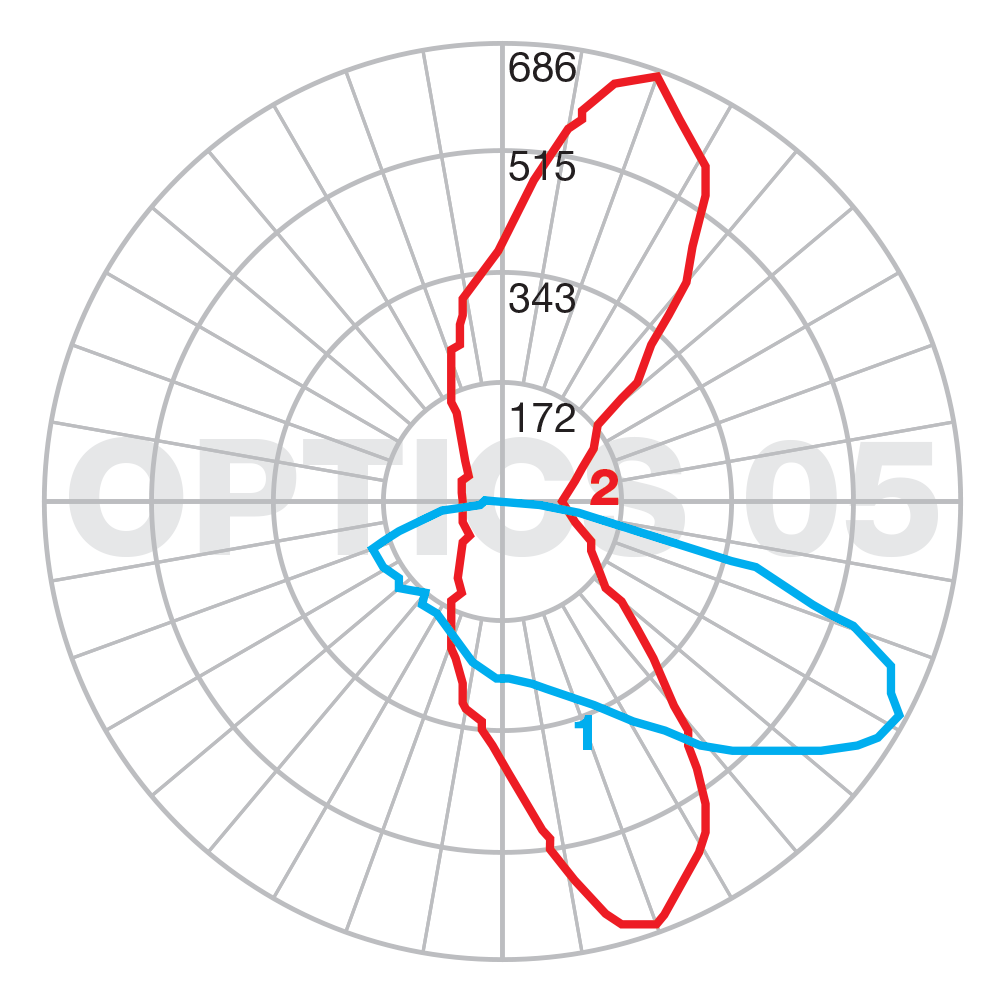

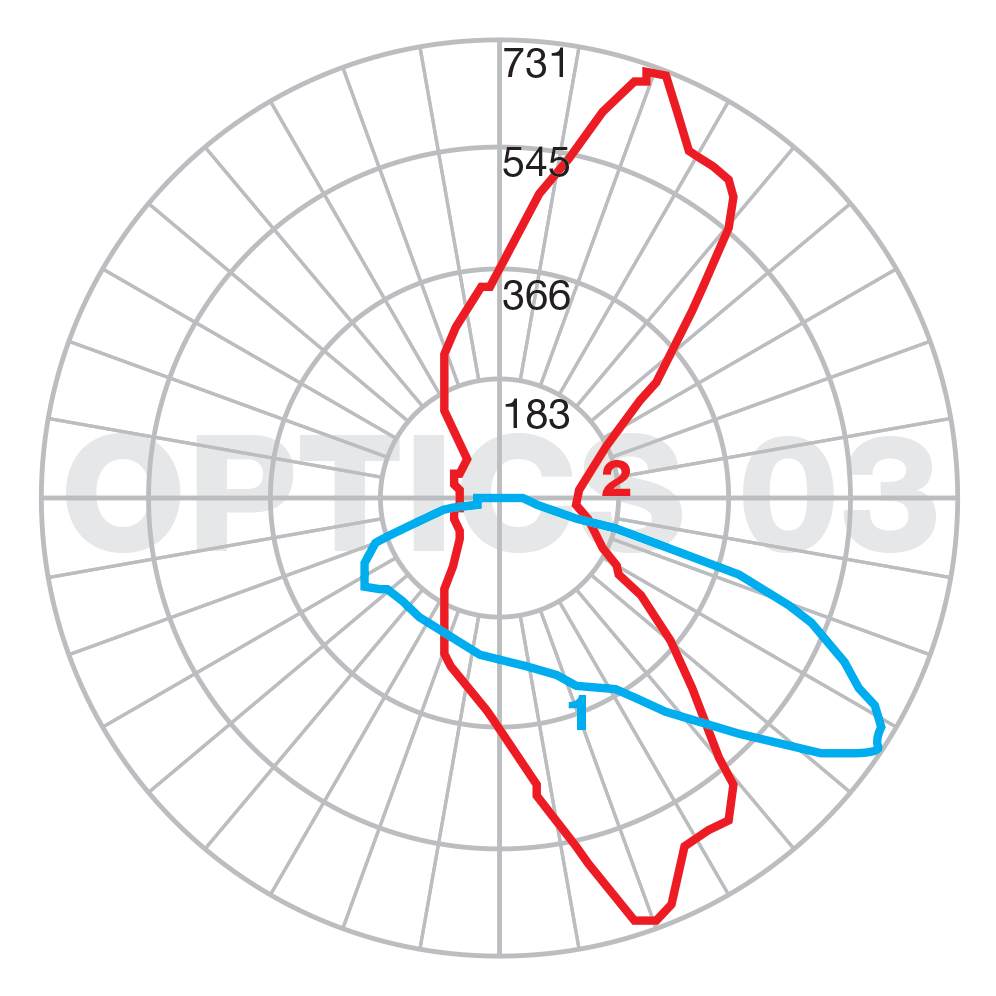

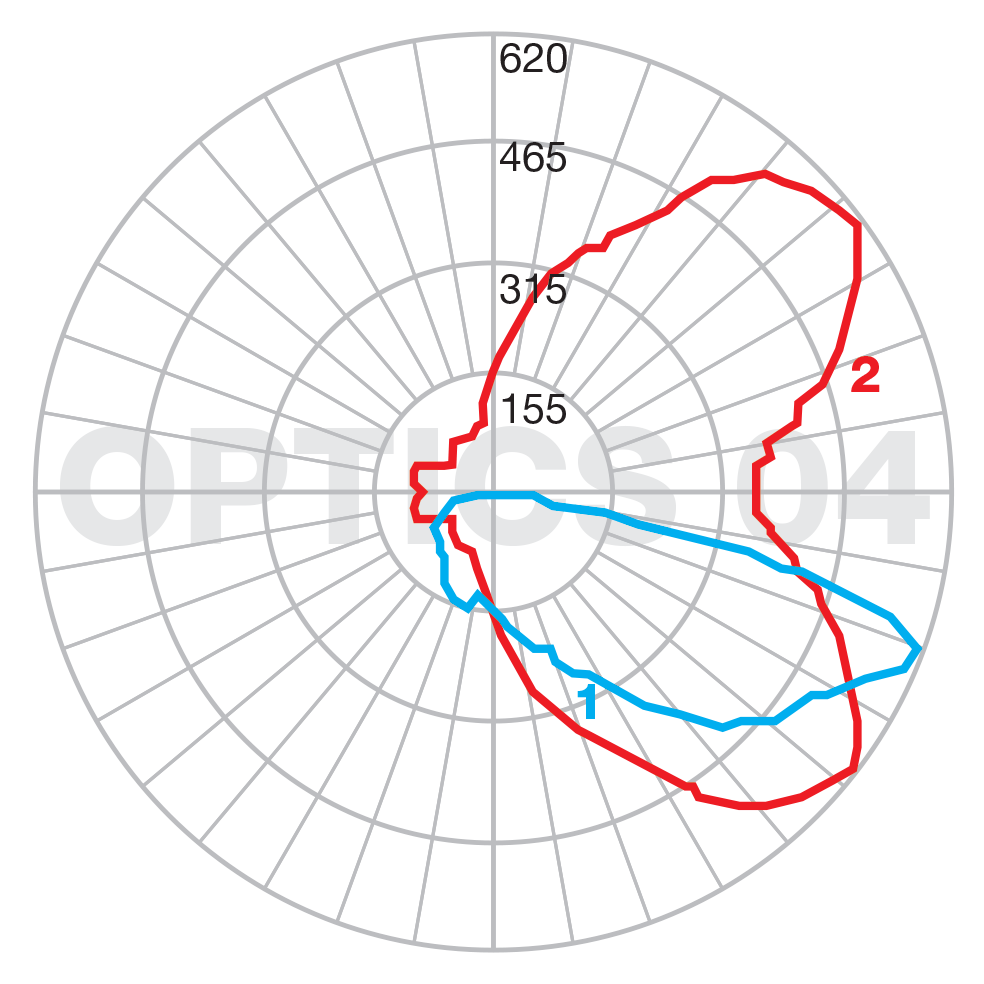

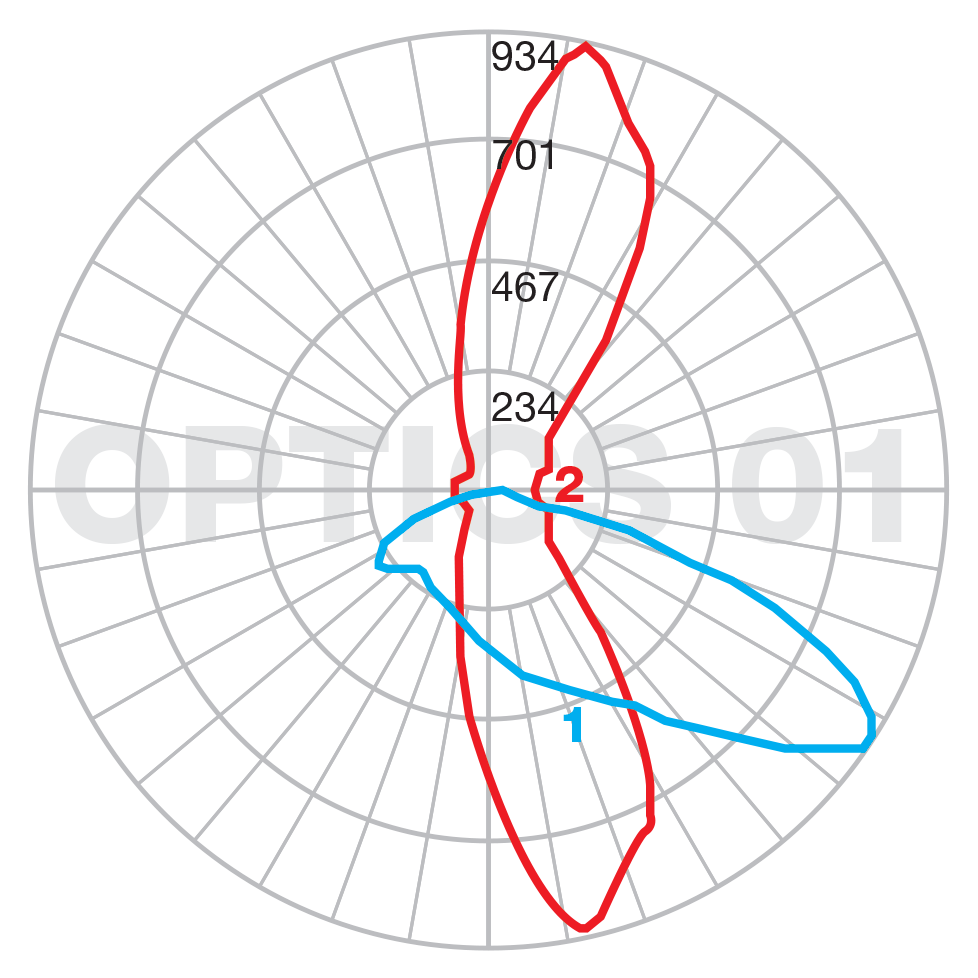

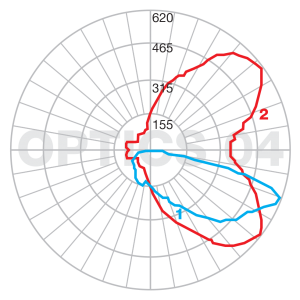

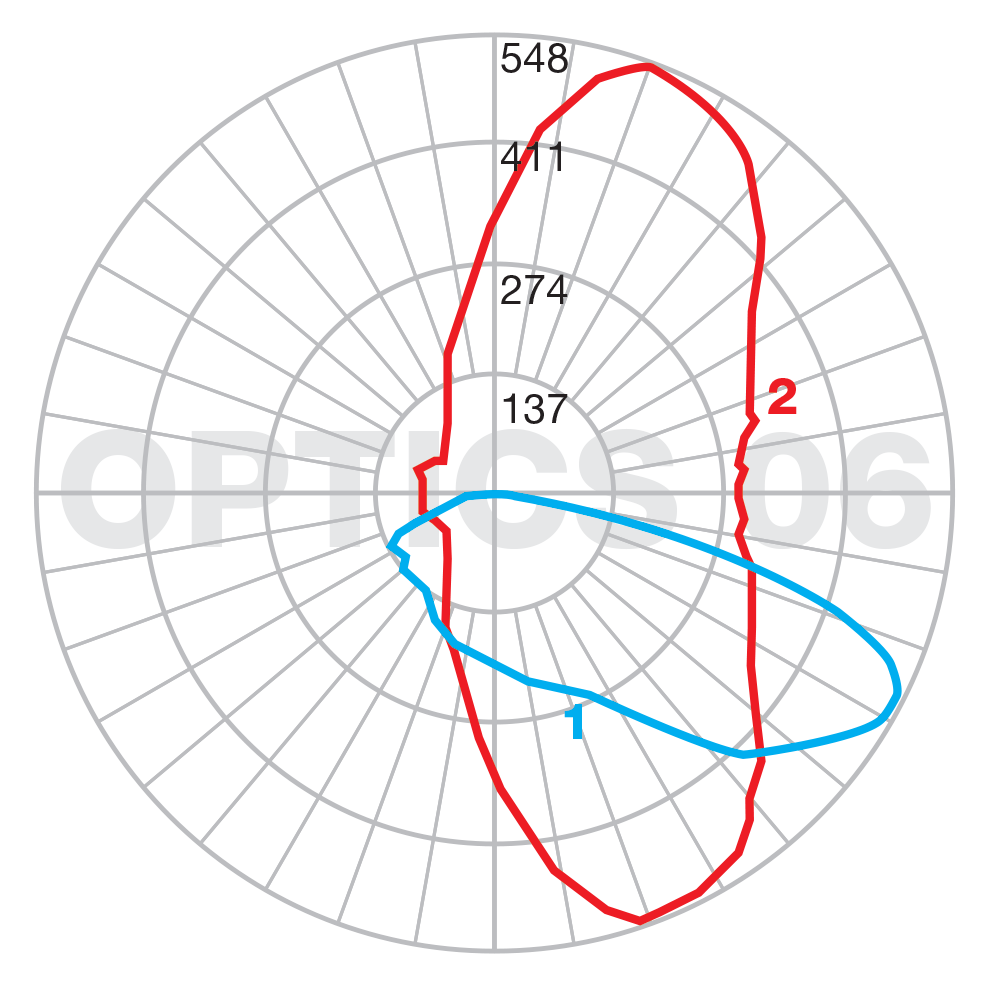

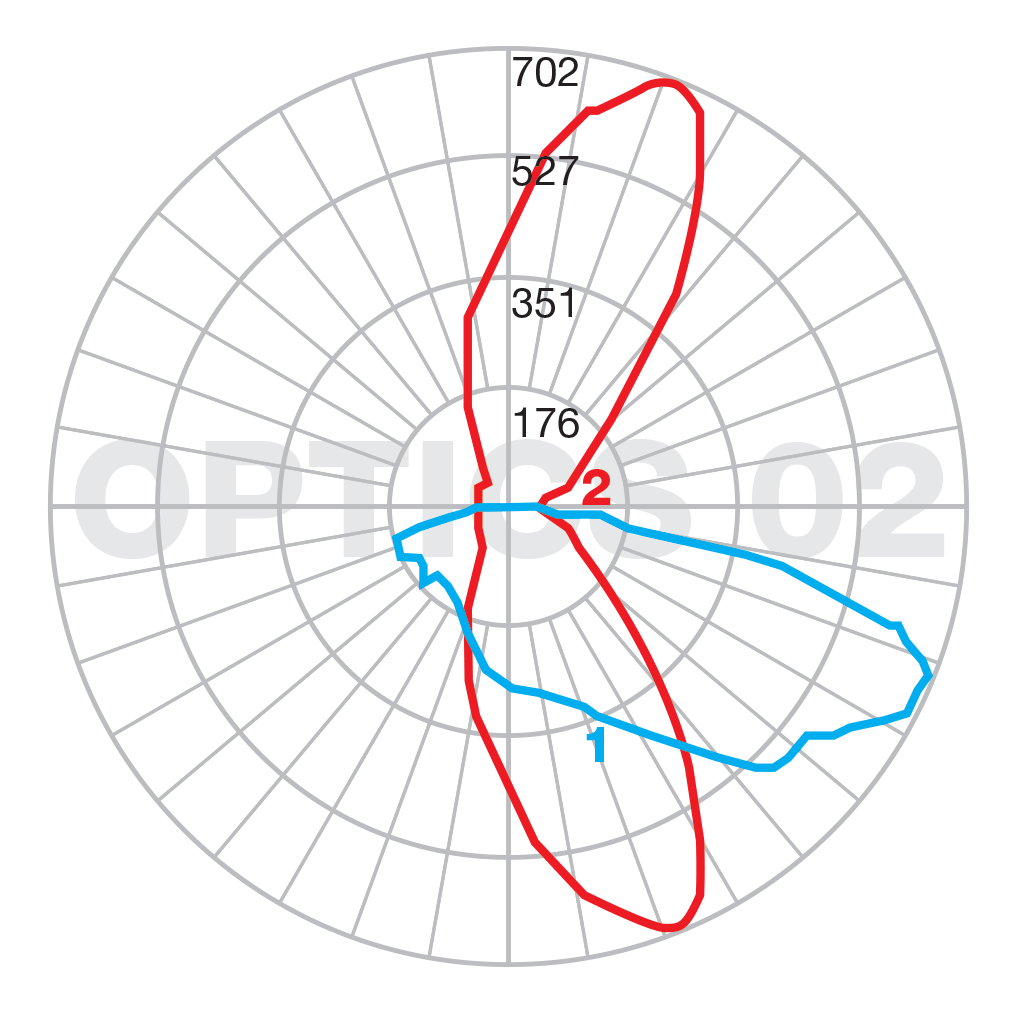

Photometry
