GRP Composite Columnsprod

3-10M GRP Columns

Manufactured in glass-fibre reinforced polyester (GRP)

A safe, non-conductive alternative to concrete and steel

Our Glass-fibre Reinforced Polyester (GRP) column range can be used in numerous ways, from use in public lighting systems, to telecommunications, to carrying low and medium voltage power lines. These columns suit a variety of sectors, providing a passively safe, non-conductive alternative to concrete and steel.

Our GG, GS and GT ranges of GRP columns cater for heights of 3-10 metres. They can be installed with a flange plate option, or root mounted depending on ground conditions or preference

GRP column benefits

  • Maintenance free, columns do not rust and are resistant to atmospheric agents
  • Non-conductive properties remove any requirement for electrical insulation
  • Four times lighter than steel, ideal for complex installations
  • Strong physical properties make GRP an excellent substitute for steel
  • Columns are constructed in their chosen colour, scratches or damage will not compromise the aesthetics

GRP does not conduct electricity, it is an insulator. As our columns are constructed entirely from GRP, they are a class 2 product. Being Class 2, our columns require no electrical earthing connection, therefore affording savings on installation. There is no risk of electrocution from touching the column, making it an ideal solution for low / medium voltage areas.

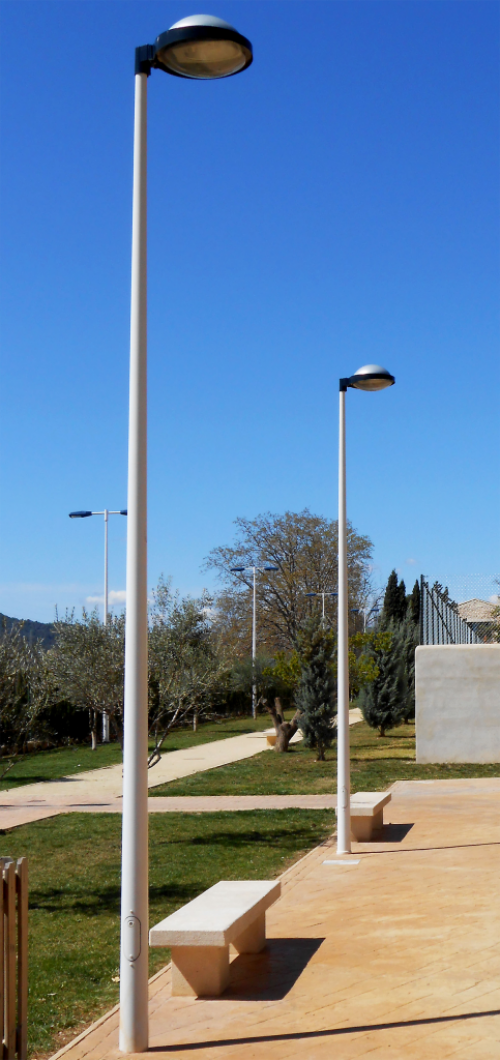

GRP column 1

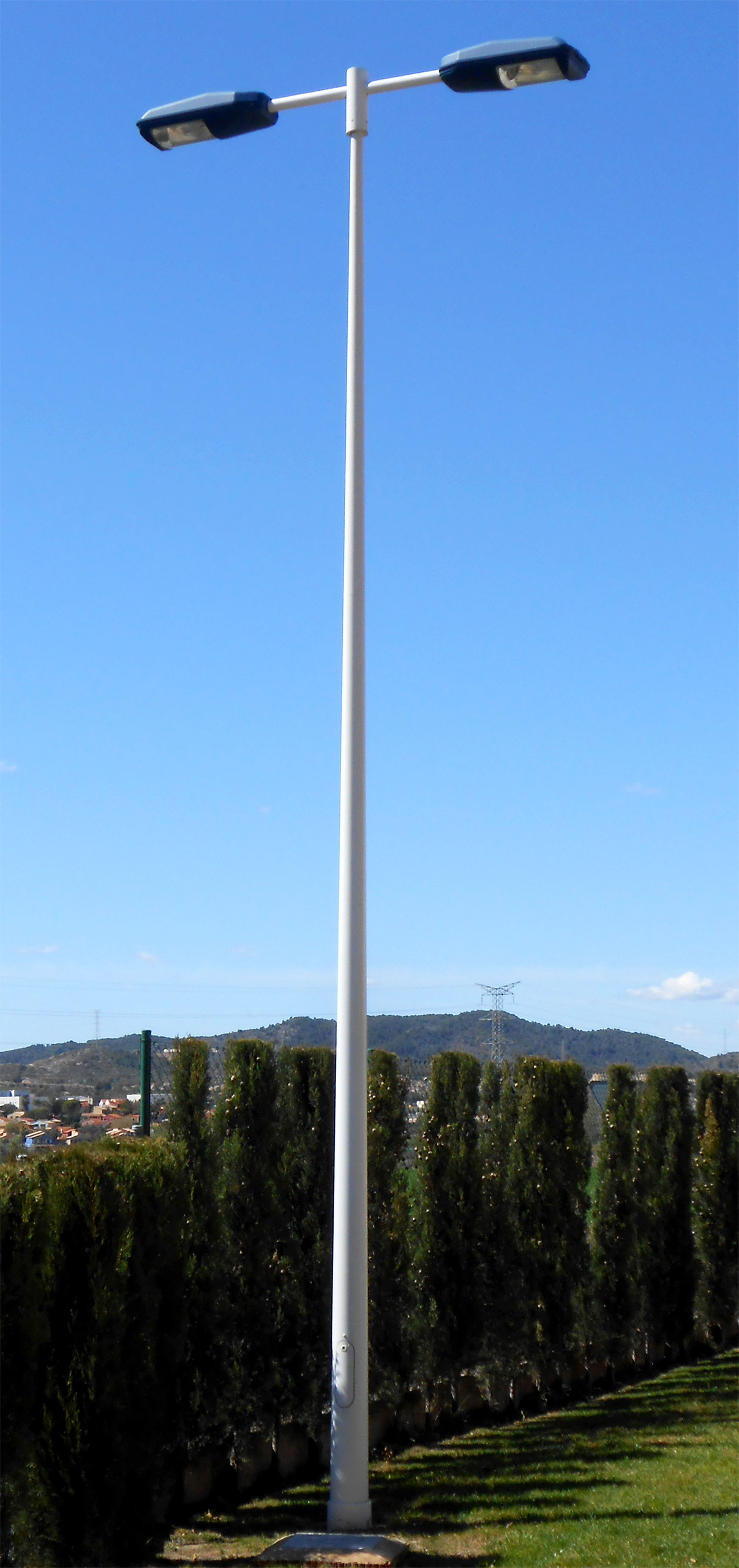

GRP column 2
GG Series Techincal Data Coming Soon...

GG Series Techincal Data Coming Soon...

GS Series Techincal Data Coming Soon...

GS Series Techincal Data Coming Soon...

GT Series Techincal Data Coming Soon...

GT Series Techincal Data Coming Soon...

Bracket Options

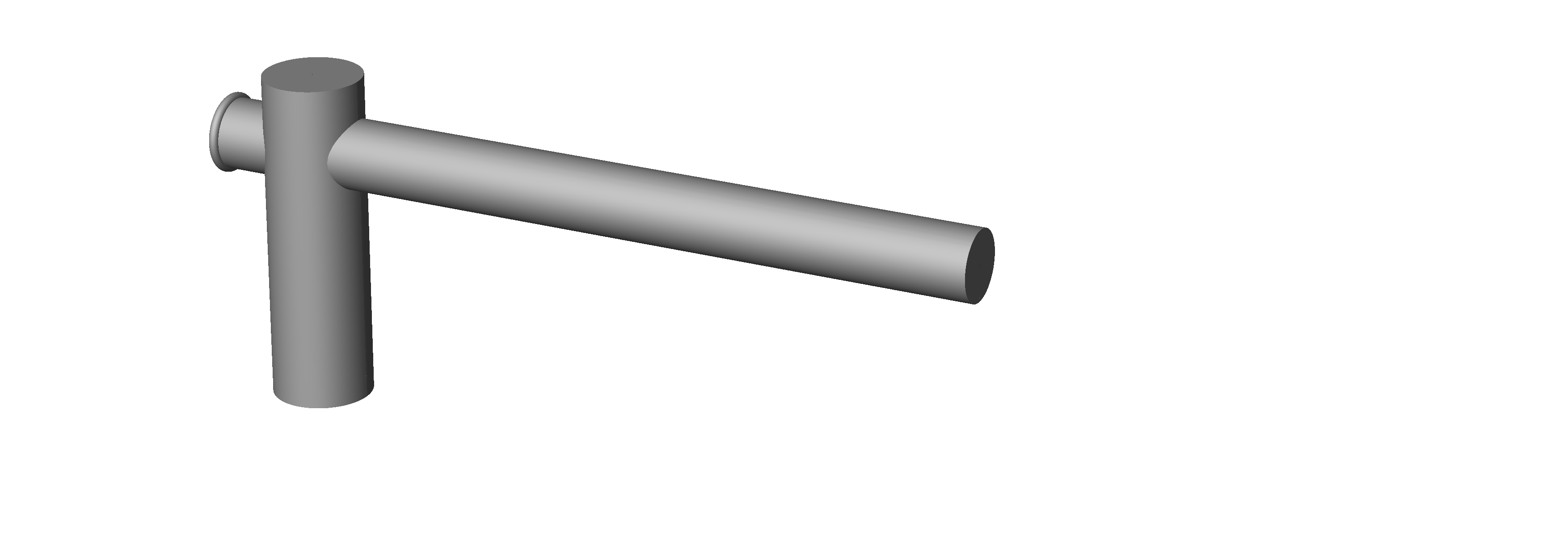

Straight arm measuring up to 0.60m in length that can be fitted to columns with 60 & 78 mm diameter. Supplied with 0° or 5° angle

Adhorna BKT arm SINGLE

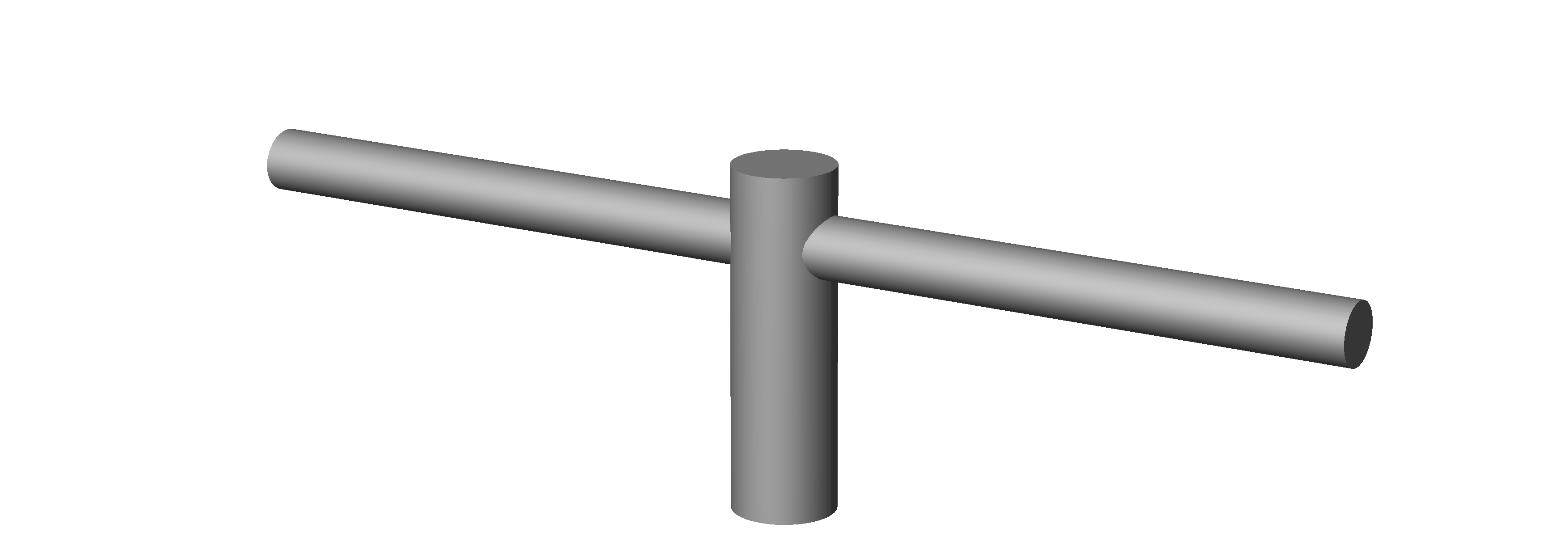

Straight double arm measuring up to 1.20m in length that can be fitted to columns with 78 mm diameter.

Adhorna BKT arm DOUBLE CYLINDRICAL

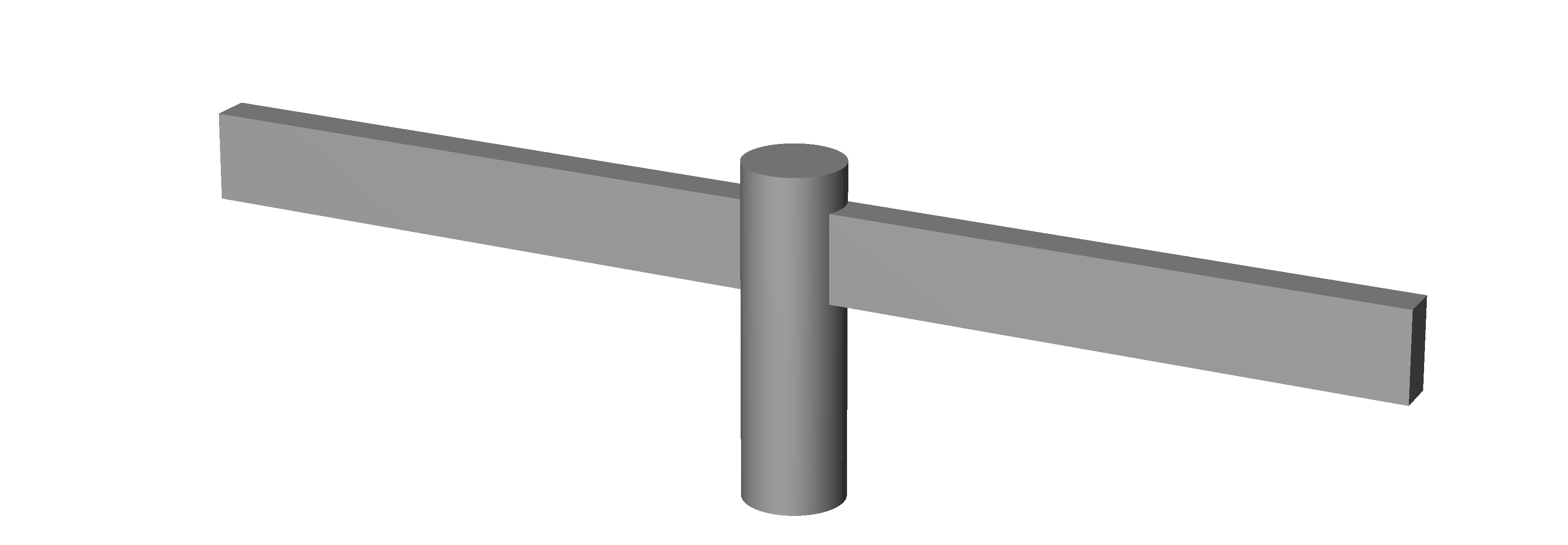

Straight rectangular-section double arm measuring up to 1.20m in length for 2 or 3 floodlights. Suitable for columns with 78 mm diameter.

Adhorna BKT arm DOUBLE RECTANGULAR
