Indus City LED

Technical Features

Technical Features

  • IP66 and IK09 rated
  • XLP or XHP-70 LEDs
  • Colour temperature 4000K
  • CRI >70
  • Power correction factor >0.9
  • Constructed to EN 60598-1, EN 60598-2-3
  • Programmable and high efficiency electronic power source and duration, knife switch included
  • Power supply cable access through PG16 cable gland (IP68)
  • Power supply 220 – 240V / 50 – 60Hz as standard
  • Power supply available in 120 – 277V / 50 – 60 Hz VAC
  • Insulation class I and II
  • Programmable drive available
  • Cable plate is complete with easily replaceable electronic unit
  • L80 >70000
  • L70 >80000
  • Die-cast aluminium body finished in silver polyester powder (RAL 9006)
  • Top cover available as a smooth case as standard, with option to have cross-sectional cooling fin case
  • LED module replaceable as one unit including the upper cover
  • Extra clear 4mm thick tempered flat glass
  • Stainless steel closing clips and anti-ageing rubber gaskets
  • Teflon pressure compensation filter
  • Automatic anti-closing mechanism to prevent accidental closure during assembly and maintenance

Post top or side entry with adjustable spigot
Spigot entry ø46 – ø76mm

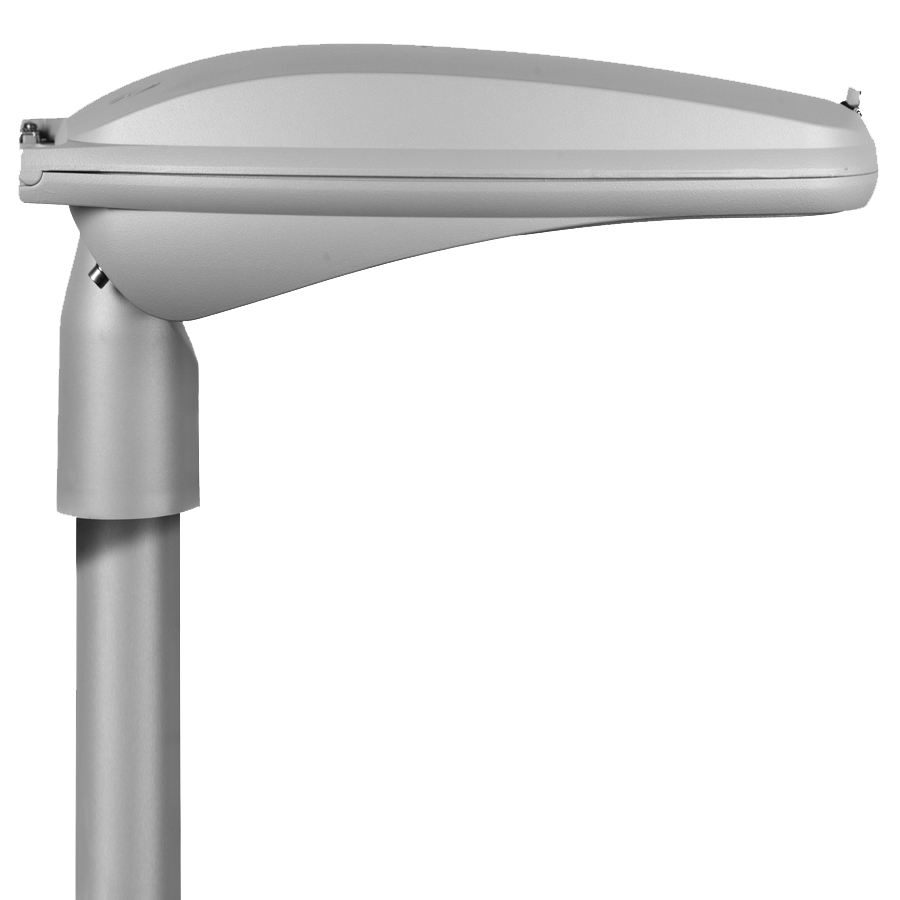

ProdShot - Indus LED

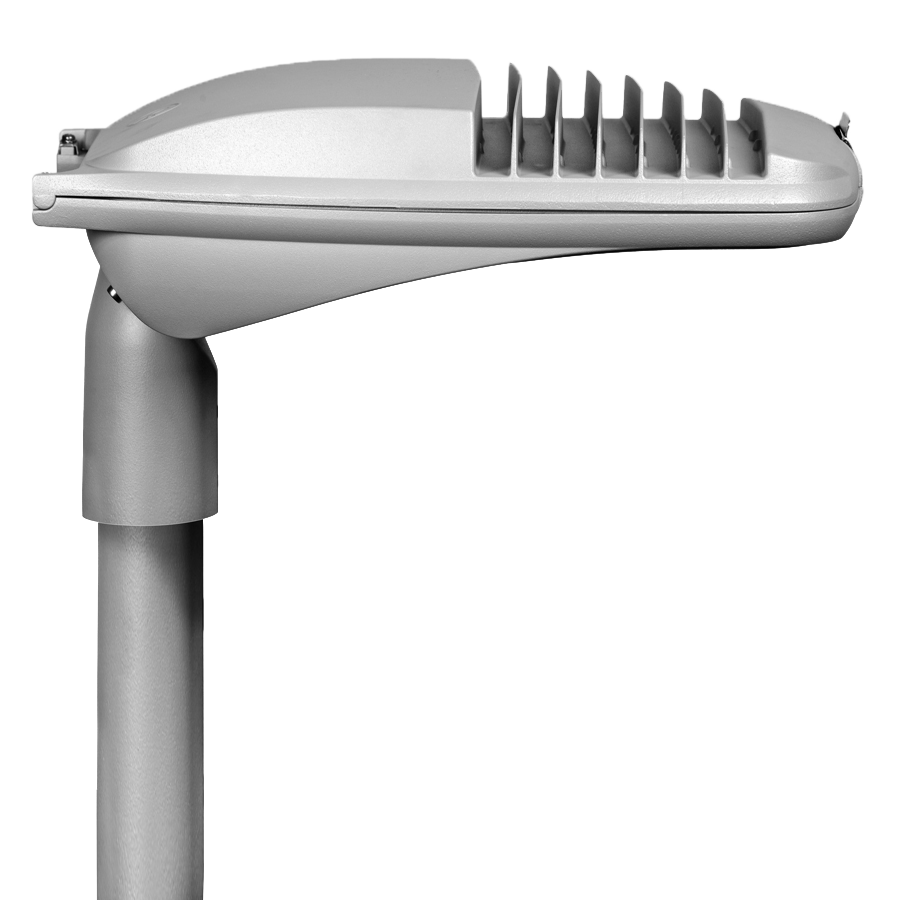

ProdShot - Findus LED

Dimensions

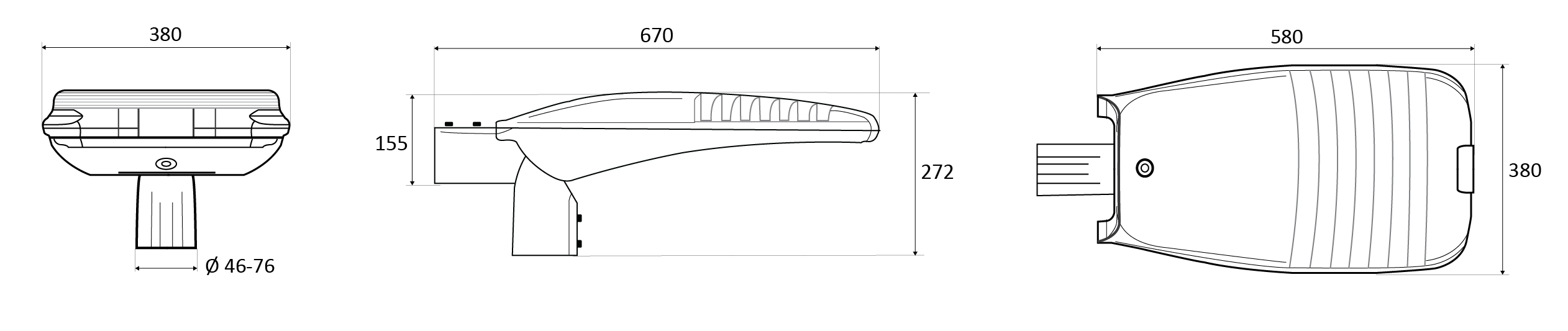

Indus city dimensions-01

Optics

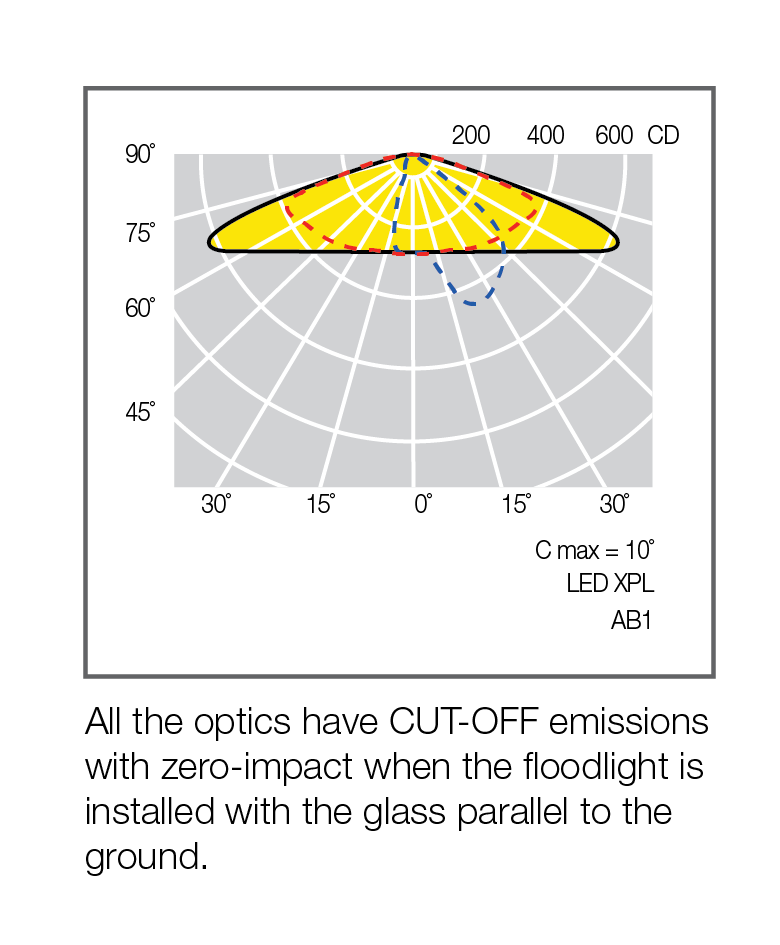

Indus city photometry 1-01

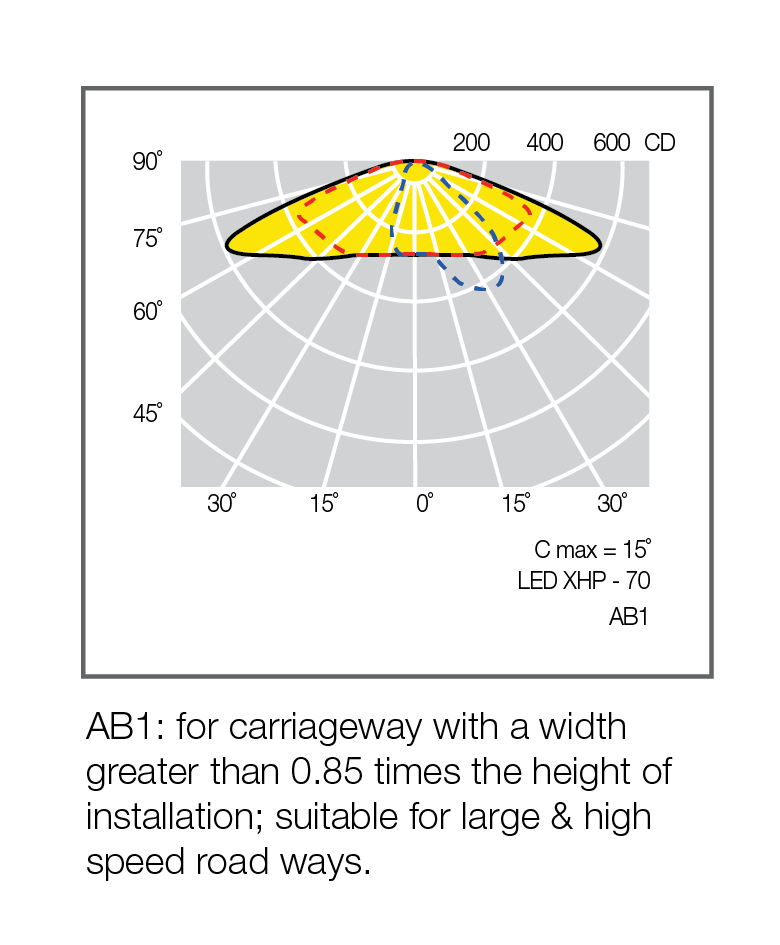

Indus city photometry 2-01

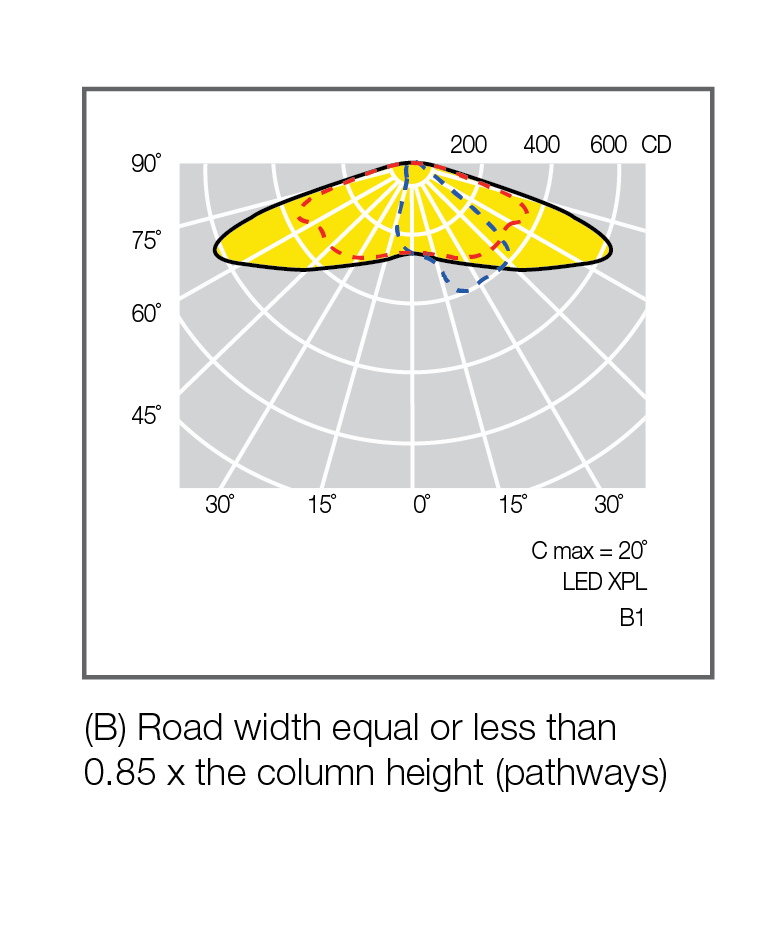

Indus city photometry 3-01

Product Variants

Ref LED Type Wattage (W) No. of LEDs Lumen Output (lm) Driver Current (mA) Prog. Driver Distribution Optics Standard body Fin Body (f)
Weight (kg) Wind Area (m2) Weight (kg) Wind Area (m2)
AL21020 XPL 30 12 4430 800 Y (A) Road width greater than 0.85 x the column height AB1 / AB1 Optic 10.65 0.091 9.3 0.091
44 18 6330 800 Y 10.75 0.091 9.9 0.091
60 24 8400 800 Y 10.85 0.091 10 0.091
AL21022 XPL 38 12 5170 1000 Y AB1 / AB1 Optic 10.65 0.091 9.3 0.091
57 18 7670 1000 Y 10.75 0.091 9.9 0.091
76 24 10060 1000 Y 10.85 0.091 10 0.091
AL21024 XHP-70 103 12 16120 700 Y AB1 / AB1 Optic 10.65 0.091 9.3 0.091
127 15 19500 700 Y N/A N/A 9.9 0.091
135 26 20530 700 Y 10.85 0.091 N/A N/A
AL21026 XHP-70 60 6 9340 800 Y AB1 / AB1 Optic 10.45 0.091 9.6 0.091
88 9 13800 800 Y 10.55 0.091 9.7 0.091
156 16 22620 800 Y 10.75 0.091 N/A N/A
165 15 23560 900 Y N/A N/A 9.9 0.091
AL21028 XHP-70 76 6 11150 1000 Y AB1 / AB1 Optic 10.45 0.091 9.3 0.091
113 9 16360 1000 Y 10.55 0.091 9.7 0.091
150 12 21000 1000 Y 10.65 0.091 9.8 0.091
AL21021 XPL 30 12 4430 800 Y (B) Road width equal or less than 0.85 x the column height (pathways) B1 / B1 Optic 10.65 0.091 9.8 0.091
44 18 6330 800 Y 10.75 0.091 9.9 0.091
60 24 8400 800 Y 10.85 0.091 10 0.091
AL21023 XPL 38 12 5170 1000 Y B1 / B1 Optic 10.65 0.091 9.8 0.091
57 18 7670 1000 Y 10.75 0.091 9.9 0.091
76 24 10060 1000 Y 10.85 0.091 10 0.091
AL21025 XHP-70 103 12 16120 700 Y B1 / B1 Optic 10.65 0.091 9.8 0.091
137 15 19500 700 Y N/A N/A 9.9 0.091
135 16 20530 700 Y 10.75 0.091 N/A N/A
AL21027 XHP-70 60 6 9340 800 Y B1 / B1 Optic 10.45 0.091 9.6 0.091
88 9 13800 800 Y 10.55 0.091 9.7 0.091
156 16 22620 800 Y 10.75 0.091 N/A N/A
165 15 23560 900 Y N/A N/A 9.9 0.091
AL21029 XHP-70 76 6 11150 1000 Y B1 / B1 Optic 10.45 0.091 9.6 0.091
113 9 16360 1000 Y 10.55 0.091 9.7 0.091
150 12 21000 1000 Y 10.65 0.091 9.8 0.091

Related Products

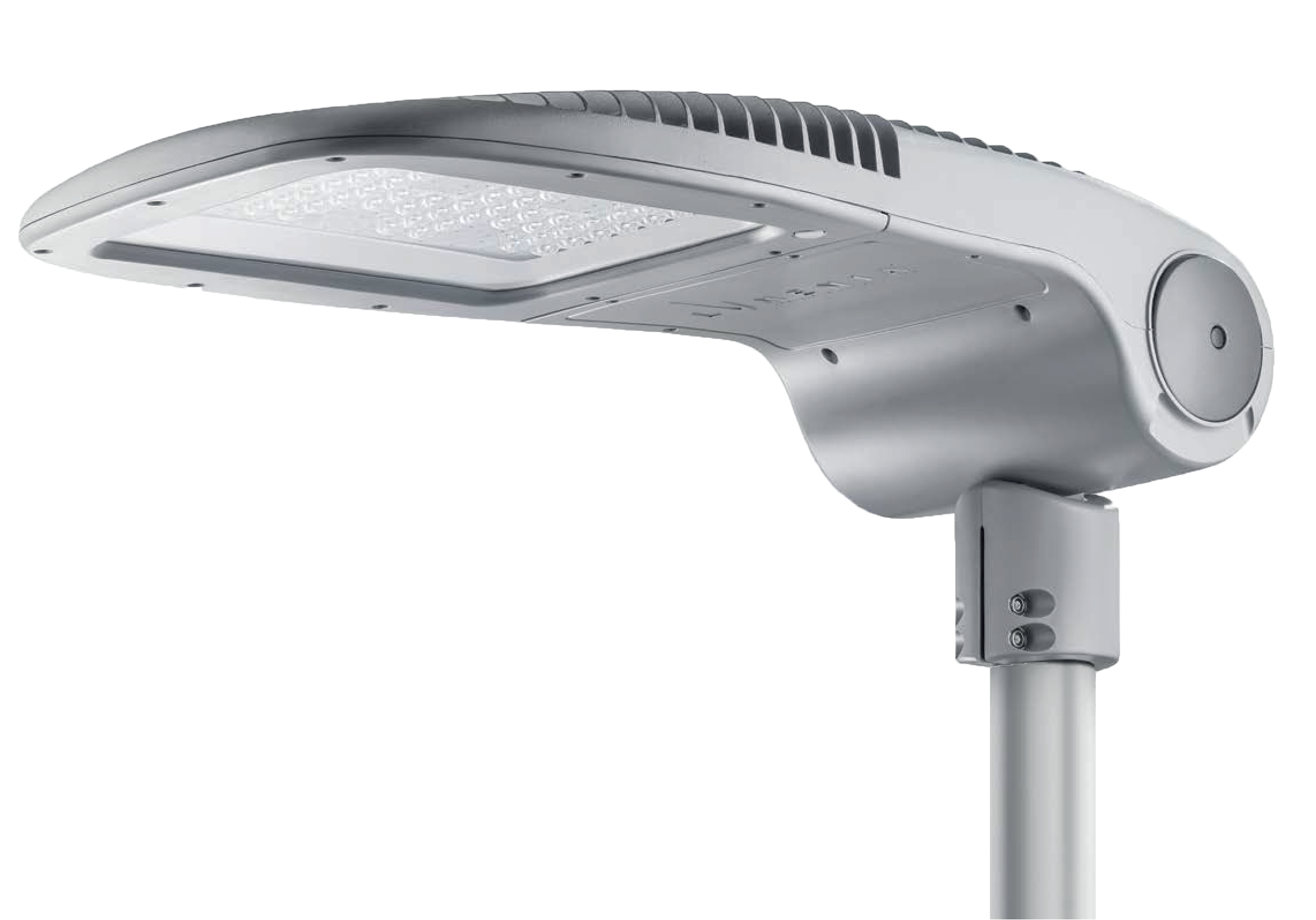

e lum image
