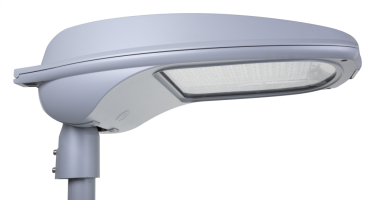

Indus LED
Benefits
- Modern looking slim line luminaire for a positive aesthetic feel in a variety of surroundings and application areas
- Fitting equipped with an automatic anti-closing mechanism for safer assembly, installation and maintenance purposes reducing health & safety risks
Colour
- Silver
Technical Features
- Classification I
- IP66 and IK08 rated
- Constructed to meet EN 60598-1, EN 60598-2-3 standards
- Power correction factor >0.9
- Power supply 220-240V / 50-60Hz VAC
- Overload and surge protection upto 10kV
- First brand LED mounted on a pressed aluminium circuit, highly heat dissipating Metal Core Printed Circuit Board (MCPCB)
- Die-cast aluminium body and cover with highly aesthetic aspect
- Spigot post top mounting and spigot side entry mount 46-76mm
- Extra clear 4mm tempered flat glass
- Replacement of the entire LED module including upper luminaire cover
- Power supply cable access through a PG 13.5 cable gland (IP68)
- Anti-ageing rubber gaskets with stainless steel closure clips
- Teflon pressure compensation filter
- Driver specification: high efficiency power source and duration for external use

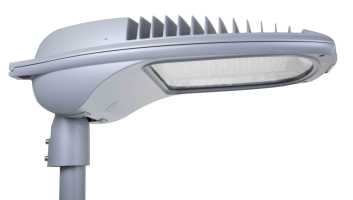

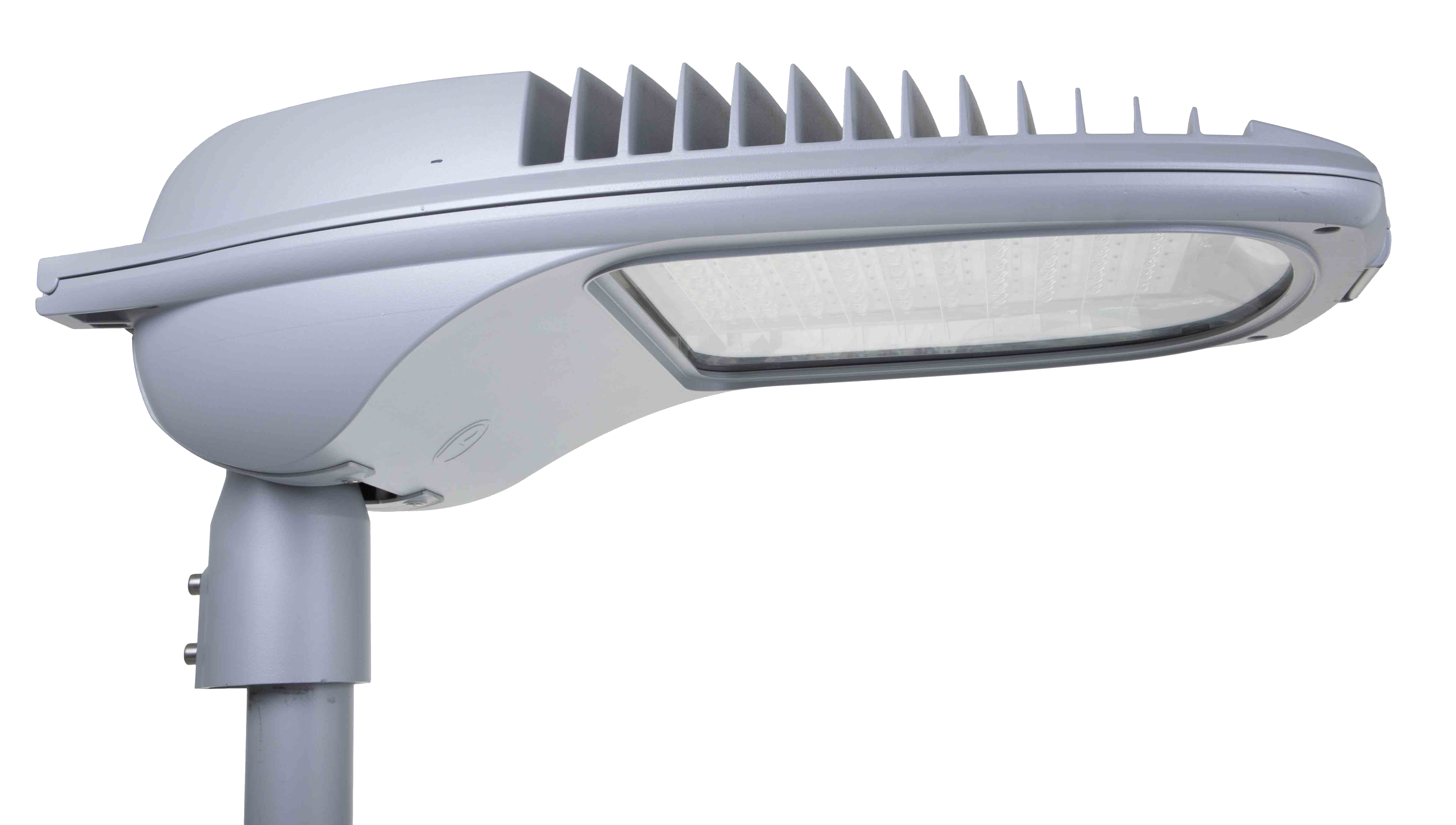

- Optional body with fin casing on the upper cover available upon request
Applications
- Road
- Pathways
Dimensions

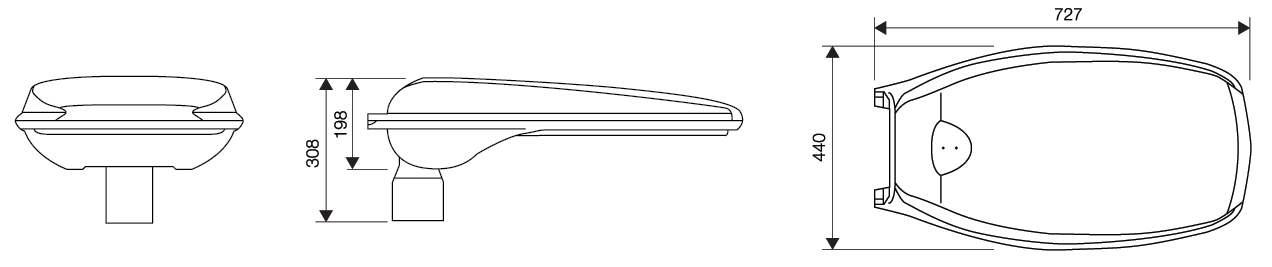

Standard Body (mm)

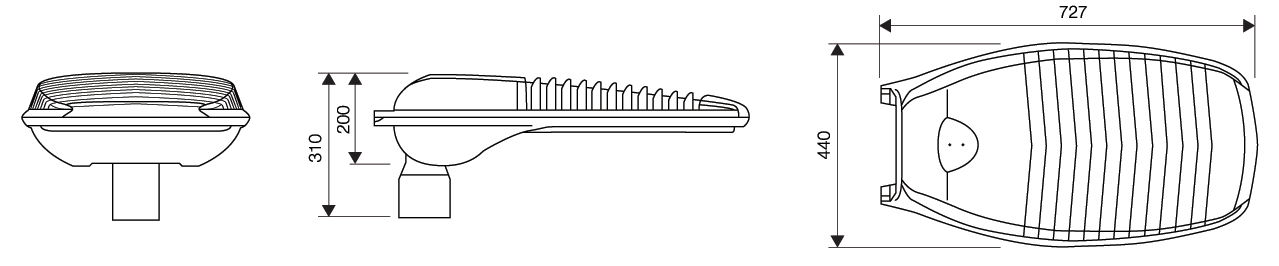

Optional Fin Body

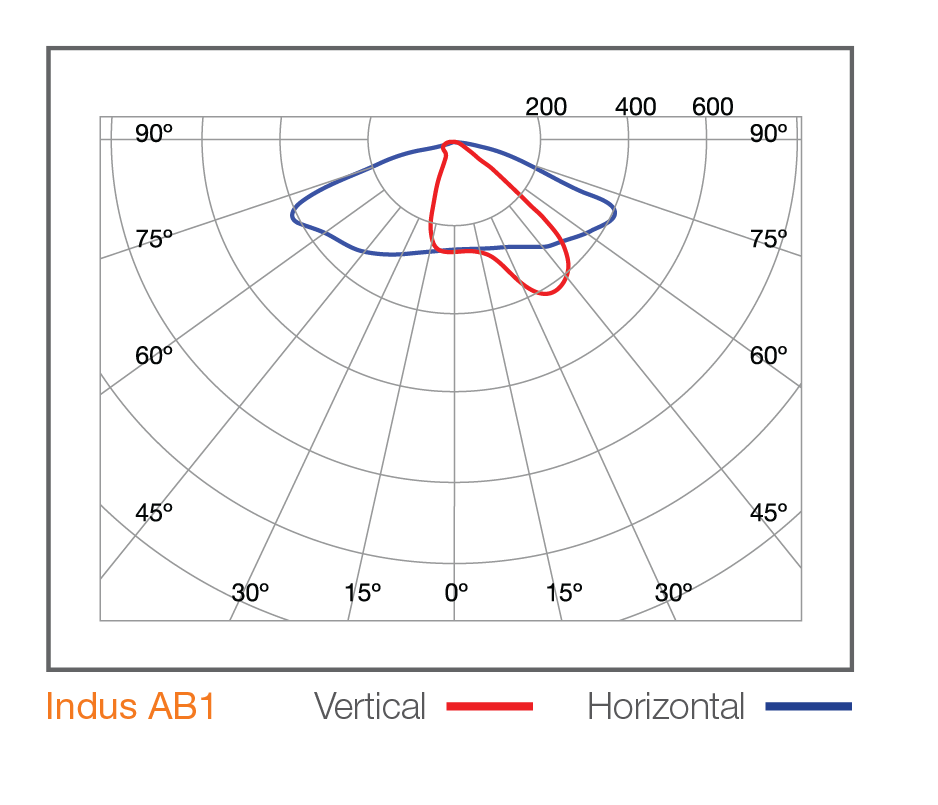

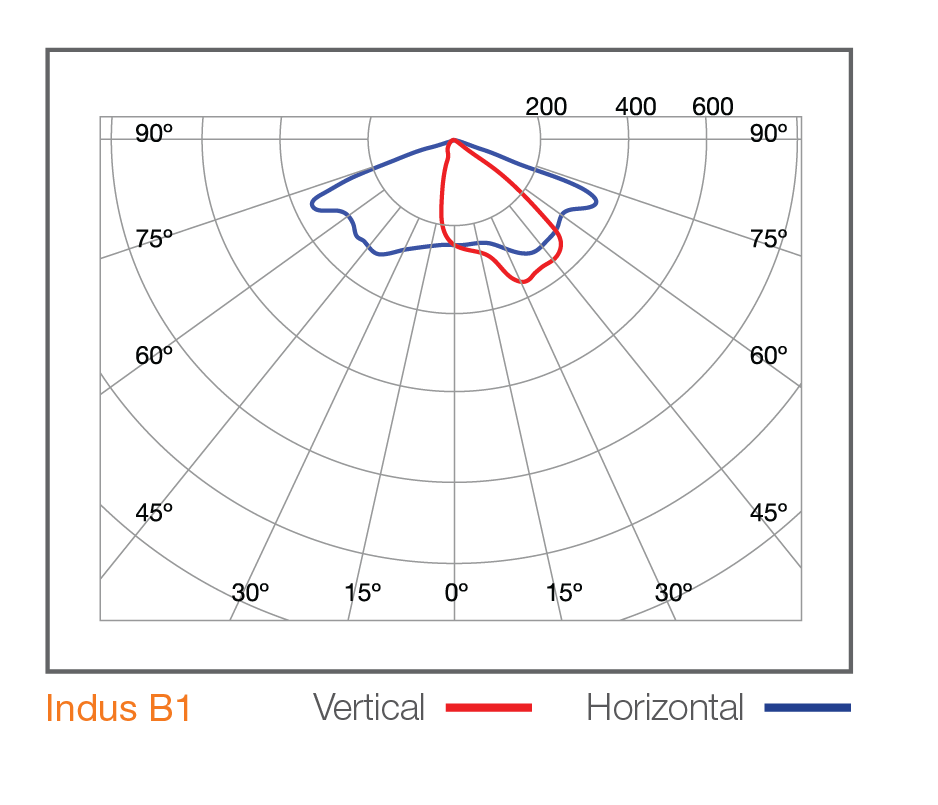

Optics
Product Variants
| Ref | Wattage (W) | Lumen Output (lm) | Driver Current (mA) | No. of LEDs | Fixed Driver Available | Light Distribution | Optic | Weight Standard Body (kg) | Weight Fin Body f (kg) | Wind Area (m2) |
|---|---|---|---|---|---|---|---|---|---|---|
| AL21001 | 81 | 9920 | 530 | 49 | Y | (A) Road width greater than 0.85 x the column height | AB1 / AB1 Optic | 16.9 | 16 | 0.084 |
| 90 | 11050 | 530 | 56 | Y | 16.9 | 16 | 0.084 | |||
| 105 | 12360 | 530 | 63 | Y | 17 | 16.1 | 0.084 | |||
| 117 | 13480 | 530 | 70 | Y | 17.1 | 16.2 | 0.084 | |||
| 122 | 14310 | 530 | 75 | N | 17.1 | 16.2 | 0.084 | |||
| AL21011 | 106 | 12240 | 700 | 49 | Y | (A) Road width greater than 0.85 x the column height | AB1 / AB1 Optic | 16 | 16 | 0.084 |
| 120 | 13640 | 700 | 56 | Y | 16 | 16 | 0.084 | |||
| 135 | 15250 | 700 | 63 | Y | 17 | 16.1 | 0.084 | |||
| 148 | 16650 | 700 | 70 | N | 17.1 | 16.2 | 0.084 | |||
| 162 | 17630 | 700 | 75 | N | 17.5 | 16.6 | 0.084 | |||
| AL21002 | 81 | 9920 | 530 | 49 | Y | (B) Road equal or less than 0.85 x the column height – bike/pedestrian pathways | B1 / B1 Optic | 16.9 | 16 | 0.084 |
| 90 | 11050 | 530 | 56 | Y | 16.9 | 16 | 0.084 | |||
| 105 | 12360 | 530 | 63 | Y | 17 | 16.1 | 0.084 | |||
| 117 | 13480 | 530 | 70 | Y | 17.1 | 16.2 | 0.084 | |||
| 122 | 14310 | 530 | 75 | N | 17.1 | 16.2 | 0.084 | |||
| AL21012 | 106 | 12240 | 700 | 49 | Y | (B) Road equal or less than 0.85 x the column height – bike/pedestrian pathways | B1 / B1 Optic | 16.9 | 16 | 0.084 |
| 120 | 13640 | 700 | 56 | Y | 16.9 | 16 | 0.084 | |||
| 135 | 15250 | 700 | 63 | Y | 17 | 16.1 | 0.084 | |||
| 138 | 16650 | 700 | 70 | N | 17.1 | 16.2 | 0.084 | |||
| 162 | 17630 | 700 | 75 | N | 17.5 | 16.6 | 0.084 |
PROGRAMMABLE DRIVER AVAILABLE ON ALL OPTIONS
For optional body with fin casing (f) please request when quoting and ordering.
