LED Quartz Bollard

High performance architecturally style LED bollard, ideal for paths, car parks, open areas, rail and amenity applications.



In recent years LEDs have advanced significantly to become one of the most efficient, attractive and versatile forms of lighting around. For a start, LEDs use far less electricity than standard sources, producing a better quality of crisp, white light. And where a traditional bollard would emit only 28% of the light it produces, the AL9001 Quartz has a superior 90% efficiency – credentials that make it one of the most energy-efficient security lighting systems of its kind.

Overview

High performance architecturally style LED bollard, ideal for paths, car parks, open areas, rail and amenity applications.

Combine instantaneous, bright white light with our patented louvre-based design and the result is simply  exceptional: crisp, focused light in a variety of energy-efficient beam patterns, with virtually no light escaping upwards. The bollard itself is tough and robust, made from hardwearing steel tubing protected by a durable, polyester-based coating. Anti-vandal screws give even greater protection against shocks or vibrations. The LED louvres are behind a 5mm thick polycarbonate cylinder, preventing any direct vandalism. And perhaps most importantly, LEDs don’t lose performance over time in the same way as conventional HID lamps. So much so, in fact, that they last at least four times longer.

Technical Data

  • Die cast aluminium head unit with clear polycarbonate outer cylinder (UV stabilised)
  • Tough bollard shaft made from heavy duty steel CHS tubing
  • Louvred light controller with LED light pumped into and through the acrylic louvres
  • Operational equipment housed within bollard using IP67 driver on a removable tray. Facility to loop in and loop out electric cabling
  • LED bollard has 90% efficiency
  • Louvre rings can be printed with a logo, directional arrows or unique colour effects
  • Vandal resistant with anti-vandal screws for extra security
  • Upward light ratio (ULR) = 8%
  • Flange plate or root mounting

Features

  • Sturdy IP66 die-cast aluminium head unit with clear polycarbonate outer cylinder (UV stabilised)
  • Tough bollard shaft made from heavy duty steel CHS tubing
  • Black or silver textured polyester coating on bollard shaft and head-unit castings
  • Louvred light controller, with LED light pumped into and through the acrylic louvres, producing a controlled light output
  • Operational equipment housed in the bollard itself, using IP67 driver on a fully removable tray, with facility to loop in and loop out electric cabling
  • Emergency version available

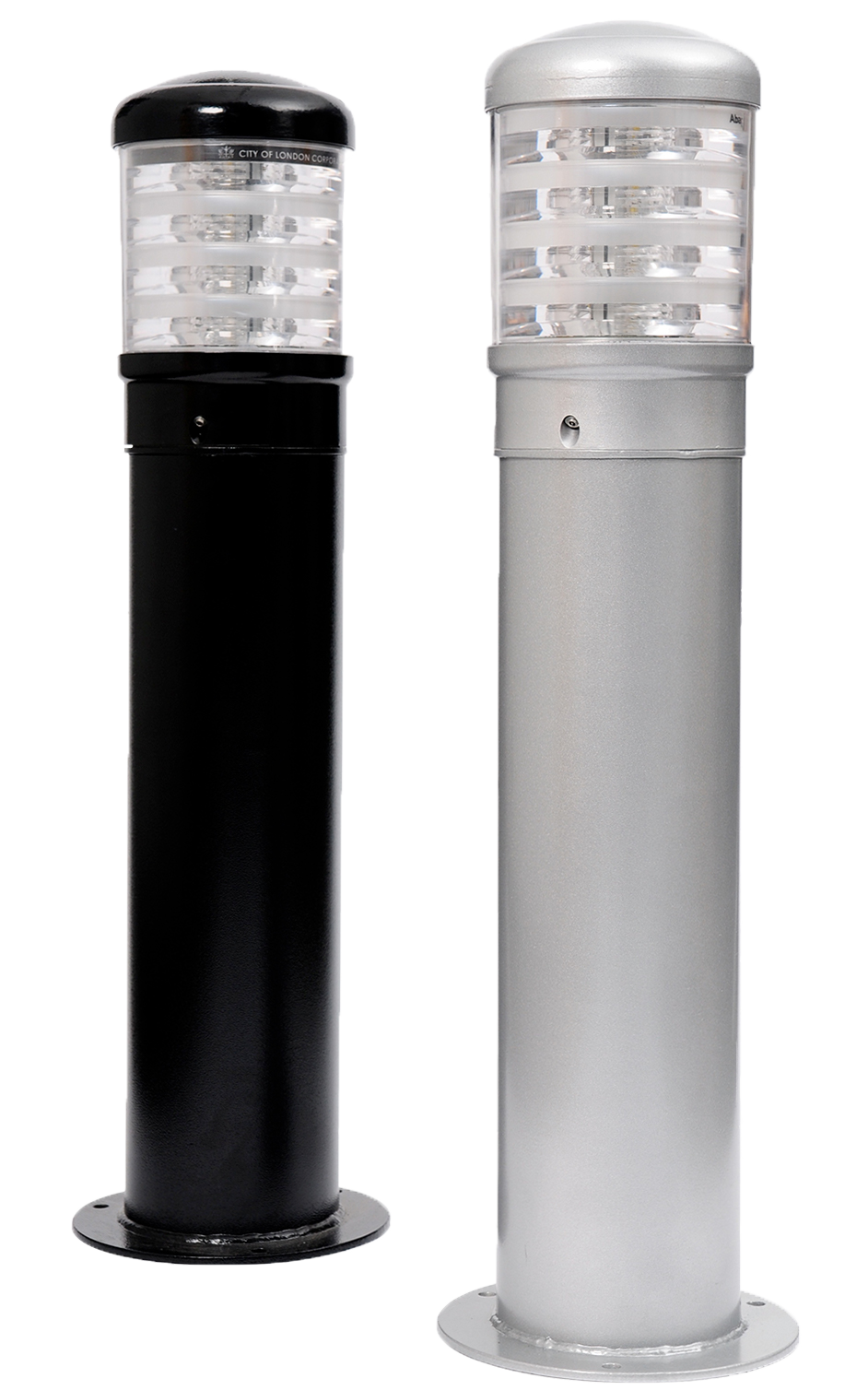

Abacus LED Quartz Bollards silver black.jpg

Colour effects

  • All white
  • White with red band
  • White with blue band
  • White with green band

Individual requirements to be specified when ordering. For emergency version, please enquire upon quotation.

  Total Wattage (W) Number of LEDs Individual LED Wattage (W) Distribution Lumen Output (lm) Colour Temp. (K)
AL9001 30 16 1.6 Symmetric 1976 4000
AL9002 30 16 1.6 Asymmetric 1976 4000
AL9003 30 16 1.6 Axial 1976 4000

Beam patterns

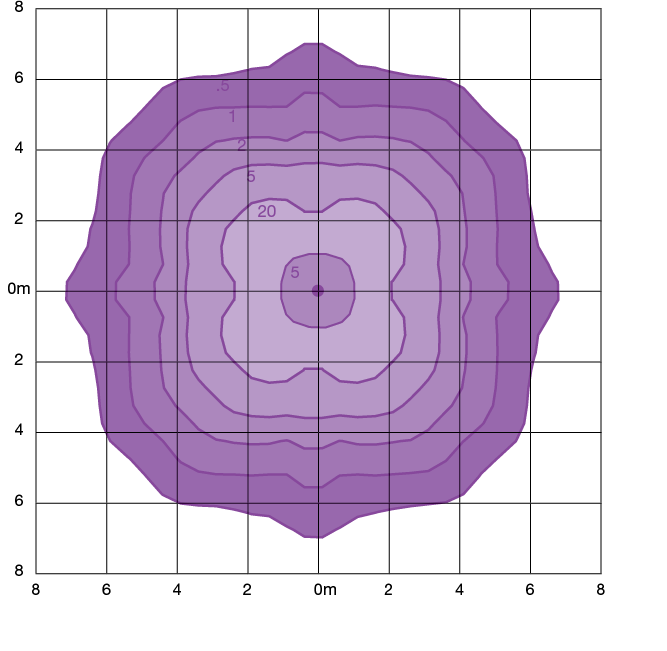

LED-Quartz-Bollard-photometry

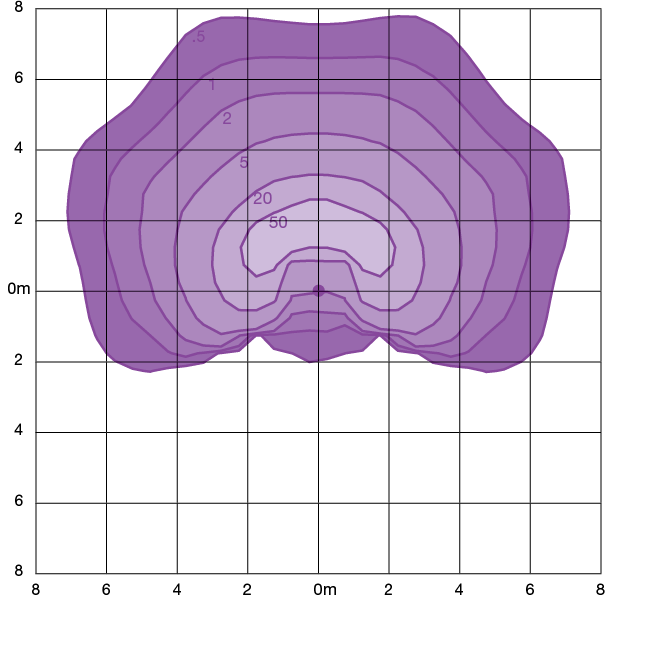

LED-Quartz-Bollard-photometry-2
