Lowering Headframe Masts – Headframes

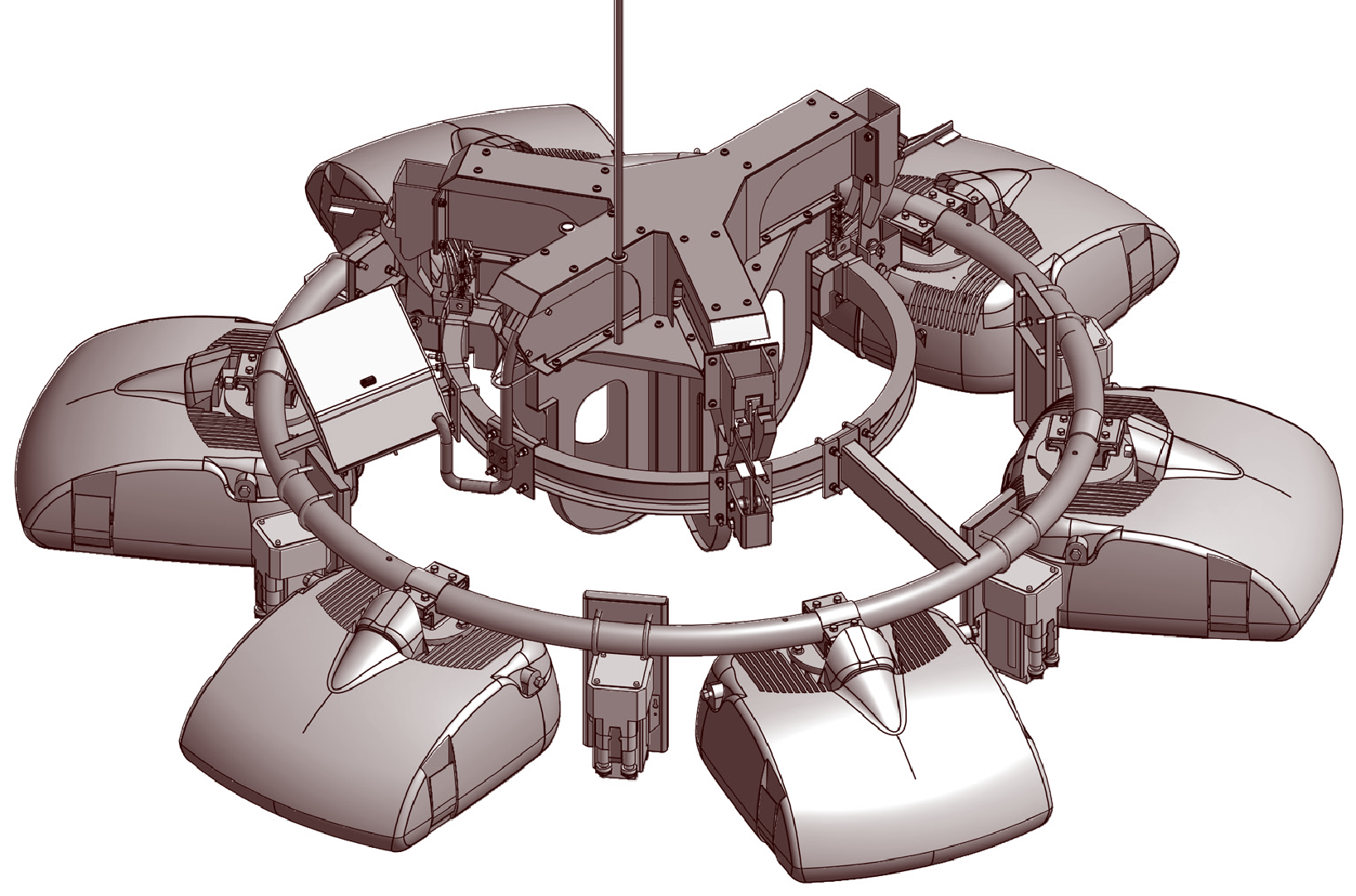

P107-1-HEADFRAME-ASS-1 N can (no annotation)
  • Headframe supported by three stainless steel cables for longer-term stability than twin cable systems
  • Option to install mechanical latching system on three arms, to release strain on cables when headframe is in the operating position
  • Headframe supplied prepared ready for installation, complete with three cables looped for dropping into the mast shaft and junction box for the multicore cable mounted on headframe

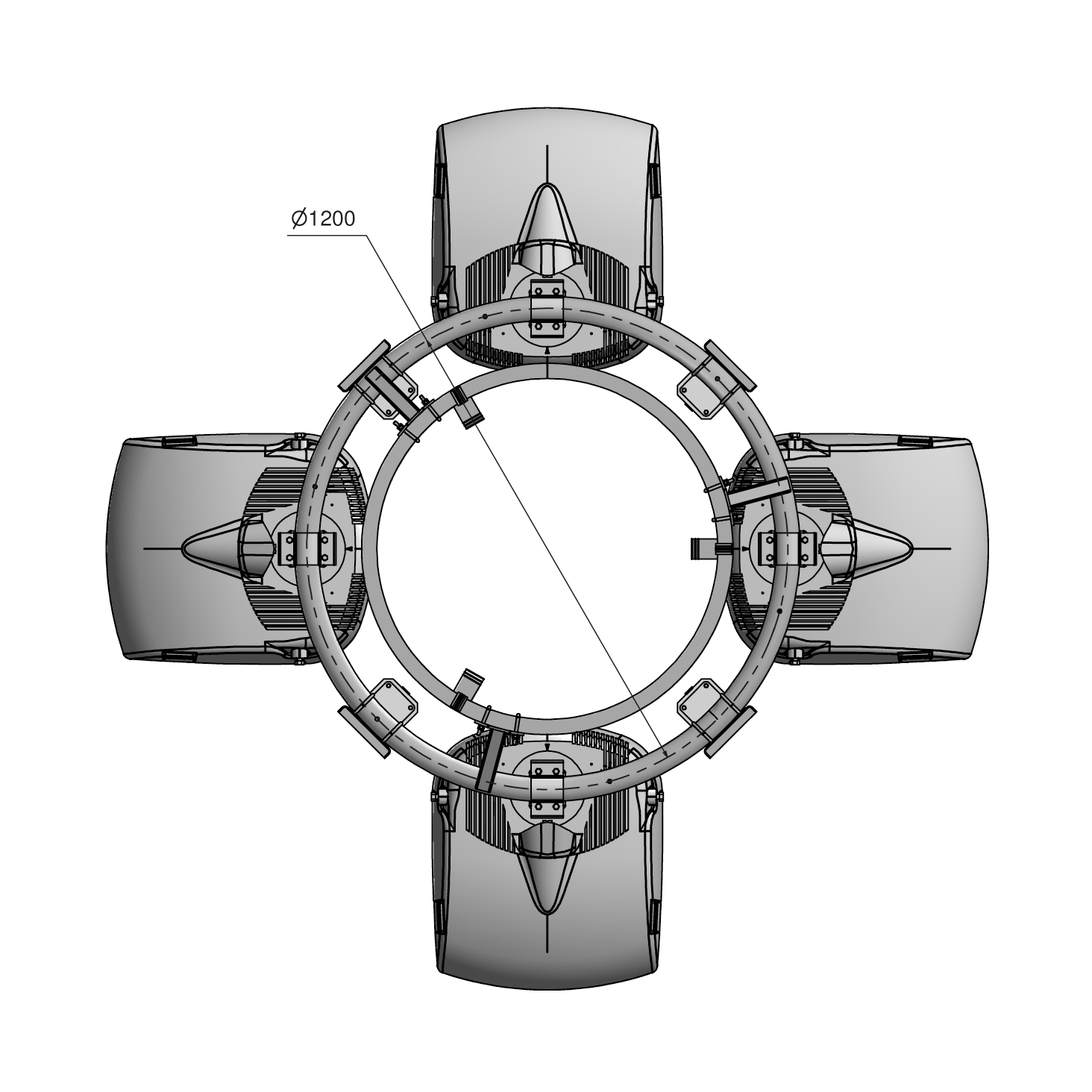

01_RLW-HF-ASS-7
4 floods symmetrical external gear
Product Code RLW-LC-ASS-1
Diameter 1200mm
Total Headframe Area 2m2­
Winch Capacity 275kg

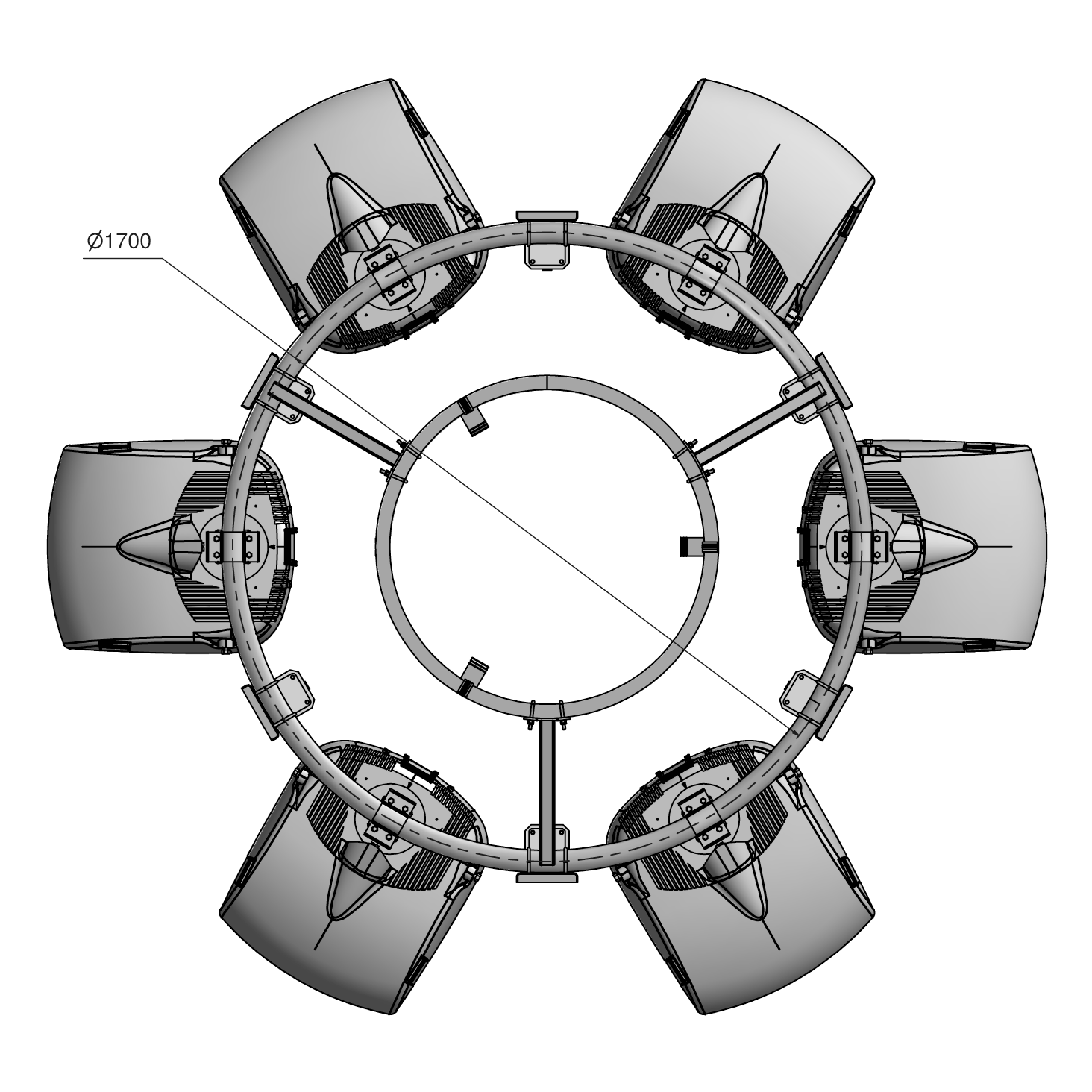

02_RLW-HF-ASS-8
6 floods symmetrical external gear
Product Code RLW-LC-ASS-2
Diameter 1700mm
Total Headframe Area 2.6m2­
Winch Capacity 550kg

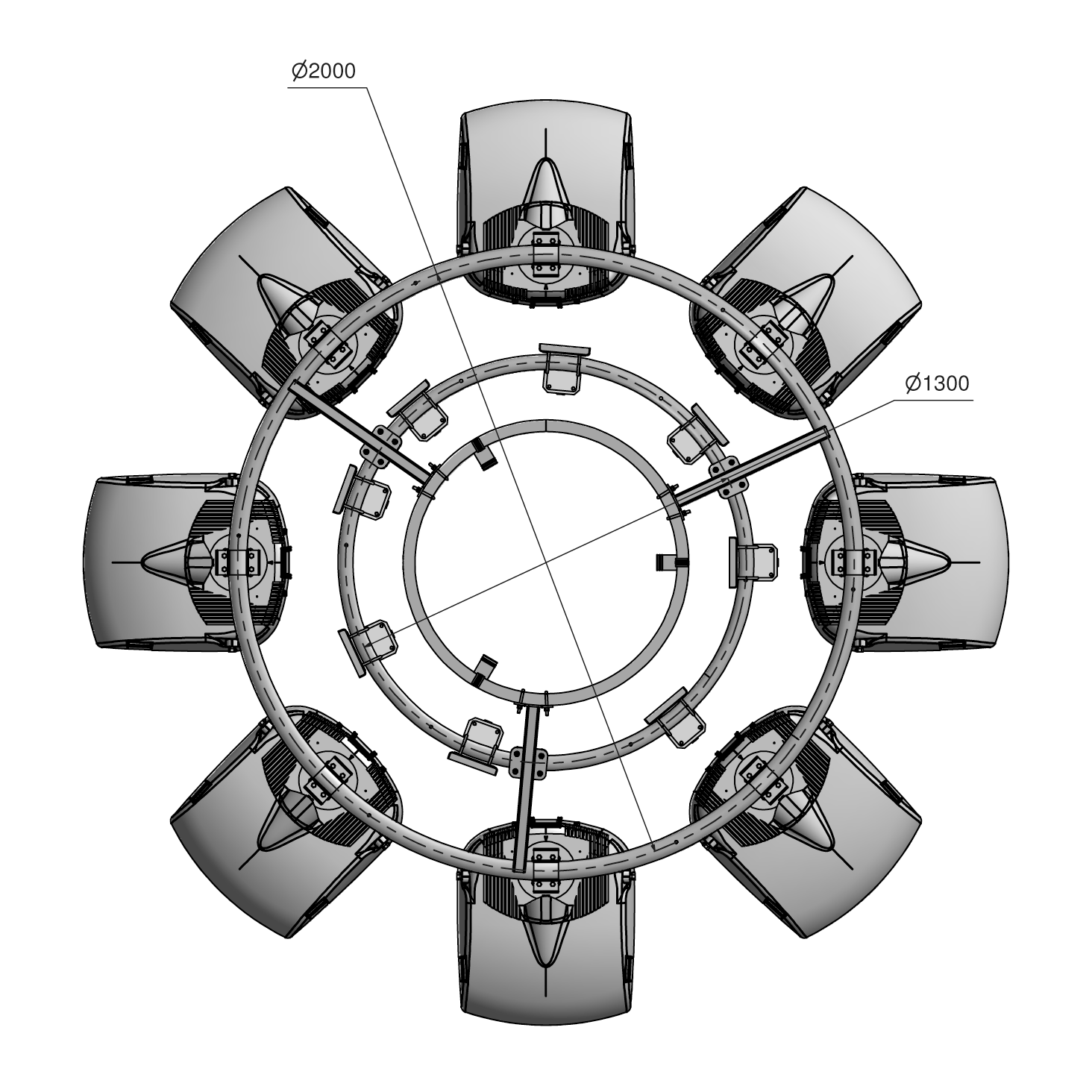

03_RLW-HF_ASS-9
8 floods symmetrical external gear
Product Code RLW-LC-ASS-3
Diameter 2000mm
Total Headframe Area 3.3m2­
Winch Capacity 550kg

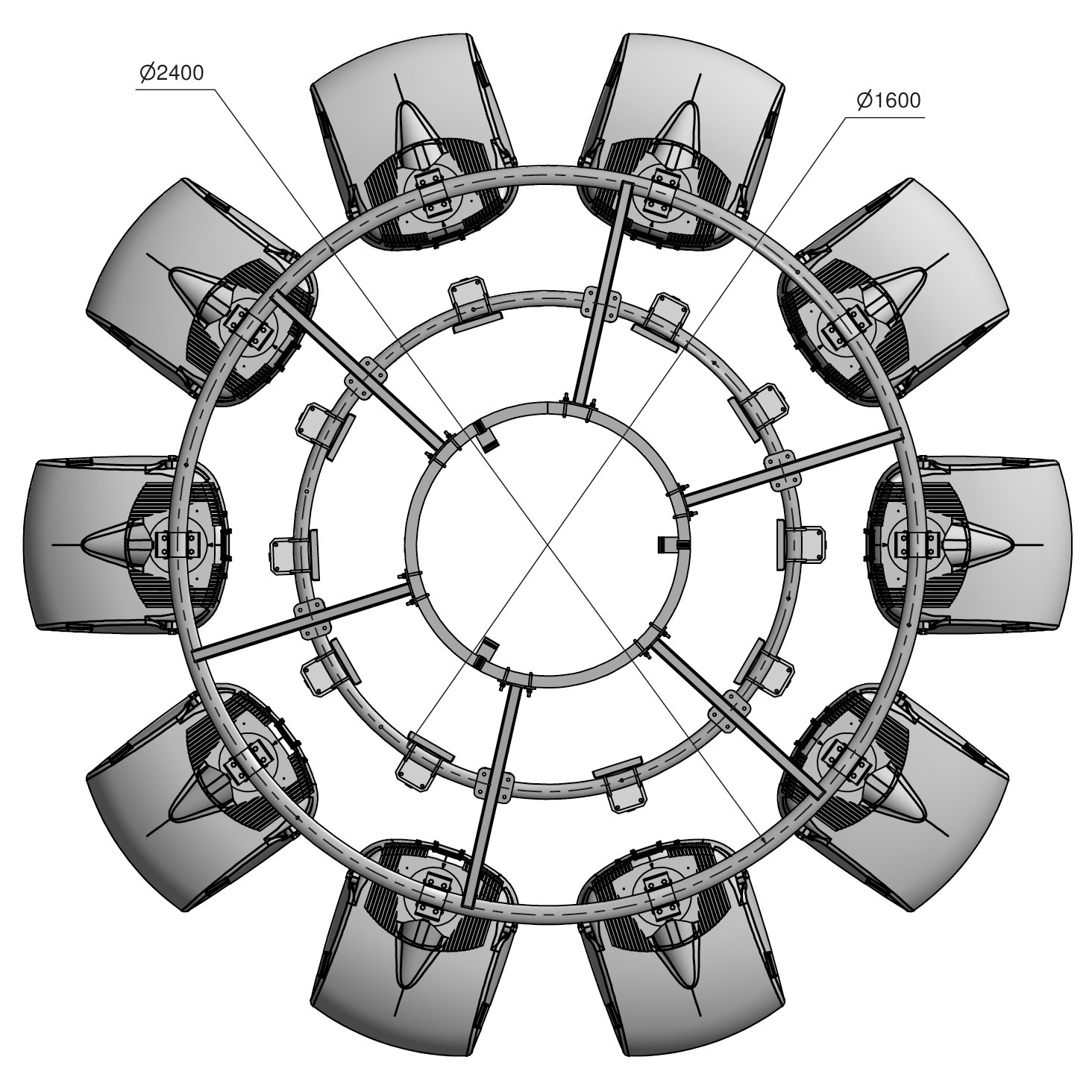

04_RLW-HF-ASS-10
10 floods symmetrical external gear
Product Code RLW-LC-ASS-4
Diameter 2400mm
Total Headframe Area 3.9m2­
Winch Capacity 550kg

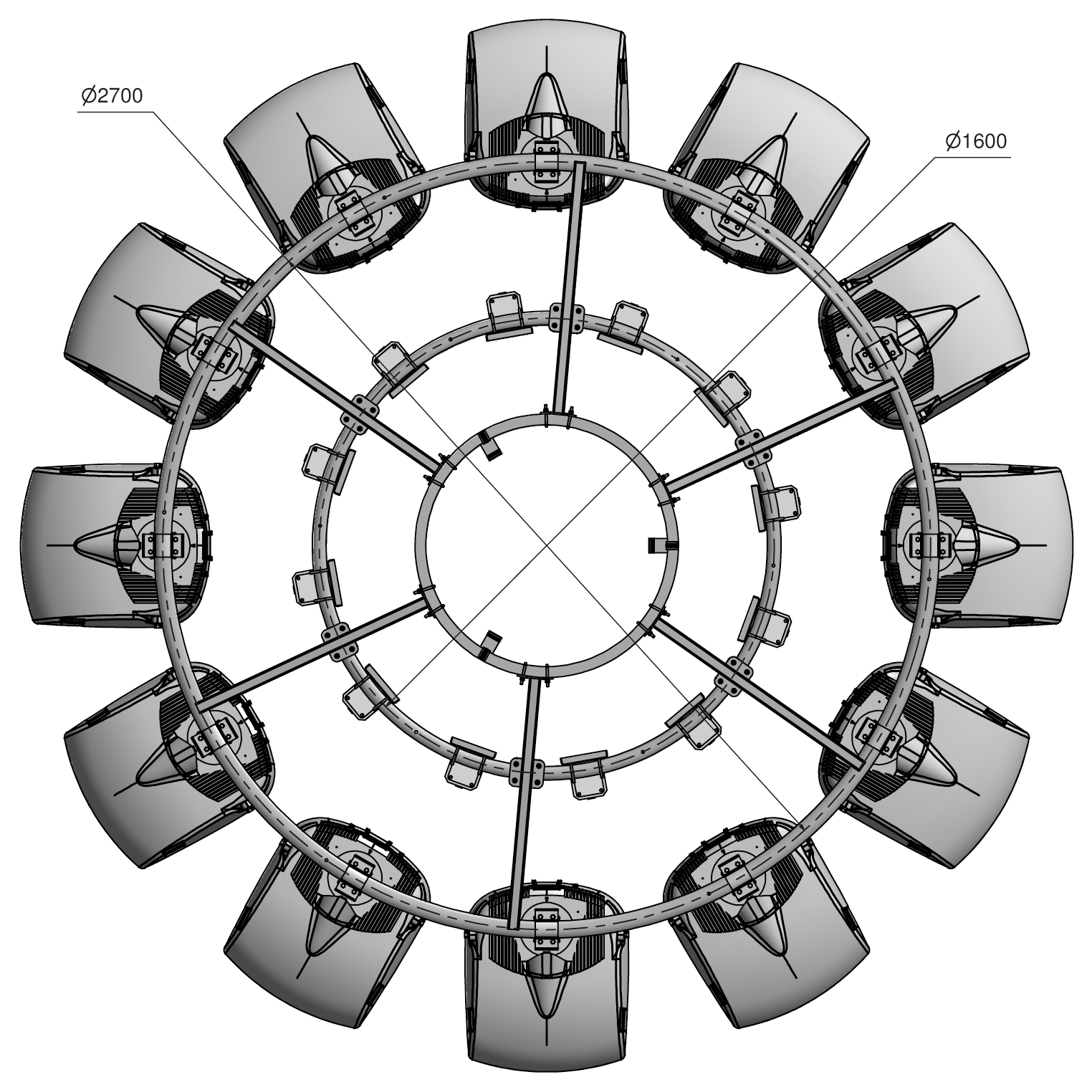

05_RLW-HF-ASS-11
12 floods symmetrical external gear
Product Code RLW-LC-ASS-5
Diameter 2700mm
Total Headframe Area 4.5m2­
Winch Capacity 550kg

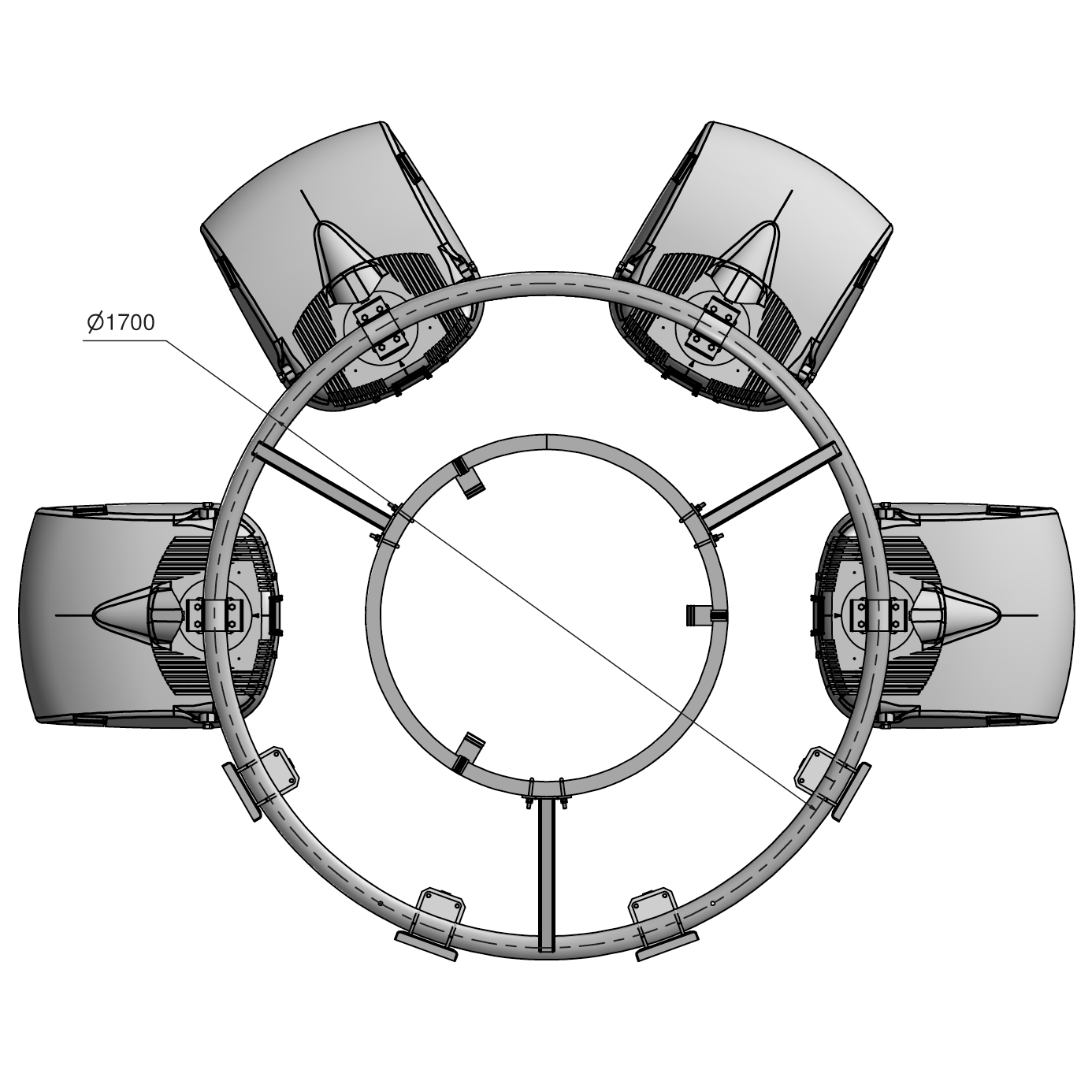

06_RLW-HF-ASS-15
4 floods asymmetrical external gear
Product Code RLW-LC-ASS-6
Diameter 1700mm
Total Headframe Area 2.1m2­
Winch Capacity 275kg

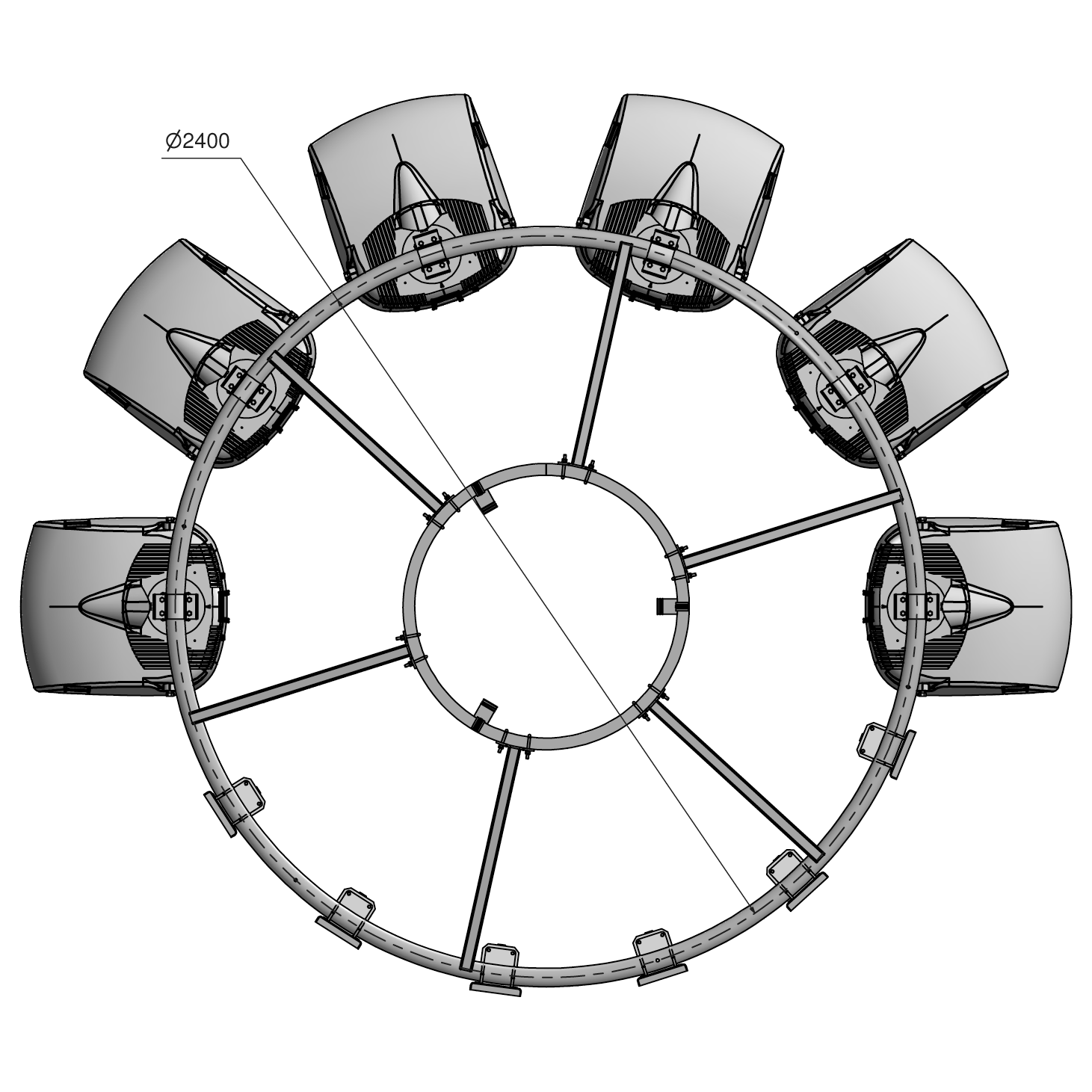

07_RLW-HF-ASS-16
6 floods asymmetrical external gear
Product Code RLW-LC-ASS-7
Diameter 2400mm
Total Headframe Area 2.8m2­
Winch Capacity 550kg

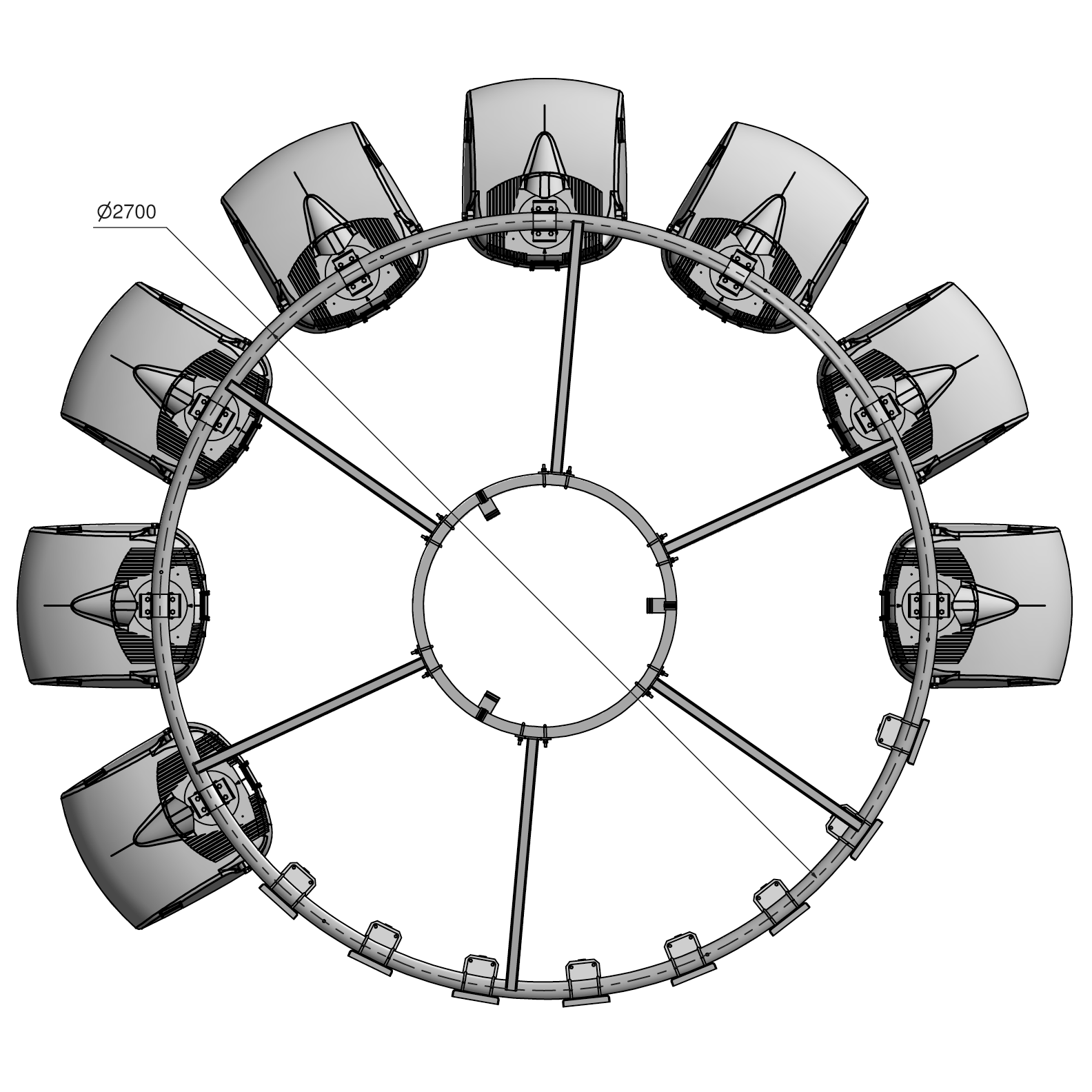

08_RLW-HF-ASS-17
8 floods asymmetrical external gear
Product Code RLW-LC-ASS-8
Diameter 2700mm
Total Headframe Area 3.3m2­
Winch Capacity 550kg
