Orion LED

Following Abacus’s success with our specially designed Orion series, the Orion LED is the next step for effective and efficient car park lighting.

Using a similar design, the Orion LED produces a square distribution which reduces the number of lighting points needed, whilst the total energy consumption is also reduced with more energy efficient LEDs.

Influenced by the Orion family, the slender design subtly blends into the skyline with its white canopy and carefully placed LED modules which result in less than 1% upward light output ratio.

Overview
  • Asymmetrical beam distribution ideal for boundary mounting location to reduce overspill and wasted light
  • Symmetrical beam distribution ideal for wide column spacings whilst maintaining light uniformity
prod-shot-orion-led-al4500

Key features

orion dimensions 1

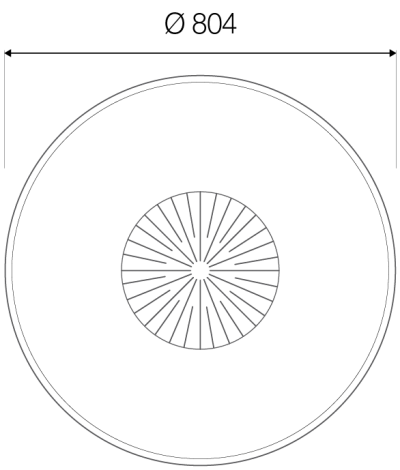

orion dimensions 2
   Wattage (W) Distribution No. of LED modules Lumen Output (lm) Power Factor Luminous Efficacy (lm/W) Running Current (mA) No. of Drivers*
AL4501 302 Symmetric 8 32036 0.994 106 1000 2
AL4502 231.6 Asymmetric 6 24795 0.989 107 1000 2
AL4503 153.8 Symmetric 4 16946 0.994 110 1000 1
AL4504 117 Asymmetric 3 12723 0.990 109 1000 1
AL4505 172.5 Asymmetric 6 19426 0.961 111 1000 1

Orion LED distribution

  No. of columns No. of luminaires Mounting Height (m) Average Lux Level (Lux) Uniformity Total Energy Consumption (W) Power Density
Road Lantern 12 24 8 25.47 0.33 6.000 0.600W/m²/25 Lux
Orion LED 9 9 8 25.19 0.26 2.682 0.268W/m²/25 Lux

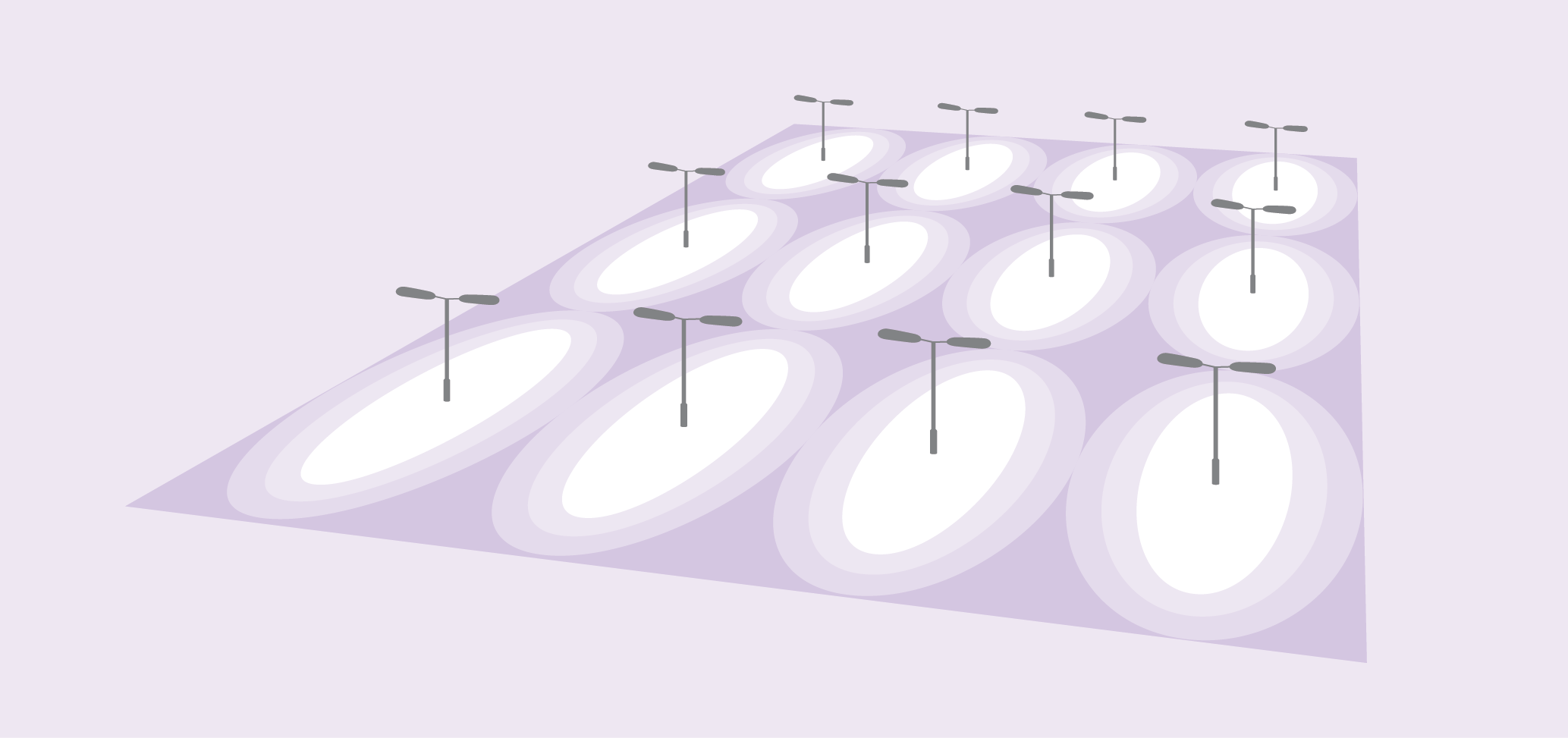

Using back-to-back road lanterns mounted at 8m to achieve 25 Lux average, total energy consumption is 6000 Watts

orion reflector systems conventional-01

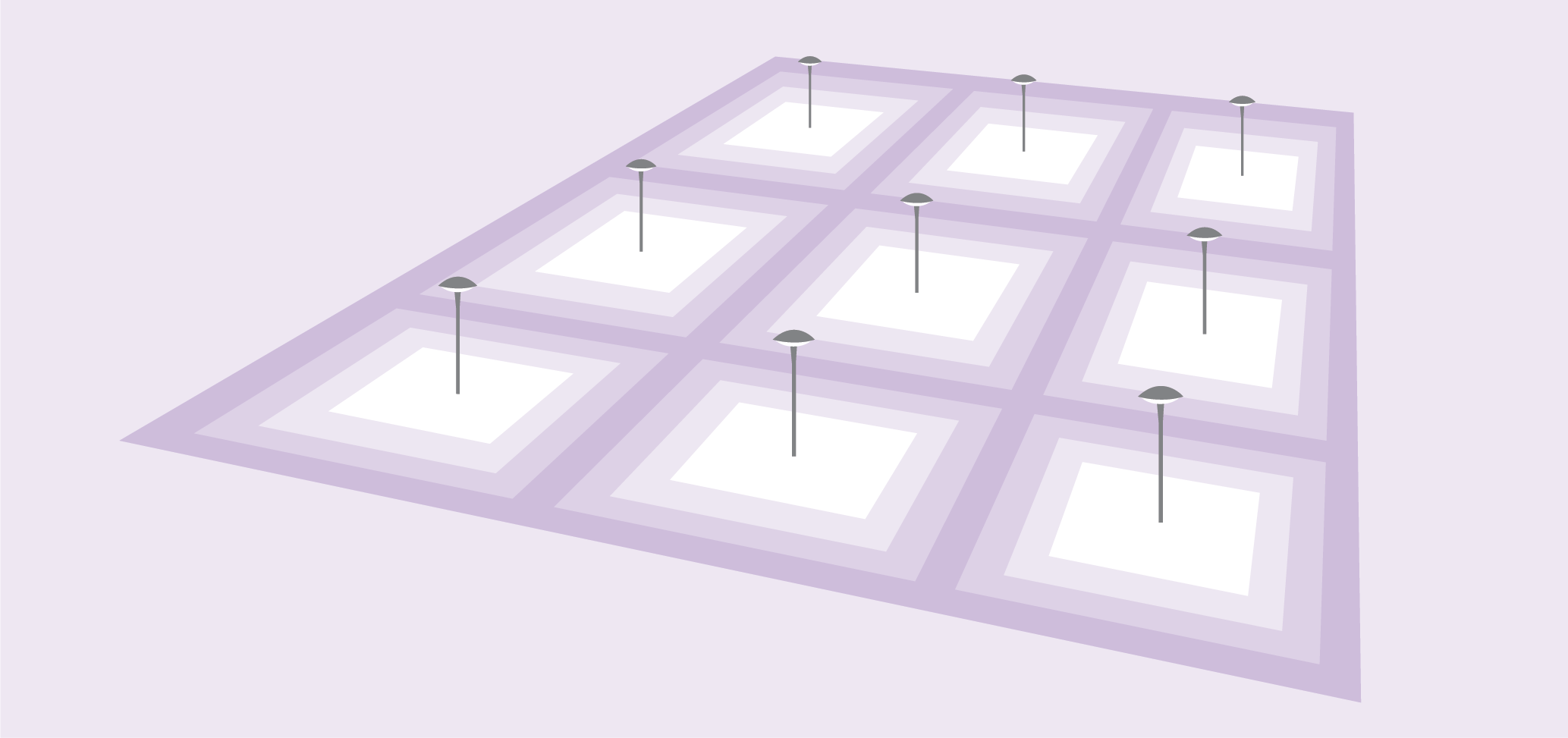

Using Orion LED mounted at 8m achieving 25 Lux average, total energy consumption drops to 2682 Watts

orion reflector systems LED-01

Conventional Reflector Systems

Optimum Reflector System

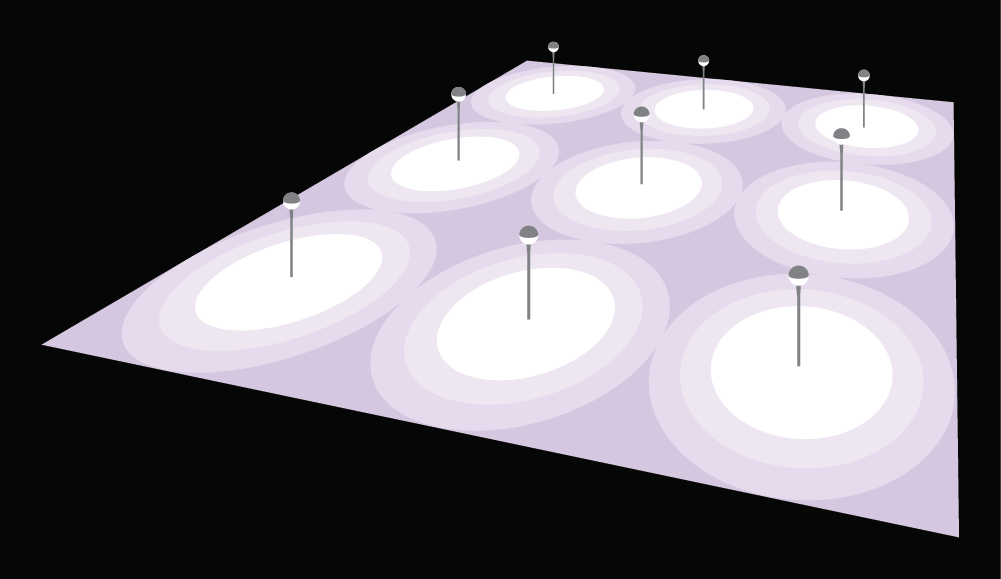

9 x Lanterns at 12m: 1 x 400W SON-T

9 x Lanterns at 12m: 1 x 400W SON-T

Energy Consumption: 3.87kW          Cable lengths: 390m
Power Density: 0.36W/m²/25 Lux Columns/Foundation: 9

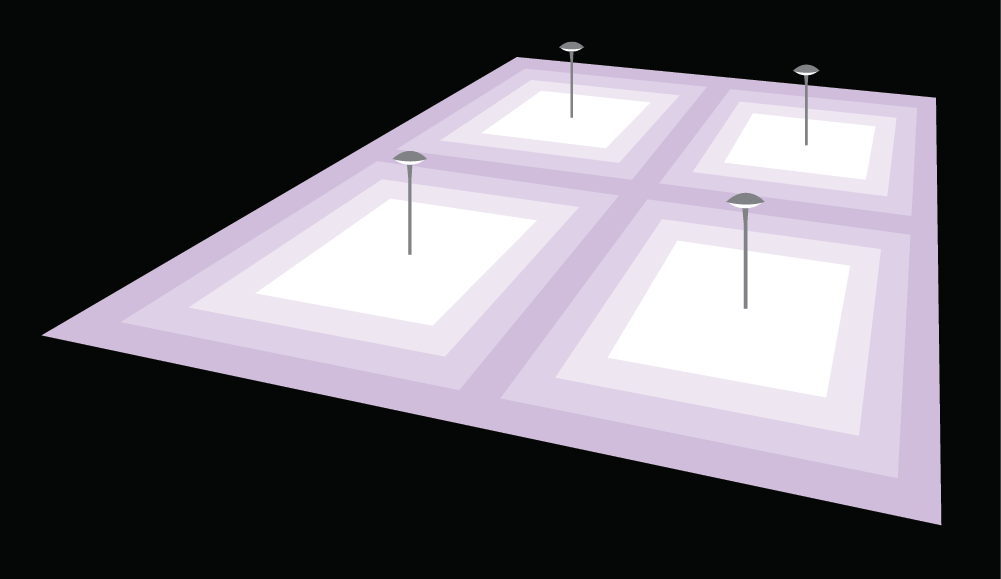

4 x Orion at 12m: 1 x 400W SON-T

4 x Orion at 12m: 1 x 400W SON-T

Energy Consumption: 3.44kW          Cable lengths: 260m
Power Density: 0.33W/m²/25 Lux Columns/Foundation: 4

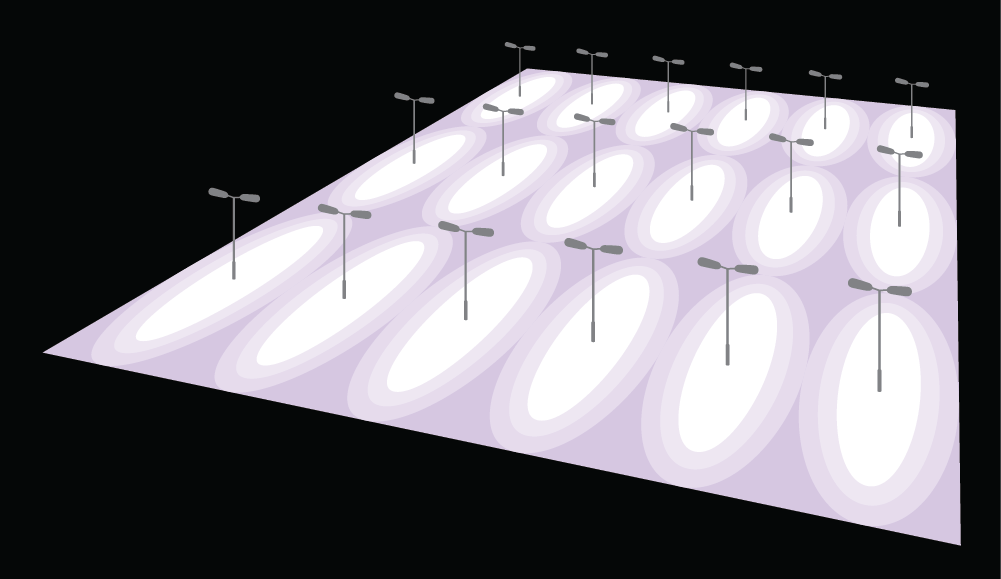

18 x Twin Road Lanterns at 8m: 2 x 150W SON-T

18 x Twin Road Lanterns at 8m: 2 x 150W SON-T

Energy Consumption: 5.40kW          Cable lengths: 550m
Power Density: 0.50W/m²/25 Lux Columns/Foundation: 18

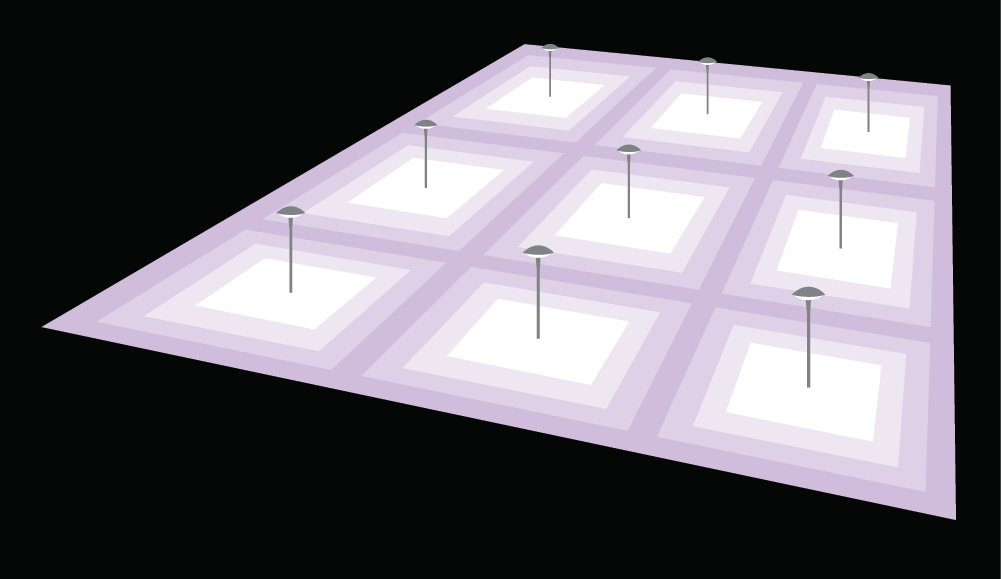

9 x Orion 2 at 8m: 400W SON-T

9 x Orion 2 at 8m: 400W SON-T

Energy Consumption: 3.87kW          Cable lengths: 410m
Power Density: 0.36W/m²/25 Lux Columns/Foundation: 9
25 x Standard Reflectors at 6m: 2 x 150W SON-T

25 x Standard Reflectors at 6m: 2 x 150W SON-T

Energy Consumption: 6.90kW          Cable lengths: 700m
Power Density: 0.84W/m²/25 Lux Columns/Foundation: 25

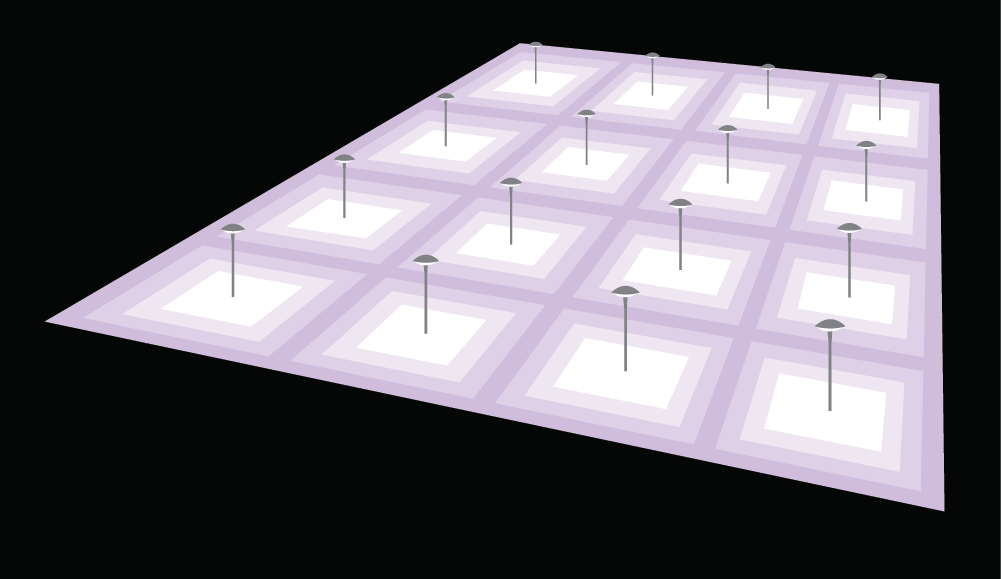

16 x Orion 3 at 6m: 250W SON-T

16 x Orion 3 at 6m: 250W SON-T

Energy Consumption: 4.14kW          Cable lengths: 620m
Power Density: 0.38W/m²/25 Lux Columns/Foundation: 16
