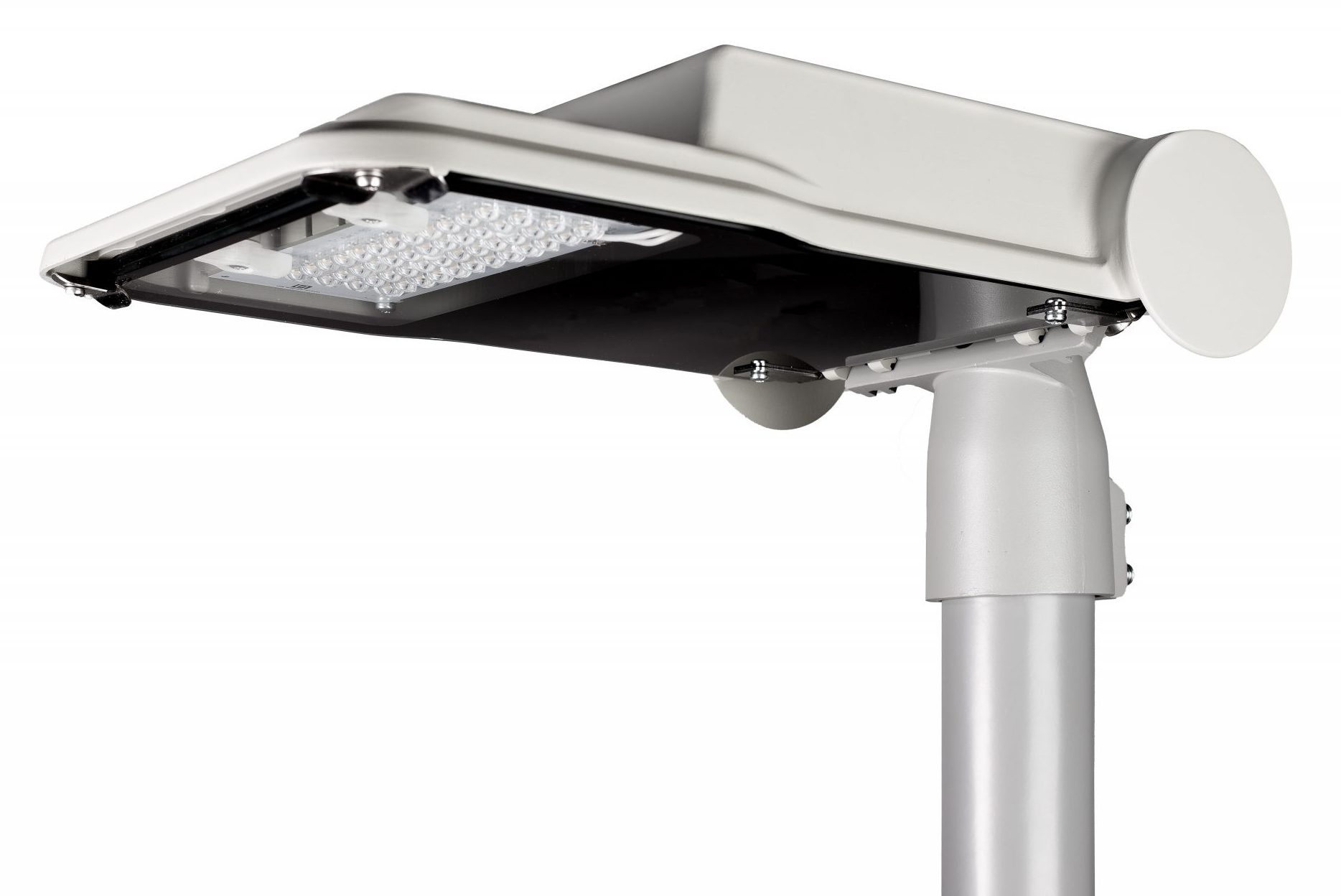

S-LUM Mini

An innovative road lighting luminaire of modular construction designed with ease of maintenance in mind. Tool-less upgrades of key components such as power supply and light engine along with field-replaceable LED modules ensure the luminaire takes full advantage of future improvements in LED technology.

With a lifetime of 100,000 hours (L80B10) combined with an efficacy of up to 159 lm/W, the AL63000 series keeps both operating and maintenance costs to an absolute minimum.

Overview

  • Tool-less quick access latch
  • Screw-less maintenance
  • Durable die-cast aluminium housing
  • Flexibility with vertical or horizontal spigot mounting
  • Multiple optics

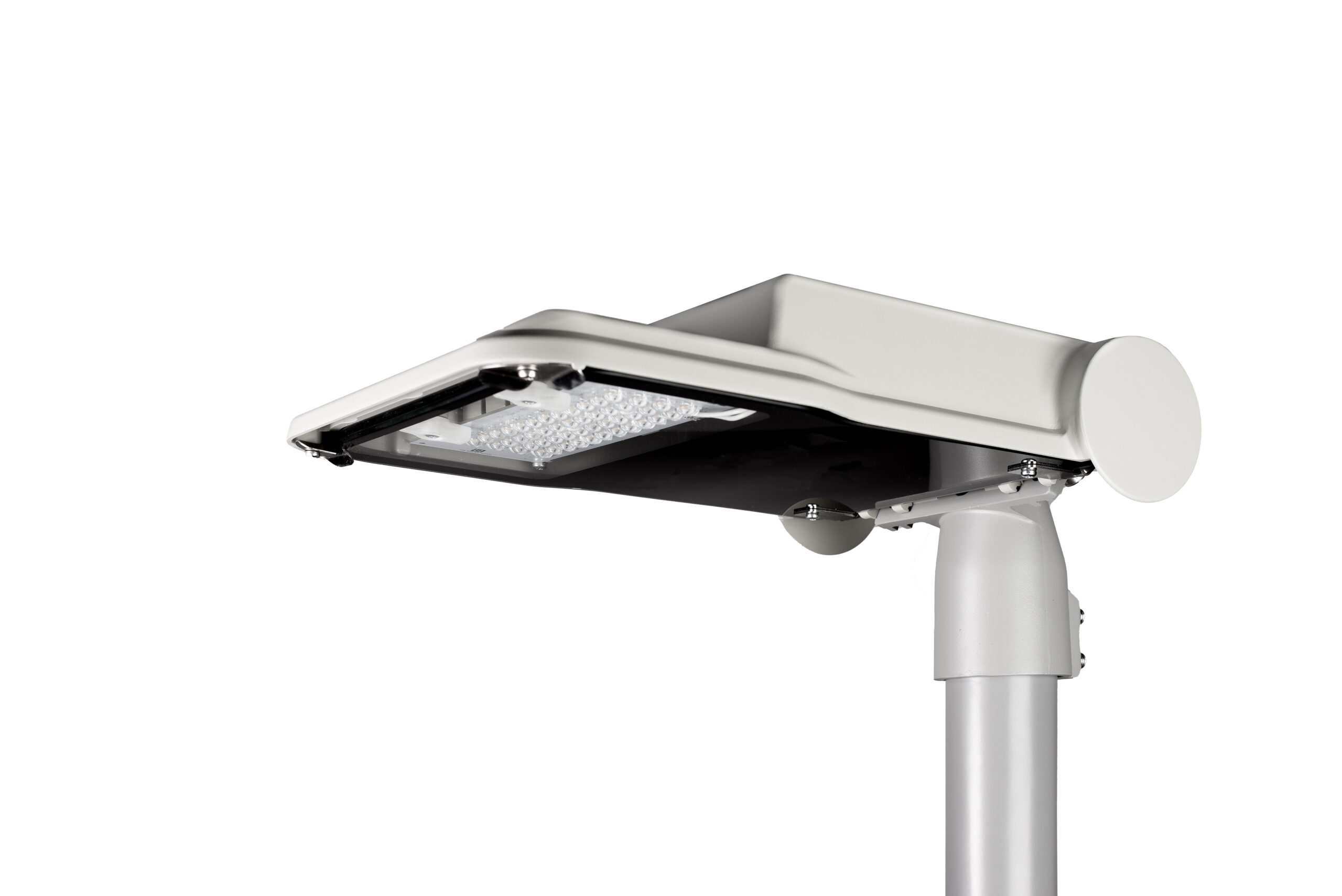

Lumenia_ S LUM Mini

Applications

  • Road
  • Open Area
  • Rail
  • Amenity
  • Pedestrian Areas

Colour

  • Grey (RAL 7037)

Technical Features

  • Controls; Dali, RF or PLC (specify at enquiry)
  • Efficacy up to159 lm/W
  • Integrated 5 level dimming module (optional)
  • Overheat protection
  • Constant light output (optional)
  • IP66 and IK09 rated
  • Colour temperature 4000K as standard (3000K available)
  • CRI ≥70 (80 optional)
  • Power supply 220-240V
  • Standard surge protection 6kV
  • Operating temperature: -40°C to +55°C
  • NEMA ready

Dimensions

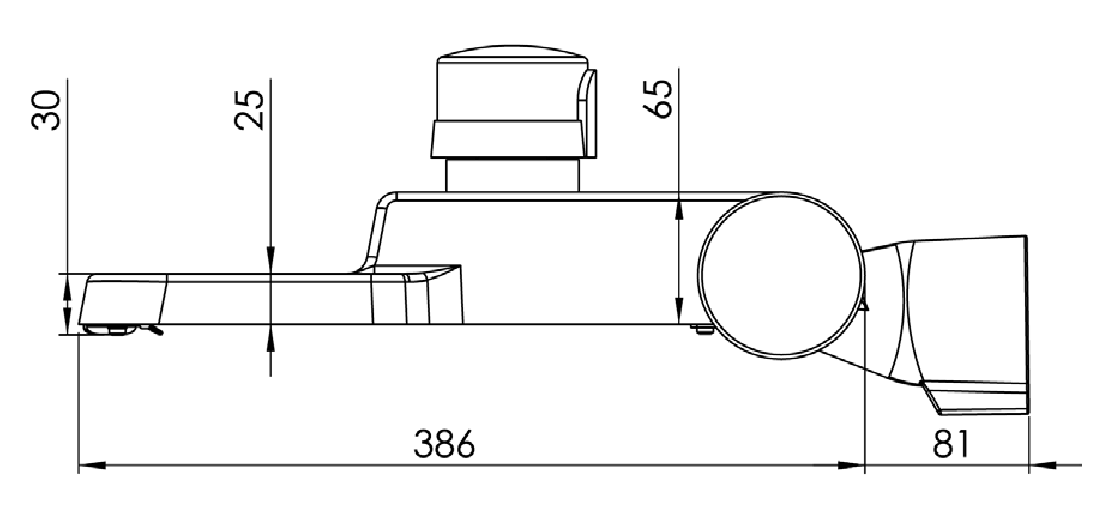

S-Lum Mini Dims 1

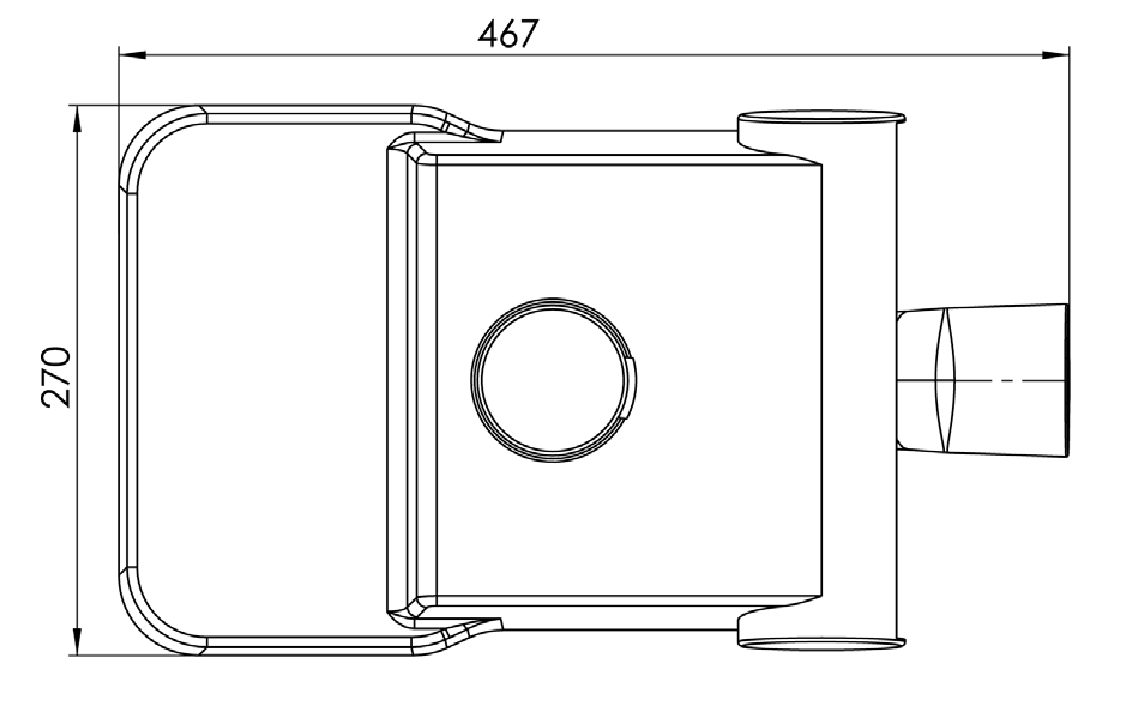

S-Lum Mini Dims 2

Optics

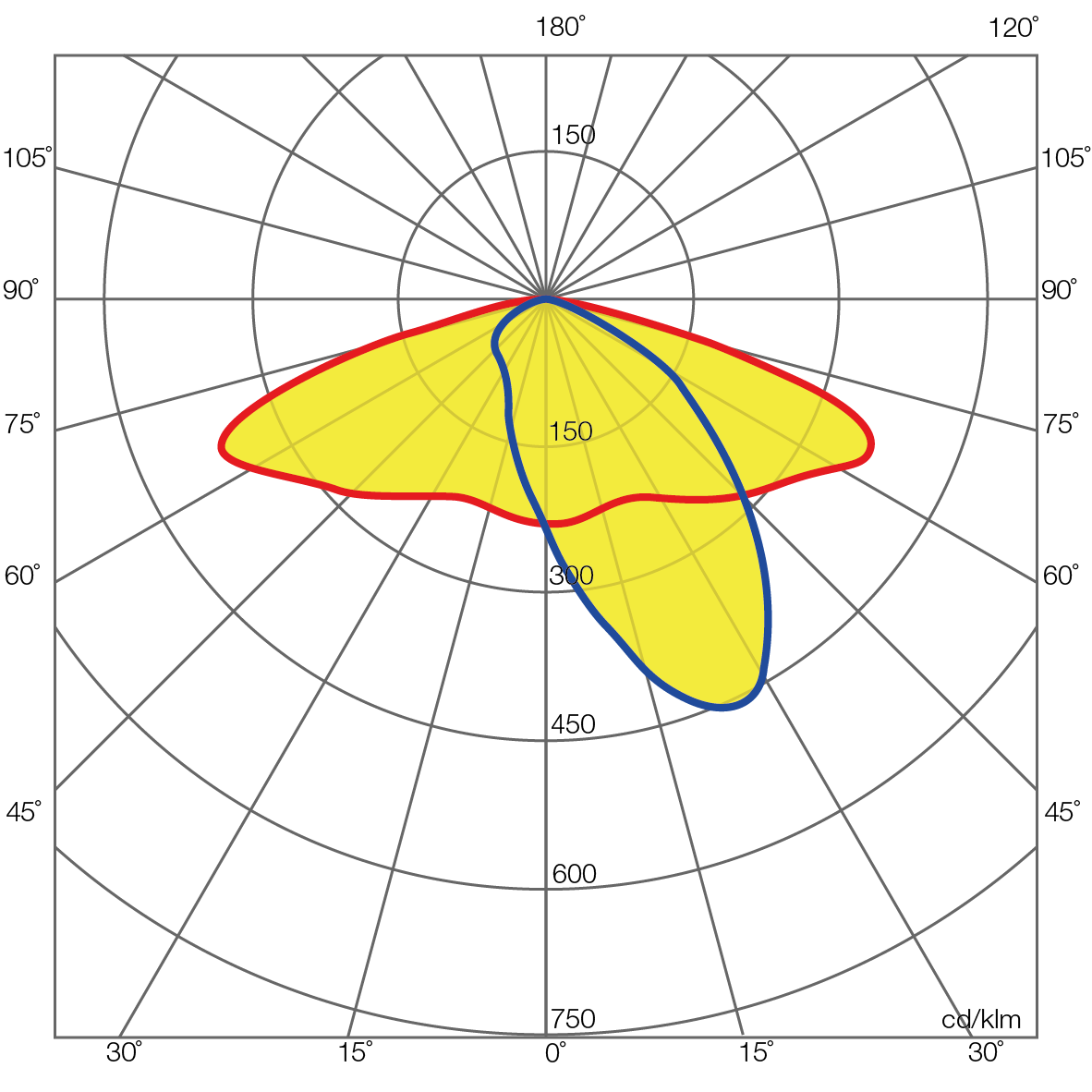

S-LUM Mini 002

AL63002 – Suitable for narrower roadways, access roads, cycling and pedestrian areas

S-LUM Mini 020

AL63004 – Suitable for wide roads with larger distances between columns

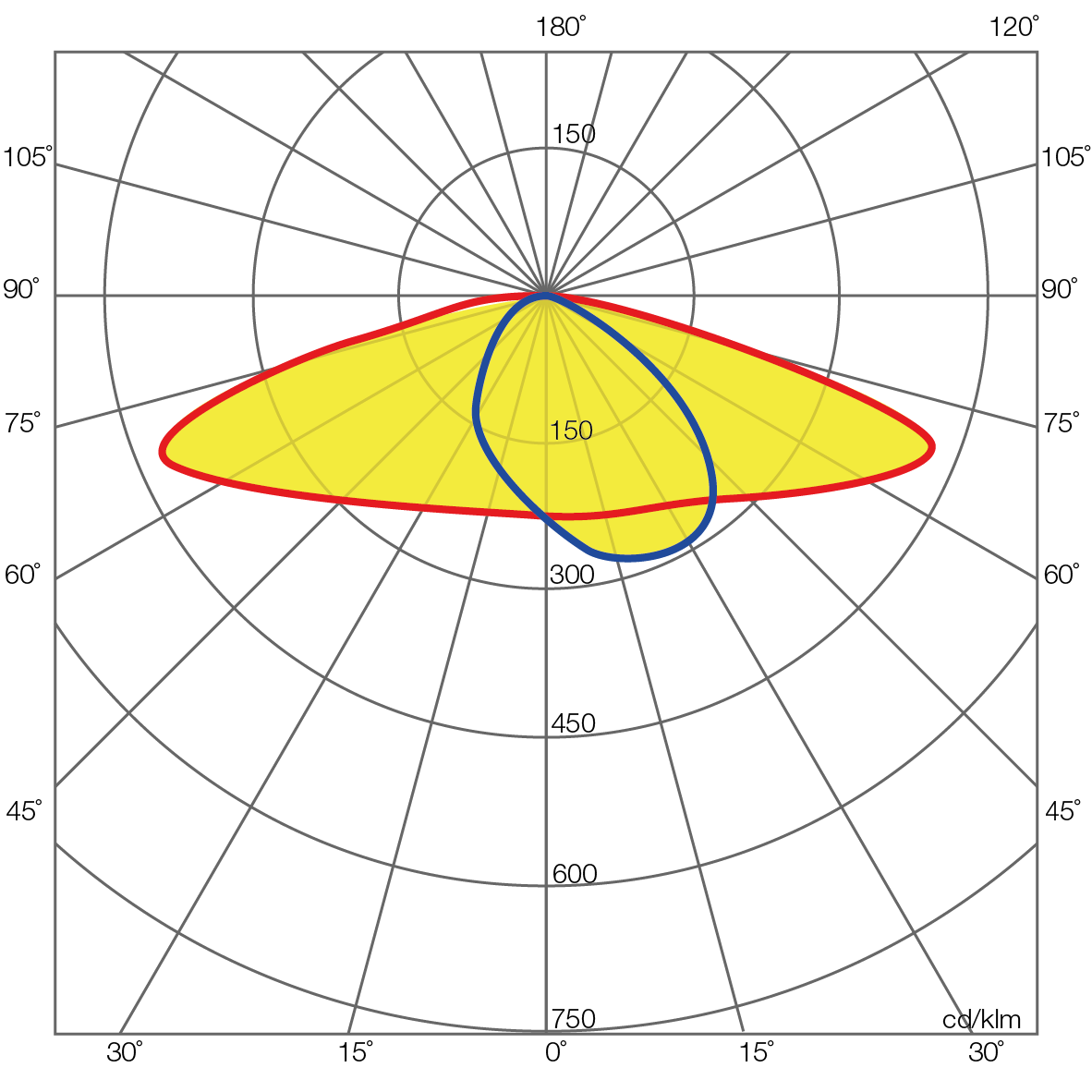

S-LUM Mini 220

AL63009 – Suitable for wide roadways and long distances between columns

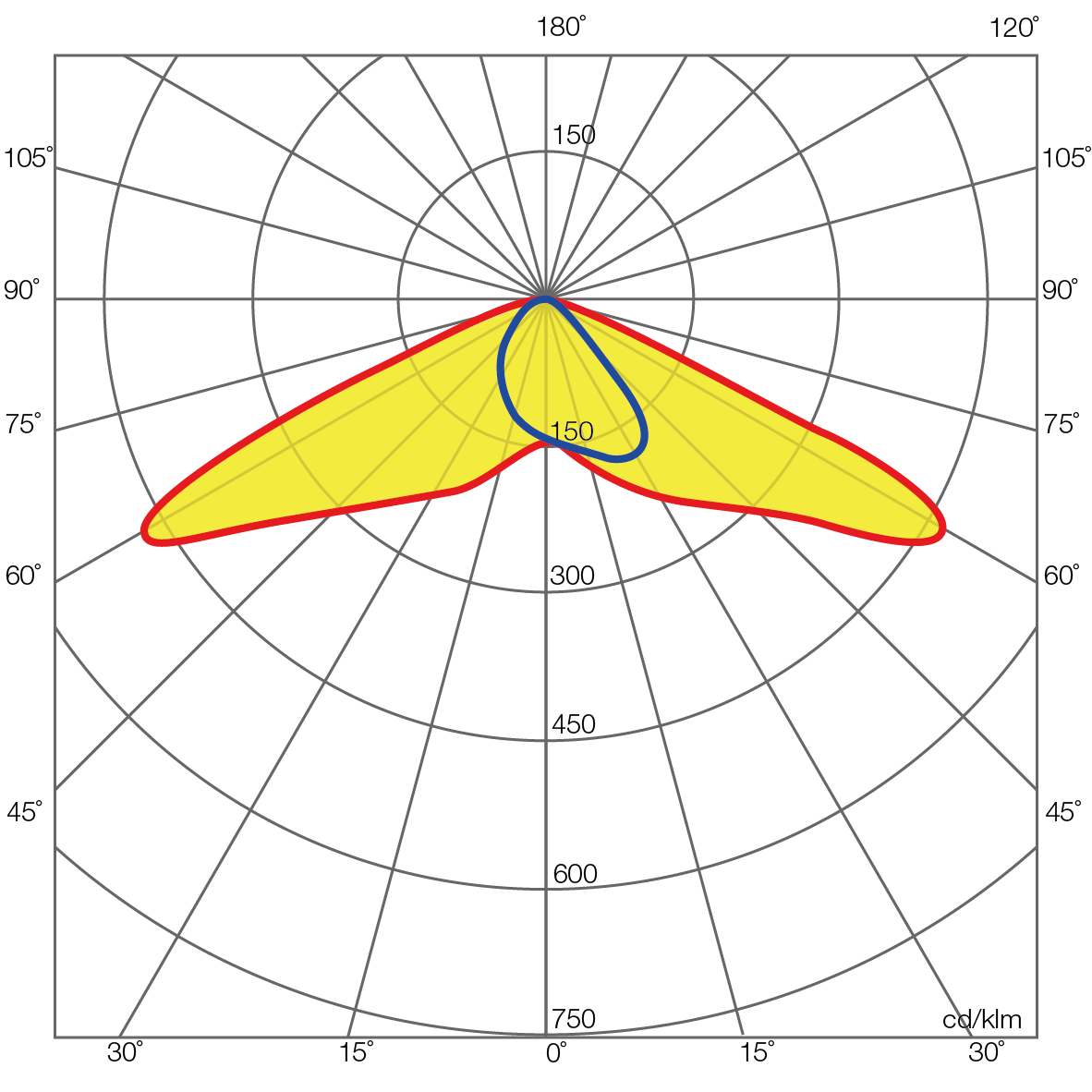

S-LUM Mini 222

AL63014 – Suitable for wide roads with larger distances between columns

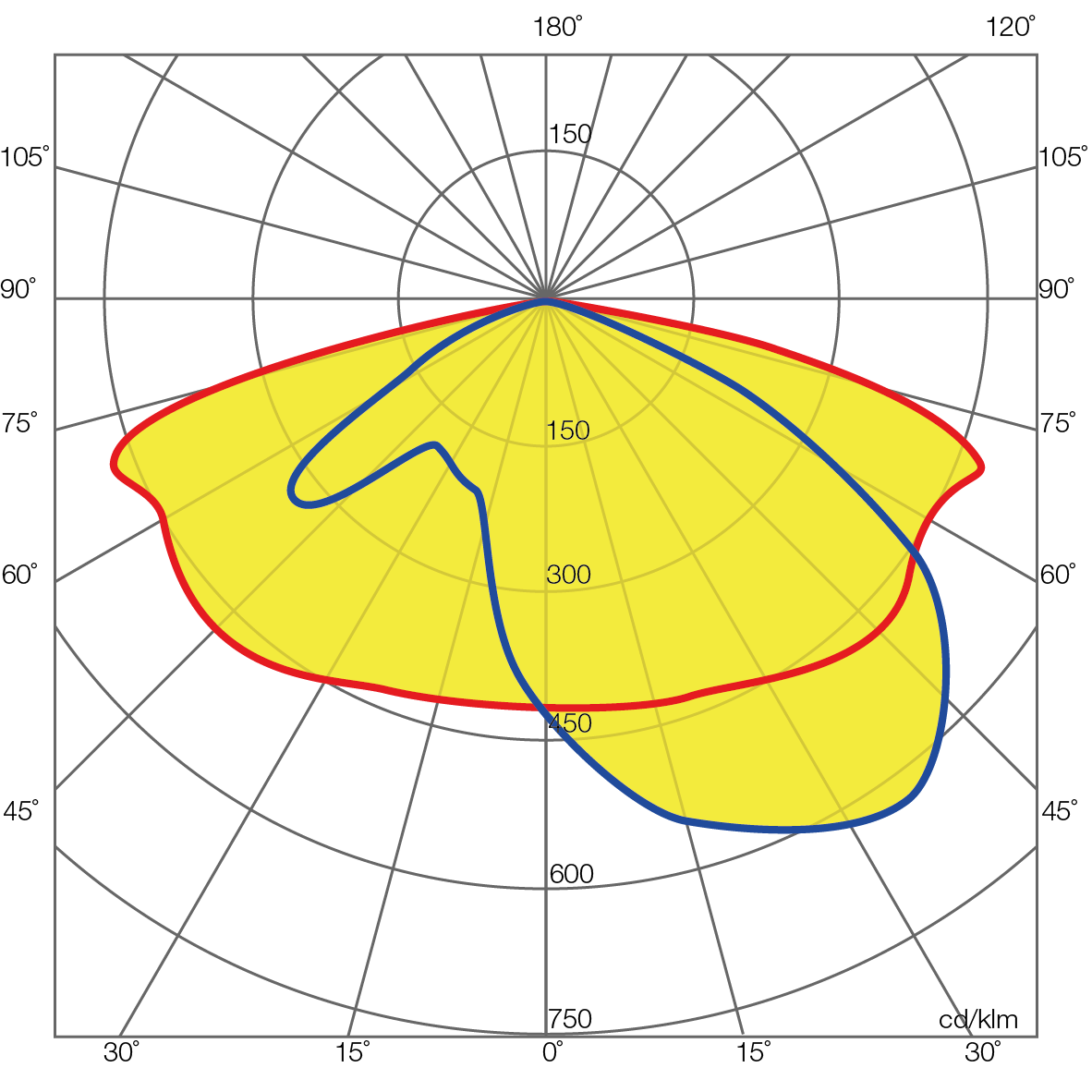

S-LUM Mini 003

AL63012 – Suitable for wider roadways with large distances between columns

Beam Types & Outputs

Beam Type Ref Light distribution type Luminaire wattage 4K CRI70 output
AL63002 (002) Suitable for narrower roadways, access roads, cycling and pedestrian areas 10 1590
20 3181
30 4579
AL63009 (220) Suitable for wide roadways and long distances between columns 10 1590
20 3181
30 4579
AL63012 (003) Suitable for wider roadways with large distances between columns 10 1590
20 3181
30 4579
AL63004 (020) Suitable for wide roads with larger distances between columns 10 1590
20 3181
30 4579
AL63014 (222) Suitable for wide roads with larger distances between columns 10 1590
20 3181
30 4579

Product Variants

Beam Ref Power (W) Colour Temp Accessories
AL63002 10 4 = 4000K PC = Photocell
AL63009 20 3 = 3000K PL = PLC NEMA node
AL63012 30   RF = RF node
AL63004
AL63014

Product Codes

AL630XX/XX/X/DDXX



AL63002/20/3/DDRF

Beam type 02, 20W output, 3000K colour temperature, RF node included



AL62014/10/4/DDPC

Beam type 14, 10W output, 4000K colour temperature, Photocell included
