S-LUM

An innovative road lighting luminaire of modular construction designed with ease of maintenance in mind. Tool-less upgrades of key components such as power supply and light engine along with field-replaceable LED modules ensure the luminaire takes full advantage of future improvements in LED technology.

Constructed from high pressure die-cast aluminium, the AL61000 series is available in two body sizes and offers six standard lumen packages, from 1200 to 15,600 lumens.

Overview

Overview

  • Tool-less quick access latch
  • Screw-less maintenance
  • Durable die-cast aluminium housing
  • Vertical or horizontal spigot mounting
  • Multiple optics
s-lum-pic

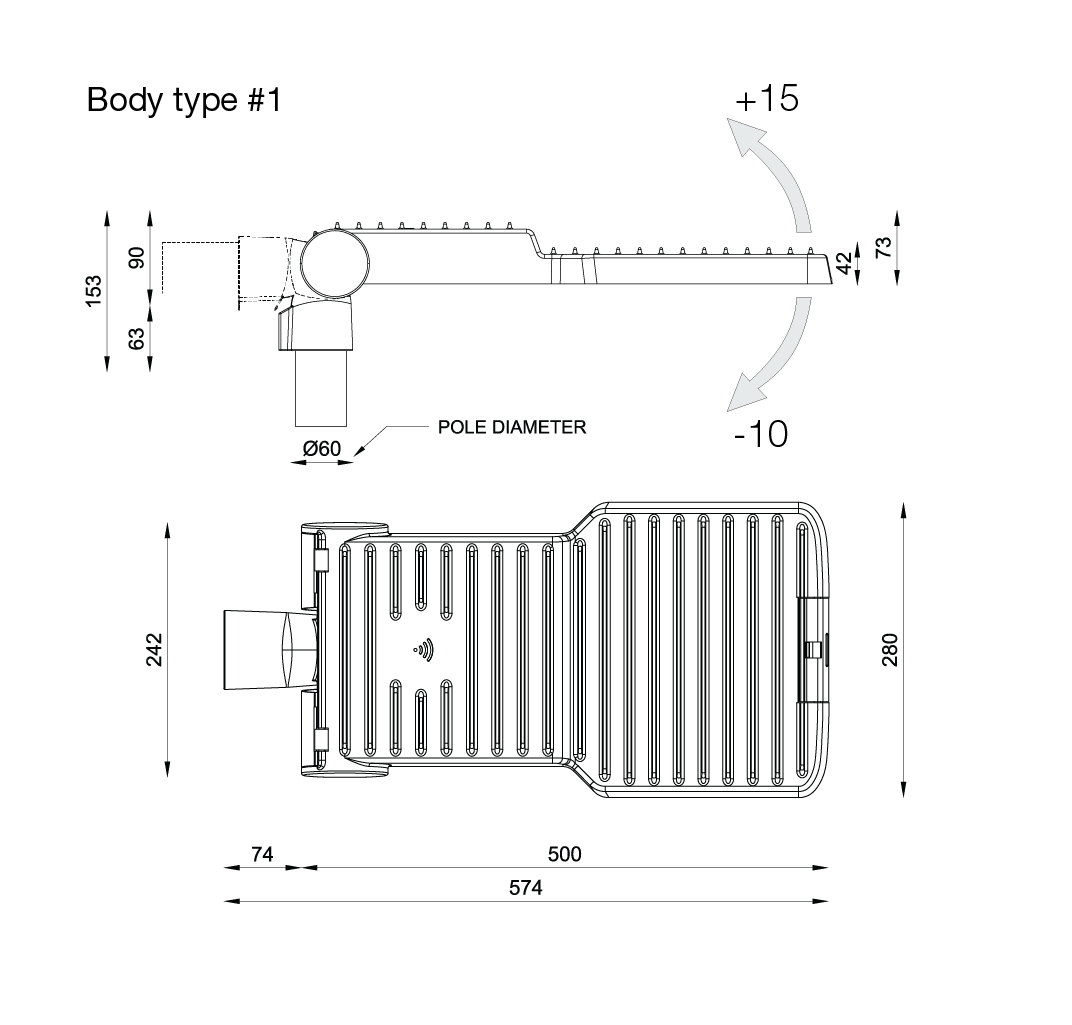

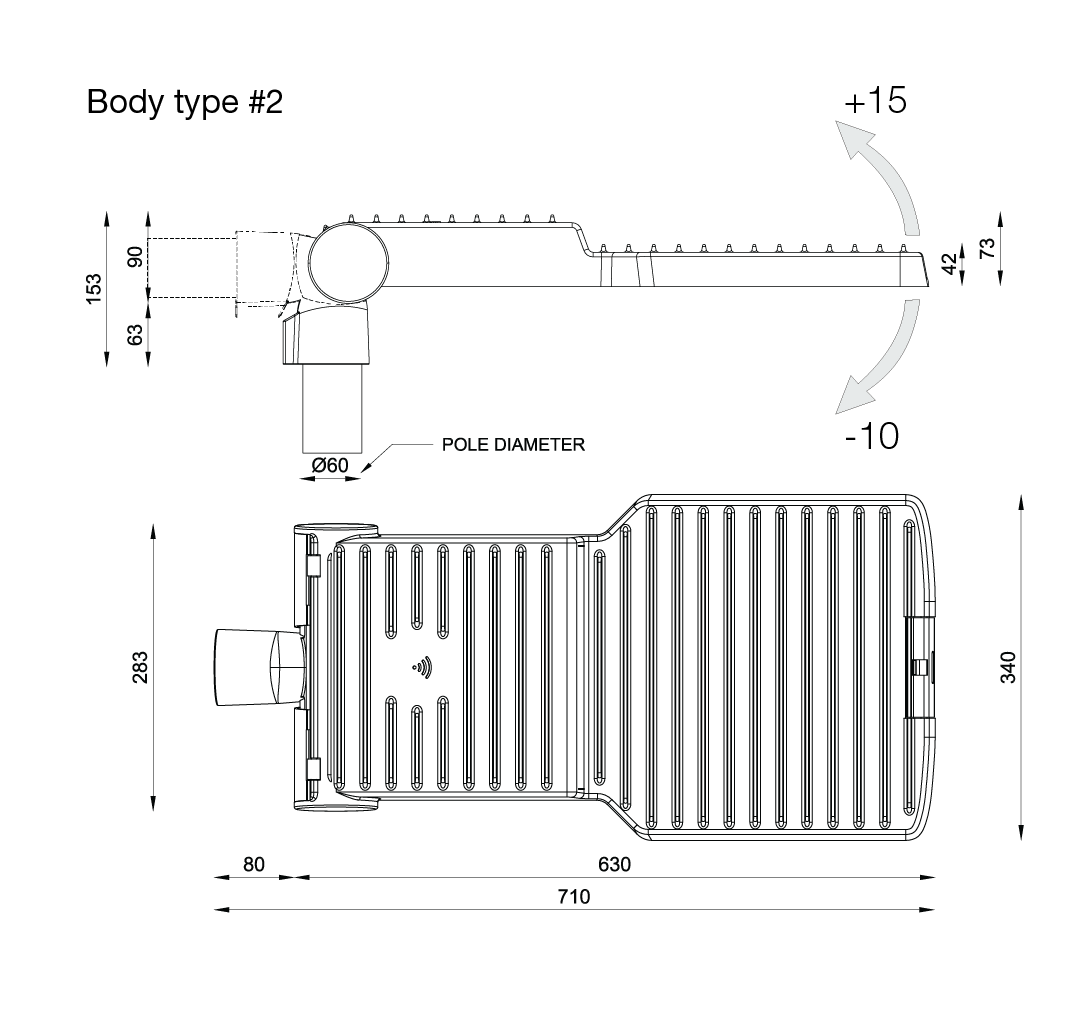

Dimensions

s-lum-dimensions 1-01
s-lum-dimensions 2-01

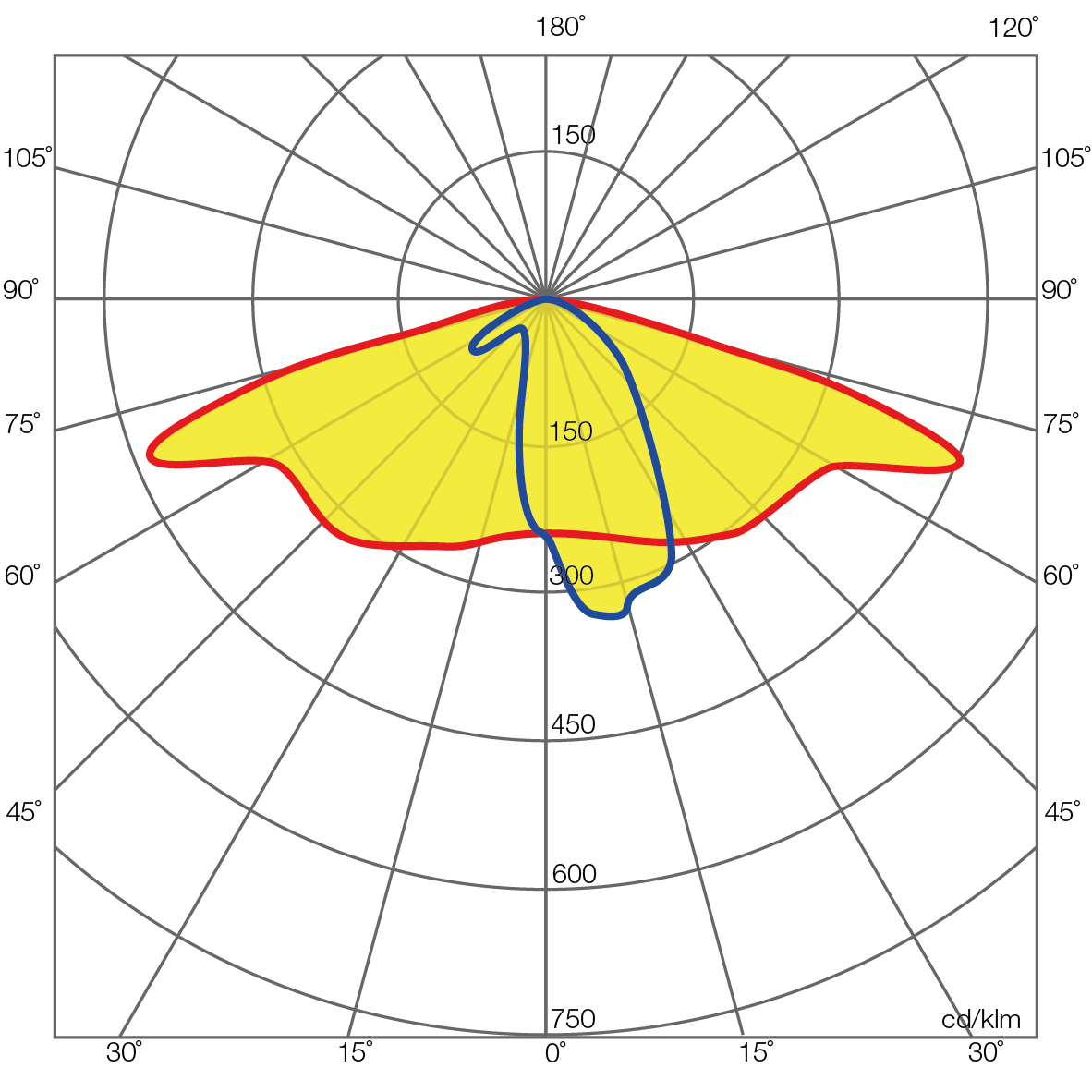

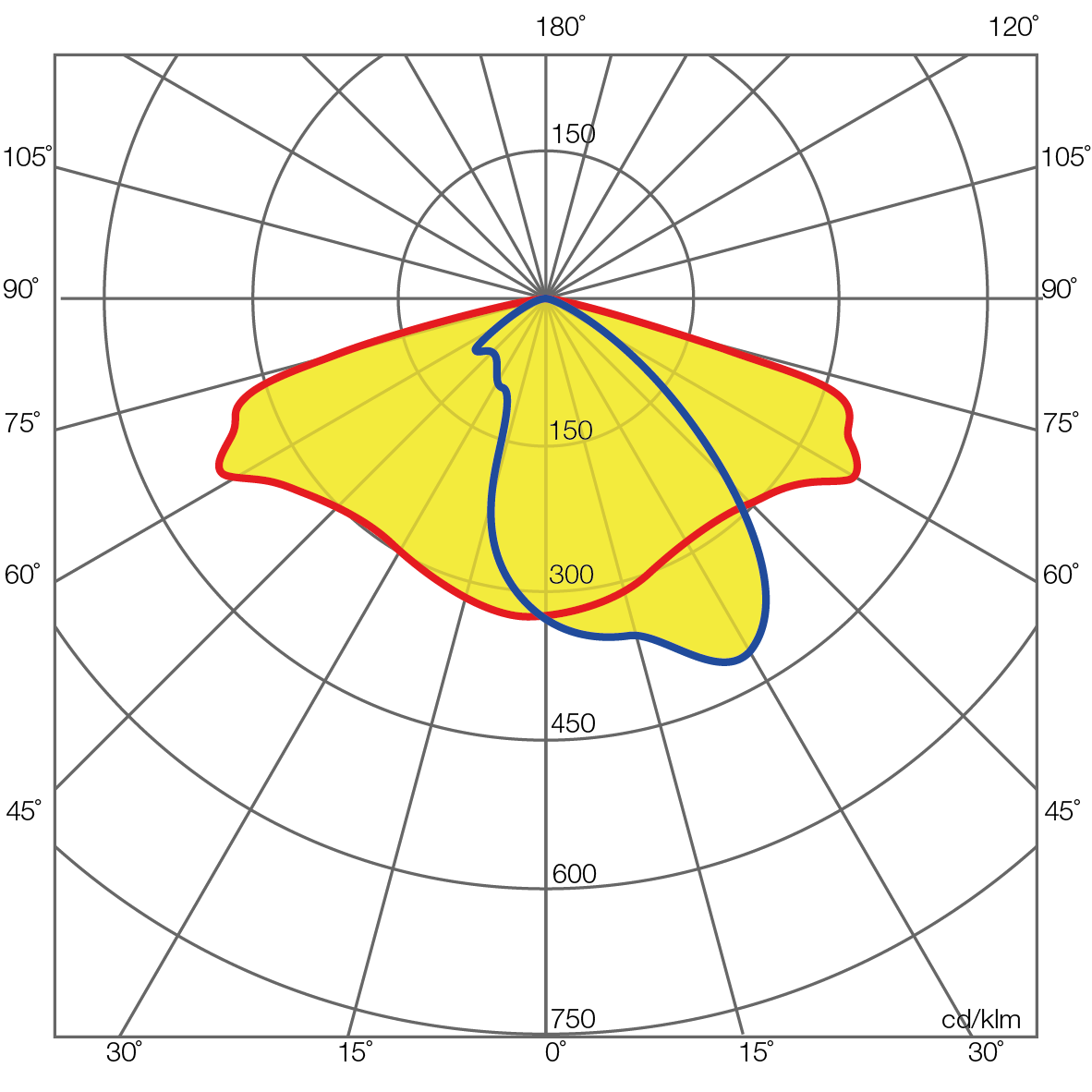

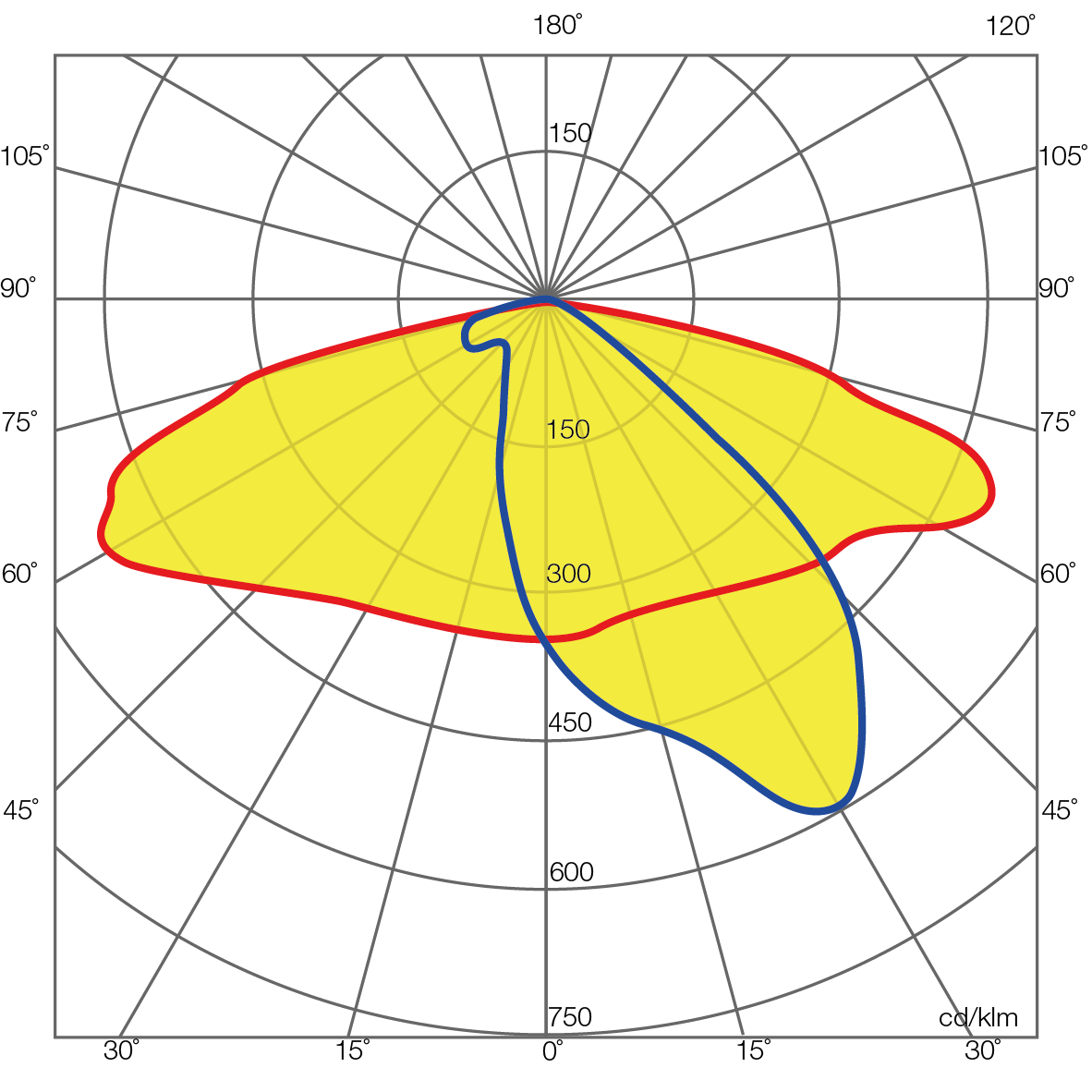

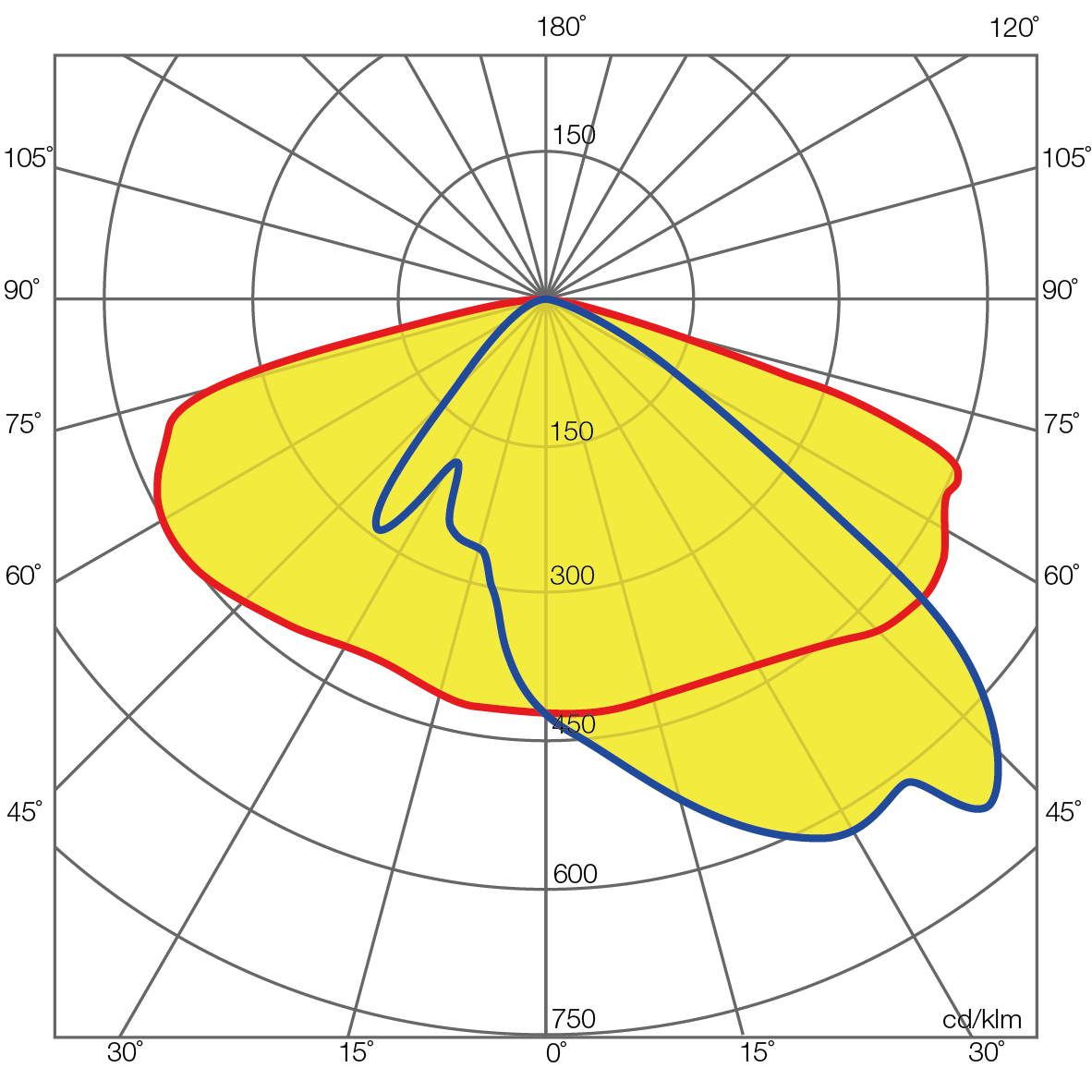

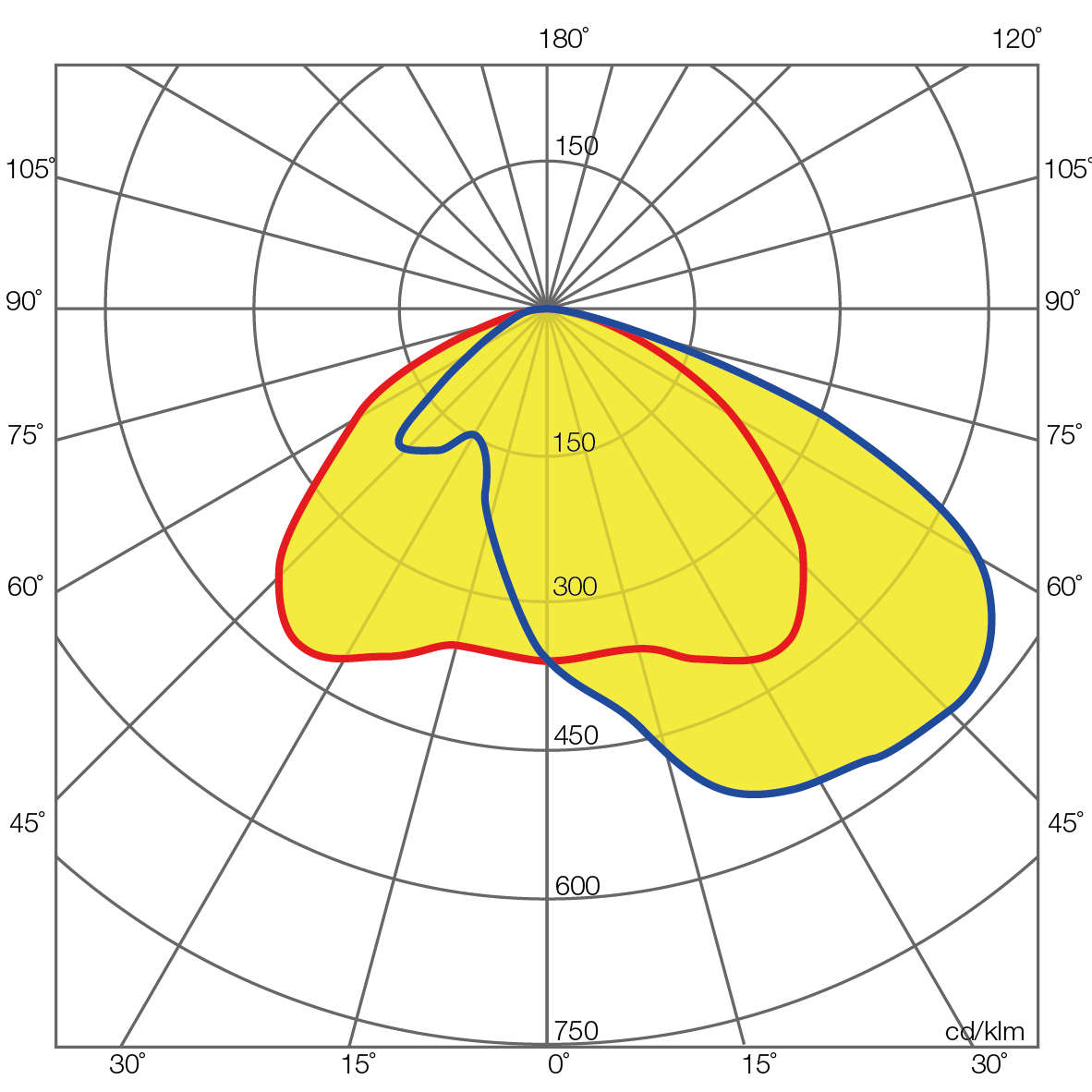

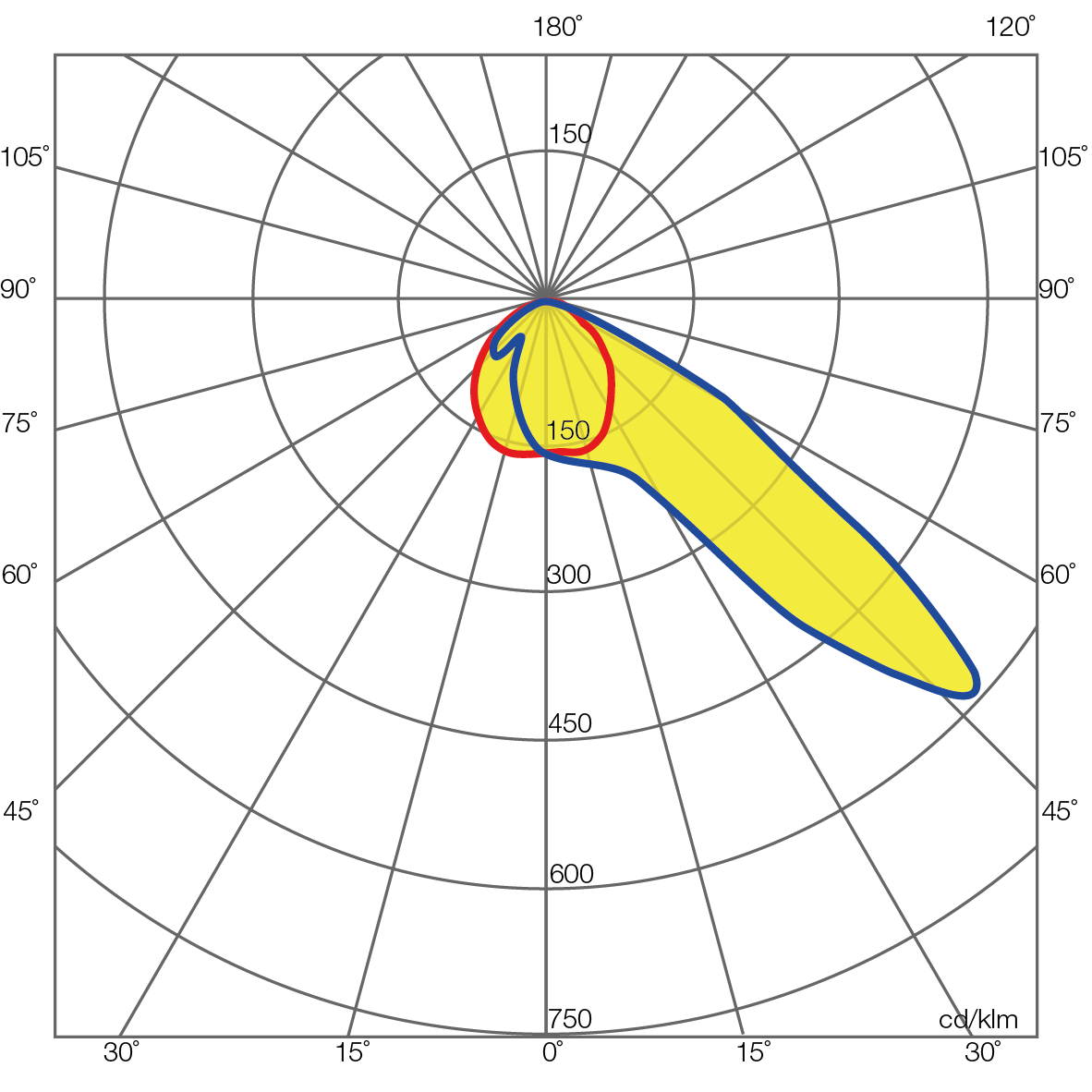

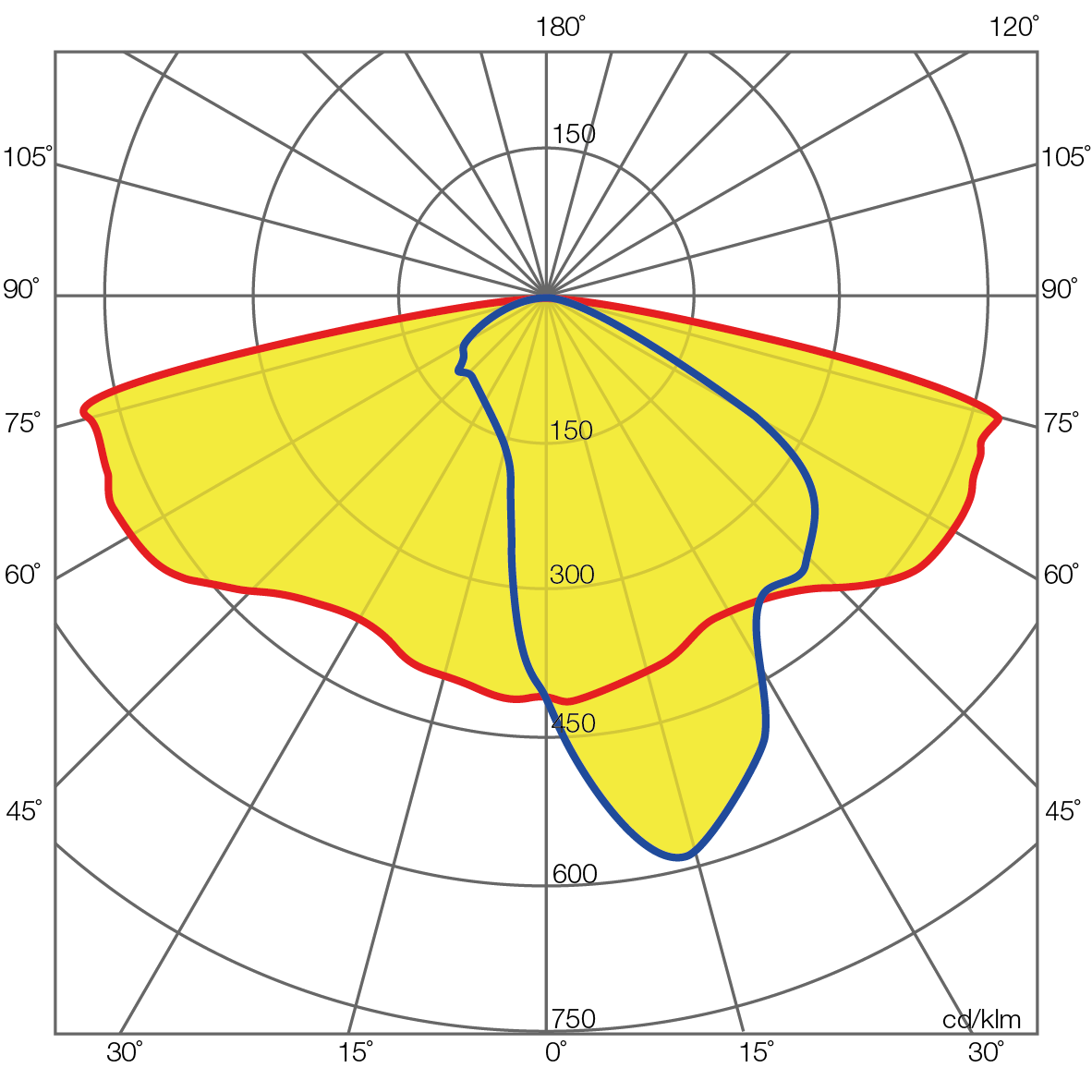

Optics

s-lum-photometry-01
s-lum-photometry-04
s-lum-photometry-02
s-lum-photometry-05
s-lum-photometry-03
s-lum-photometry-06

Product Variants

Luminaire code Luminaire Wattage Lumen output (lm) Driver current (mA) Number of LEDs Body type Light distribution type Weight (kg) Wind area (m²)
AL61001 10 1200 700 4 1 (010) Suitable for larger distance between poles and high mounting installations. Higher uniformity factor 6 0.0336
25 3270 700 6 1 6 0.0336
40 5110 700 8 1 6 0.0336
60 7540 700 12 2 9 0.0406
80 10200 700 16 2 9 0.0406
120 15530 700 24 2 9 0.0406
AL61002 10 1200 700 4 1 (002) Suitable for narrower roadways across roads, cycling and pedestrian areas 6 0.0336
25 3270 700 6 1 6 0.0336
40 5110 700 8 1 6 0.0336
60 7540 700 12 2 9 0.0406
80 10200 700 16 2 9 0.0406
120 15530 700 24 2 9 0.0406
AL61003 10 1200 700 4 1 (110) Suitable for wide roadways and parking spaces. Smaller distance between columns 6 0.0336
25 3270 700 6 1 6 0.0336
40 5110 700 8 1 6 0.0336
60 7540 700 12 2 9 0.0406
80 10200 700 16 2 9 0.0406
120 15530 700 24 2 9 0.0406
AL61004 10 1200 700 4 1 (020) Suitable for wide roadways, larger distance between columns 6 0.0336
25 3270 700 6 1 6 0.0336
40 5110 700 8 1 6 0.0336
60 7540 700 12 2 9 0.0406
80 10200 700 16 2 9 0.0406
120 15530 700 24 2 9 0.0406
AL61005 10 1200 700 4 1 (200) Suitable for larger distance between columns, within bicycle paths 6 0.0336
25 3270 700 6 1 6 0.0336
40 5110 700 8 1 6 0.0336
60 7540 700 12 2 9 0.0406
80 10200 700 16 2 9 0.0406
120 15530 700 24 2 9 0.0406
AL61006 10 1200 700 4 1 (202) Suitable for wide roadways and parking spaces with smaller distances between columns 6 0.0336
25 3270 700 6 1 6 0.0336
40 5110 700 8 1 6 0.0336
60 7540 700 12 2 9 0.0406
80 10200 700 16 2 9 0.0406
120 15530 700 24 2 9 0.0406
