Heavy Duty

6-12M BASE-HINGED COLUMN

Patent No: 968113.  Designed to EN40. Hot dip galvanised to BS EN ISO 1461:2009. Manufactured in steel tube to EN1021

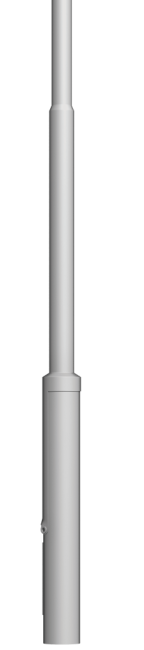

BASE_HINGED_Heavy_T067RLH_v002
Base-hinged Columns Heavy Duty

Heavy Duty

6-12M BASE-HINGED COLUMN

Patent No: 968113.  Designed to EN40. Hot dip galvanised to BS EN ISO 1461:2009. Manufactured in steel tube to EN1021







BASE_HINGED_Heavy_T067RLH_v002
Base-hinged Columns Heavy Duty

Root Mounted

Product Code
Height

OD1

OD2

OD3

W

X

Y

Z

Weight (kg)

DTM (kNm)

Shear(kN)

Min. Concrete Diameter
Counterbalance Type & Max. Weight
T067RLH 4m 219 140 114 2035 2370 1505 1200 106 15.3 2.8 557 RLH1M – 120kg
RLH2M – 185kg
T087RLH 8m 219 140 114 3157 3200 1505 1200 137 14.5 2.3 519 RLH1M – 68kg
RLH2M – 112kg
T107RLH 10m 219 140 114 4115 4230 1505 1500 164 14.2 2.1 264 RLH1M – 40kg
RLH2M – 76kg
T127RLH 12m 219 140 114 5065 5250 1505 1700 185 14.1 1.9 220 RLH1M – 18kg
RLH2M – 48kg

*Root concrete diameter based on poor soil or better, min. 230kN/m² per m

Flange Plate Mounted

Product Code
Height

OD1

OD2

OD3

X

X

Y

Flange Plate

Weight (kg)

OTM (kNm)

Shear (kN)

Concrete Dimensions*
Counterbalance Type & Max. Weight
T067RLH/FP 6m 219 140 114 2035 2370 1505 Type 2 102 15.3 2.8 1050×1200 RLH1M – 120kg
RLH2M – 185kg
T087RLH/FP 8m 219 140 114 3157 3200 1505 Type 2 122 14.6 2.3 950×110 RLH1M – 68kg
RLH2M – 112kg
T107RLH/FP 10m 219 140 114 4115 4230 1505 Type 2 145 14.2 2.1 950×110 RLH1M – 40kg
RLH2M – 76kg
T127RLH/FP 12m 219 140 114 5065 5250 1505 Type 2 173 14.1 1.9 950×110 RLH1M – 18kg
RLH2M – 48kg

*Concrete dimension based on a minimum ground bearing pressure of 150kN/m² (passive concrete design). (S = square dimension, H= depth)

Outreach & Floodlight Brackets

Height Projection Length
Single (s)

Double (D)
Spigot Lengths
/SP 230mm
/SP1 100mm
Floodlight Brackets

Overlap Fit on Shaft

Flush Fit on Spigot
Type/Bolt Centres (mm)
Overlap Fit on Shaft

Flush Fit on Spigot
6m   T067RLH T067RLH/SP+/SP1*   T067RLH T067RLH/SP
  0.30m PR6-03/S or /D PR7-03/S or /D* Single FL4/1 FL5/1
  0.50m PR6-05/S or /D PR7-05/S or /D* Double (800) FL4/3 FL5/3
        Triple (800) FL4/5 FL5/5
8m   T087RLH T087RLH/SP+/SP1*   T087RLH T087RLH/SP
  0.50m PR6-05/S or /D PR7-05/S or /D* Single FL4/1 FL5/1
  1.00m PR6-10/S or /D PR7-10/S or /D* Double (800) FL4/3 FL5/3
  1.50m PR6-15/S or /D PR7-15/S or /D* Triple (800) FL4/5 FL5/5
10m   T107RLH T107RLH/SP+/SP1*   T107RLH T107RLH/SP
  0.50m PR6-05/S or /D PR7-05/S or /D* Single FL4/1 FL5/1
  1.00m PR6-10/S or /D PR7-10/S or /D* Double (800) FL4/3 FL5/3
  1.50m PR6-15/S or /D PR7-15/S or /D* Triple (800) FL4/5 FL5/5
12m   T127RLH T127RLH/SP   T127RLH T127RLH/SP
  0.50m PR6-05/S or /D PR7-05/S or /D Single FL4/1 FL5/1
  0.75m PR6-075/S or /D PR7-075/S or /D Double (800) FL4/3 FL5/3

*Outreach brackets series PR1 & PR2 below 0.50m projection fit onto 100mm spigot (/SP1). 0.50m + on standard 230mm spigot (/SP).

Column Headload Capacity (m²)

Based on UK rationalised wind loading factors for EN40

Product Code Lantern Mounting/Projection Max. Headload (kg) Light 396 Medium 429 Heavy 466 Very Heavy 576
T067RLH Post Top 185 2.453 2.255 2.069 1.661
  0.50m Single Outreach 12 0.741 0.681 0.624 0.500
  0.75m Single Outreach 12 0.499 0.457 0.418 0.332
T087RLH Post Top 112 1.075 0.985 0.901 0.724
  0.50m Single Outreach 12 0.408 0.374 0.341 0.272
  1.00m Single Outreach 12 0.275 0.250 0.227 0.178
  1.50m Single Outreach 12 0.194 0.175 0.157 0.119
T107RLH Post Top 76 0.608 0.553 0.503 0.400
  0.50m Single Outreach 12 0.247 0.224 0.203 0.160
  1.00m Single Outreach 12 0.167 0.150 0.135 0.103
  1.50m Single Outreach 12 0.114 0.101 0.089 0.063
T127RLH Post Top 48 0.312 0.279 0.252 0.195
  0.50m Single Outreach 12 0.136 0.121 0.108 0.082
  0.75m Single Outreach 12 0.108 0.096 0.085 0.062

Counterbalance Units

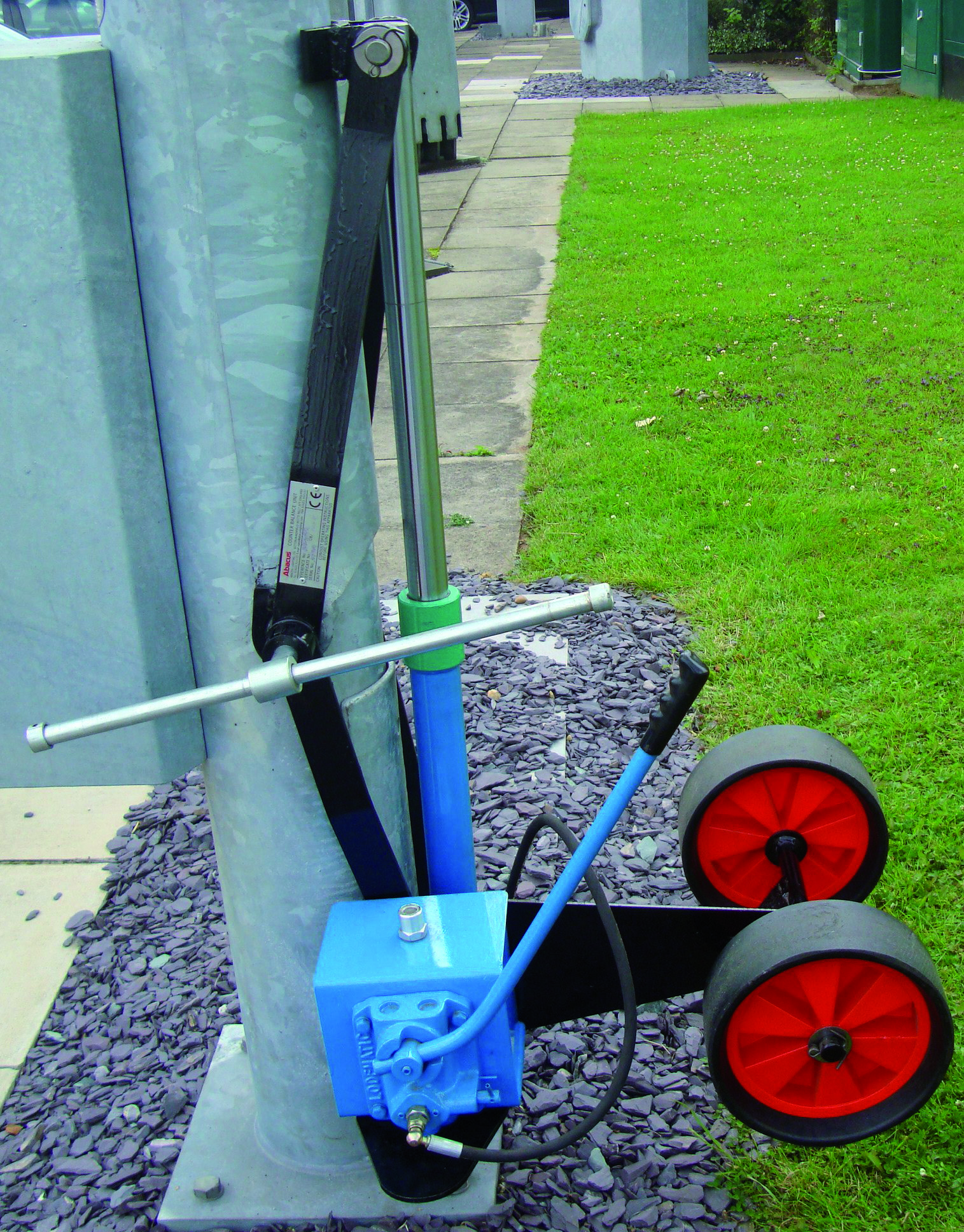

RLH1M

The two manually operated units, RLH1M (light loads only) and RLH2M are designed to lower and raise the columns in a safe, simple and efficient manner.

RLH2M

The two manually operated units, RLH1M (light loads only) and RLH2M are designed to lower and raise the columns in a safe, simple and efficient manner.

Accessories

Product Code Description
ELSAB1/6A Single fuse cut-out, 6A, loop in/out (not fitted)
ELSAB12/6A Twin fuse cut-out, 6A, loop in/out (not fitted)
