Base-hinged Columns Light Duty

Light Duty

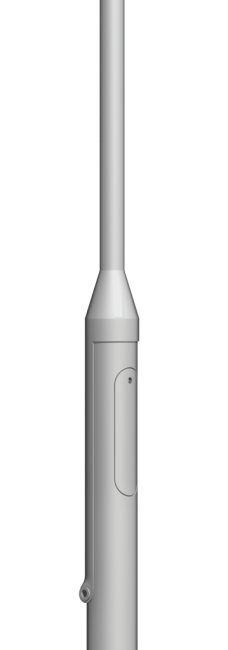

4-8M BASE-HINGED COLUMN

Patent No: 968113.  Designed to EN40. Hot dip galvanised to BS EN ISO 1461:2009. Manufactured in steel tube to EN1021





BASE_HINGED_Light_T041RLS_v001a
Base-hinged Columns Light Duty

Light Duty

4-8M BASE-HINGED COLUMN

Patent No: 968113.  Designed to EN40. Hot dip galvanised to BS EN ISO 1461:2009. Manufactured in steel tube to EN1021





BASE_HINGED_Light_T041RLS_v001a
Base-hinged Columns Light Duty

Root Mounted

Product Code
Height

OD1

OD2

X

Y

Z

Weight (kg)

OTM (kNm)

Shear (kN)

Min. Concrete Diameter*
Counterbalance Type & Max. Weight
T041RLS 4m 168 76 2875 1050 800 50 4.9 1.4 607 RLS168 – Yellow 18kg
RLS168 – White 28kg
RLS168 – Red 38kg
RLS168 – Blue 53kg
RLH168 – 53kg
T051RLS 5m 168 76 3875 1050 800 59 4.7 1.2 569 RLS168 – Yellow 11kg
RLS168 – White 19kg
RLS168 – Red 28kg
RLS168 – Blue 40kg
RLH168 – 40kg
T061RLS 6m 168 76 4860 1050 1000 67 4.6 1.1 291 RLS168 – White 11kg
RLS168 – Red 19kg
RLS168 – Blue 29kg
RLH168 – 29kg
T081RLS 8m 168 89 6830 1050 1200 87 5.3 1.2 198 RLS168 – Blue 11kg
RLS168 – Green 17kg
RLH168 – 17kg

*Root concrete diameter based on poor soil or better, min. 230kN/m² per m

Flange Plate Mounted

Product Code
Height

OD1

OD2

X

Y

Flange Plate

Weight (kg)

OTM (kNm)

Shear (kN)

Concrete Dimensions*
Counterbalance Type & Max. Weight
T041RLS/FP 4m 168 76 2875 1050 Type 0 47 4.9 1.4 750×800 RLS168 – Yellow 10kg
RLS168 – White 20kg
RLS168 – Red 29kg
RLS168 – Blue 53kg
RLH168 – 53kg
T051RLS/FP 5m 168 76 3875 1050 Type 0 52 4.7 1.2 750×800 RLS168 – Yellow 10kg
RLS168 – White 18kg
RLS168 – Red 27kg
RLS168 – Blue 40kg
RLH168 – 40kg
T061RLS/FP 6m 168 76 4860 1050 Type 0 57 4.6 1.1 750×800 RLS168 – White 10kg
RLS168 – Red 18kg
RLS168 – Blue 28kg
RLH168 – 29kg
T081RLS/FP 8m 168 89 6830 1050 Type 1 72 5.3 1.2 750×900 RLS168 – Blue 11kg
RLS168 – Green 17kg
RLH168 – 17kg

*Concrete dimension based on a minimum ground bearing pressure of 150kN/m² (passive concrete design). (S = square dimension, H= depth)

Outreach & Floodlight Brackets

Height Projection Length
Single (s)

Double (D)
Spigot Lengths
/SP 230mm
/SP1 100mm
Floodlight Brackets

Overlap Fit on Shaft

Flush Fit on Spigot
Type/Bolt Centres (mm)
Overlap Fit on Shaft

Flush Fit on Spigot
4m   T041RLS T041RLS/SP+/SP1*   T041RLS T041RLS/SP
  0.30m PR2-03/S or /D PR1-03/S or /D* Single FL1/1 FL0/1
  0.50m PR2-05/S or /D PR1-05/S or /D* Double (600) FL1/2 FL0/2
5m   T051RLS T051RLS/SP+/SP1*   T051RLS T051RLS/SP
  0.30m PR2-03/S or /D PR1-03/S or /D* Single FL1/1 FL0/1
  0.50m PR2-05/S or /D PR1-05/S or /D* Double (600) FL1/2 FL0/2
6m   T061RLS T061RLS/SP+/SP1*   T061RLS T061RLS/SP
  0.30m PR2-05/S or /D PR1-03/S or /D* Single FL1/1 FL0/1
  0.50m PR2-05/S or /D PR1-05/S or /D* Double (800) FL1/3 FL0/3
8m   Post top lanterns only   T081RLS T081RLS/SP
  0.30m Single FL2/1 FL1/1
  0.50m Double (800) Post top floodlight only

*Outreach brackets series PR1 & PR2 below 0.50m projection fit onto 100mm spigot (/SP1). 0.50m + on standard 230mm spigot (/SP).

Column Headload Capacity (m²)

Based on UK rationalised wind loading factors for EN40

Product Code Lantern Mounting/Projection Max. Headload (kg) Light 396 Medium 429 Heavy 466 Very Heavy 576
T04RLS Post Top 53 1.161 1.062 0.969 0.763
  0.25m Single Outreach 15 0.305 0.279 0.254 0.200
  0.50m Single Outreach 10 0.225 0.206 0.187 0.145
T051RLS Post Top 38 0.787 0.714 0.645 0.493
  0.25m Single Outreach 15 0.250 0.227 0.205 0.157
  0.50m Single Outreach 10 0.186 0.168 0.151 0.114
T061RLS Post Top 28 0.543 0.485 0.430 0.312
  0.25m Single Outreach 10 0.204 0.183 0.163 0.120
  0.50m Single Outreach 10 0.147 0.131 0.116 0.083
T081RLS Post Top 17 0.160 0.133 0.109 0.060
  0.25m Single Outreach 8 0.060 0.050

Counterbalance Units

RLS168

The spring unit, type RLS168, is available in a range of coloured springs. Each spring type has a given capacity, based on the column height and maximum safe working load.

RLH168

This hydraulic unit is popular with companies who have multiple column heights and headloads on one site or over a number of sites.
The advantage is that it can operate the full column range regardless of height and headload.

Accessories

Product Code Description
XXSC003F Tamper resistant locking screw
XXSC003F Key for locking screw
ELSAB1/6A Single fuse cut-out, 6A, loop in/out (not fitted)
ELSAB12/6A Twin fuse cut-out, 6A, loop in/out (not fitted)
