Medium Duty

5-8M BASE-HINGED COLUMN

Patent No: 968113.  Designed to EN40. Hot dip galvanised to BS EN ISO 1461:2009. Manufactured in steel tube to EN1021

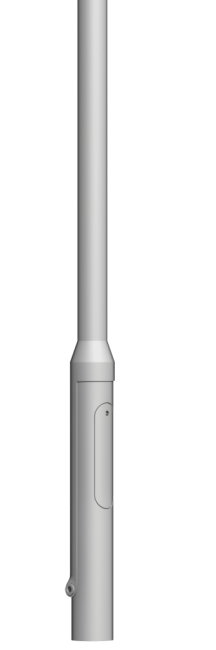

BASE_HINGED_Medium_T058RLH_v001
Base-hinged Columns Medium Duty

Medium Duty

5-8M BASE-HINGED COLUMN

Patent No: 968113.  Designed to EN40. Hot dip galvanised to BS EN ISO 1461:2009. Manufactured in steel tube to EN1021







BASE_HINGED_Medium_T058RLH_v001
Base-hinged Columns Medium Duty

Root Mounted

Product Code
Height

OD1

OD2

X

Y

Z

Weight (kg)

OTM (kNm)

Shear (kN)

Min. Concrete Diameter*
Counterbalance Type & Max. Weight
T058RLH 5m 168 114 3815 1050 800 82 9.8 2.2 1167 RLH168 – 90kg
T068RLH 6m 168 114 4865 1050 1000 90 9.5 1.9 586 RLH168 – 70kg
T088RLH 8m 168 114 6830 1050 1200 106 9.2 1.6 333 RLH168 – 40kg

*Root concrete diameter based on poor soil or better, min. 230kN/m² per m

Flange Plate Mounted

Product Code
Height

OD1

OD2

X

Y

Flange Plate

Weight (kg)

OTM (kNm)

Shear (kN)

Concrete Dimensions*
Counterbalance Type & Max. Weight
T058RLH/FP 5m 168 114 3815 1050 Type 1 74 9.8 2.2 900×950 RLH168 – 90kg
T068RLH/FP 6m 168 114 4860 1050 Type 1 82 9.5 1.9 900×950 RLH168 – 70kg
T088RLH/FP 8m 168 114 6830 1050 Type 1 98 9.2 1.6 900×950 RLH168 – 40kg

*Concrete dimension based on a minimum ground bearing pressure of 150kN/m² (passive concrete design). (S = square dimension, H= depth)

Outreach & Floodlight Brackets

Height Projection Length
Single (s)

Double (D)
Spigot Lengths
/SP 230mm
/SP1 100mm
Floodlight Brackets

Overlap Fit on Shaft

Flush Fit on Spigot
Type/Bolt Centres (mm)
Overlap Fit on Shaft

Flush Fit on Spigot
5m   T058RLH T058RLH/SP+/SP1*   T058RLH T058RLH/SP
  0.30m PR6-03/S or /D PR7-03/S or /D* Single FL4/1 FL5/1
  0.50m PR6-05/S or /D PR7-05/S or /D* Double (800) FL4/3 FL5/3
        Triple (800) FL4/5 FL5/5
6m   T068RLH T068RLH/SP   T068RLH T068RLH/SP
  0.50m PR6-05/S or /D PR7-05/S or /D* Single FL4/1 FL5/1
  1.00m PR6-10 PR7-10/S or /D* Double (800) FL4/3 FL5/3
        Triple (800) FL4/5 FL5/5
8m   T088RLH T088RLH/SP   T088RLH T088RLH/SP
  0.50m PR6-05/S or /D PR7-05/S or /D* Single FL4/1 FL5/1
  1.00m PR6-10 PR7-10/S or /D* Double (800) FL4/3 FL5/3
  1.25m PR6-125/S or /D PR7-125/S or /D* Triple (800) FL4/5 FL5/5

*Outreach brackets series PR1 & PR2 below 0.50m projection fit onto 100mm spigot (/SP1). 0.50m + on standard 230mm spigot (/SP).

Column Headload Capacity (m²)

Based on UK rationalised wind loading factors for EN40

Product Code Lantern Mounting/Projection Max. Headload (kg) Light 396 Medium 429 Heavy 466 Very Heavy 576
T058RLH Post Top 90 1.881 1.728 1.583 1.226
  0.50m Single Outreach 10 0.665 0.661 0.560 0.447
  0.75m Single Outreach 10 0.534 0.490 0.448 0.357
  1.00m Single Outreach 10 0.442 0.404 0.369 0.292
T068RLH Post Top 70 1.392 1.274 1.163 0.923
  0.50m Single Outreach 10 0.472 0.432 0.394 0.311
  0.75m Single Outreach 10 0.391 0.357 0.325 0.255
  1.00m Single Outreach 10 0.280 0.254 0.230 0.176
T088RLH Post Top 40 0.547 0.496 0.448 0.351
  0.50m Single Outreach 10 0.307 0.279 0.253 0.199
  0.75m Single Outreach 10 0.247 0.224 0.202 0.157
  1.00m Single Outreach 10 0.199 0.179 0.161 0.123



Counterbalance Units

RLH168

This hydraulic unit is popular with companies who have multiple column heights and headloads on one site or over a number of sites.
The advantage is that it can operate the full column range regardless of height and headload.

Accessories

Product Code Description
XXSC003F Tamper resistant locking screw
XXSC003F Key for locking screw
ELSAB1/6A Single fuse cut-out, 6A, loop in/out (not fitted)
ELSAB12/6A Twin fuse cut-out, 6A, loop in/out (not fitted)
