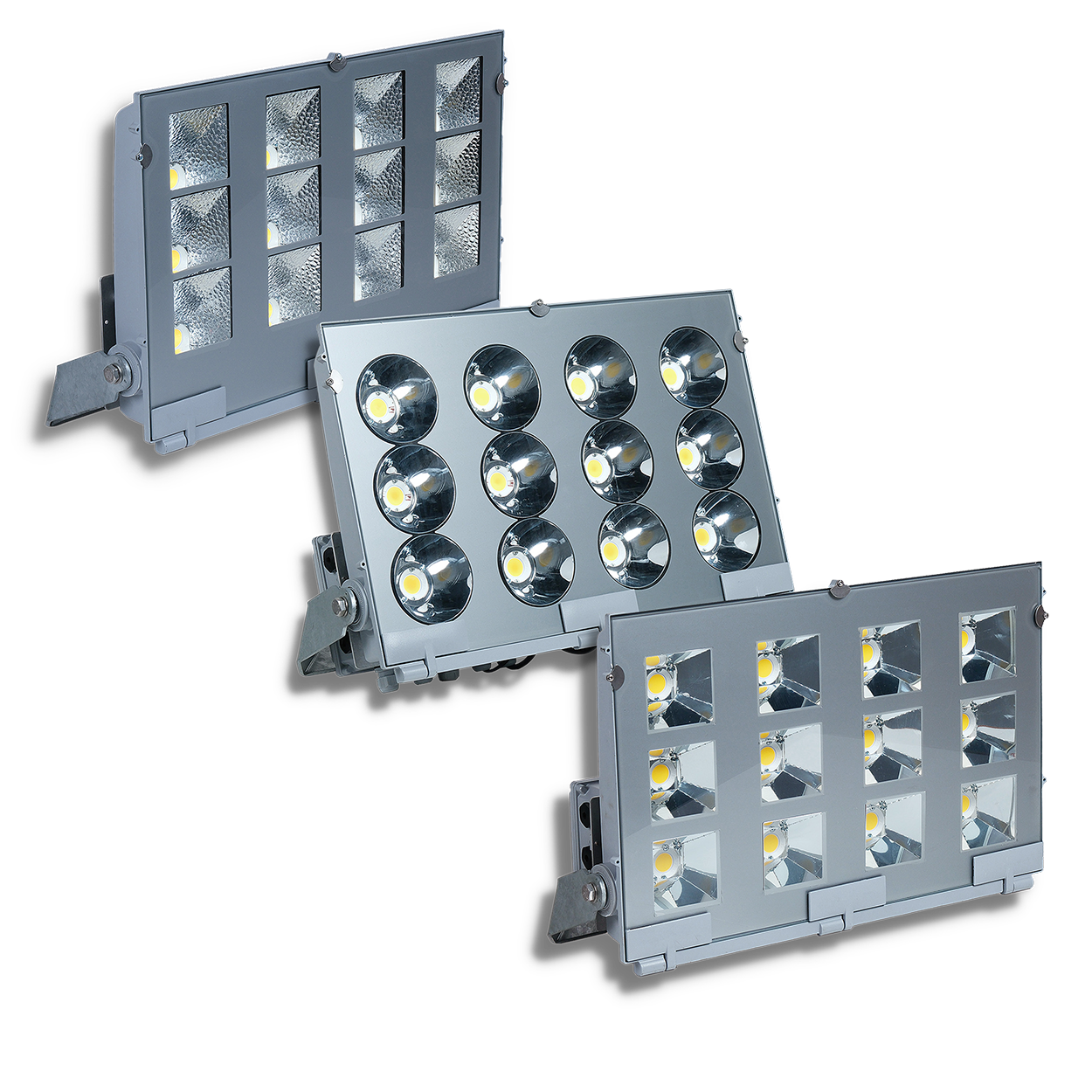

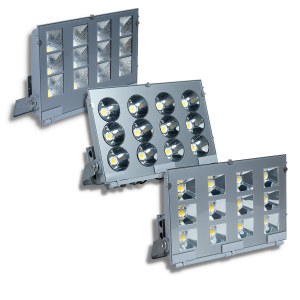

Introducing the VAGO LED Floodlight

The VAGO series, encompassing models from VAGO 0 through to VAGO 12, is a versatile range of high-performance
LED floodlights. Designed for large area outdoor lighting, industrial plants, electrical substations and sports venues. These floodlights feature bodies and covers made of die-cast aluminium, ensuring high resistance to atmospheric agents, complemented by removable antiaging
rubber gaskets for durability. The series includes options for symmetric, asymmetric, and circular optics,
allowing tailored light distribution to meet diverse project requirements.


The VAGO range is well-suited for use in sectors requiring reliable, durable, and efficient lighting solutions, including amenity lighting and sports venues where high-quality illumination is critical. With colour temperature
options typically around 4000K (CRI 70), the series supports both warm and neutral white lighting needs.

Key Features:

• Durable die cast aluminium housing
• 160° rotation mounting options
• CRI ≥70
• Colour temperature 4,000K as standard
• Surge protection up to 10kV
• Symmetric, asymmetric distributions
• Controls; DALI, 1-10V (optional)
• Protection against overheating
• IP Rating – IP66

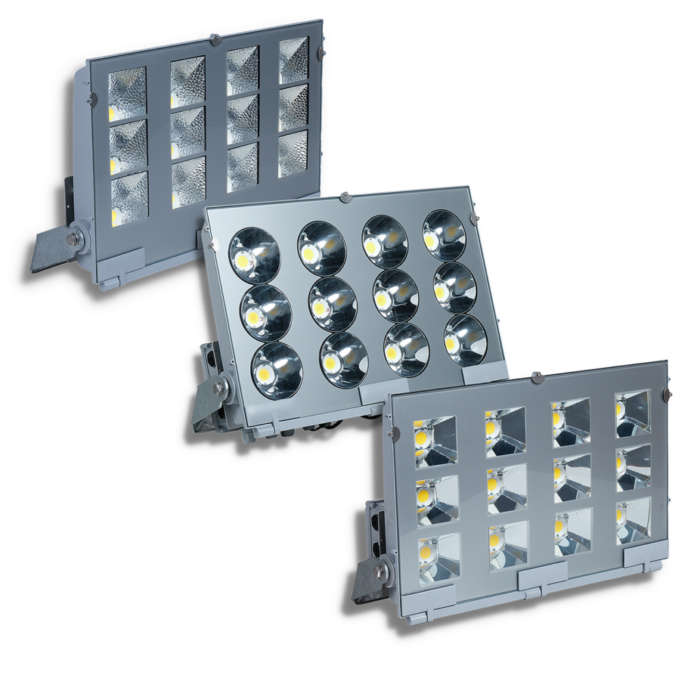

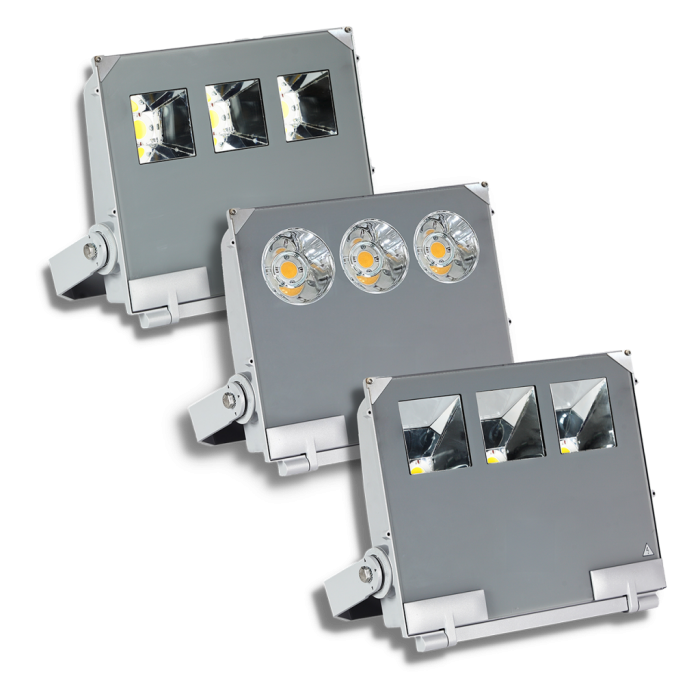

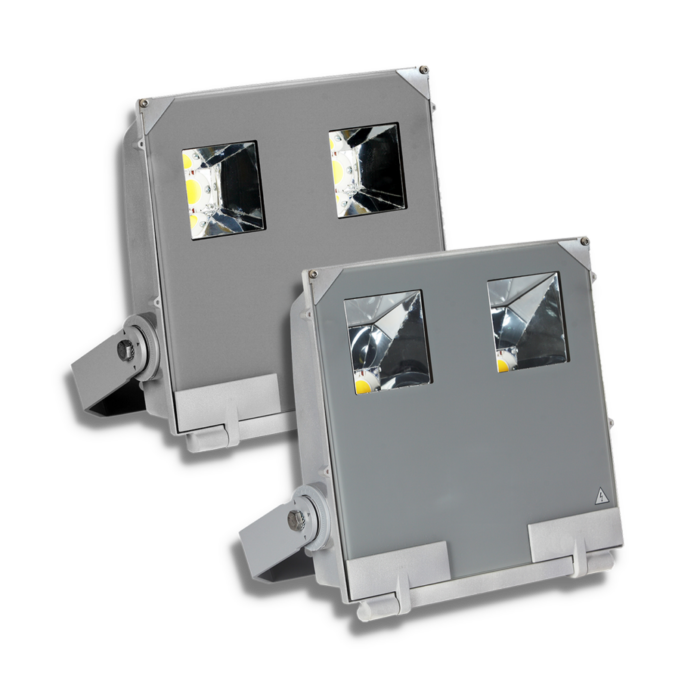

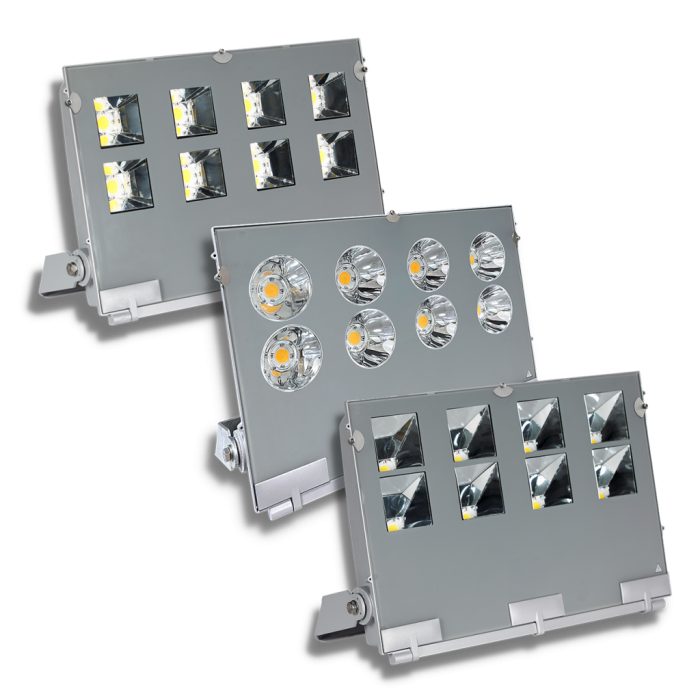

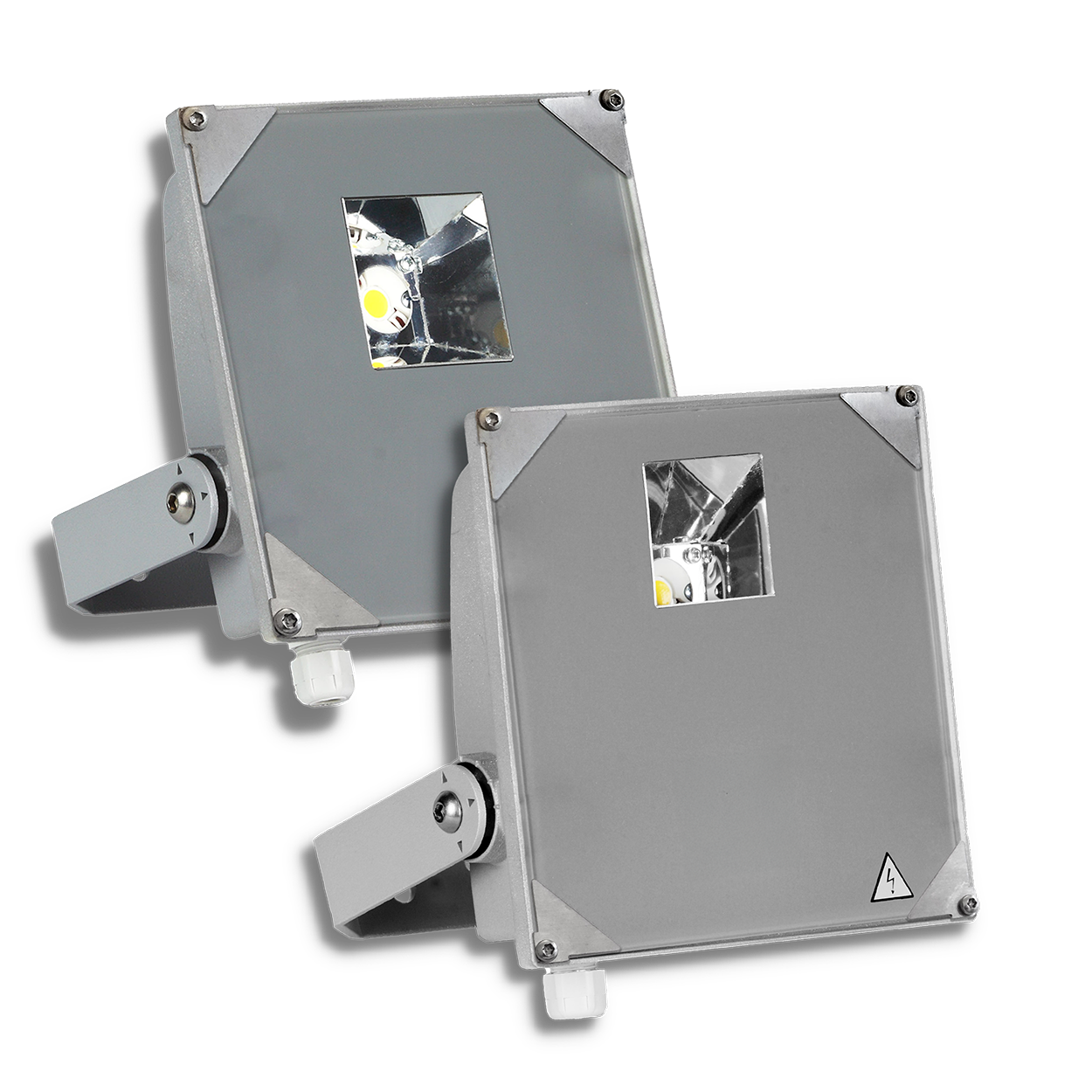

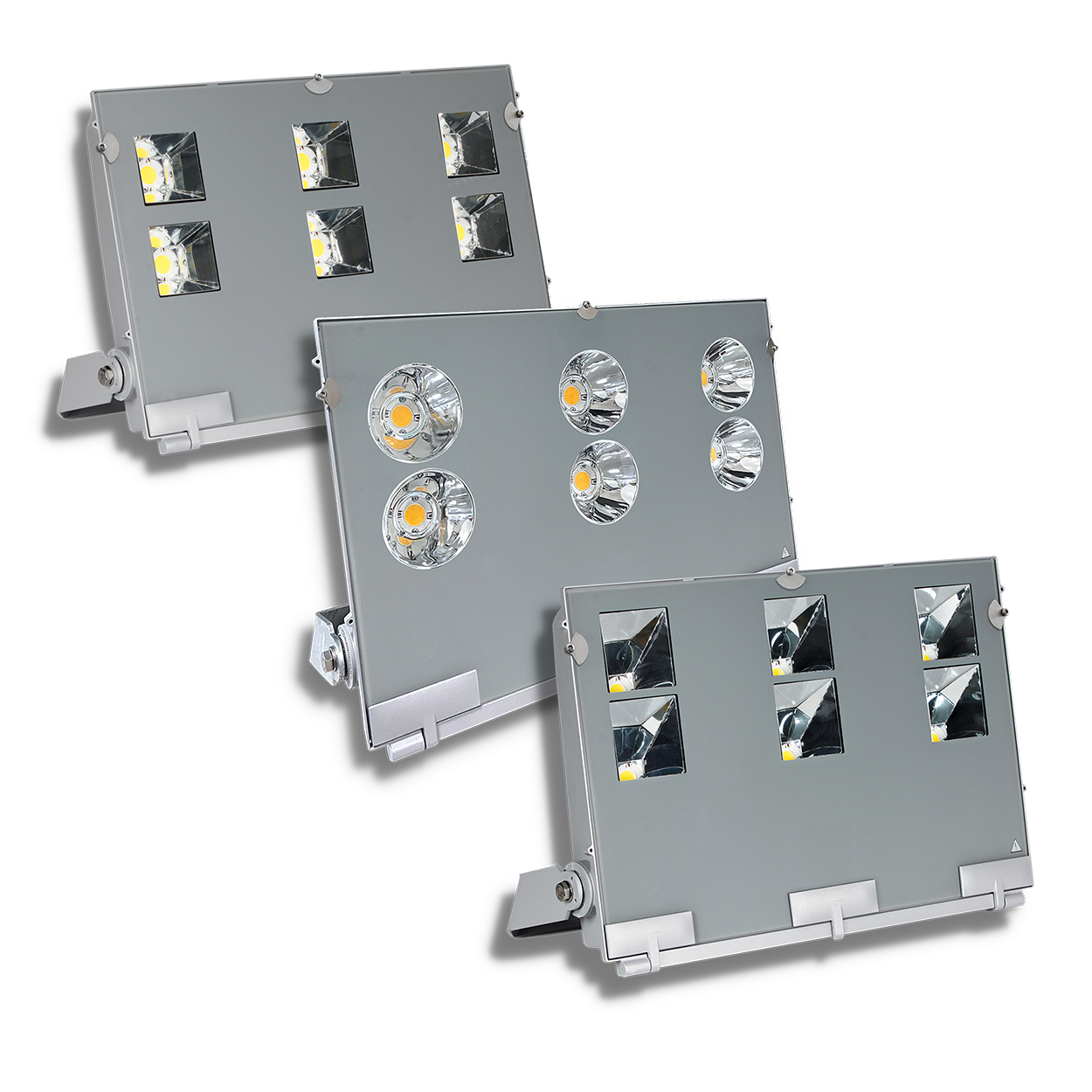

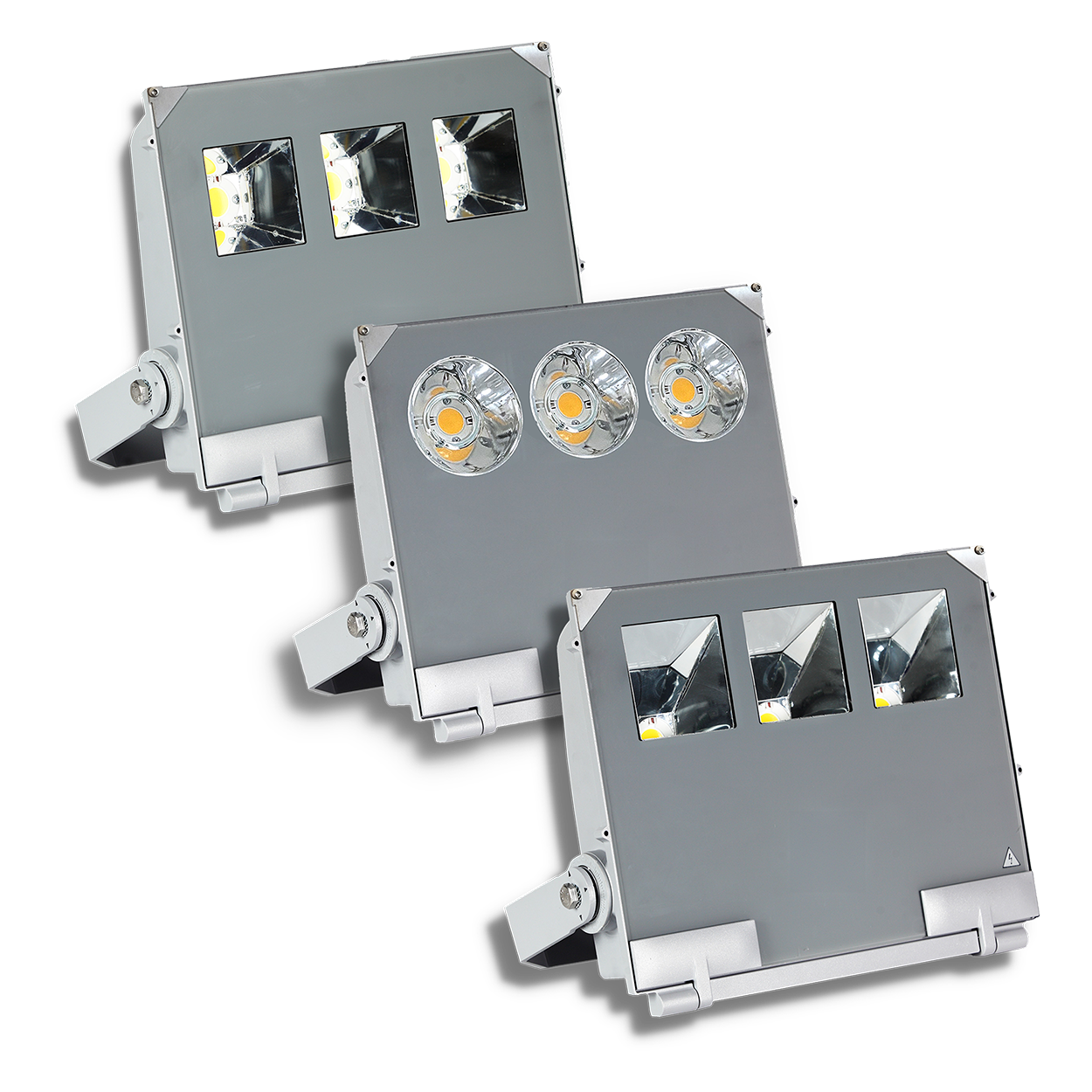

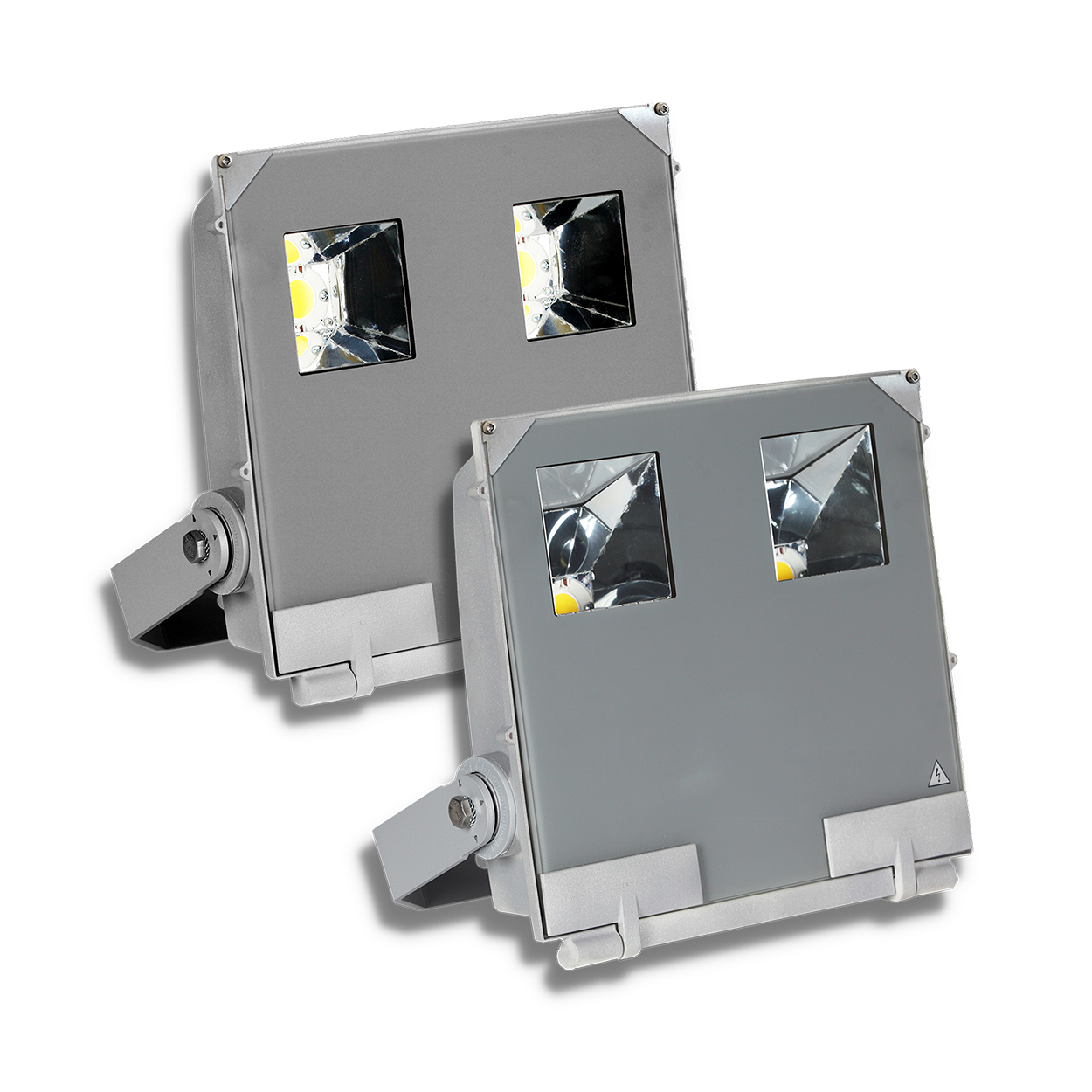

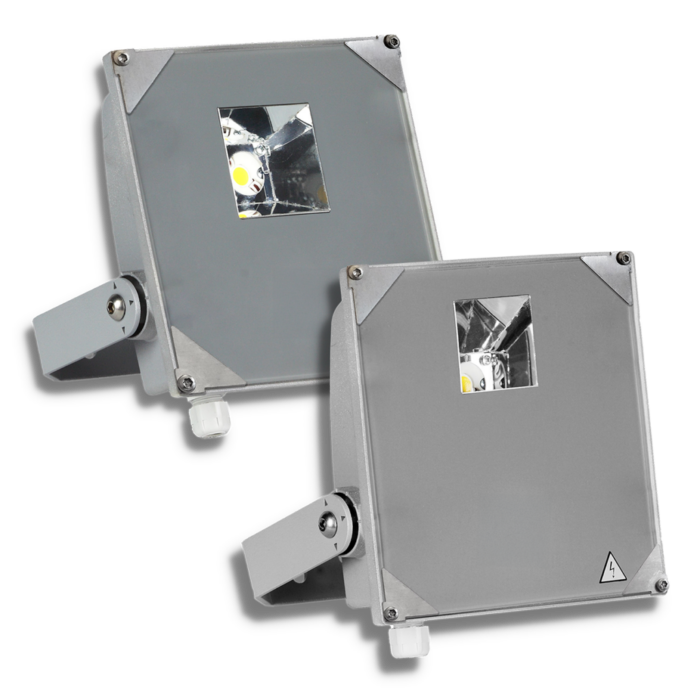

Image Gallery:

Typical VAGO LED Floodlight Applications:

• Industrial Plants
• Air, Sea & Rail Ports & Terminals
• Electrical Substations
• Distribution & Container Storage Yards

• Sports Venues & Training Facilities
• Car Parks & Amenity Lighting
• Public parks & Large Open Spaces
• Education, Healthcare & Leisure Facilities

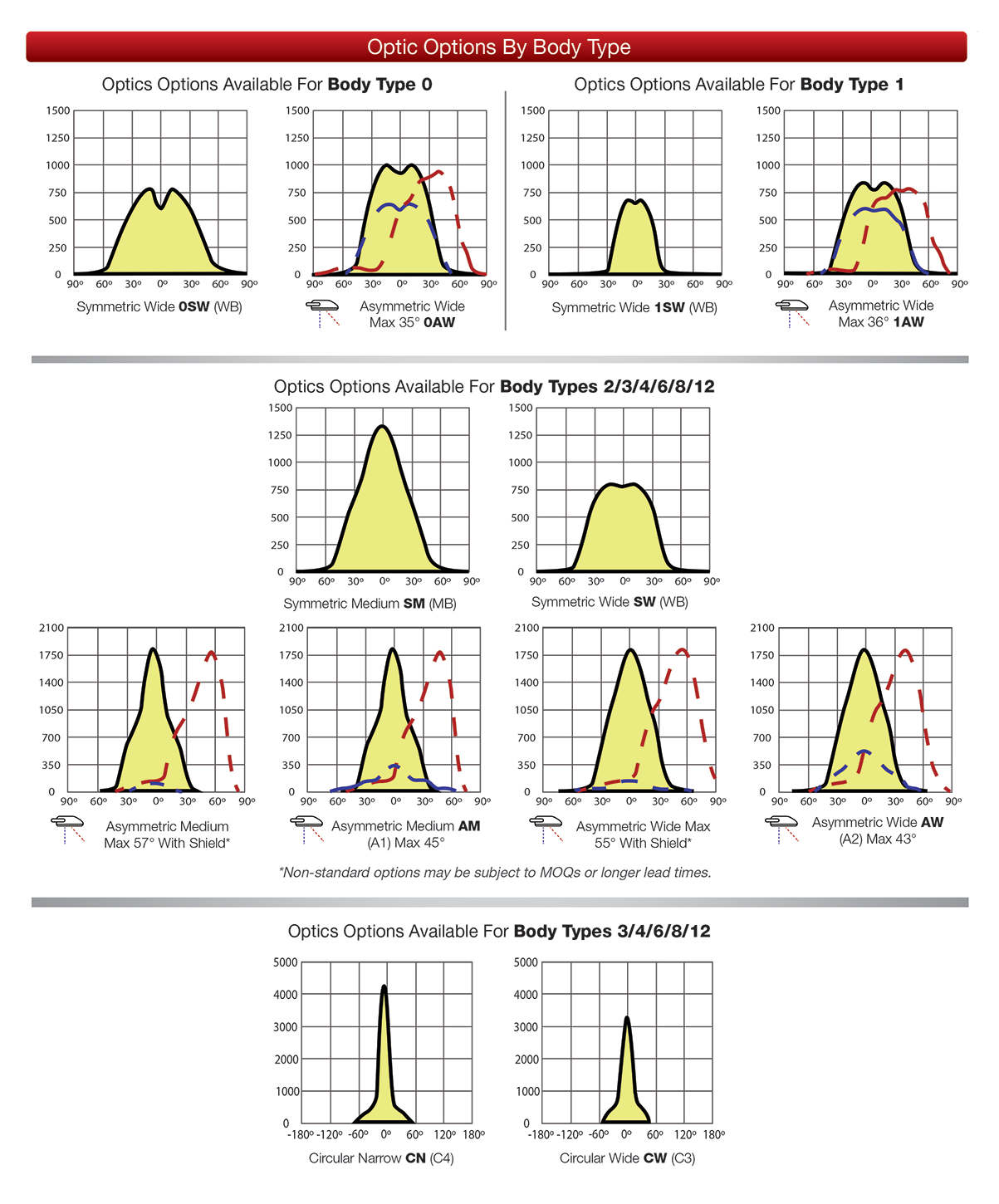

Photometry

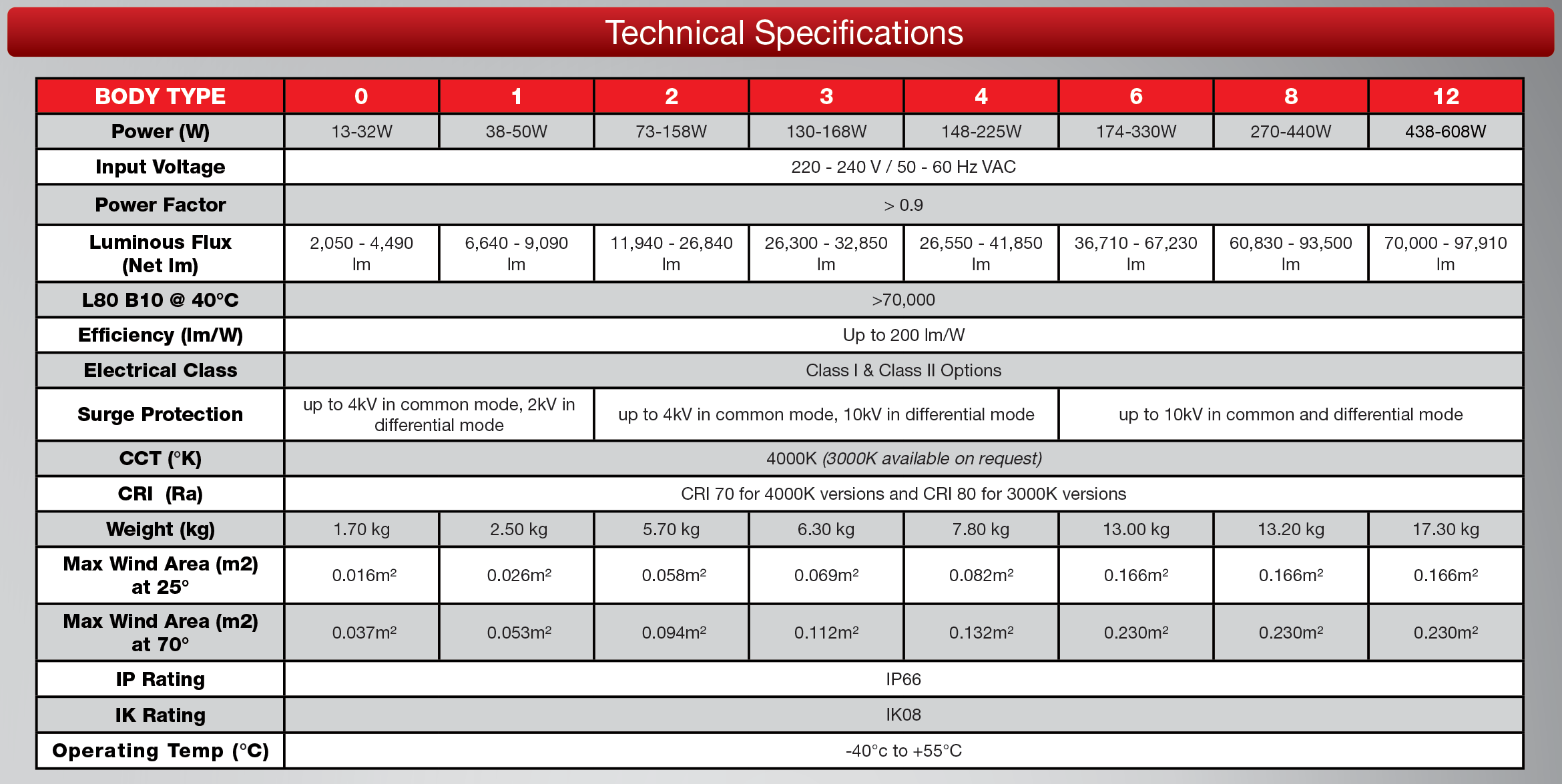

VAGO Technical Specification:

VAGO Range Dimensions:

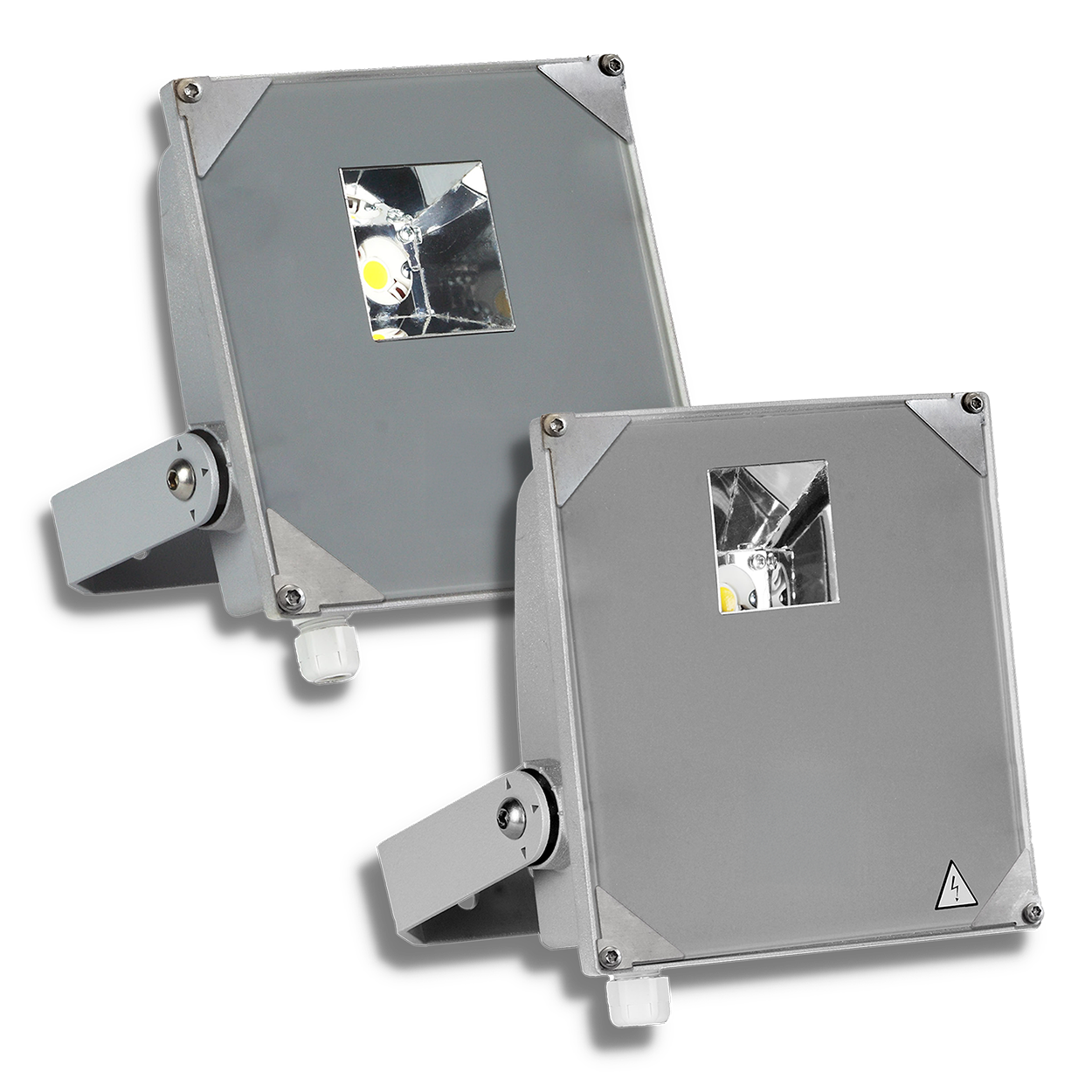

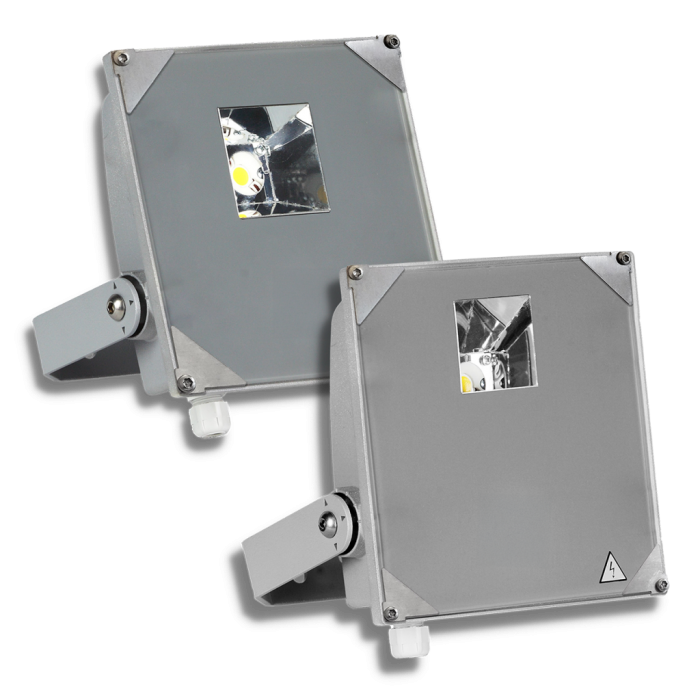

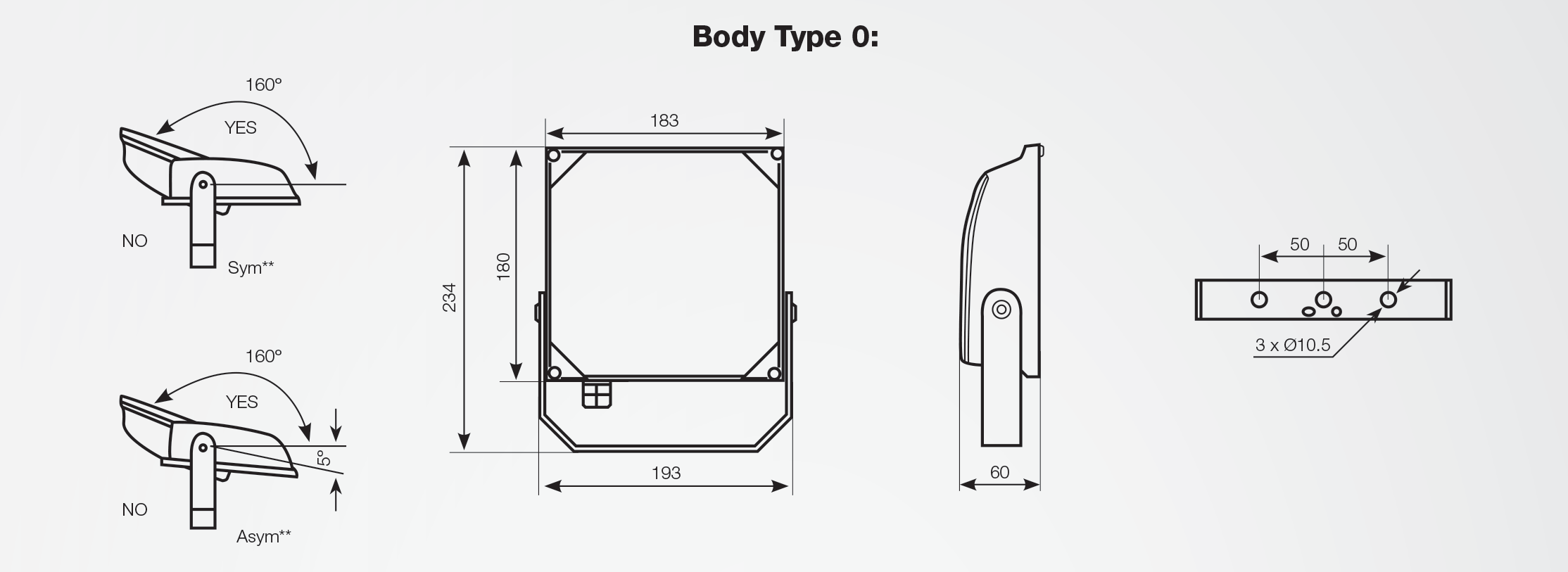

VAGO Body Type 0

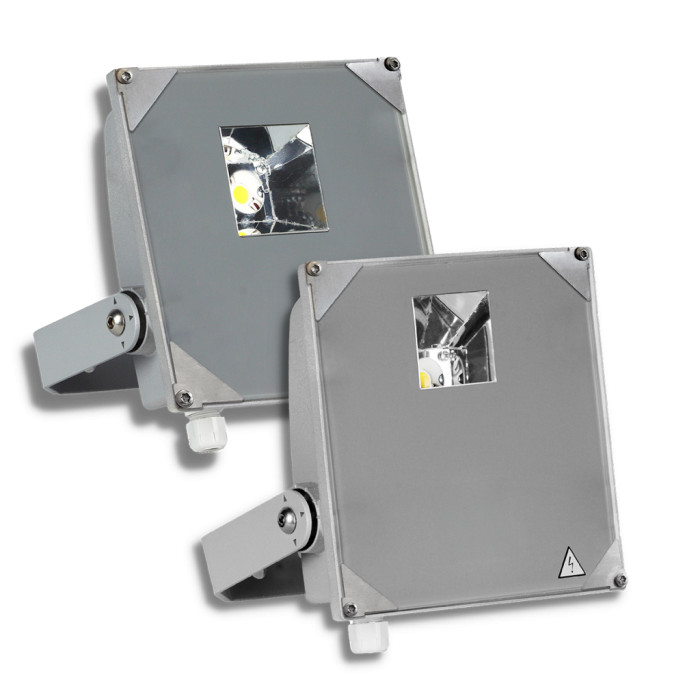

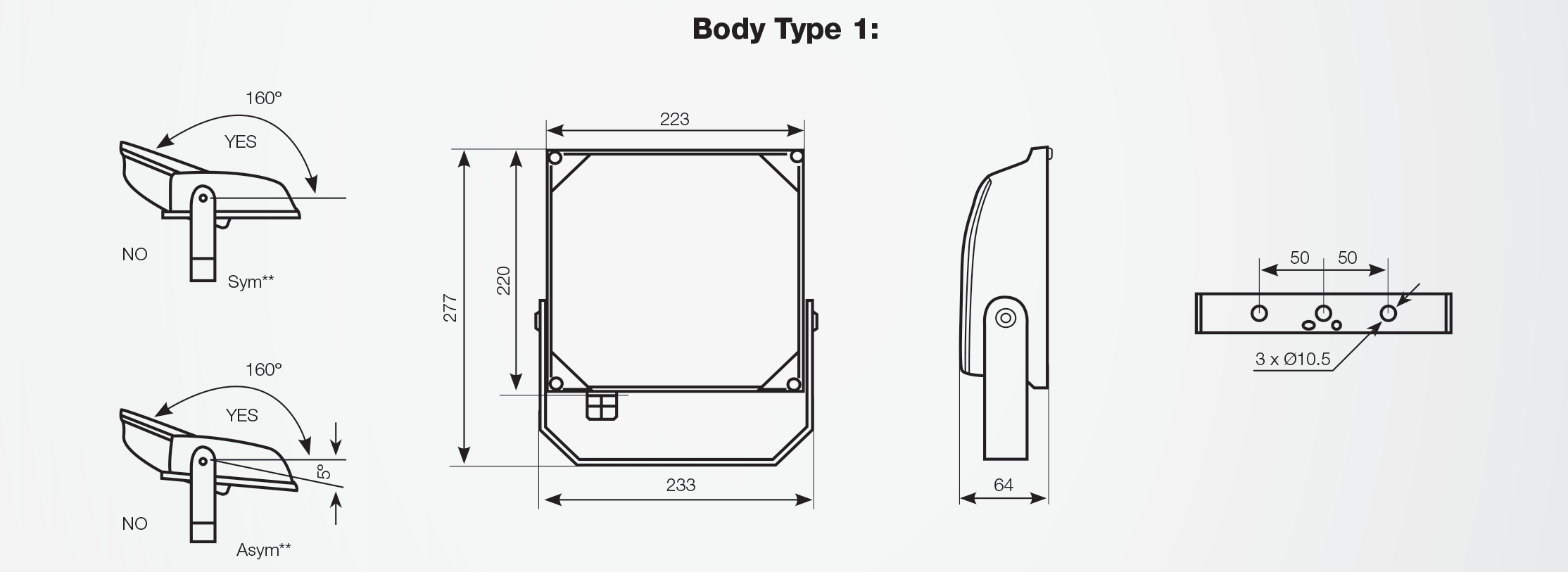

VAGO Body Type 1

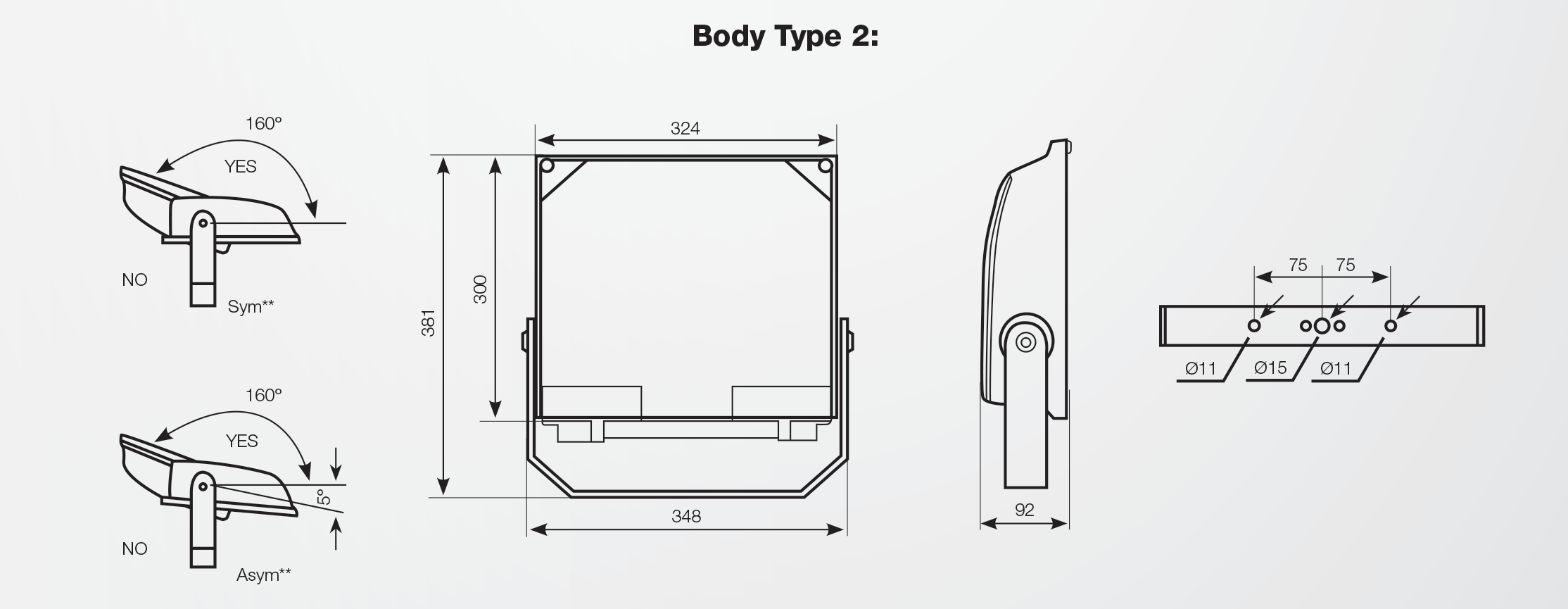

VAGO Body Type 2

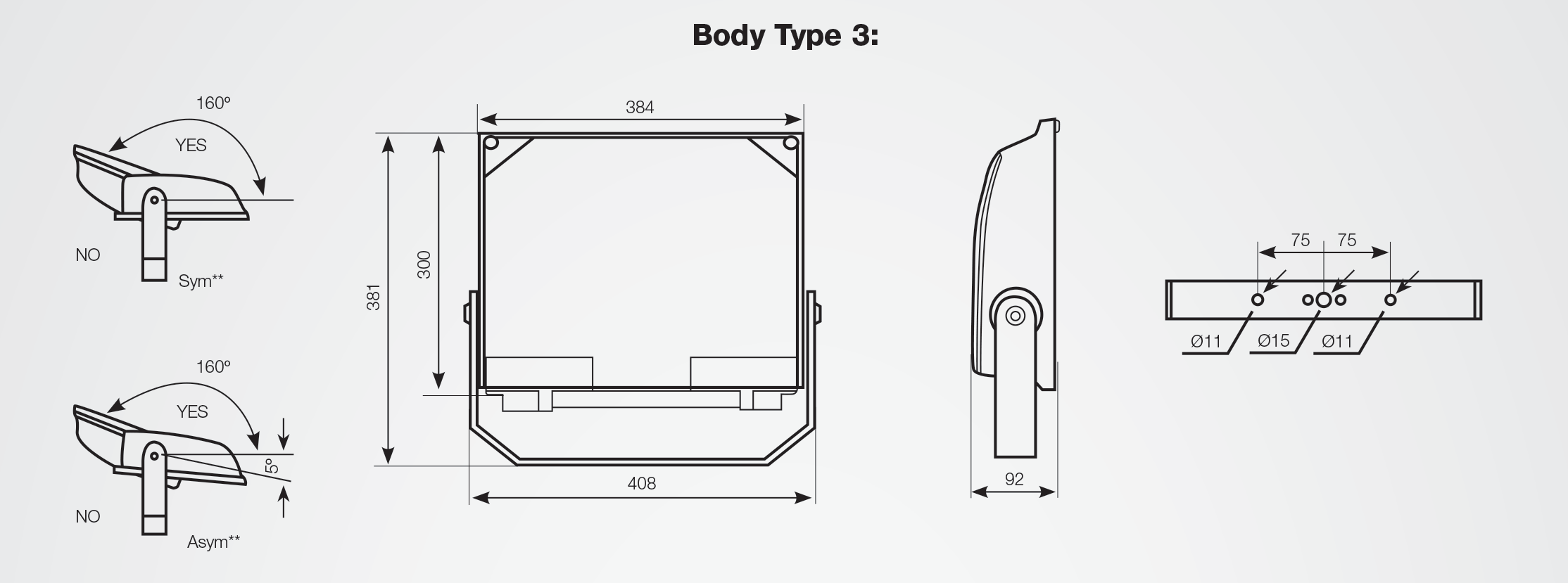

VAGO Body Type 3

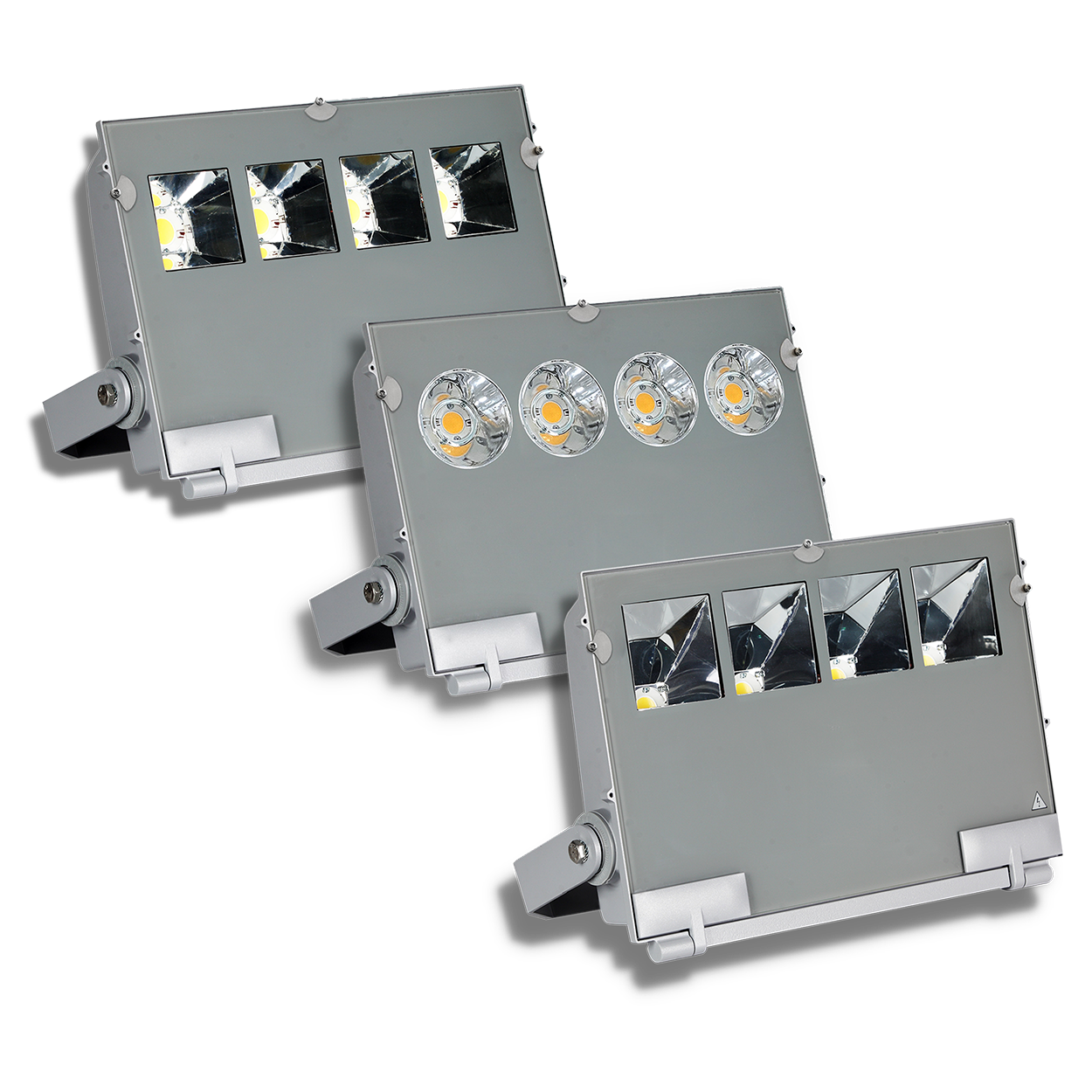

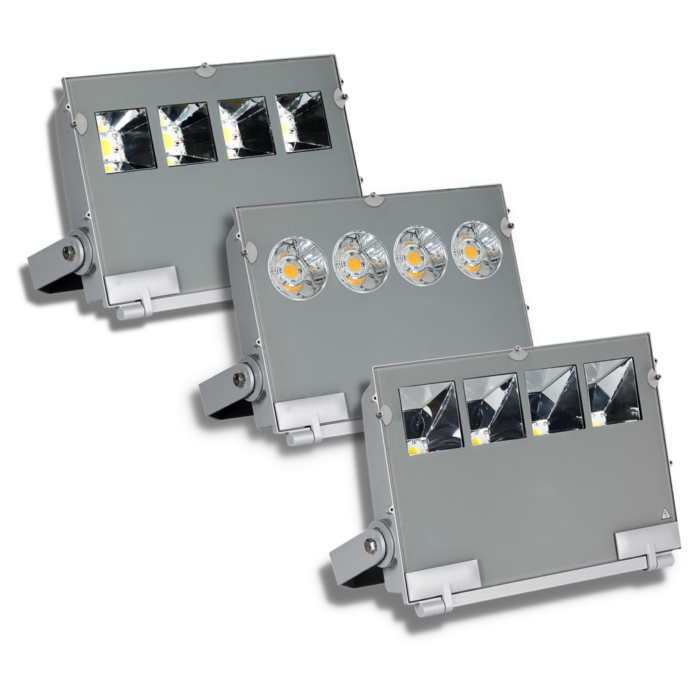

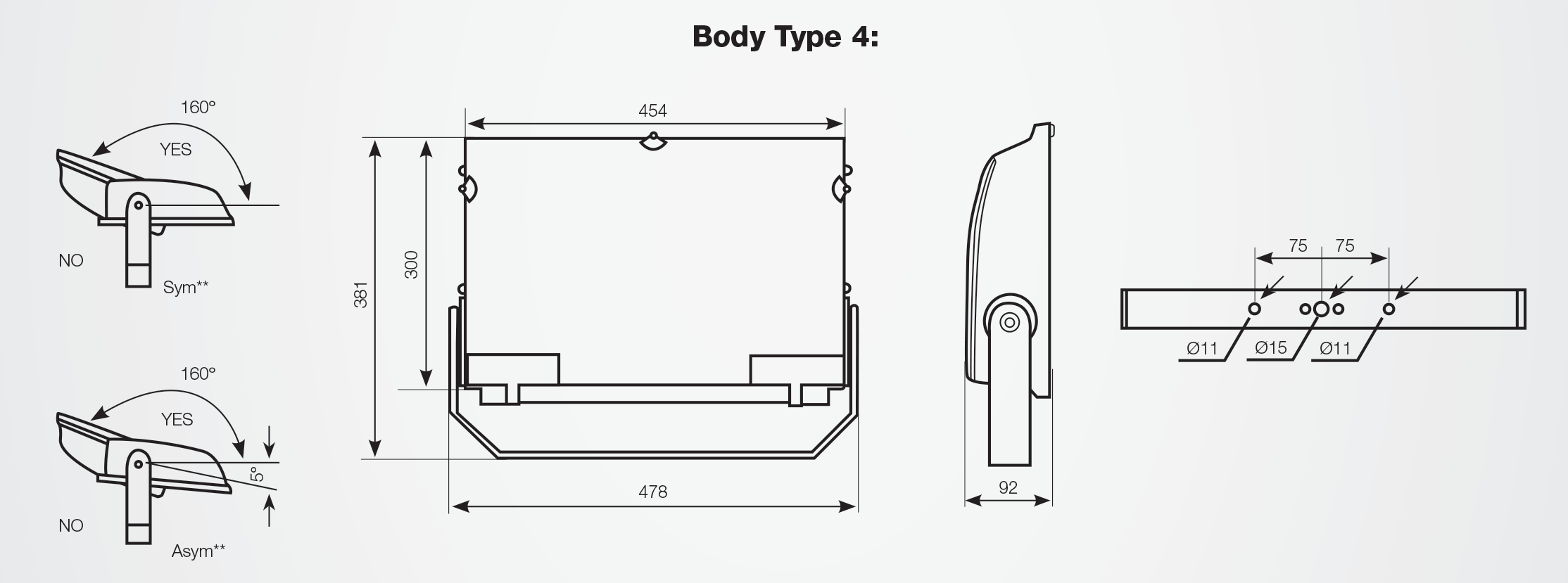

VAGO Body Type 4

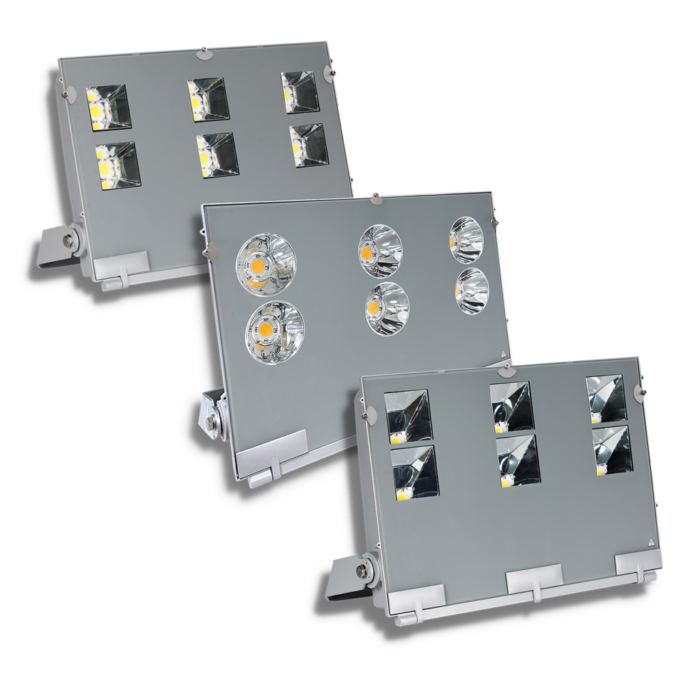

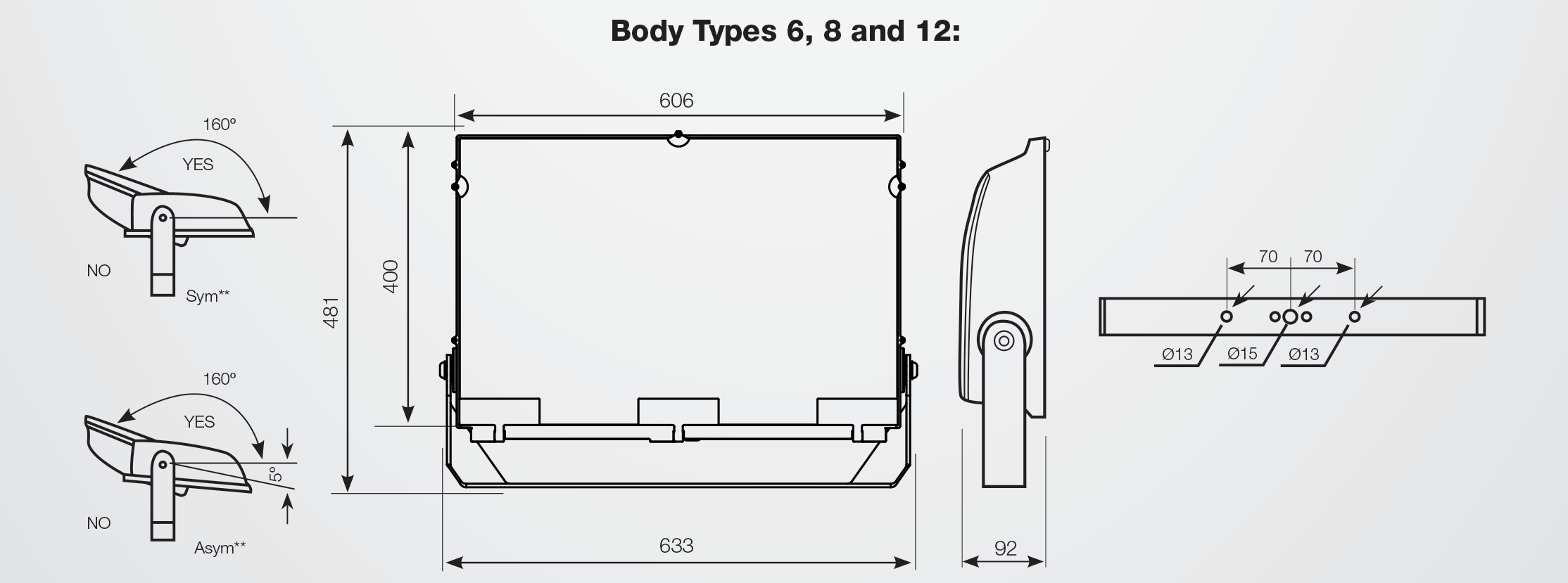

VAGO Body Type 6 8 and 12
