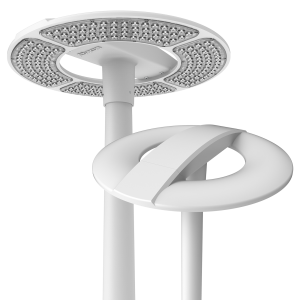

An evolution of the Orion series

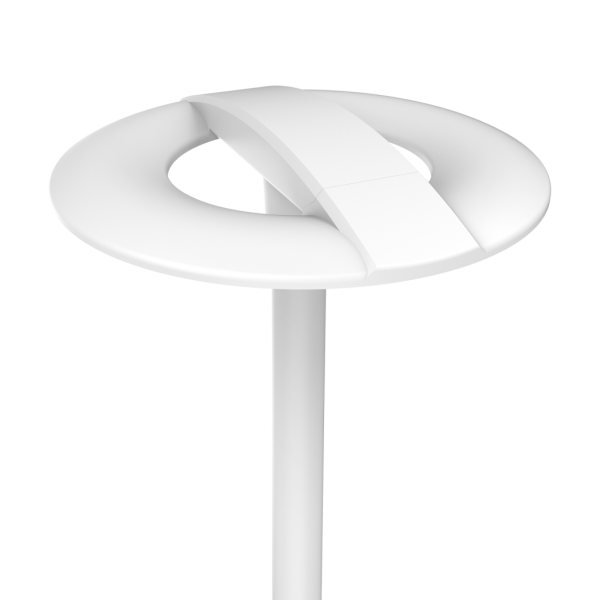

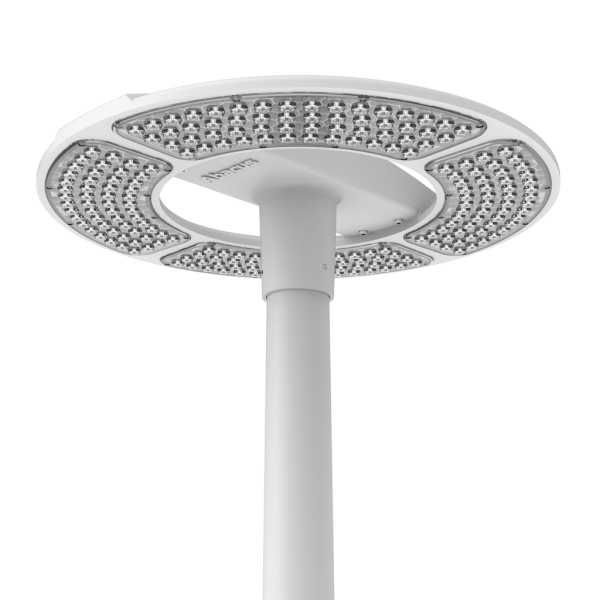

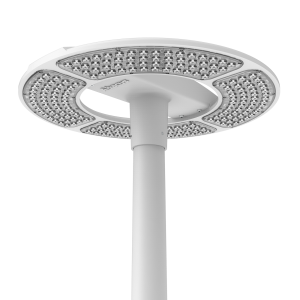

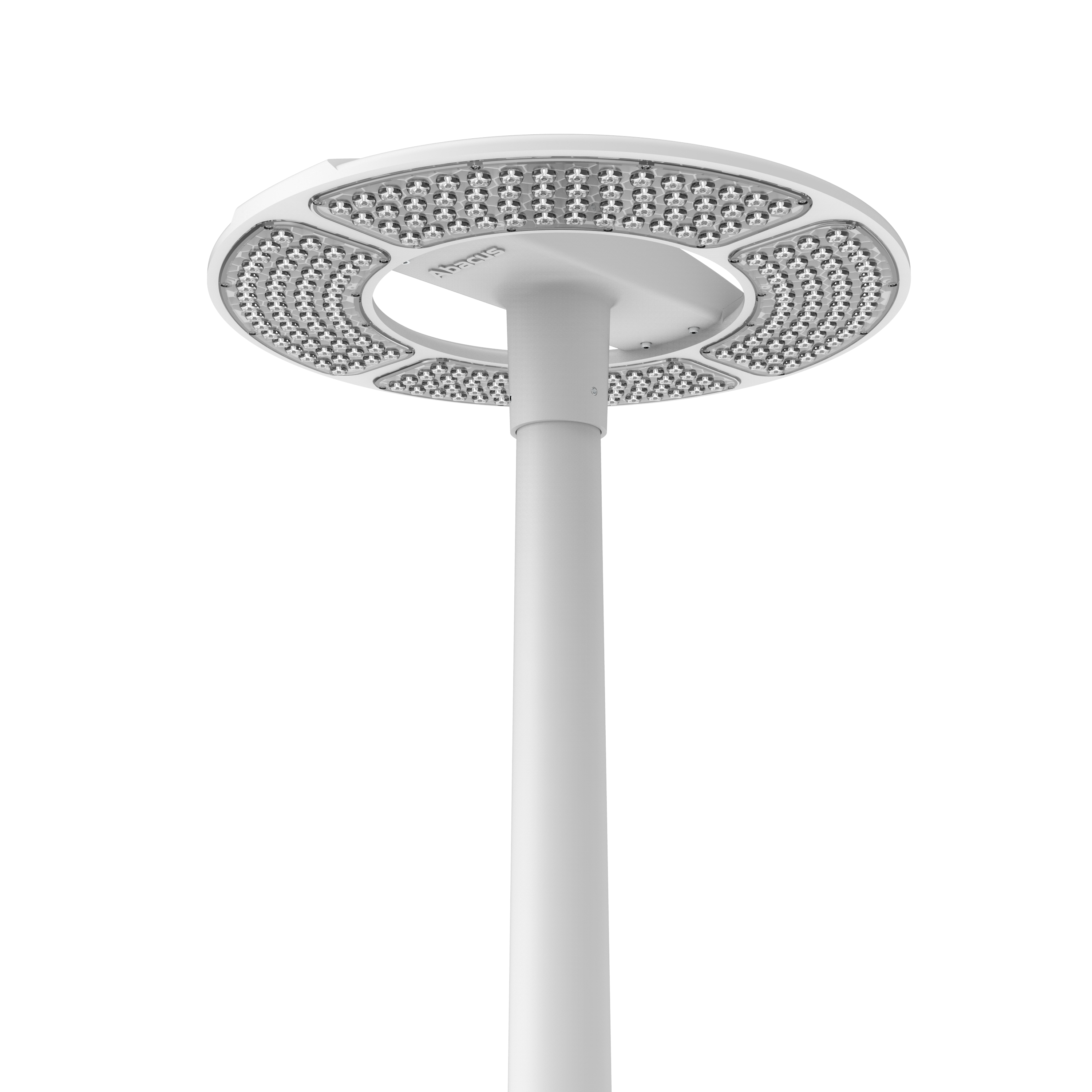

The Abacus Orion Pro LED floodlight stands out as a pioneering lighting solution, delivering efficient and high-quality illumination for a wide range of outdoor spaces. It excels in achieving British standard BS5489, making it ideal for retrofit projects. Thanks to its advanced LED technology, the Orion post-top luminaire not only provides superior brightness but also achieves significant energy savings, contributing to a reduced environmental footprint.
With its high-output 360-degree light distribution and precise optics, the Orion Pro ensures excellent beam control, offering pinpoint lighting precision while minimising light pollution. Overall, the Abacus Orion Pro represents a sustainable and dependable lighting solution that seamlessly integrates performance, durability, and energy efficiency.
Key Features
- Direct retrofit to twin lamp 400W Orion 1

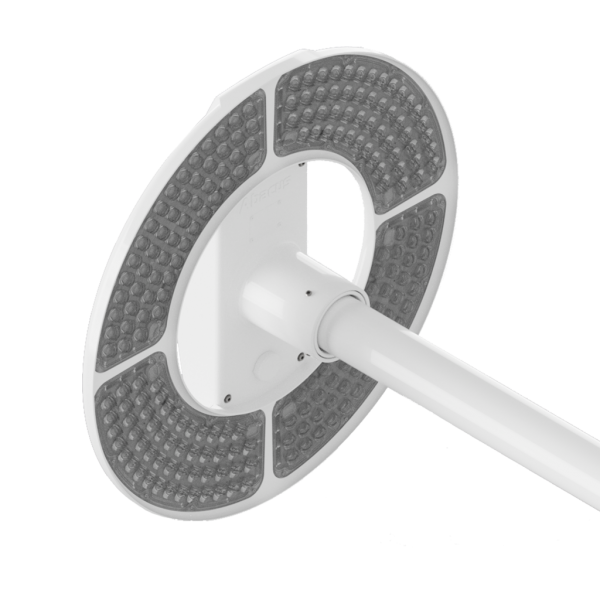

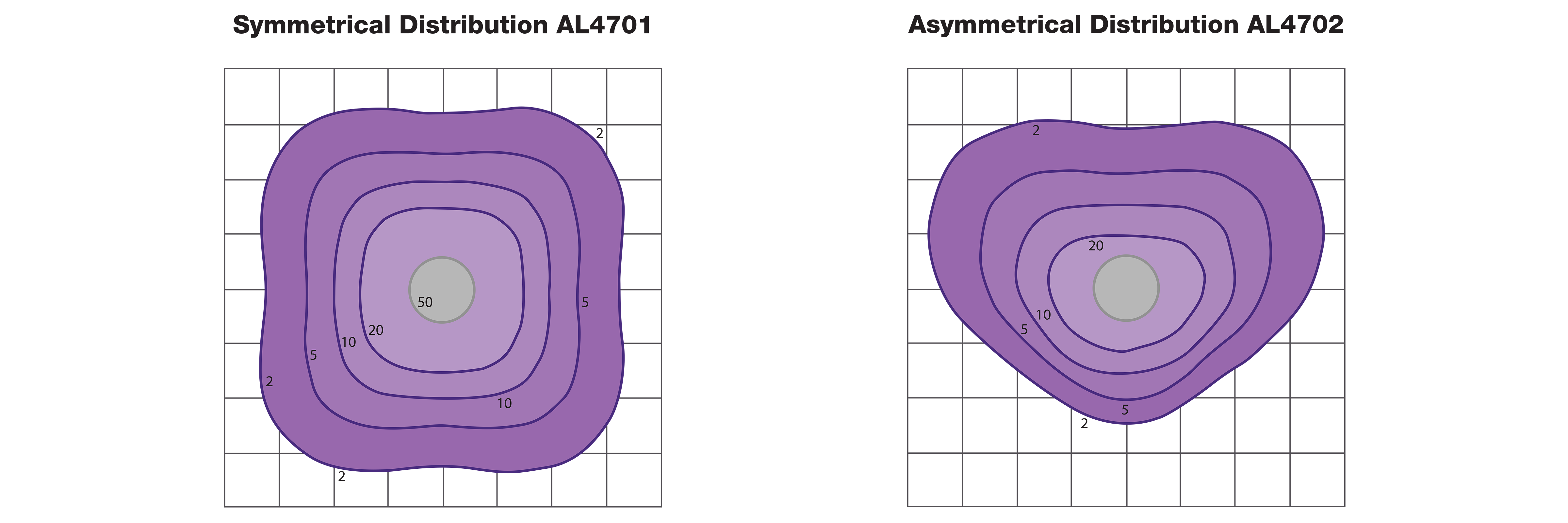

- Available in 180° asymmetrical and 360° symmetrical beam distributions

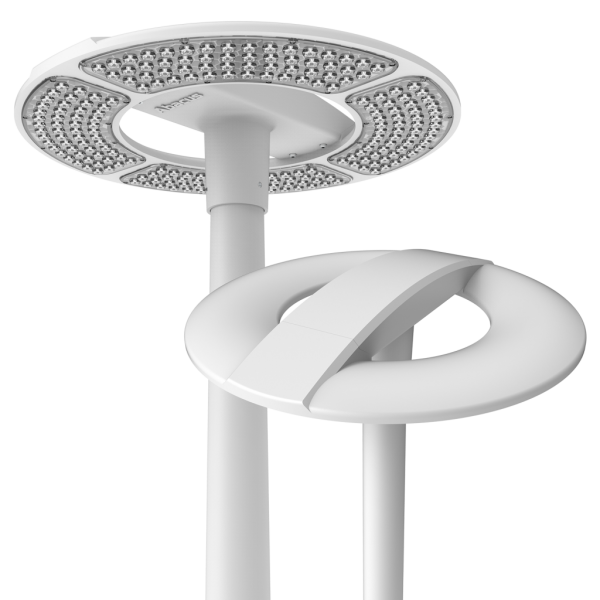

- Low profile, sleek design
- Less than 1% upward light
- IP66 and IK10 rated

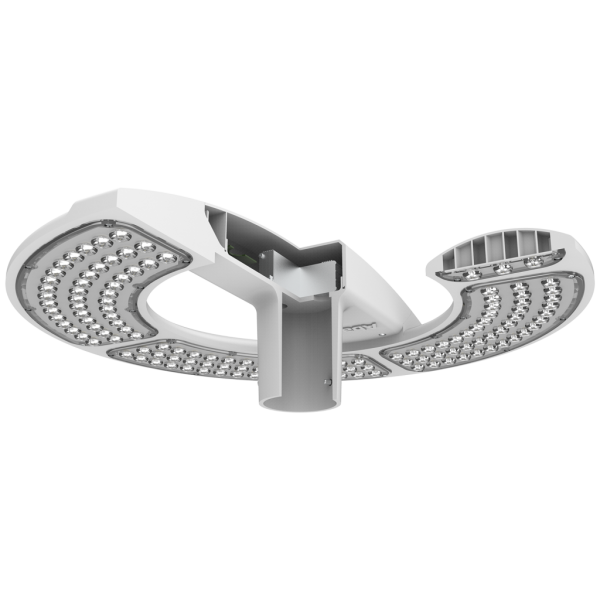

- 2 Zhaga interfaces for flexibility
- DALI 2 and D4i as standard
- Integrated spigot – 76mm or 89mm shaft compatible
- Colour temperature 4000K as standard (other options available)
- Up to 50°C high ambient temperature on request
- White polyester powder coated canopy & spigot
- Dimmable lumen output to suit designs
Technical Specifications
| Technical Specification | 125W | 250W | 500W |
|---|---|---|---|
| Luminous Flux | 20,000lm | 40,000lm | 72,000lm |
| Colour Temperature | 4000K (other options available on request) | ||
| Colours | White: RAL9003 alternative colour options available on request |
||
| Lifetime | L90B10 > 80,000hrs @25deg ambient | ||
| Dimension | 650mm x 203mm | ||
| Weight | 13kg ±10% | ||
| Working Temperature | -30°C ~ 40°C (50°C optional) | ||
| IP Rating | IP66 | ||
| IK Rating | IK10 | ||
| Max spigot length | 135mm | ||
| Spigot diameter length | 76mm/89mm | ||
| Windage | 0.0735m² | ||
Spacings and Sample Levels
| Height | Spacing | 250W 40,000lm | ||||
|---|---|---|---|---|---|---|
| Ave | Min | Min/Ave | ||||
| 6m | 40 | 22 | 16 | 0.32 | ||
| 55 | 11 | 1 | 0.09 | |||
| 8m | 40 | 21 | 11 | 0.52 | ||
| 55 | 11 | 3 | 0.27 | |||
| Height | Spacing | 500W 72,000lm | ||||
|---|---|---|---|---|---|---|
| Ave | Min | Min/Ave | ||||
| 10m | 55 | 20 | 9 | 0.45 | ||
| 70 | 13 | 4 | 0.31 | |||
| 12m | 55 | 20 | 11 | 0.55 | ||
| 70 | 13 | 5 | 0.38 | |||
