Club Range Fixed Masts

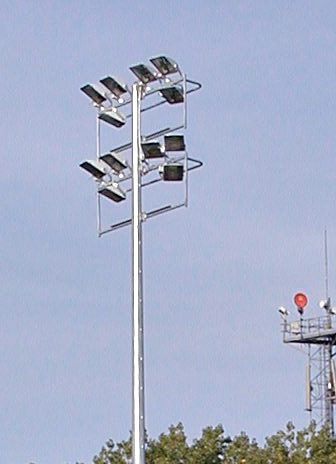

FC Tournai 25m

Whichever option you choose, control and protection equipment can be factory-fitted into the base of the mast itself, or placed in an external cabinet close to the mast’s base.

Choose from our standard range or commission a bespoke mast, depending on your project.

  • 15–20m: Tubular or octagonal steel construction
  • 20–30m: Multi-sided steel construction

Maintenance access – There are three options for maintaining our Club range:

  • Ladder fixed permanently to mast, with security cable system
  • Removable climbing rungs with security cable system
  • Cherry picker vehicle mounted platform

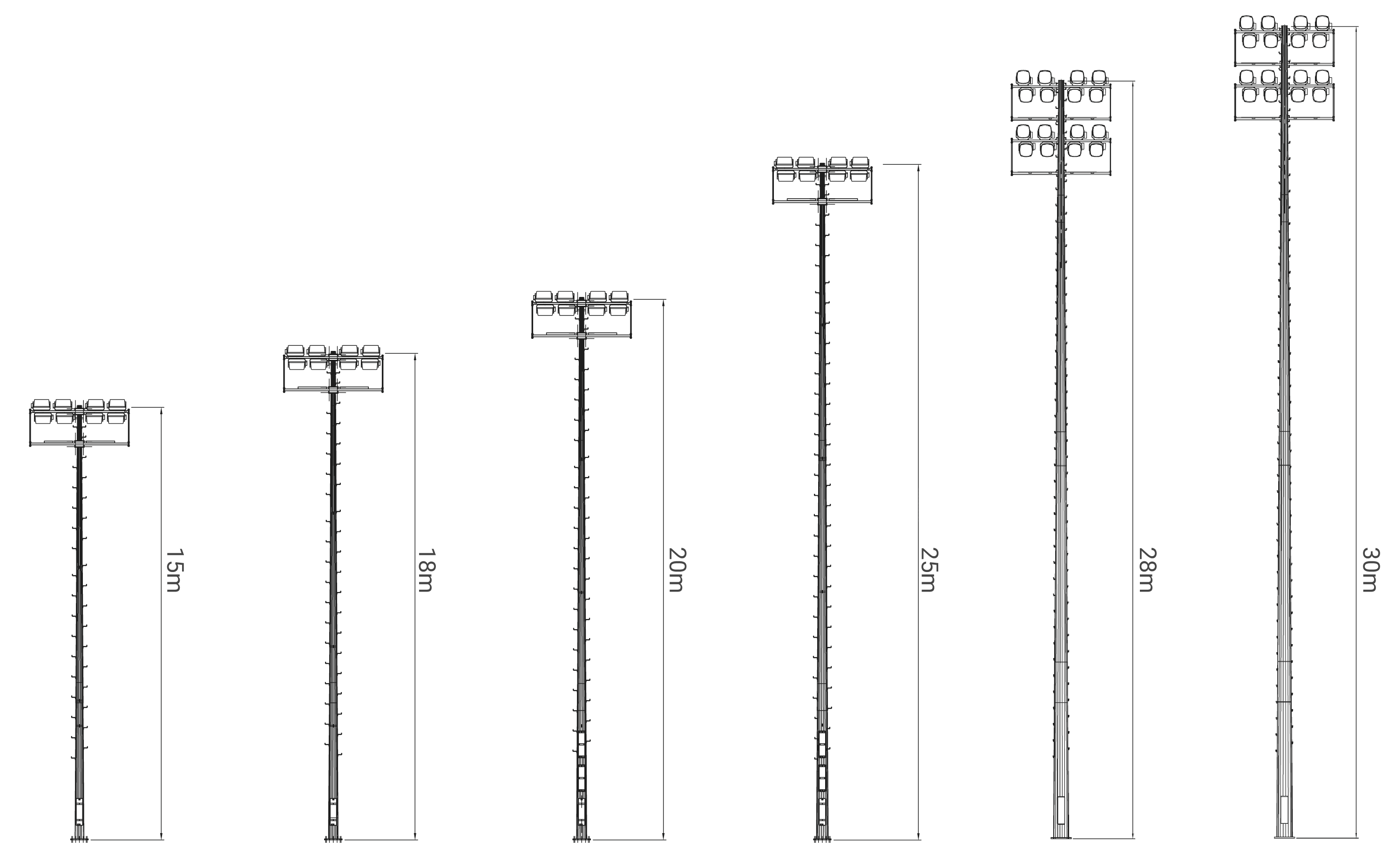

Mast Range-02

The range of 16m–25m Club masts has a carrying capacity of up to 8 Challenger® 1 floodlights, with access by means of climbing rungs and a platform, with security cable. At 20m and 25m, we can conceal all 8 sets of control gear and protection equipment in the mast base.

The 28m and 30m Club masts have a carrying capacity of up to 16 Challenger® 3 floodlights, accessed in the same way as the smaller masts above.

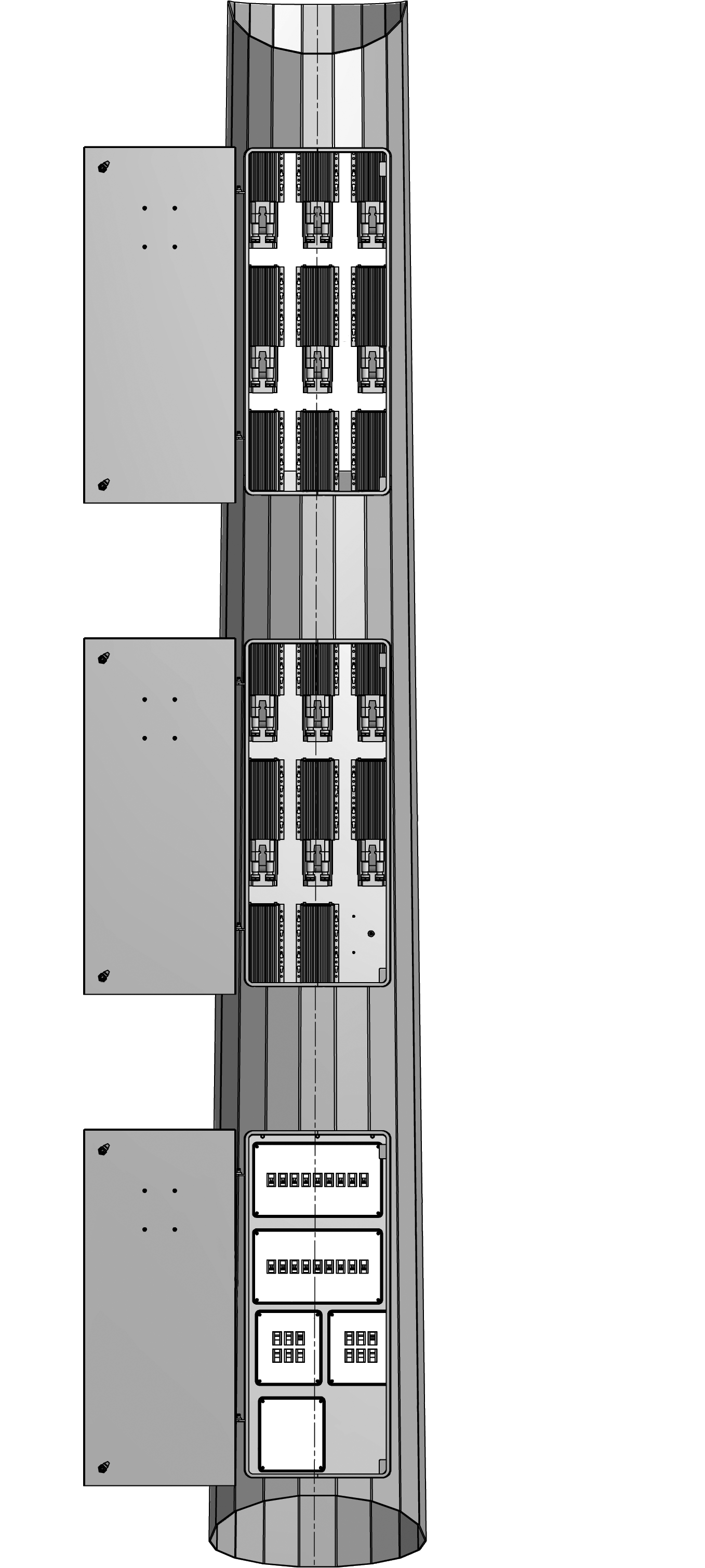

control_gear_gs
2kW Control gear units fitted at Abacus and wired for 400V supply.
2kW Control gear units fitted at Abacus and wired for 400V supply.
Circuit breaker to protect up to 17 floodlights. Housed in and IP65 rated enclosure.
Contactors for 6 switching levels.
Incoming terminal to suit up to 25mm SQ cables and incoming terminals for control wiring.

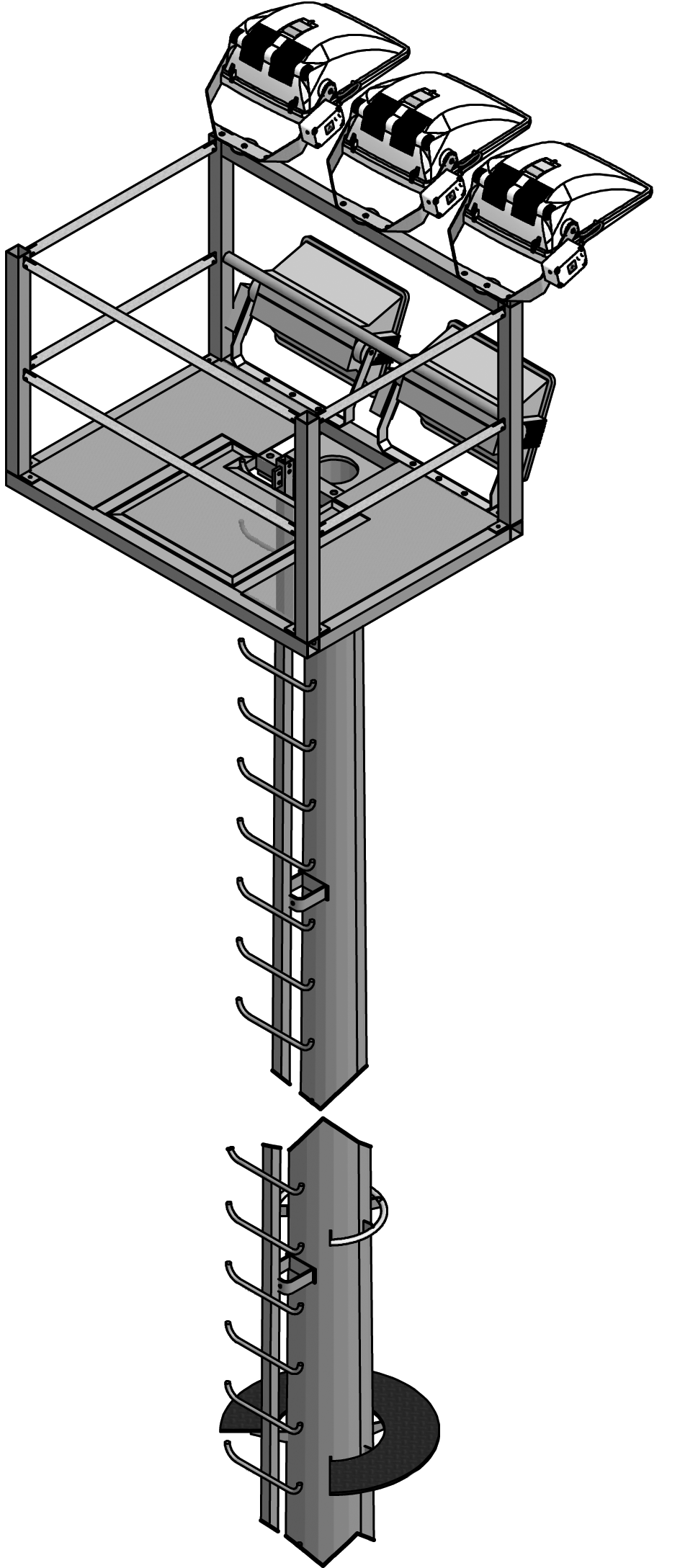

control_platform_gs

Area lighting masts feature a ladder or climbing rungs, a rest platform (optional) at 20m on the higher masts, and an enclosed platform onto which floodlights can be mounted on any side.

control_platform_gs

Area lighting masts feature a ladder or climbing rungs, a rest platform (optional) at 20m on the higher masts, and an enclosed platform onto which floodlights can be mounted on any side.
