Stadium Range Fixed Masts

In addition to our base-hinged range, Abacus design and manufacture a wide range of fixed masts for large-scale floodlighting.

60+ years’ engineering experience on projects all over the world has taught us a lot about the importance of flexibility, attention to detail and customer service.

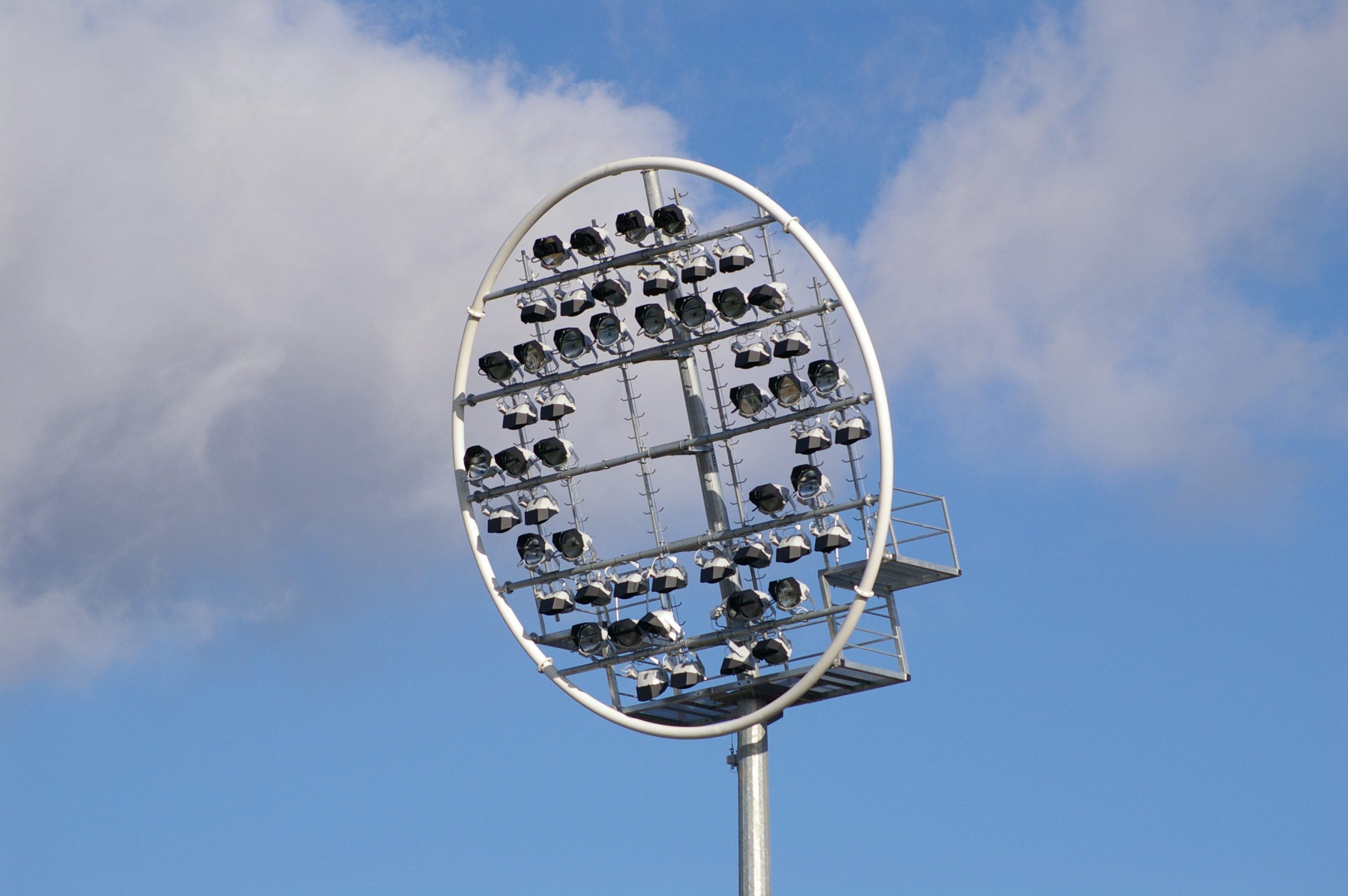

Trent Bridge Cricket, UK

Trent Bridge Cricket, UK

A range of solutions to suit every customer’s needs:

  • External ladder access with optional rest platforms
  • External access using the manrider elevator system
  • Internal access, with a ladder running up the inside of the mast
  • External access by means of crane and basket

Access systems

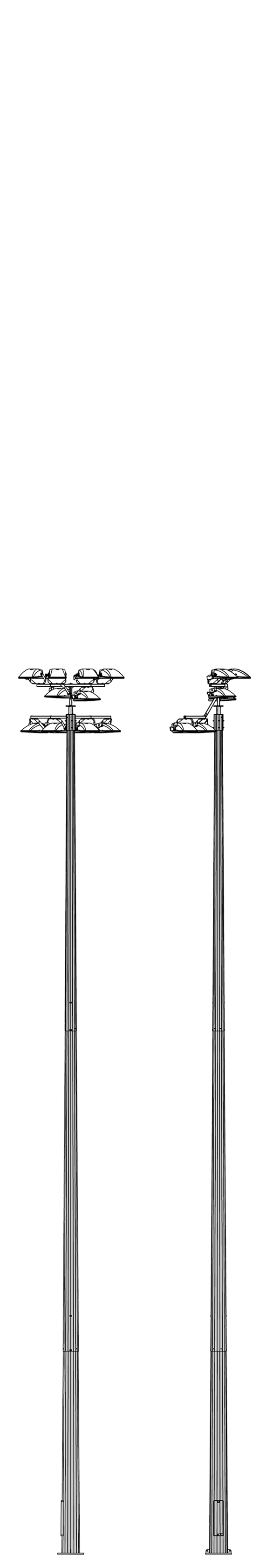

Stadium Mast Range-01
EXTACC/MOBILE
20-40m

Access by independent mobile platform

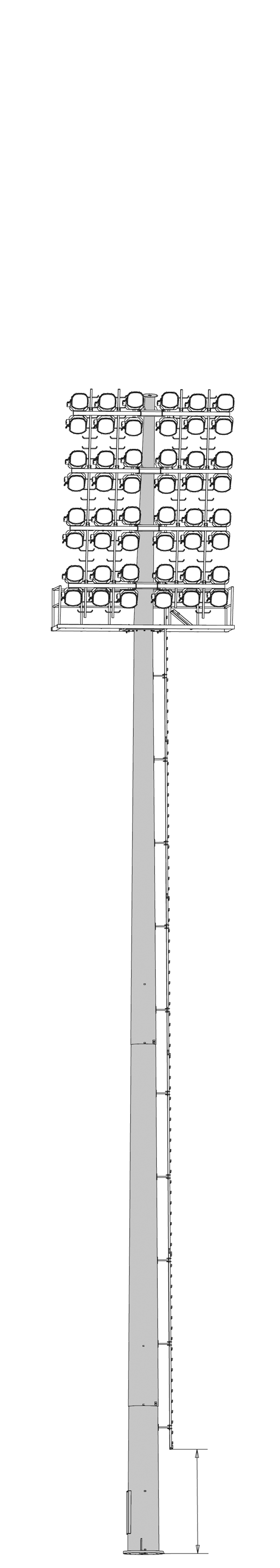

Stadium Mast Range-02
EXTACC/LADDER
30-55m

Access by fixed external ladder to platform

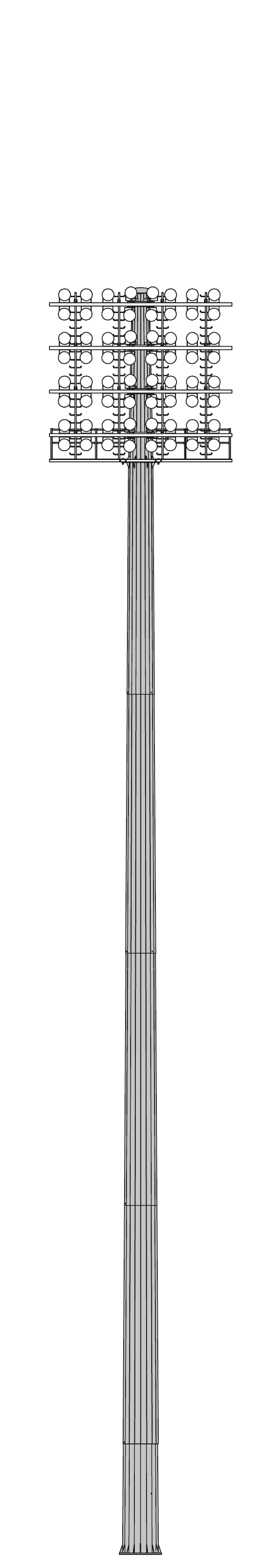

Stadium Mast Range-03
INTACC/MOBILE
35-55m

Access by fixed internal ladder to platform

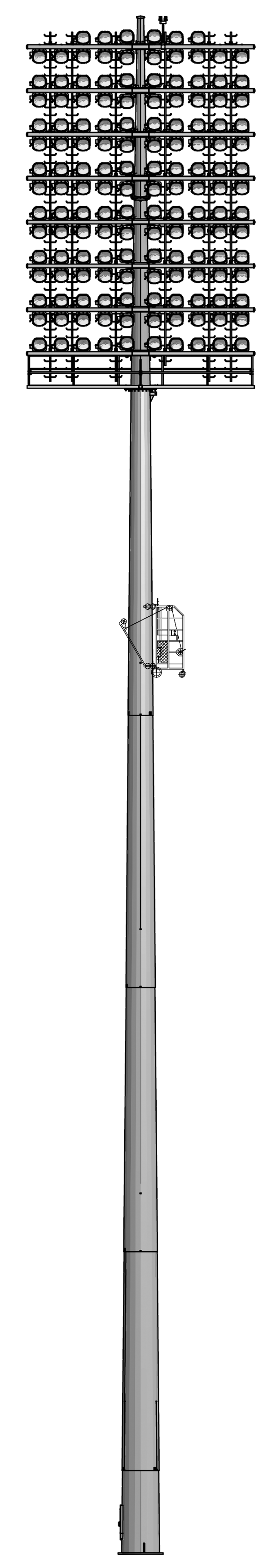

Stadium Mast Range-04
EXTACC/MANRIDER
35-70m

Access by external manrider elevator to platform

Sports stadium headframes

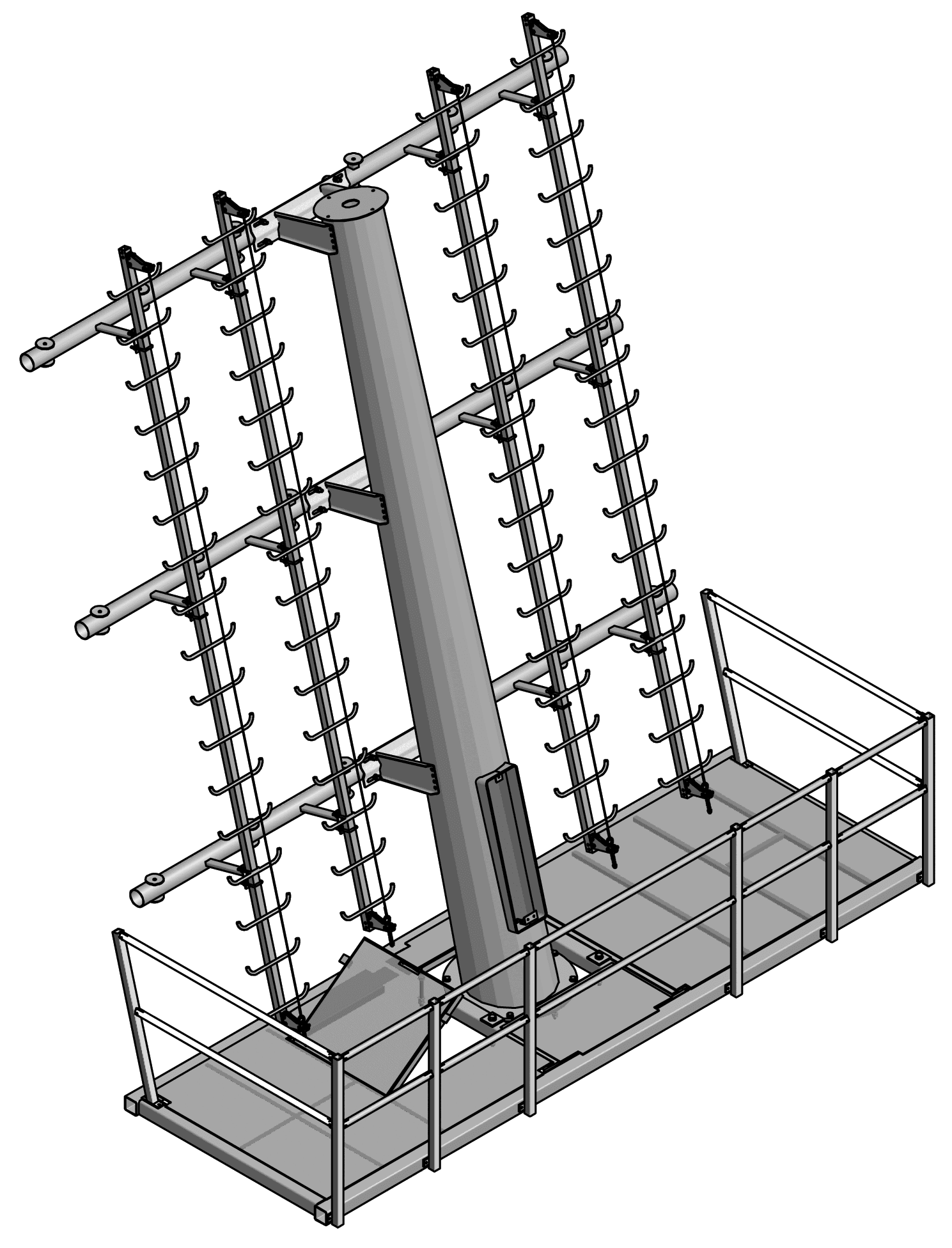

fm_fall_arrest_cable

Whatever the quantity of floodlights required, configurations are always logical, making project planning as simple as possible for both consultants and engineers.

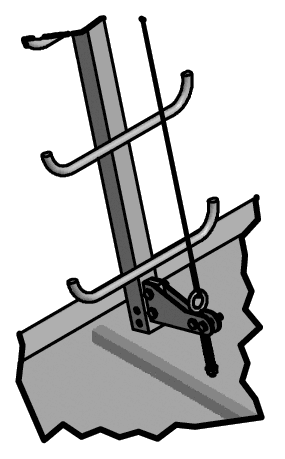

Floodlight cables enter the mast through secure cable glands. Installation is straightforward, with clear assembly instructions included.

All headframe and ladder systems incorporate a security fall-arrest cable, in conformity with EN353-1 and EN353-2.

fm_cable_gland_01

Accessories

Product Product code
Safety harness and karabiner: to be used in conjunction with MIS3014 fall-arrestor MIS3013
Fall-arrestor for use with Cable Security System: for use on 8mm security cable system MIS3014
Double obstruction light: 2 x 55W lamps, each with an 8,000hour life THO003
Bracket to mount double obstruction light onto 114mm diameter cross-arm BKT/F22
Twin obstruction light LED TOL/LED/220V

Control gear and protection equipment

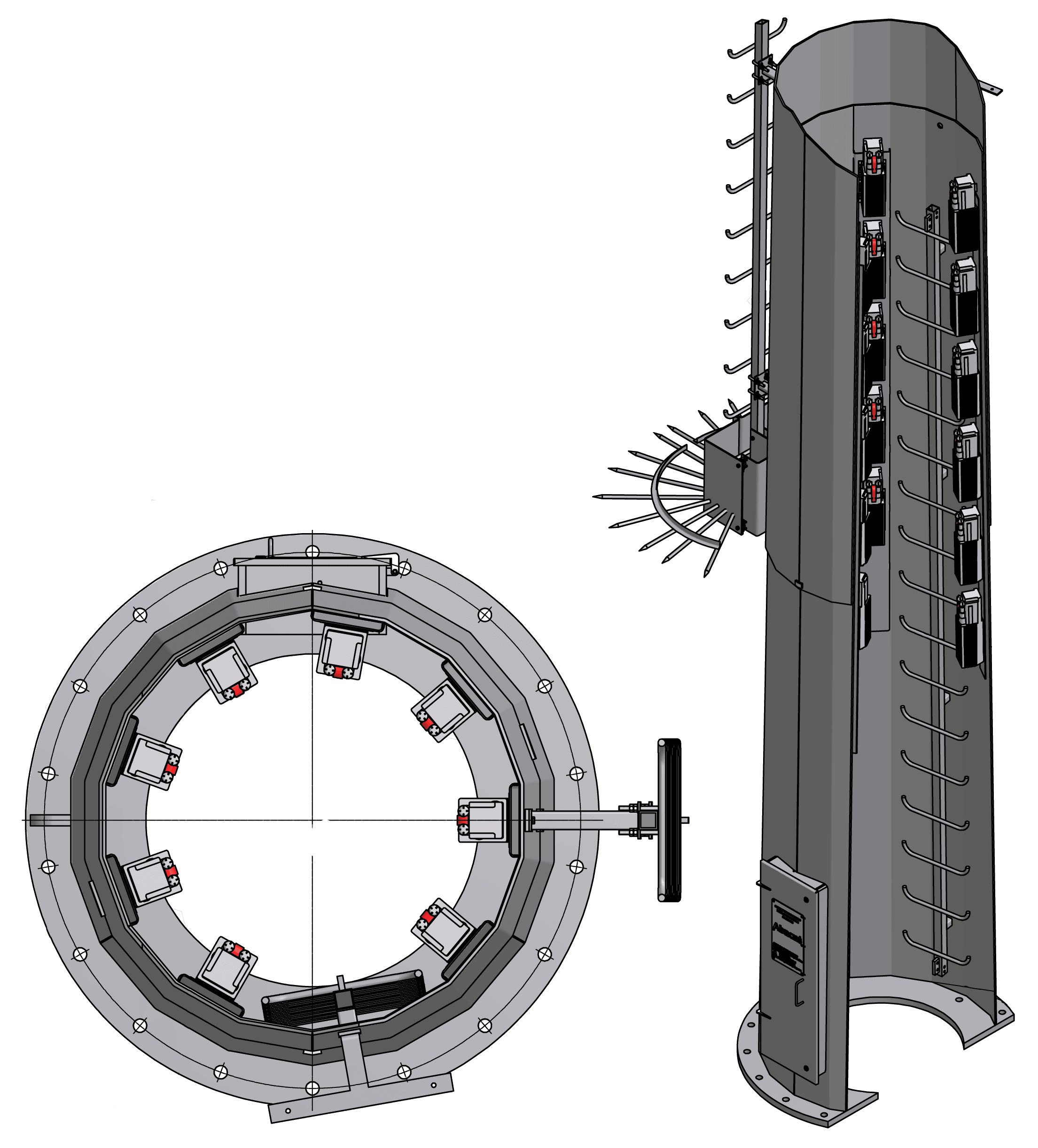

Most of the time, control gear and electrical protection equipment is mounted in cabinets at or near the mast base. If space is limited, however, or you’d rather preserve the clean, straight lines of your mast, we can increase the dimensions of its base and conceal the equipment and access ladder inside (up to a limit of around 60 2kW floodlights).

fm_control_gear_base-transparent

Bespoke designs

Abacus offer bespoke design solutions to suit every customers’ need.  Lighting structures need not be an eyesore but rather an elegant example of modern design.

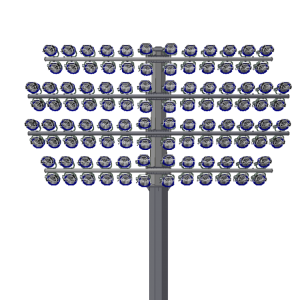

Lords London

Lords London

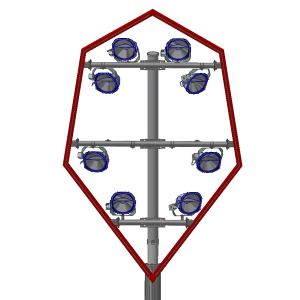

Salford City FC

Salford City FC

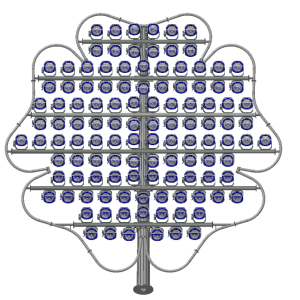

Headingly, Yorkshire

Headingly, Yorkshire

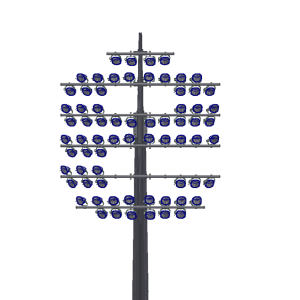

Edgbaston, Warwickshire

Edgbaston, Warwickshire

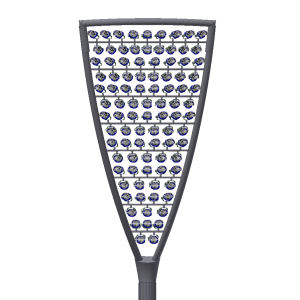

Manuka Oval, Canberra AU

Manuka Oval, Canberra AU

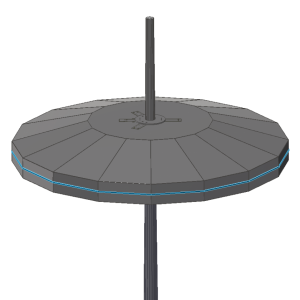

'UFO' Raising and Lowering Winch Masts

'UFO' Raising and Lowering Winch Masts
