Club Range Telescopic Masts

The Club telescopic range is perfect for medium-sized sports, recreational or commercial facilities where full-height permanent masts aren’t feasible or necessary. Incorporating innovative, user-friendly engineering solutions, our range is as flexible as it is practical – with masts that more than double in height from their retracted position.

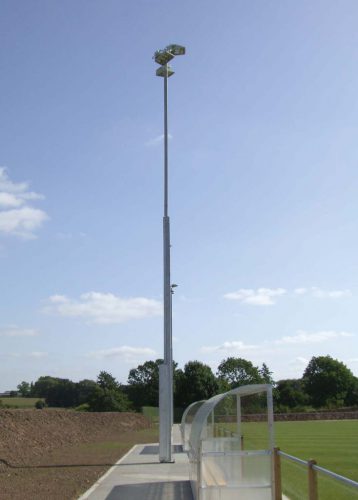

15m telescopic masts at Stone Dominoes Football Club in the UK. The local Planning department permitted a maximum permanent height of 8m.

15m telescopic masts at Stone Dominoes Football Club in the UK. The local Planning department permitted a maximum permanent height of 8m.

15m telescopic masts at Stone Dominoes Football Club in the UK. The local Planning department permitted a maximum permanent height of 8m.

15m telescopic masts at Stone Dominoes Football Club in the UK. The local Planning department permitted a maximum permanent height of 8m.

Easy Operation

Operated using compressed air, these pneumatic masts can be raised and lowered either remotely (from the club house, for example) or individually from the base of each mast.


The masts are delivered fully assembled, with integrated electrical and mechanical equipment ready for fast on-site installation.

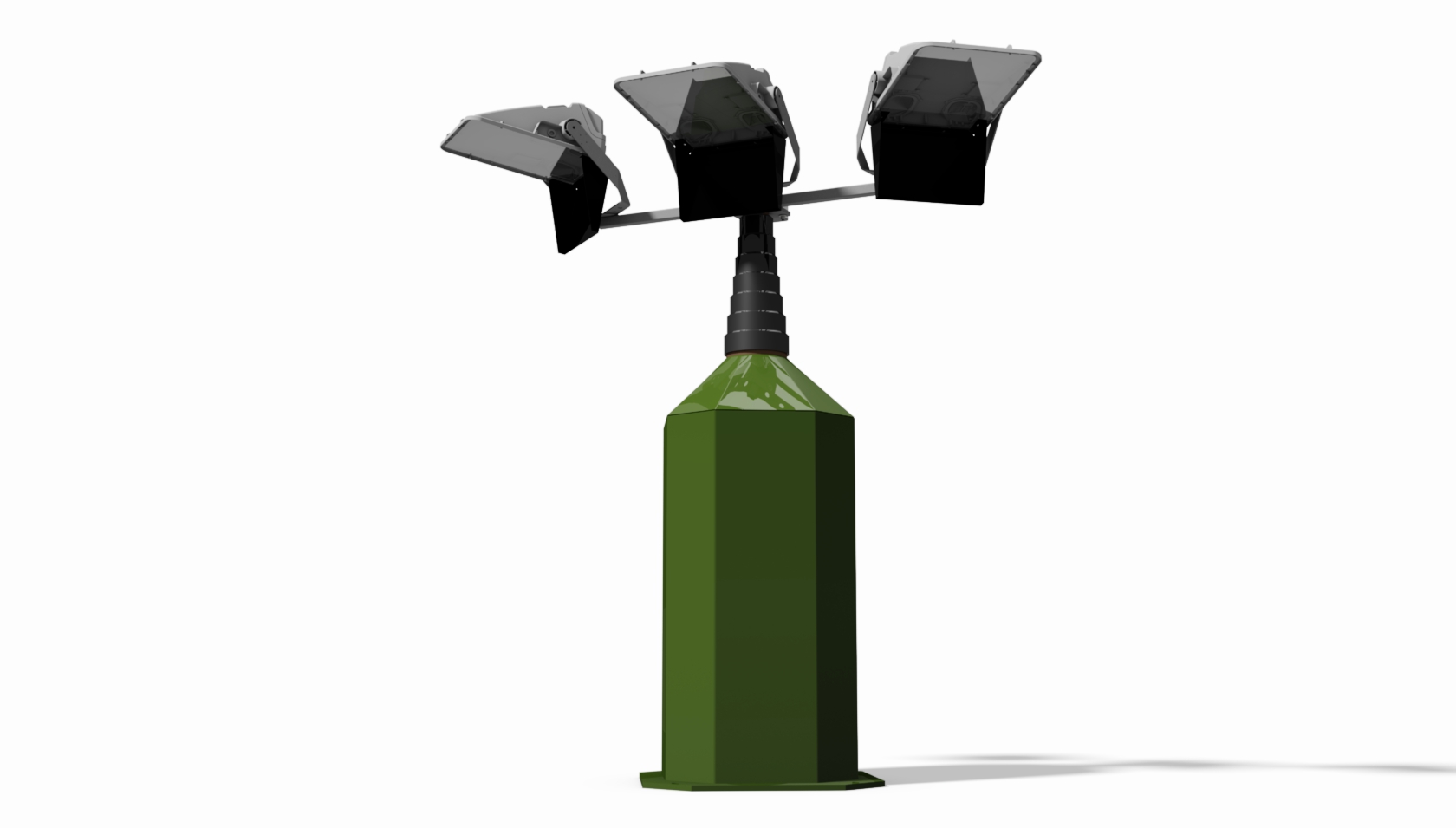

Pneu Tele 01 scaled

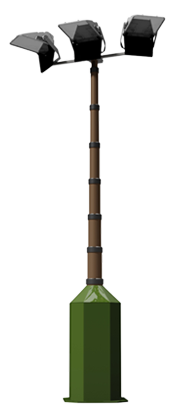

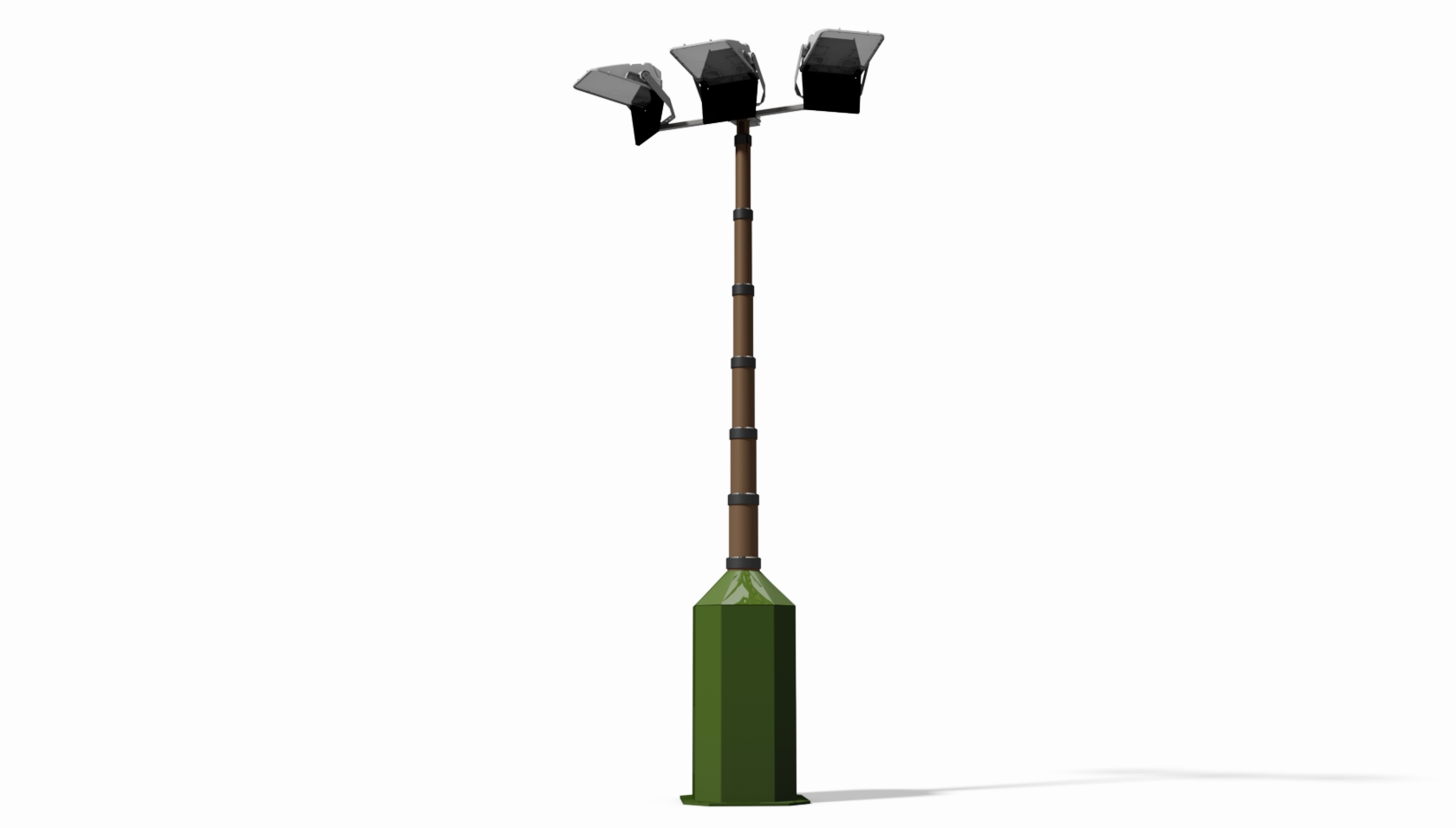

Pneu Tele 03 scaled

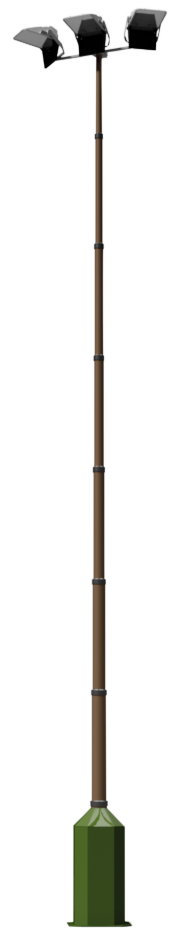

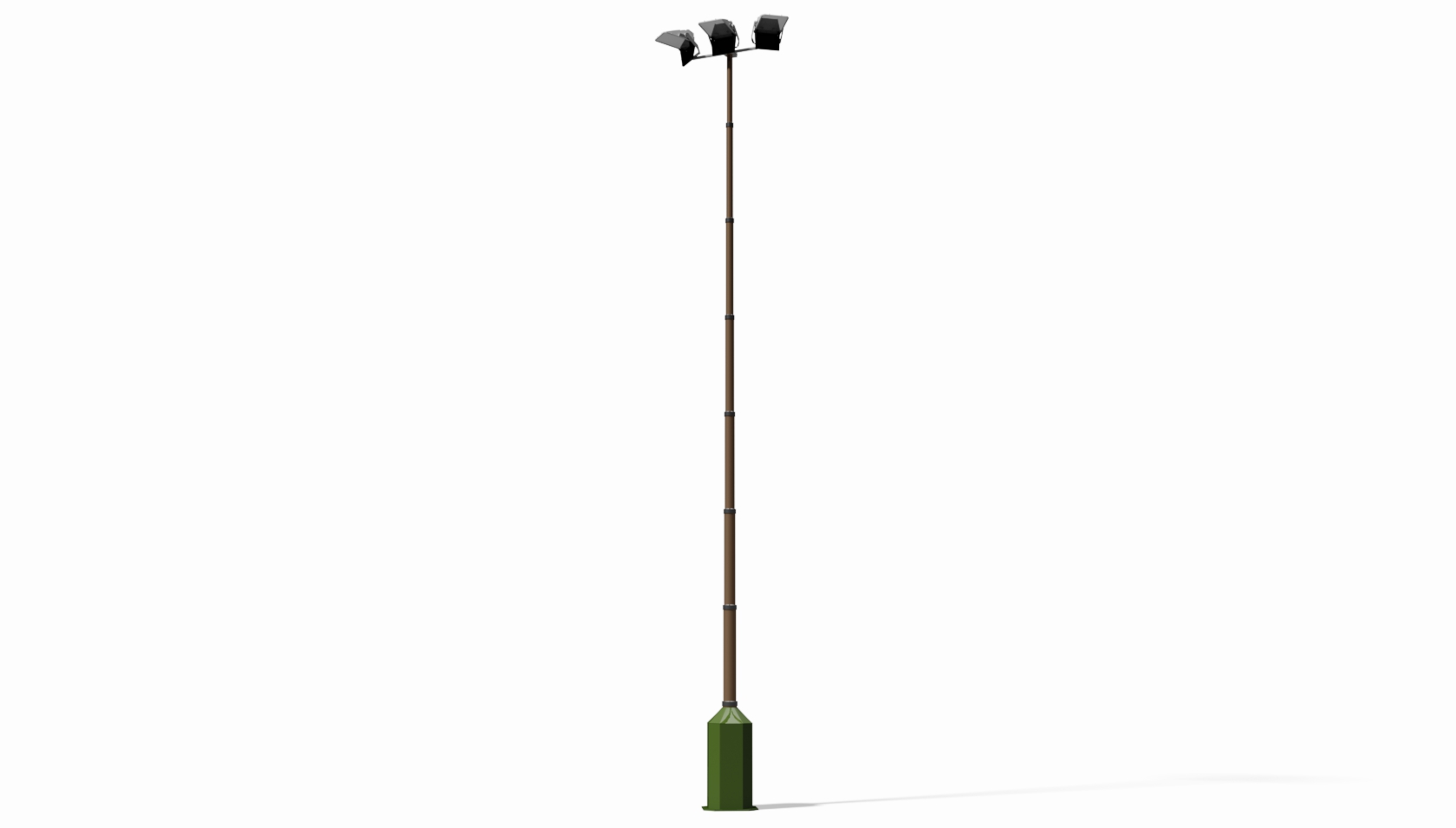

Pneu Tele 02 scaled

Features

  • Pneumatic telescopic masts, operated using compressed air
  • Anodised aluminium finish
  • Option for internal multi-core cable available upon request
  • Anemometer controlled retraction if the design wind speed is exceeded
  • Lowers to more than half the operating height, minimising any visual instrusion

Product Variants

Extended height (m) Retracted height
(m)
Number of sections Base diameter
(mm)
Top shaft diameter (mm) Maximum headload (kg)
12.7 2.5 7 284 130 280
14.1 2.7 7 284 130 280
14.8 2.8 7 284 130 280
15.5 2.9 7 284 130 280
16.2 3.0 7 284 130 280
16.9 3.1 7 284 130 280
17.6 3.2 7 284 130 280
18.3 3.3 7 284 130 280
19.7 3.2 8 284 110 200
20.5 3.3 8 284 110 200
