Benefits
- Continuity without changing fitting with covers to suit lighting requirements
Colour
- Grey
- White
- Bronze
- Black
Technical Requirements
- Power: 17W (System power 19.5W)
- Colour temperature 5000K as standard
- Available in two sizes
- Available with half eyelid cover
- Heavy-duty die-cast aluminium housing and top frame with powder coat finish
- Can be tapped for side conduit entry
- LumaLens clear or opal polycarbonate vandal-resistant lens
- LumaFit LEDs on aluminium boards

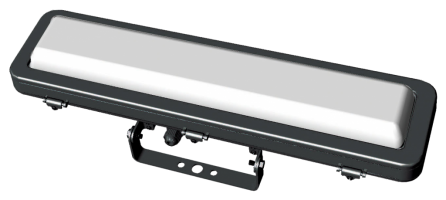

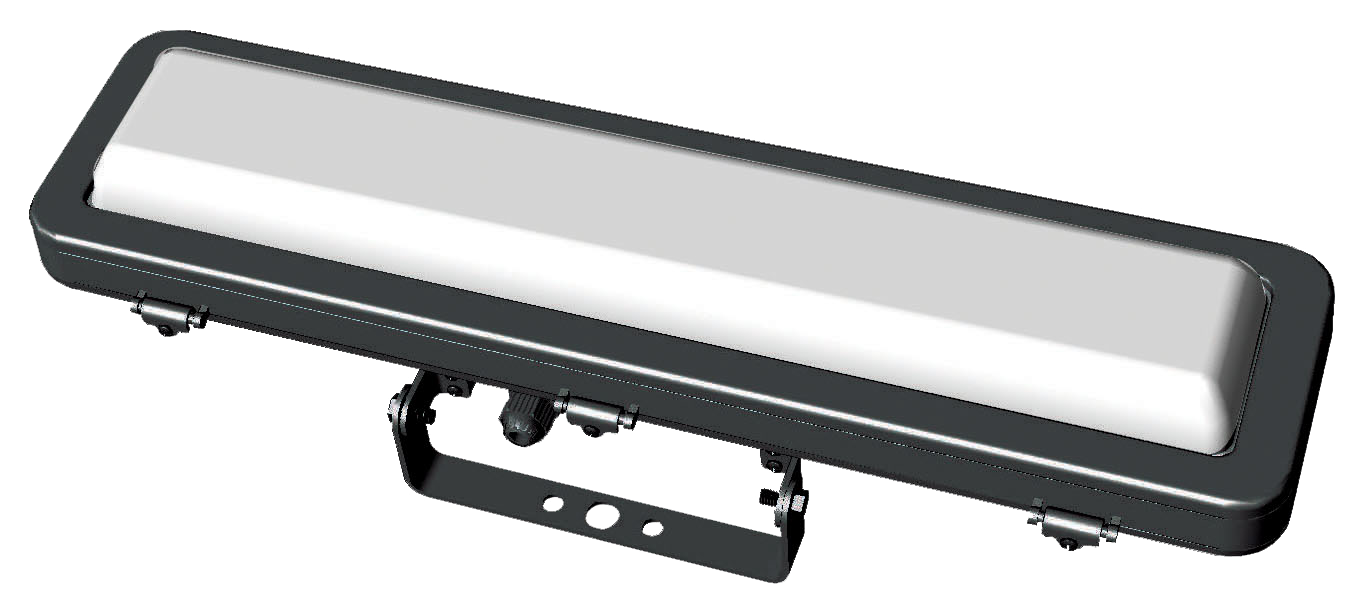

- Surface mount with included brackets (optional adjustable brackets available)
- Dimmable driver
- 5 year warranty
Rated life: 50000 hours
Voltage 120 – 277V, 50/60Hz
Operating temperature -40°C ~ + 40°C
Product Variants
| Wattage (W) | Lumen Output (lm) | Length (mm) | Style | Colour temp (K) | Colour (as standard) | Lens | |
|---|---|---|---|---|---|---|---|

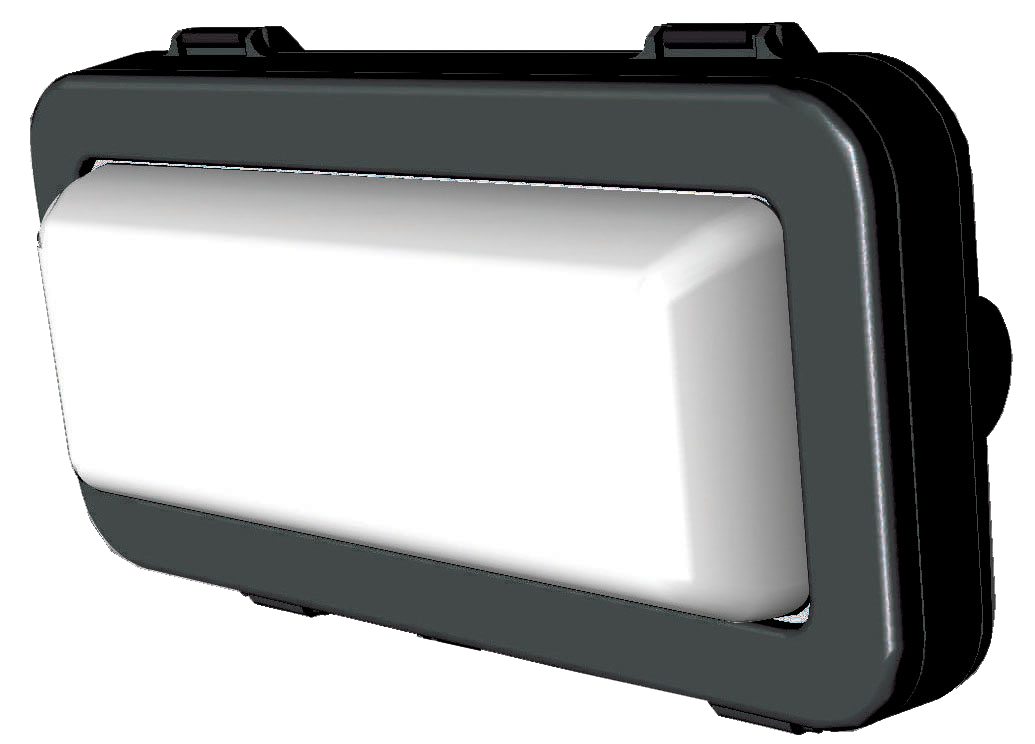

| AL22701* | 43 | 5538 | 308 | Horizontal, full lens | 5000 | Grey | Clear |
| 26.2 | 2940 | 308 | Horizontal, full lens | 5000 | Grey | Opal | |

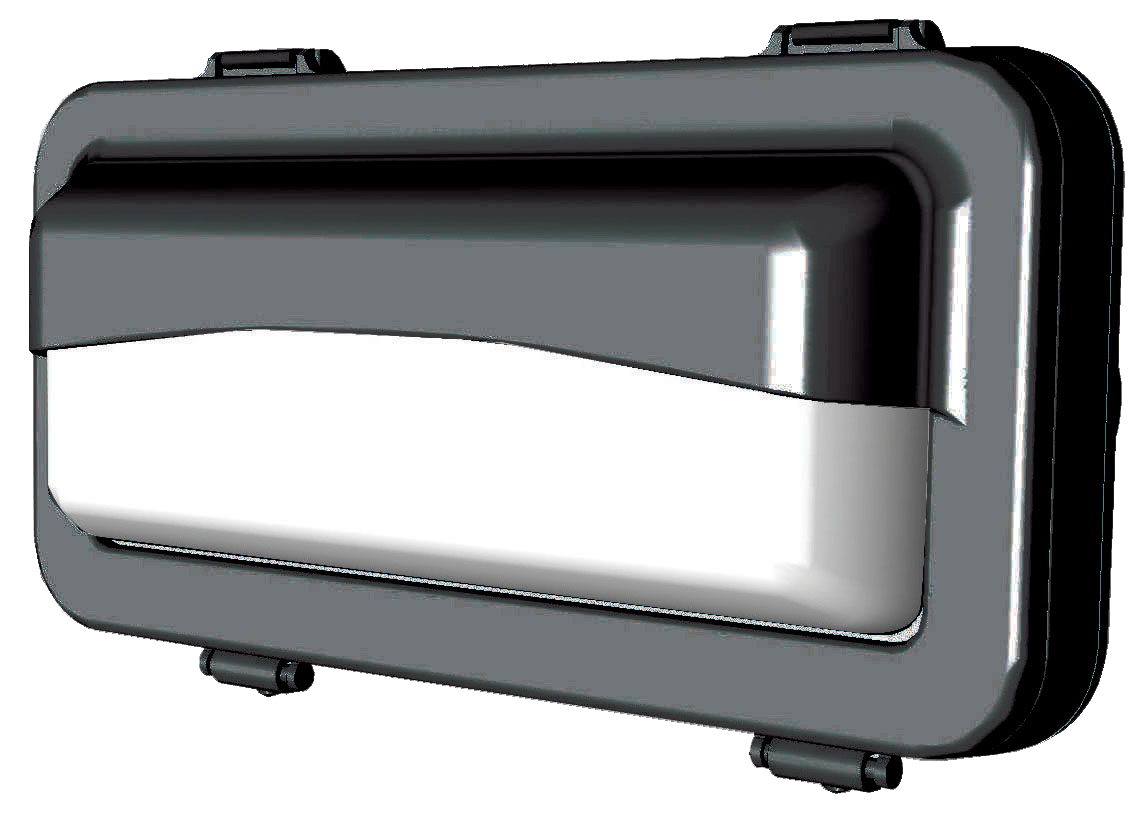

| AL22702 | 43 | 4879 | 308 | Horizontal, eyelid | 5000 | Grey | Clear |
| 26.5 | 2369 | 308 | Horizontal, eyelid | 5000 | Grey | Opal | |

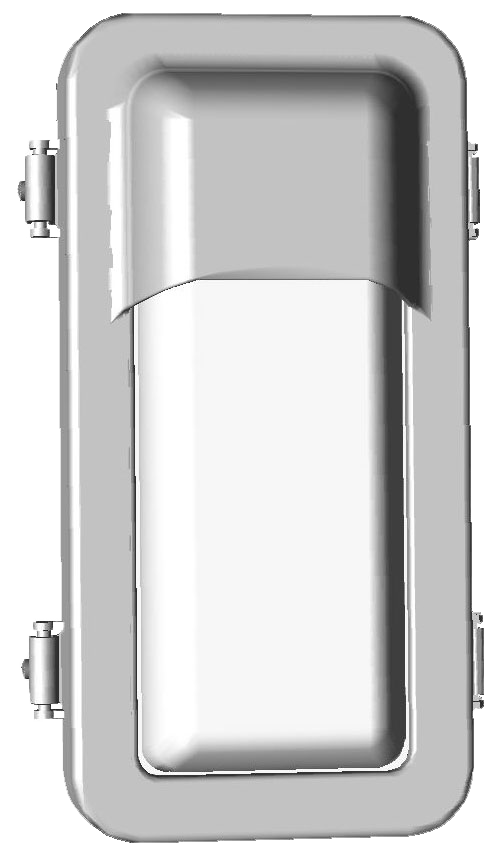

| AL22703 | 43 | 5294 | 308 | Vertical, eyelid | 5000 | Grey | Clear |
| 26.5 | 2369 | 308 | Vertical, eyelid | 5000 | Grey | Opal | |
| AL22704** | 81.4 | 9183 | 613 | Horizontal, full lens | 5000 | Grey | Clear |
| 52 | 6632 | 613 | Horizontal, full lens | 5000 | Grey | Opal |
* Stirrup option available, add code: LV1BR
** Stirrup option available, add code: LV2BR
*** Please specify if other colour when quoting / ordering
Z = Bronze W = White G = Grey
-
- AL22701
-
- AL22702
-
- AL22703
-
- AL22704

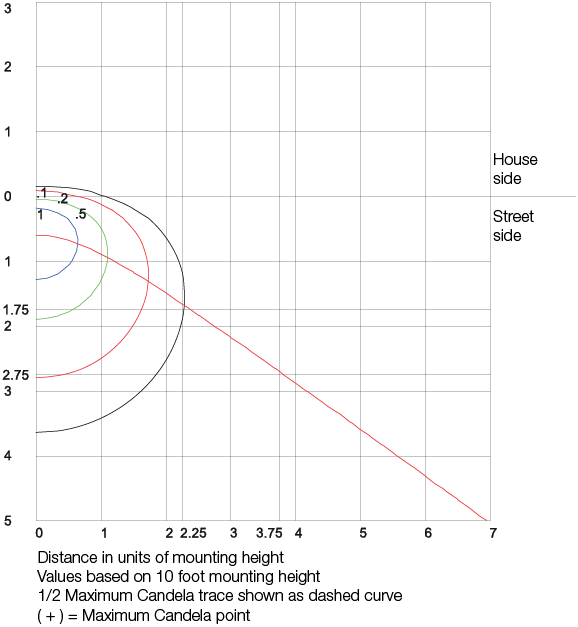

Photometry

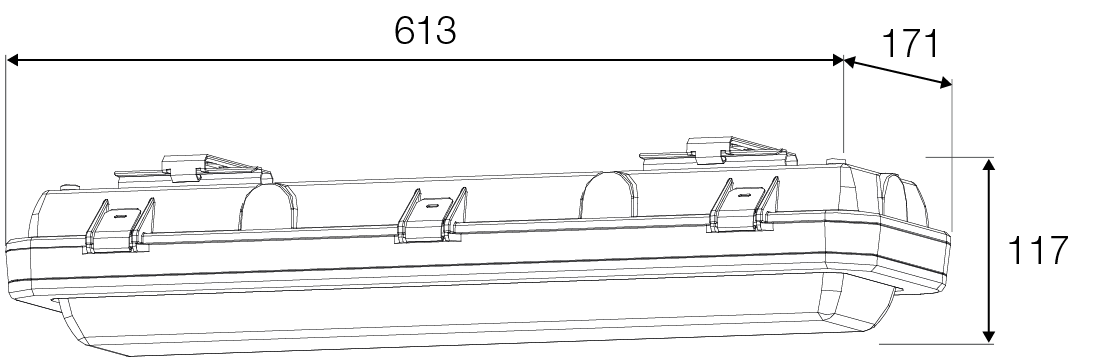

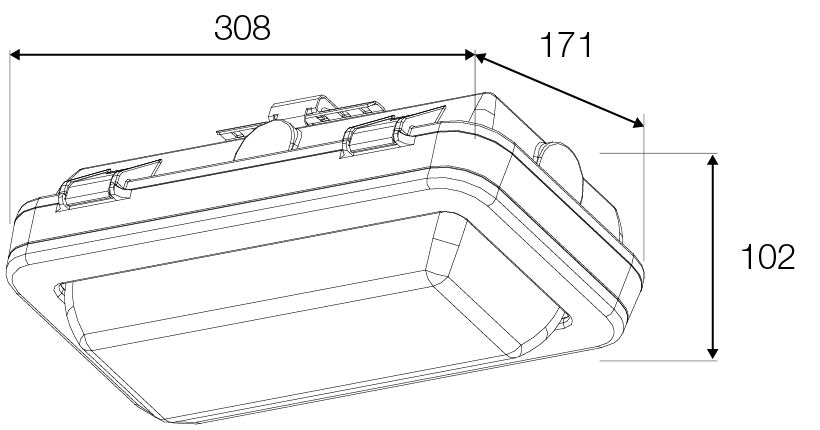

Dimensions
