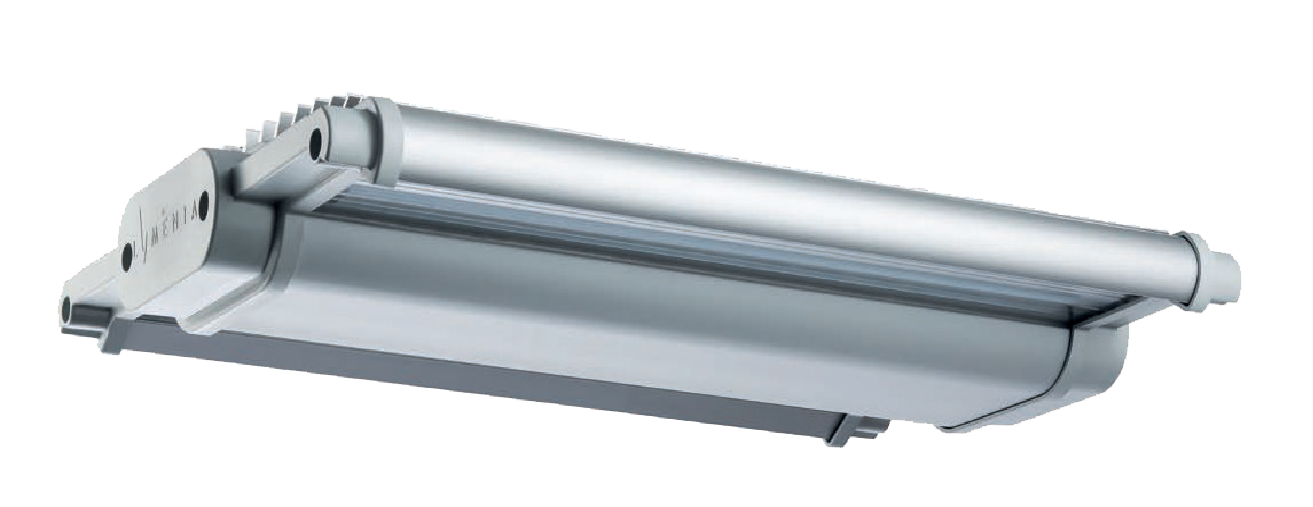

H-LUM light is a durable, highly effective industrial LED luminaire for high ceiling installation. It is an ideal solution for distribution centres, production facilities, and warehouses or gyms, which require high illumination but minimum maintenance. With a finely engineered housing, made of anodised, extruded aluminium, H-LUM fixture dissipates heat and keeps the LEDs inside cool and bright for years.
Benefits
- Low maintenance
- Easy to mount
- Detachable driver
- Durable die cast aluminium housing
- Optics to suit all applications
- Dimming options available
Applications
- Industrial
- Amenity
Colour
- Silver Matt
Technical Features
- IP65 and IK08 rated
- Efficacy up to 149 lm/W
- CRI >80
- Colour temperature 4,000K
- Surge protection 2kV / 4kV
- Controls; Dali
- Emergency option available
- Protection against overheating

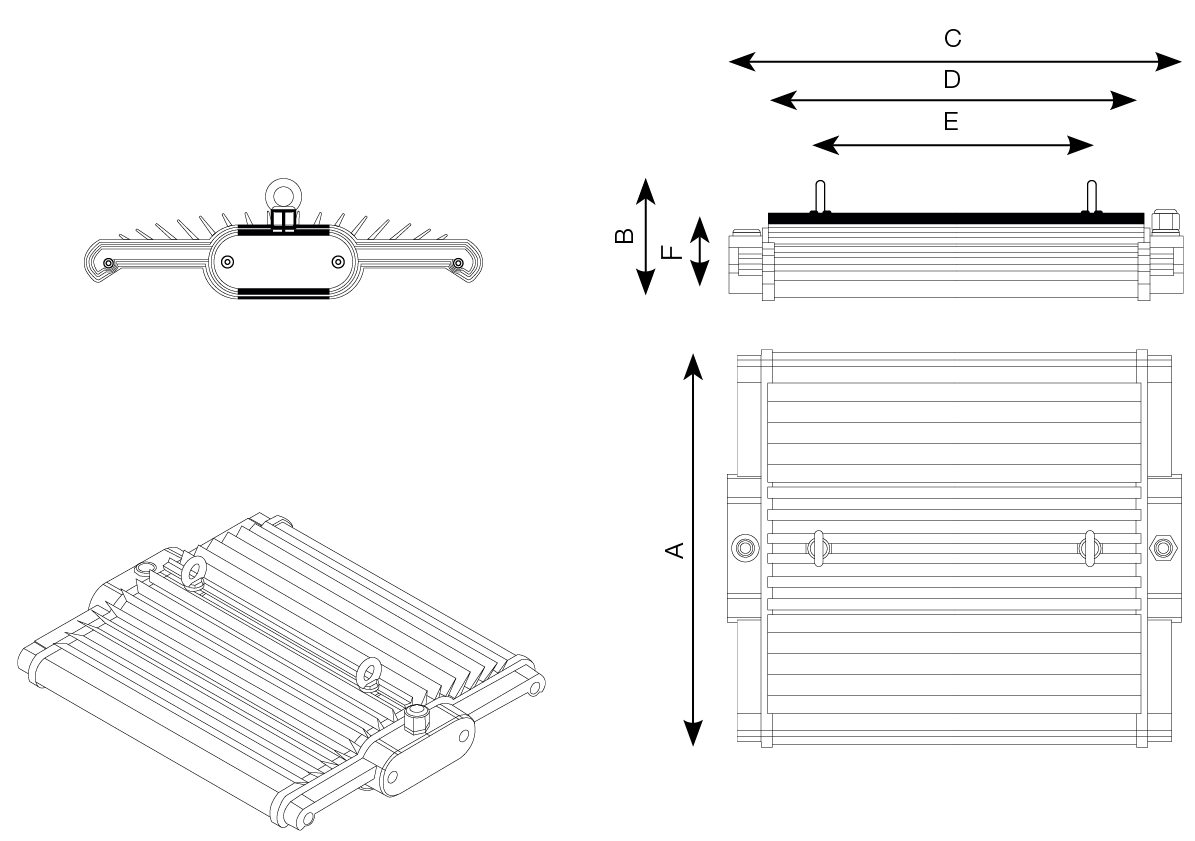

Dimensions
| Sizes | 198 | 288 | 396 | 576 |
|---|---|---|---|---|
| A | 405 | 405 | 405 | 405 |
| B | 123 | 123 | 123 | 123 |
| C | 360 | 460 | 590 | 800 |
| D | 276 | 381 | 507 | 717 |
| E | 171 | 276 | 402 | 612 |
| F | 89 | 89 | 89 | 89 |
| kg | 4 | 5 | 7 | 9 |
Motion Detector

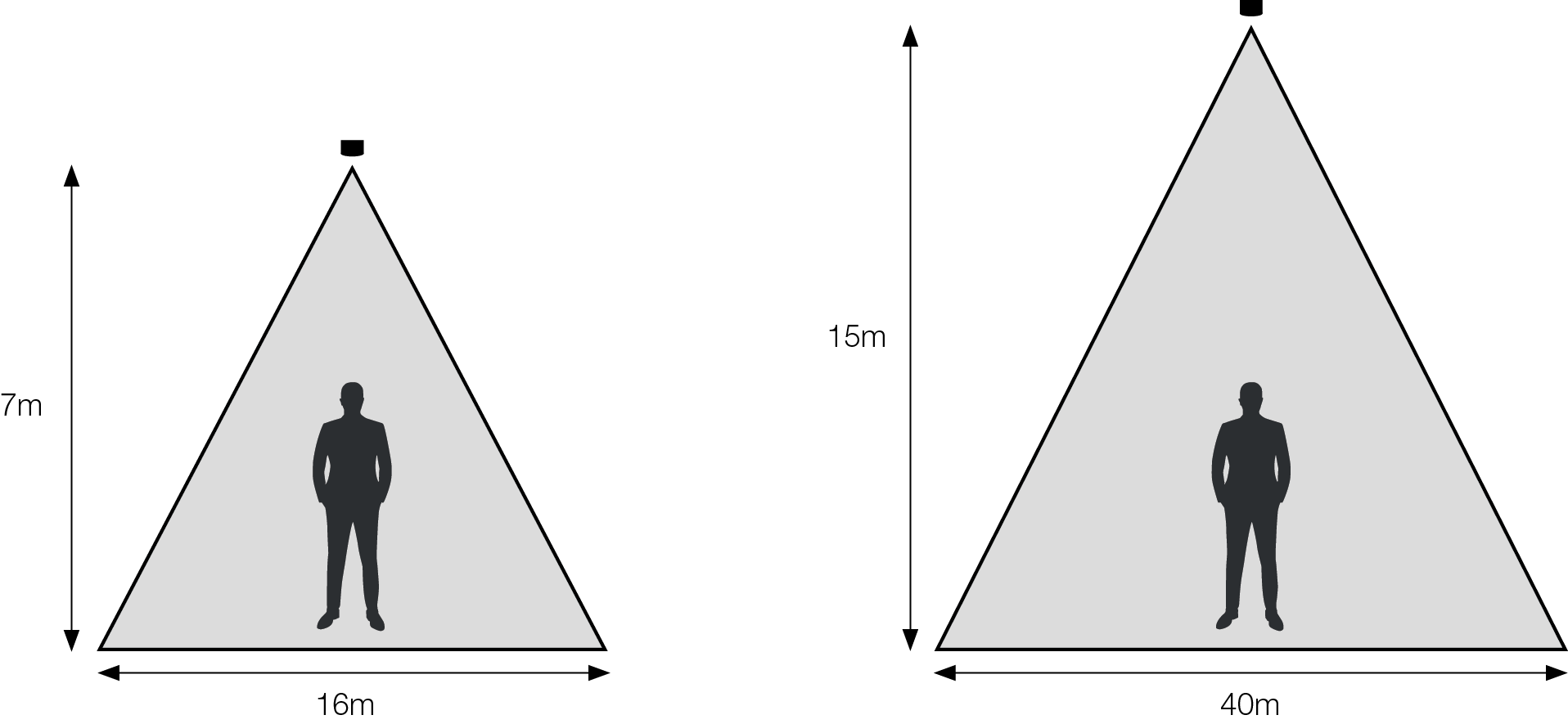

Reducing energy consumption of buildings is no longer possible just with an integration of highly efficient LEDs. Integrated sensor solutions provide additional energy savings and dynamic control of the light, not only with presence detection, but also with measuring the daylight and adjusting the light levels of the light. Because the H-LUM luminaires are suitable for high installations, we provide the PIR technology of the sensors. There are two solutions available in order to optimise the usage of them. The sensors can be used for mounting heights up to 7m and up to 15m and provide a wide detection area. Programming or commissioning of the sensors can be done by using IR handheld unit, from the ground.
Functional Specifications
- Daylight sensing
- Time delay function
- Adjustable detection sensitivity
- Programmable via optional IR handset
- ON / OFF override via optional IR handset
| Sensor reference | Sensor technology | Mounting heights | IR remote programming | Additional masking shields to tailor detection zones |
|---|---|---|---|---|
| MD7 | PIR | 7m | Optional IR handheld unit | No |
| MD15 | PIR | 15m | Optional IR handheld unit | Yes |
Product Variants
| Item No. | LED | Power (W) | Luminous flux (lm) | Efficacy (lm/W) | Optics available | Control | Additional options |
|---|---|---|---|---|---|---|---|
| AL60501 | 198 | 120 | 16,000 | 133 | 000 | DALI, programmable | Motion Detector MD7, Emergency module 1/3 h Motion Detector MD7, Motion Detector MD15, Motion Detector MD15 |
| 288 | 150 | 21,400 | 143 | ||||
| 396 | 220 | 31,400 | 143 | ||||
| 576 | 290 | 42,100 | 145 | ||||
| AL60502 | 198 | 120 | 16,000 | 133 | 010 | Motion Detector MD7 | |
| 288 | 150 | 21,400 | 143 | Emergency module 1/3 h Motion Detector MD7 | |||
| 396 | 220 | 31,400 | 143 | Motion Detector MD15 | |||
| 576 | 290 | 42,100 | 145 | Motion Detector MD15 | |||
| AL60503 | 198 | 120 | 16,000 | 133 | 111 | Motion Detector MD7 | |
| 288 | 150 | 21,400 | 143 | Emergency module 1/3 h Motion Detector MD7 | |||
| 396 | 220 | 31,400 | 143 | Motion Detector MD15 | |||
| 576 | 290 | 42,100 | 145 | Motion Detector MD15 |

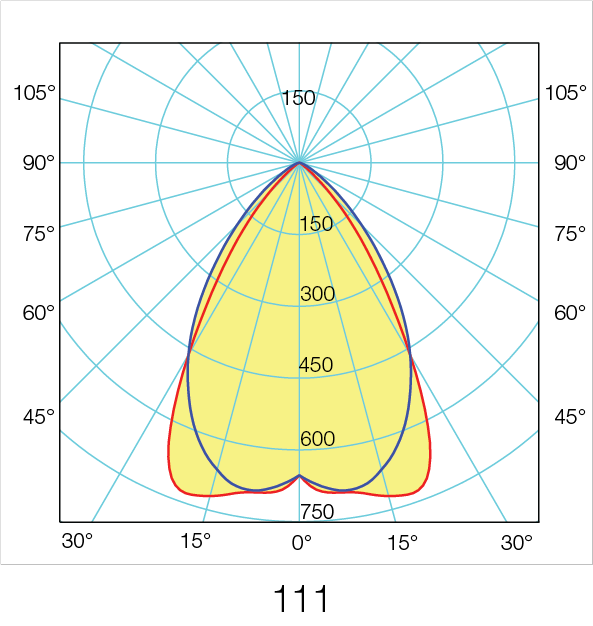

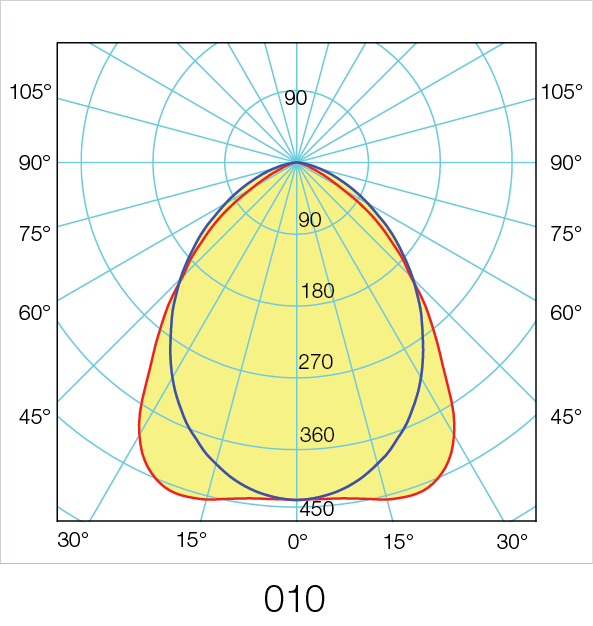

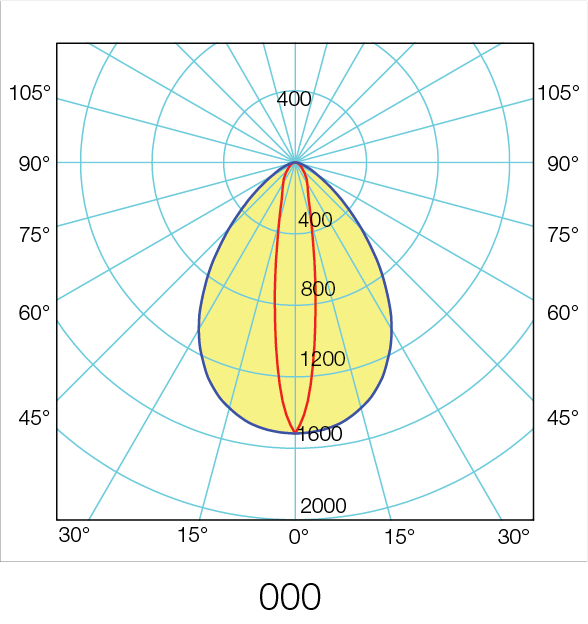

Optics
