Areon

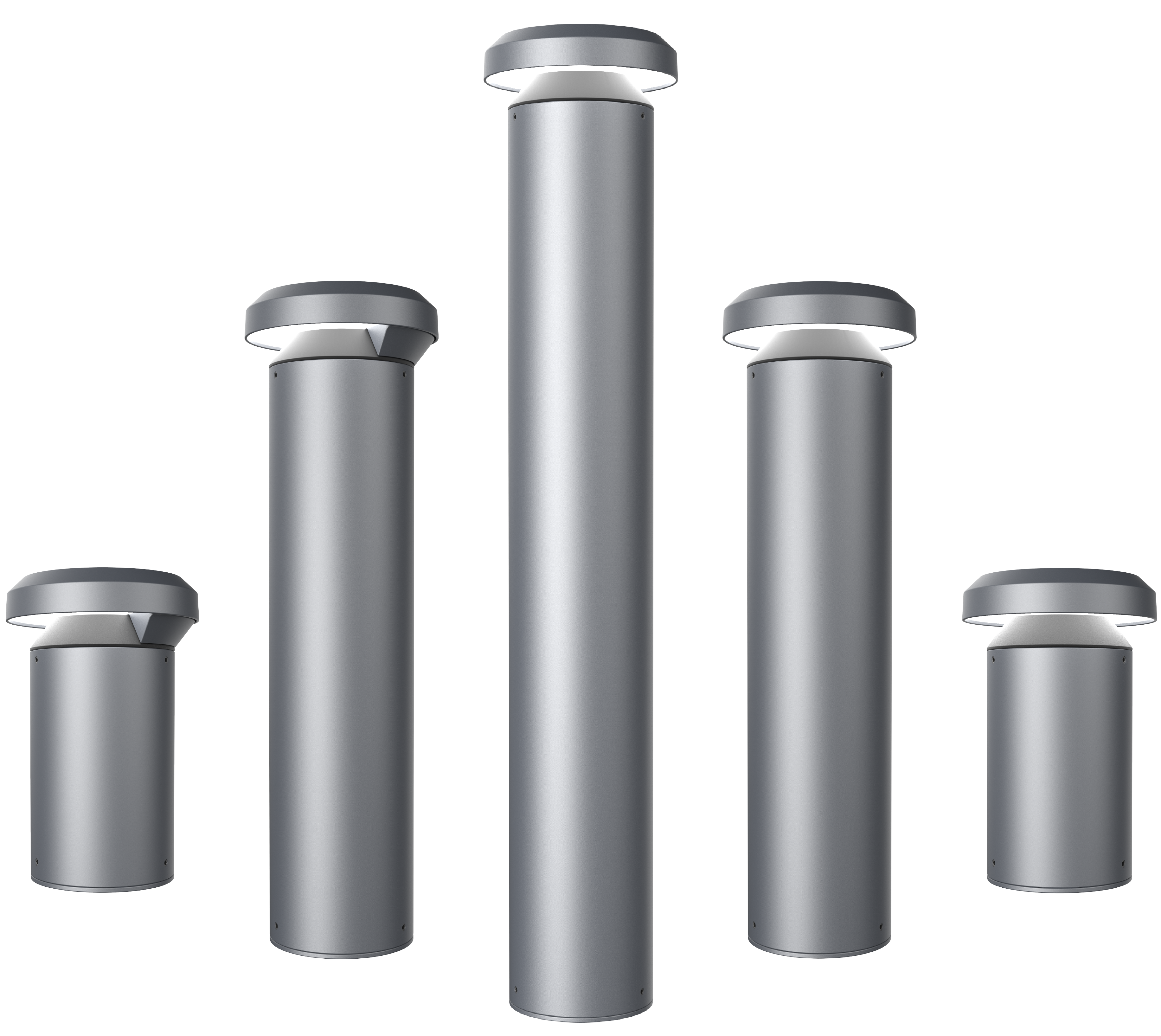

The Areon bollard connects paths and outdoor areas. Two light distributions and three construction sizes enable nuanced lighting designs with just a single luminaire range. Its innovative optical lens creates either light distribution aligned at 180° to one side for paths, or 360° light distribution for open areas.
The absence of upward light ensures that glare and the impact upon wildlife is minimized whilst providing maximum ground level lighting.
Technical Features
- Corrosion-resistant aluminium profile and dual powder-coated.
- Available with 360° symmetric or 180° asymmetric light distribution.
- Zero upward light
Colour
- Graphite Grey RAL7024 as standard
- Other options available upon request

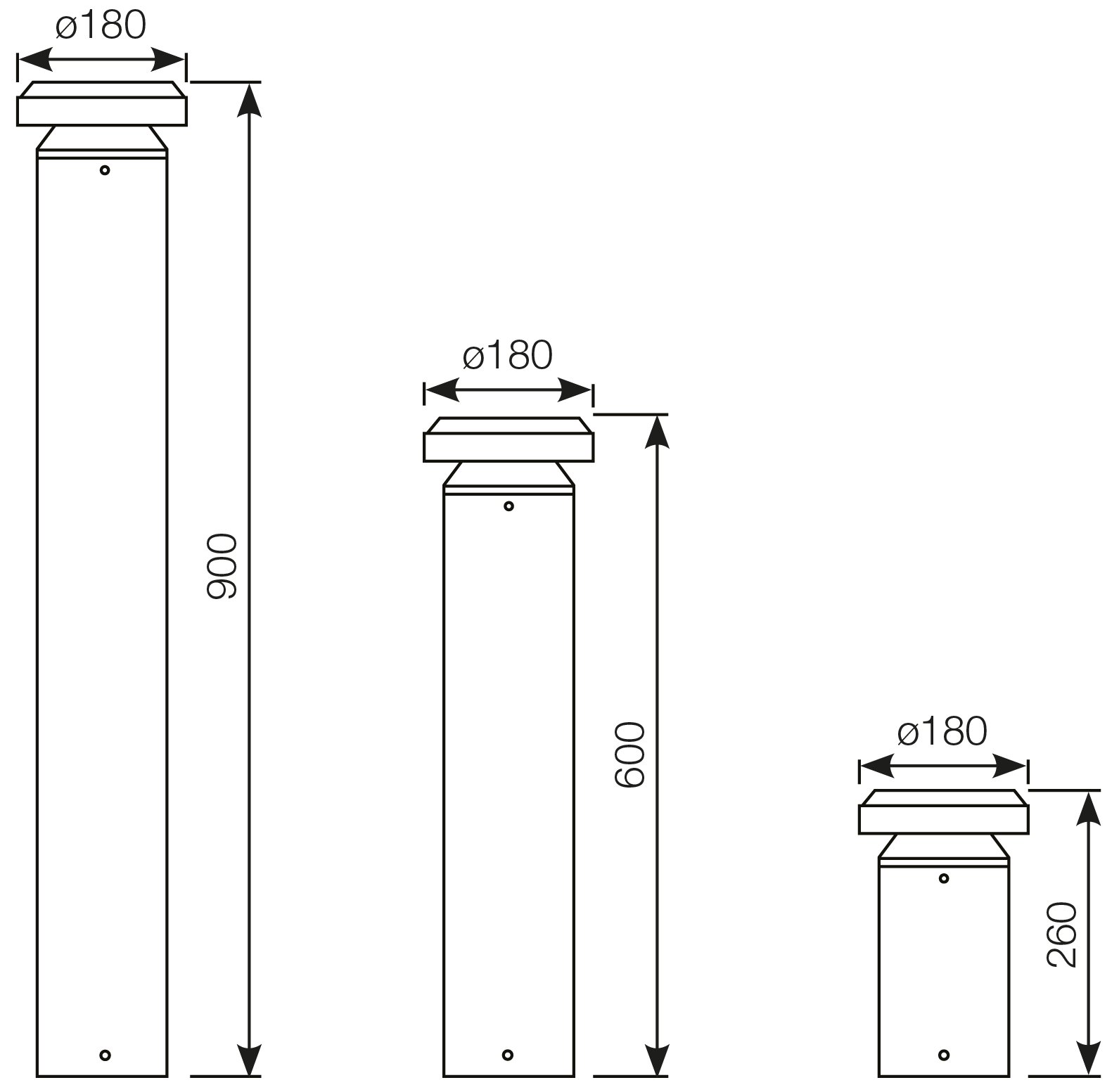

Dimensions
Optics

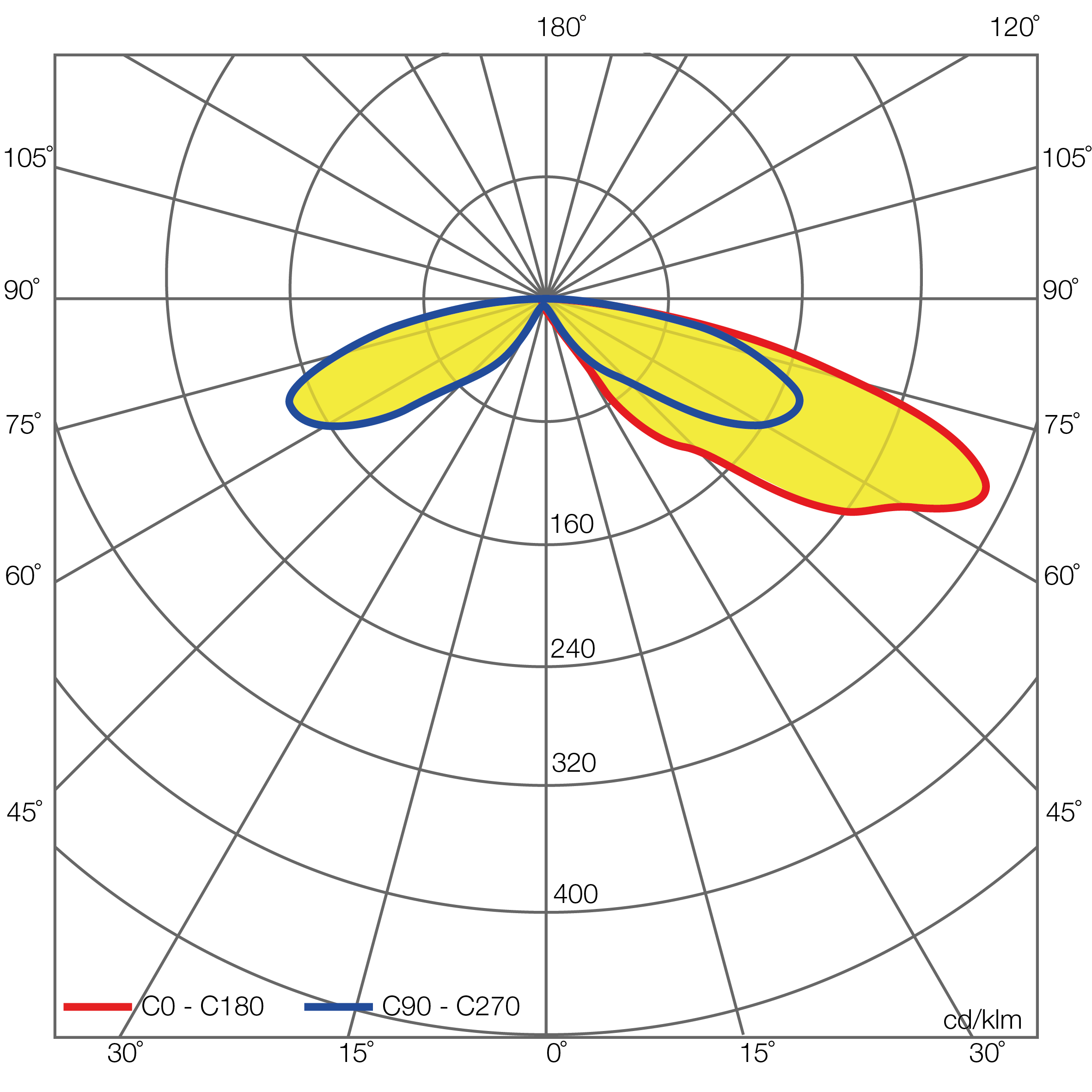

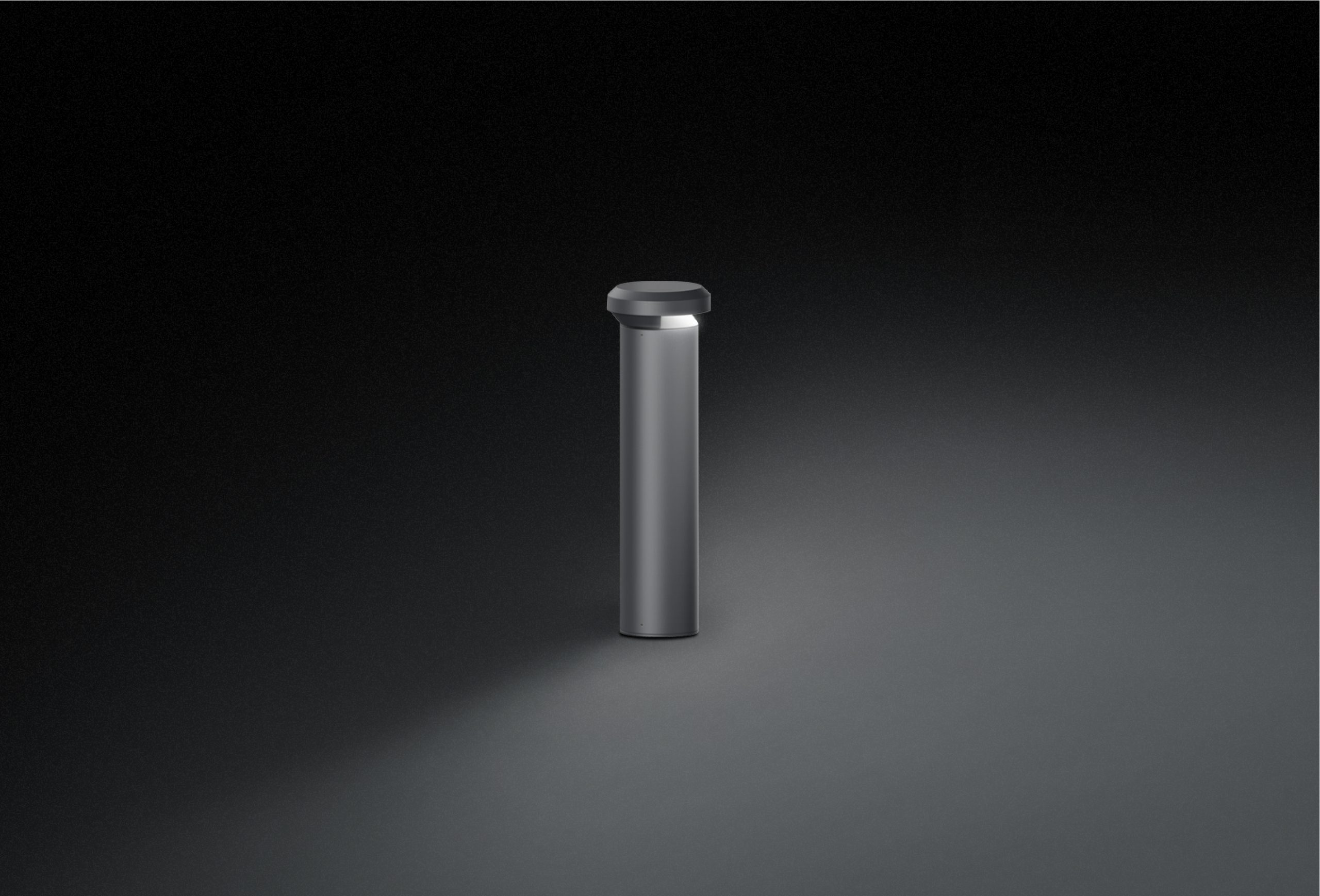

180° Asymmetrical Beam

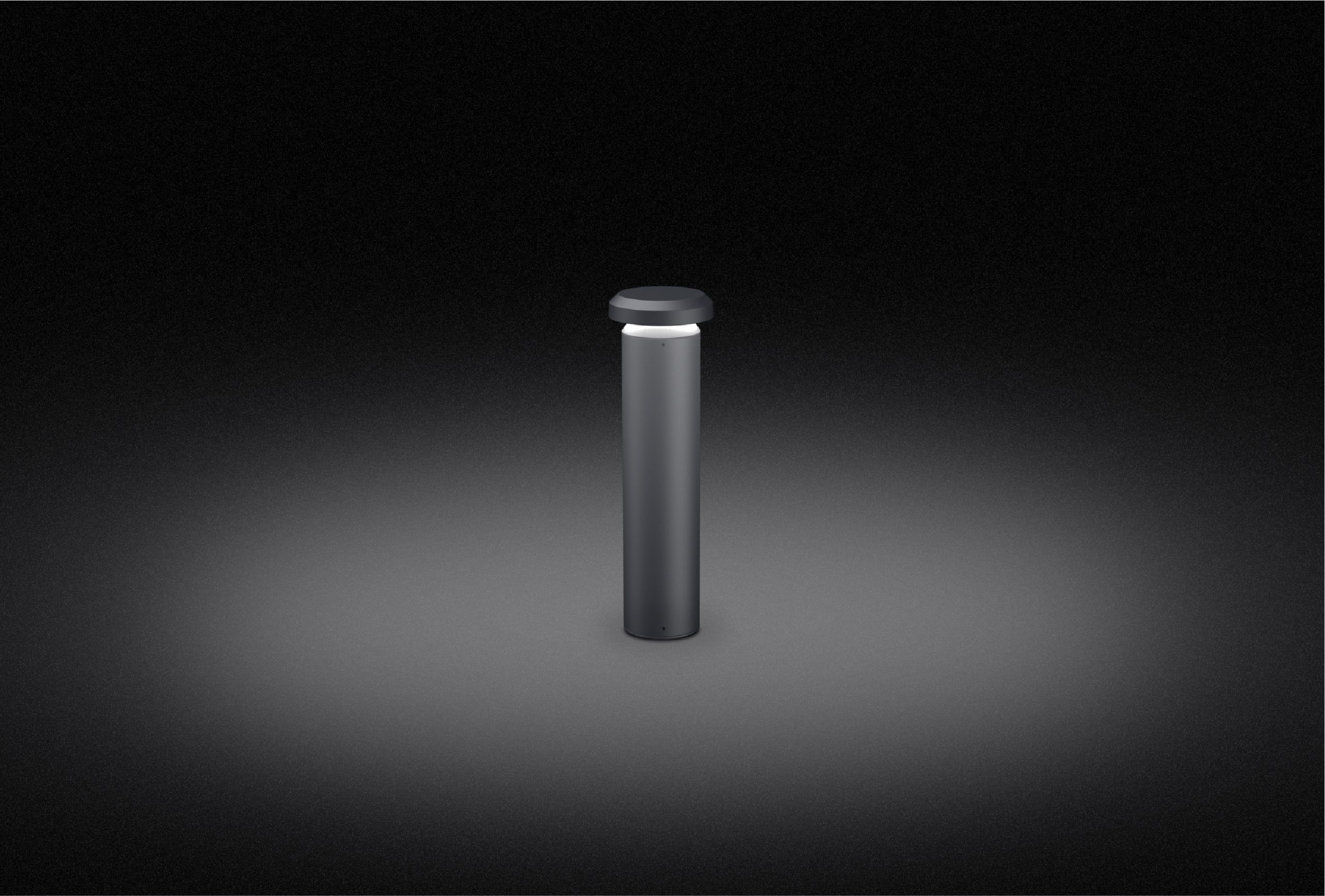

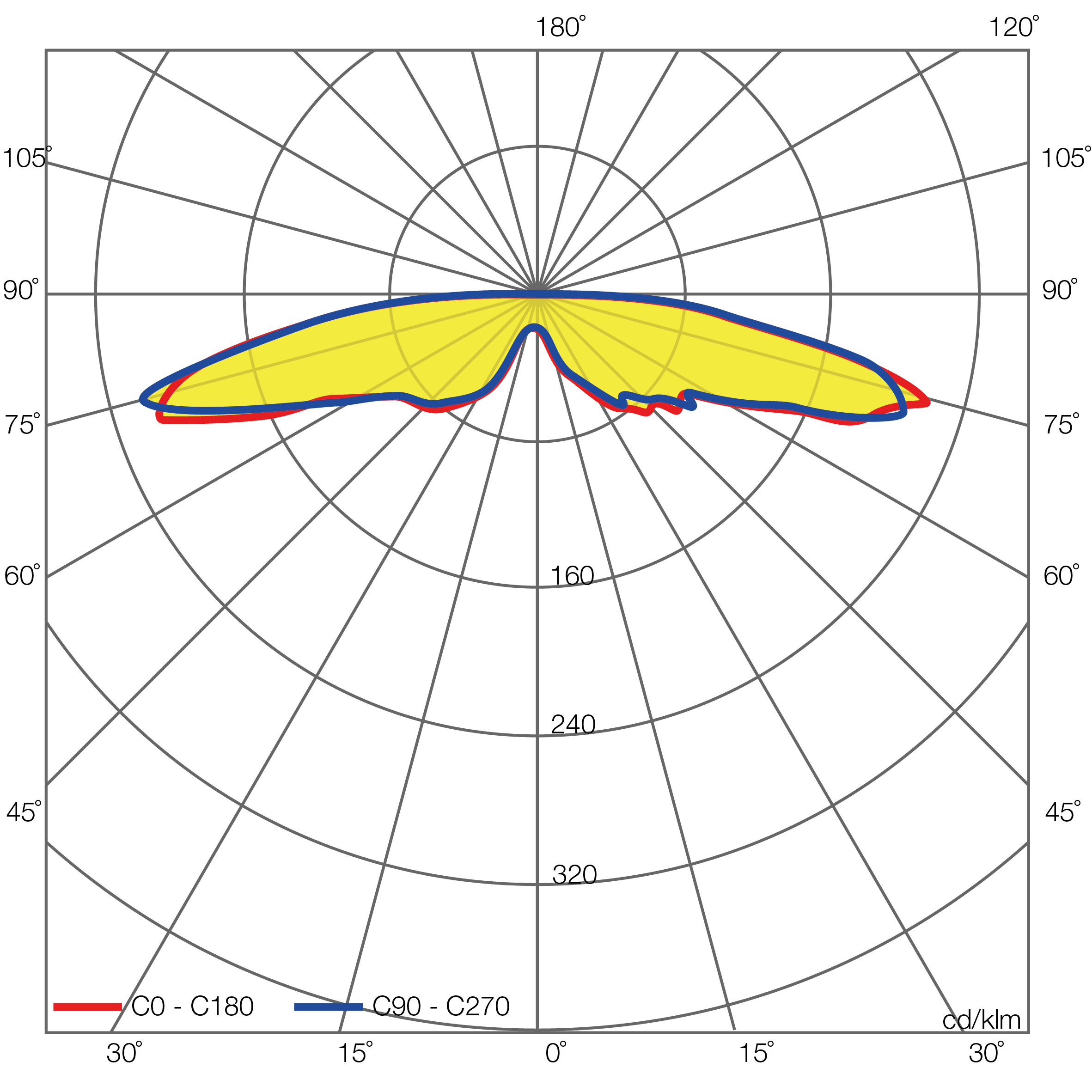

360° Symmetrical Beam
Optical Features
Excellent visual comfort: The full cut-off version eliminates luminous intensity for angles greater than 90°, directing the entire flux to the ground, in accordance with the most stringent constraints of the laws against pollution.
No shadow at the base: Illuminate the horizontal plane by eliminating the shadow at the base and perfectly patterning the light, from the points closest to and farthest from the pole uniformly.
High luminous uniformity: High luminous uniformity and high interdistance, obtaining a perfect effect with an efficient system, allowing a better and sustainable use of lighting.
180° Asymmetrical Beam
360° Symmetrical Beam
Product Variants
Product Codes
AL93XX/X XX XXX
AL9301/120830
Symmetrical beam, height option 1 (900mm), 20W, Ra83/3000K
AL9302/124840
Asymmetrical beam, height option 1 (900mm), 24W, Ra83/4000K
