Counterbalance Unitsprod

The Abacus range of counterbalance units is perfectly suited to allow for flexible choices for cost efficiency for every scenario.

Light duty columns can be operated with spring counterbalances as a more cost-effective solution for lower quantities, whilst the hydraulic version can also be used and is ideally suited to larger quantities especially where column sizes and headloads are mixed.

Medium and Heavy duty columns are operated by hydraulic units, again with options available for the most cost-effective solution.

Counterbalance units can be purchased as required or alternatively Abacus also offers the hire of units for when this is a more cost-effective solution.

All persons must have completed an Abacus training course relevant to the unit this will be using prior to operation.  Training can be booked via our main sales office so please get in touch.



East Midlands Parkway

RLS168

The spring unit, type RLS168, is available in a range of coloured springs. Each spring type has a given capacity, based on the column height and maximum safe working load.

Product Code Safe Working Load (kg) Counterbalance Weights (kg)
4m 5m 6m 8m
RLS168-Yellow 18 11 0 22
RLS168-White 28 19 11 23
RLS168-Red 38 28 19 23.5
RLS168-Blue 53 40 29 11 25
RLS168-Green 17 26.5
RLH168 53 40 29 17 40

Learn more about the Light Duty Raising and Lower Column range here.

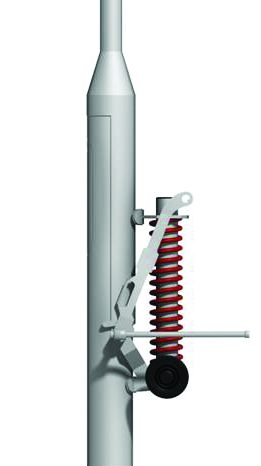

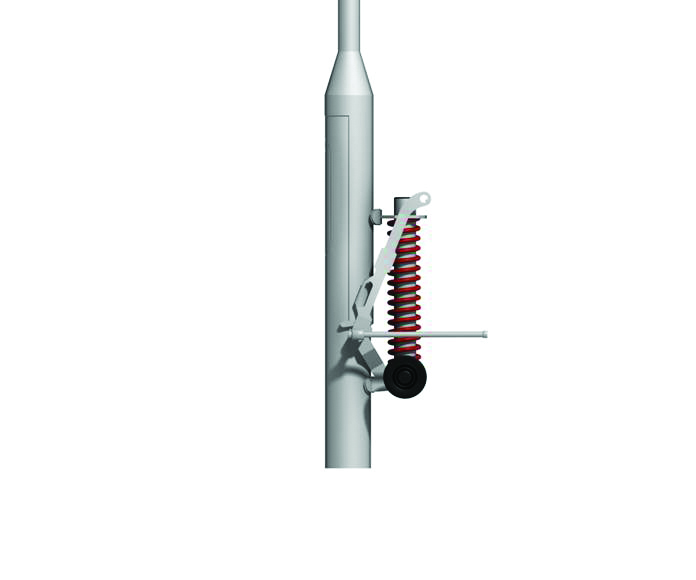

Raised Position

Raised Position

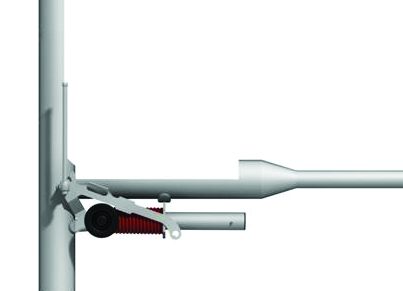

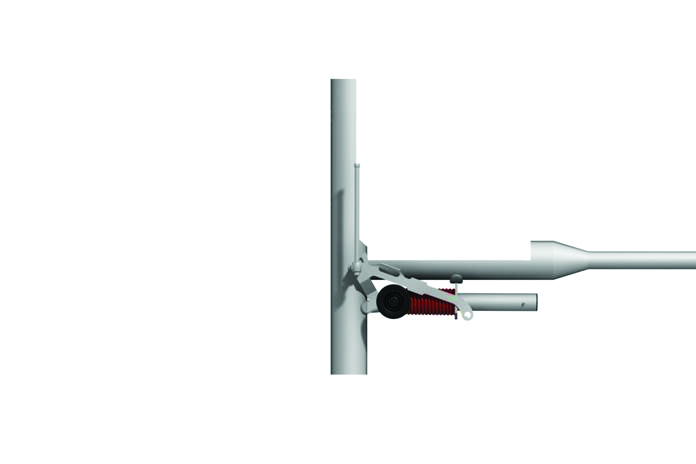

Lowered Position

Lowered Position

RLH168 & RLH168/COMPACT

This hydraulic unit is popular with companies who have multiple column heights and headloads on one site or over a number of sites.  The advantage is that it can operate the full column range regardless of height and headload.

Learn more about the Light Duty Raising and Lower Column range here.

Learn more about the Medium Duty Raising and Lower Column range here.

Lowered Position

Lowered Position

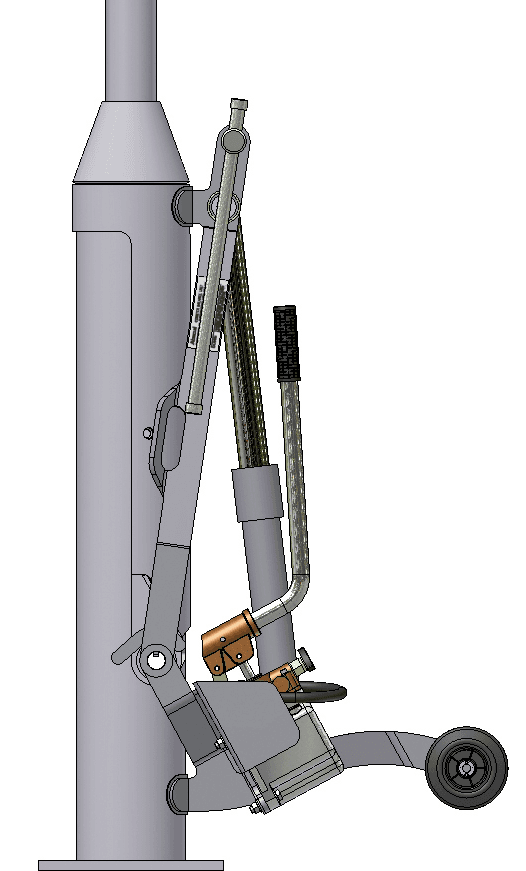

Raised Position

Raised Position

RLH1M & RLH2M

The two manually operated units, RLH1M (light loads only) and RLH2M are designed to lower and raise the columns in a safe, simple and efficient manner.

Learn more about the Heavy Duty Raising and Lower Column range here.

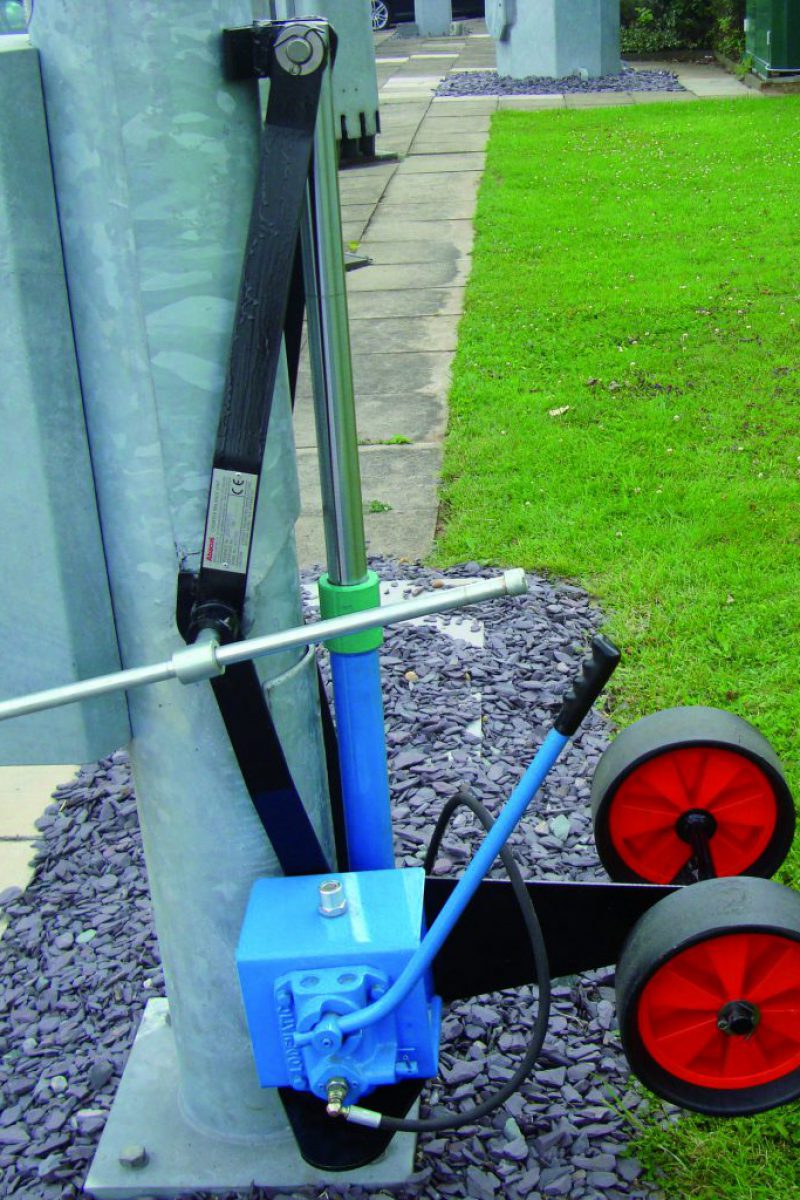

RLH1M

RLH1M

RLH2M

RLH2M

RLH1M & RLH2M

The two manually operated units, RLH1M (light loads only) and RLH2M are designed to lower and raise the columns in a safe, simple and efficient manner.

Learn more about the Heavy Duty Raising and Lower Column range here.

RLH1M

RLH1M

RLH2M

RLH2M

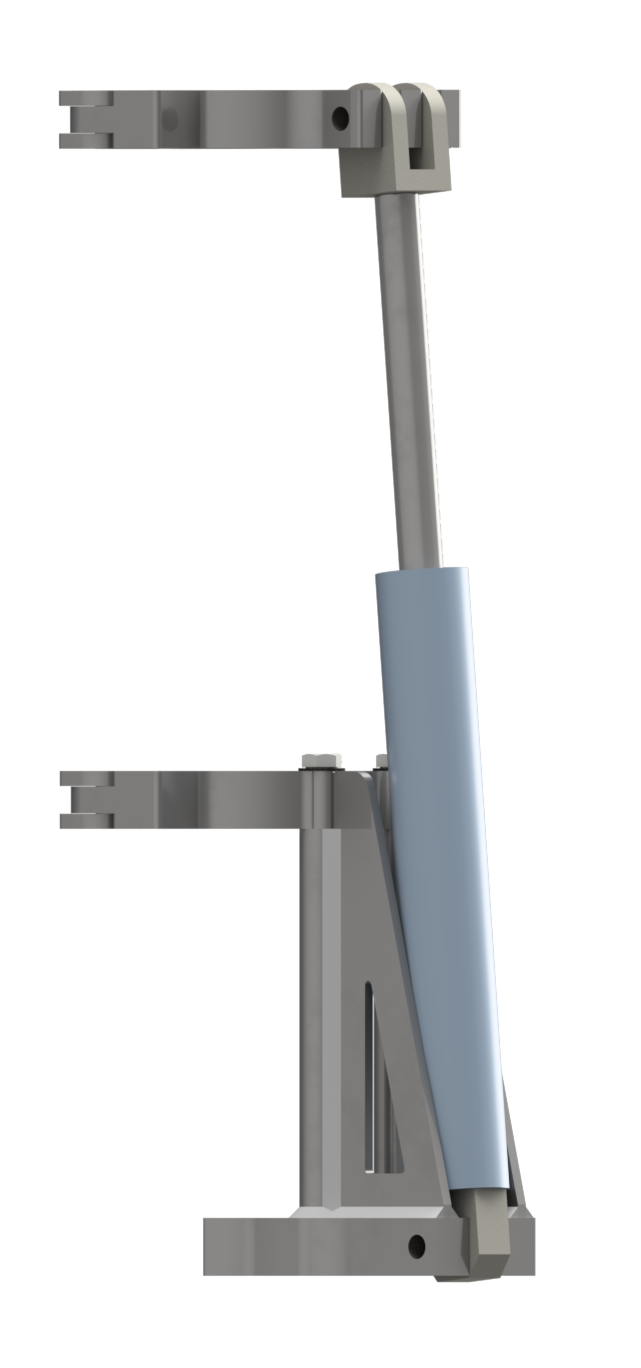

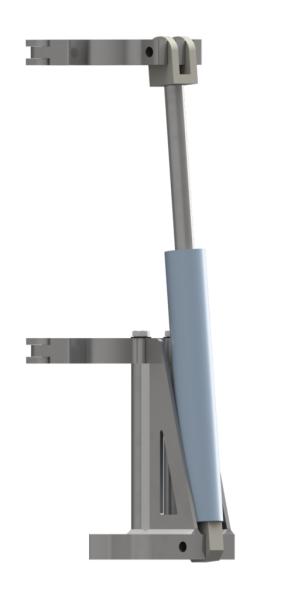

YH/HYD/TOOL/76 (York Hinge)

The 76 diameter York Hinge unit is compatible with pump of our exsting RLH168/COMPACT.  Existing RLH168/COMPACT customers can purchase the the ram only upon request.

Learn more about the York Hinge system itself here.

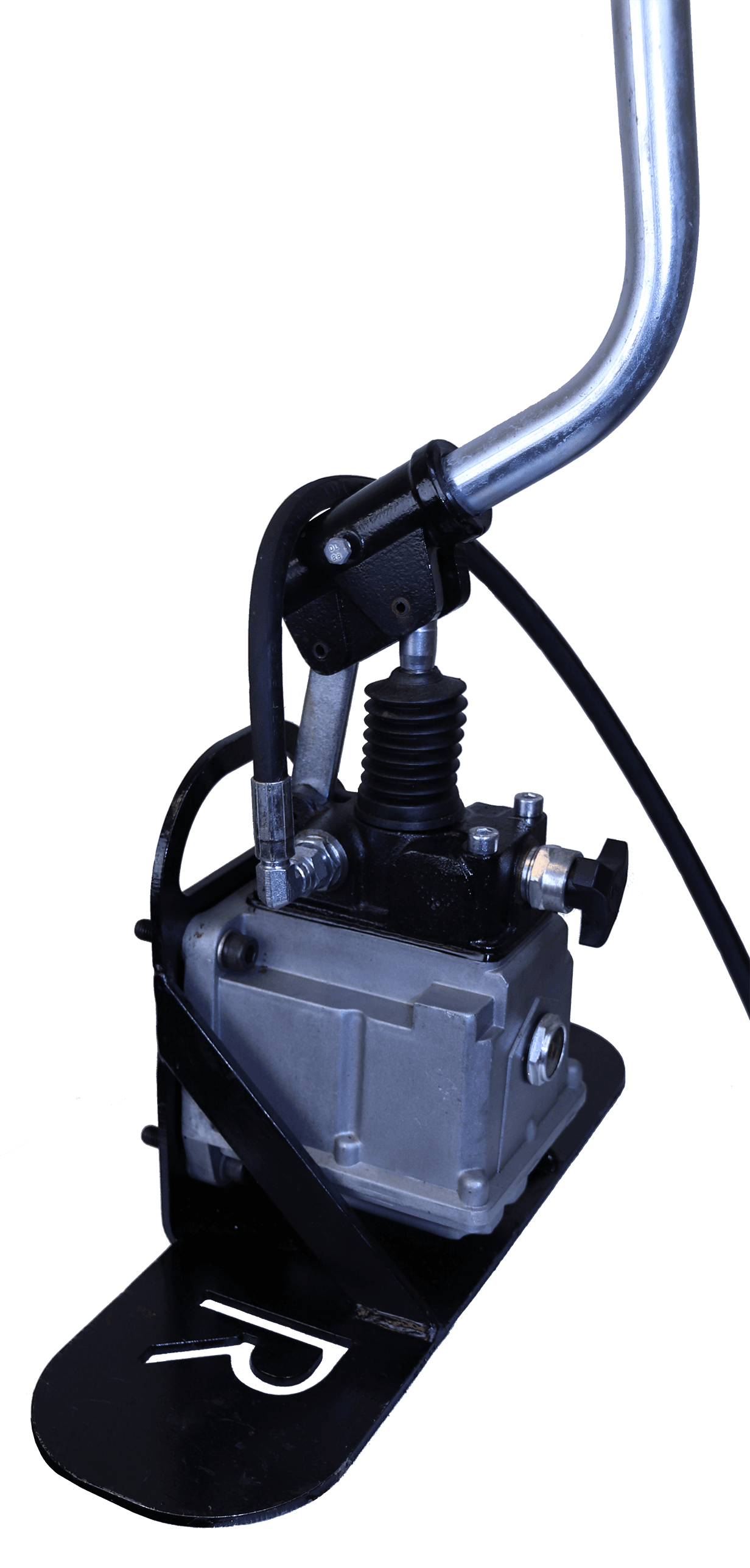

RLH168-COMPACT
YH_HYDTOOL_76

YH/HYD/TOOL/76 (York Hinge)

The 76 diameter York Hinge unit is compatible with pump of our exsting RLH168/COMPACT.  Existing RLH168/COMPACT customers can purchase the the ram only upon request.

Learn more about the York Hinge system itself here.

RLH168-COMPACT
YH_HYDTOOL_76

YH/PNE/TOOL/48 (York Hinge)

The 48 diamerter unit does not require a separate pump unit and can be lowered by hand safely due to the reduced column size and weight.

Learn more about the York Hinge system itself here.

YH_MINI_TOOL

YH/PNE/TOOL/48 (York Hinge)

The 48 diamerter unit does not require a separate pump unit and can be lowered by hand safely due to the reduced column size and weight.

Learn more about the York Hinge system itself here.

YH_MINI_TOOL
